Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

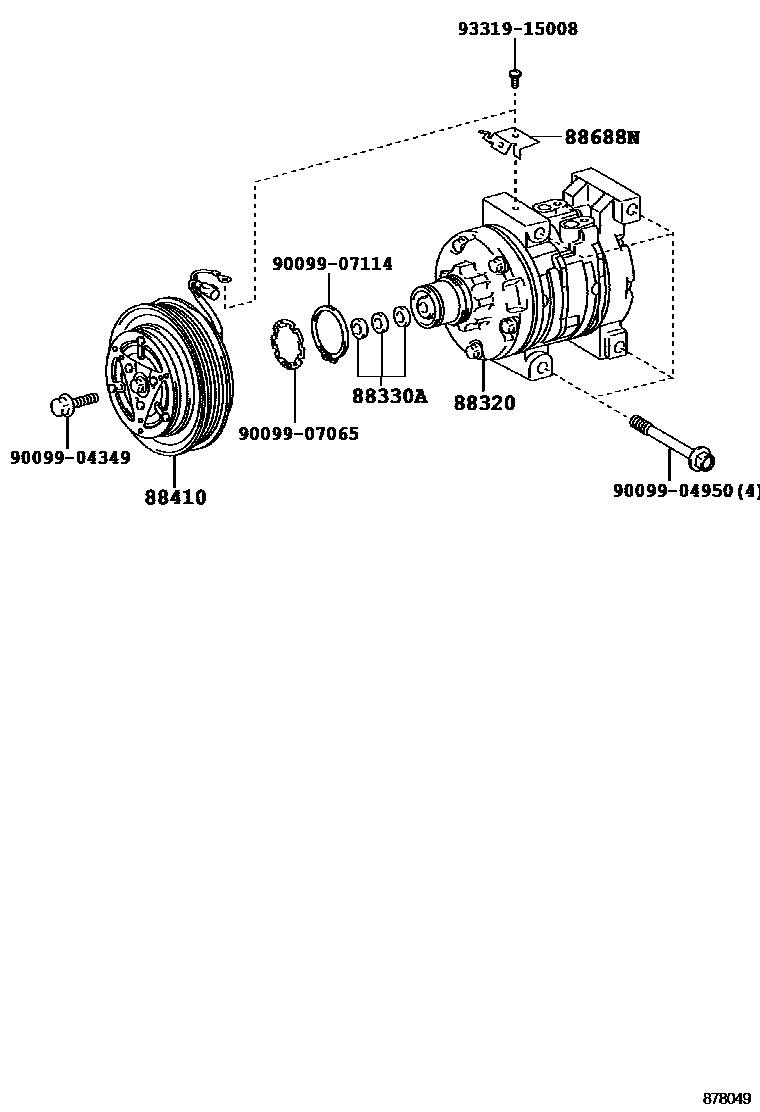

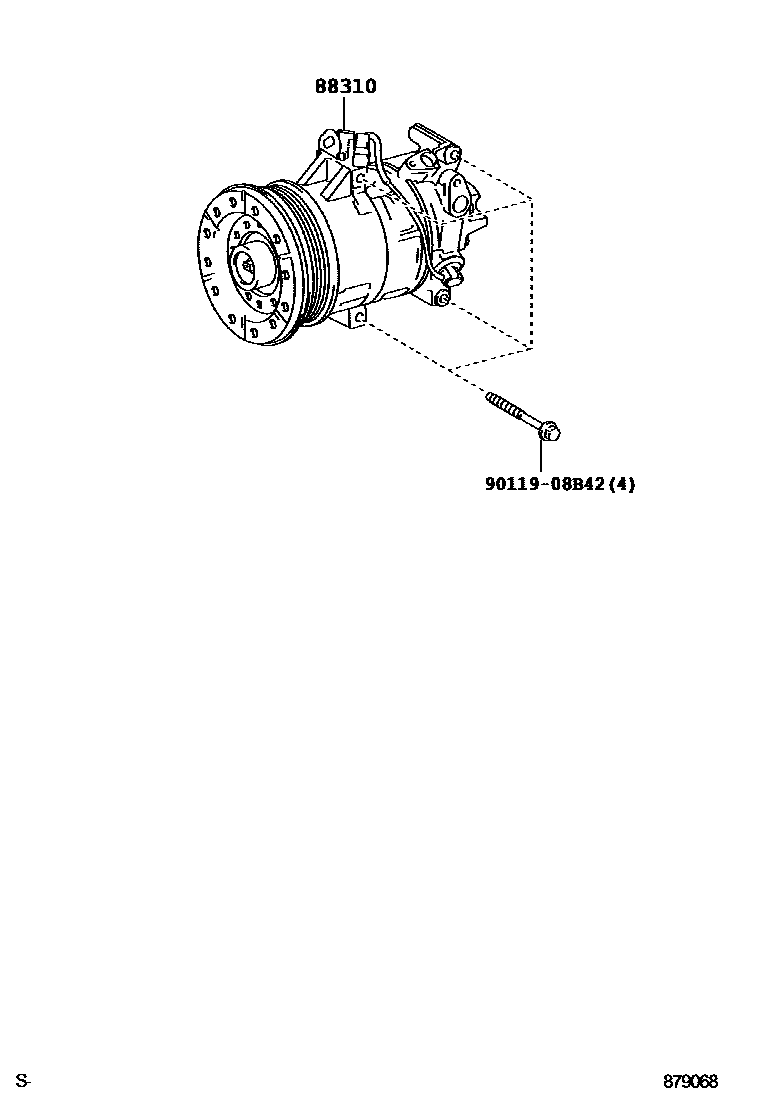

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-0D241 |
| 88320 | Cooler Compressor Assembly | 88320-0D020 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 · 88335-30420 |
| 88410 | Magnetic Clutch Assembly | 88410-0D100 · 88410-0D130 · 88410-0D160 |
| 88688N | cooler bracket | 88688-25200 |
