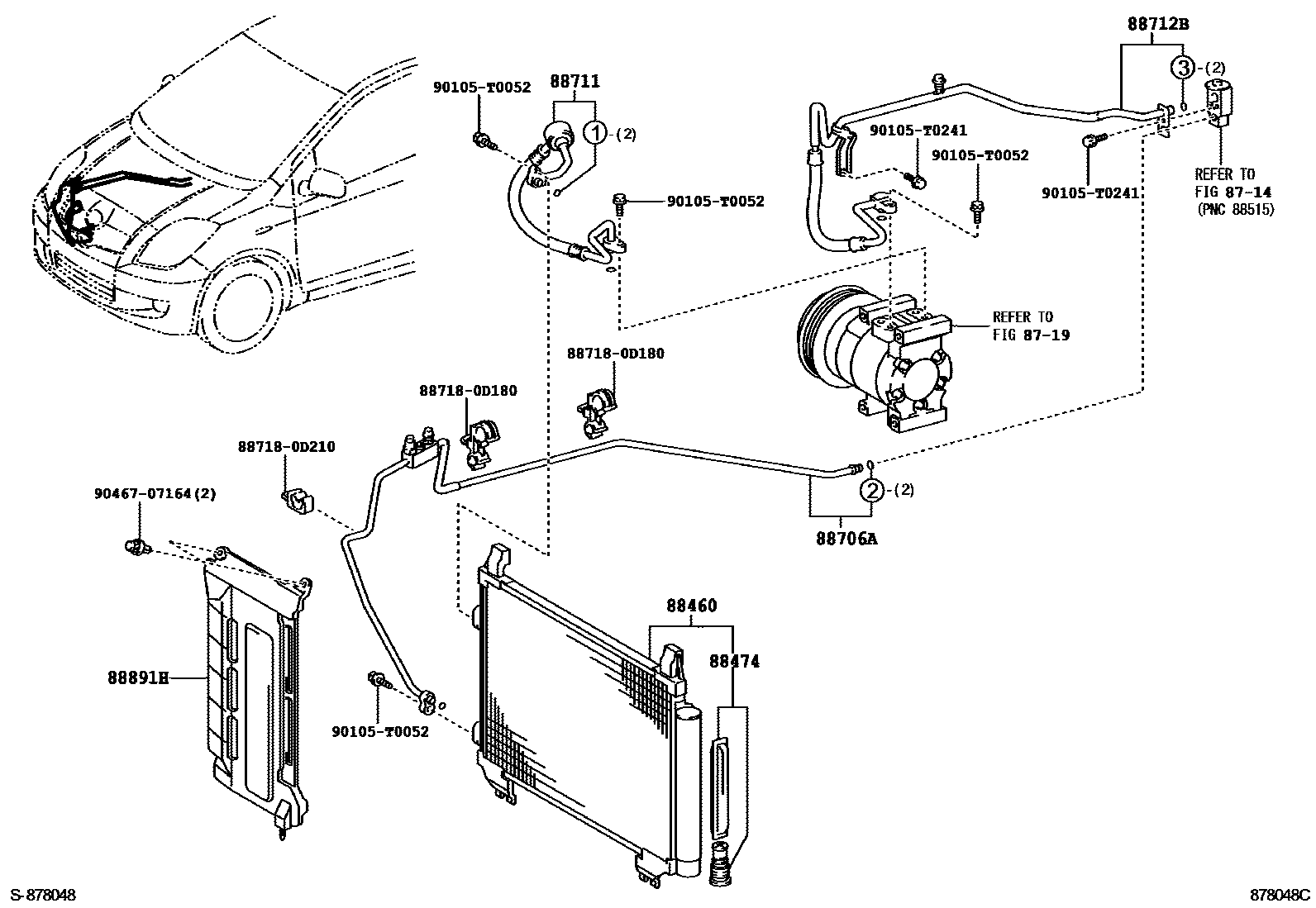

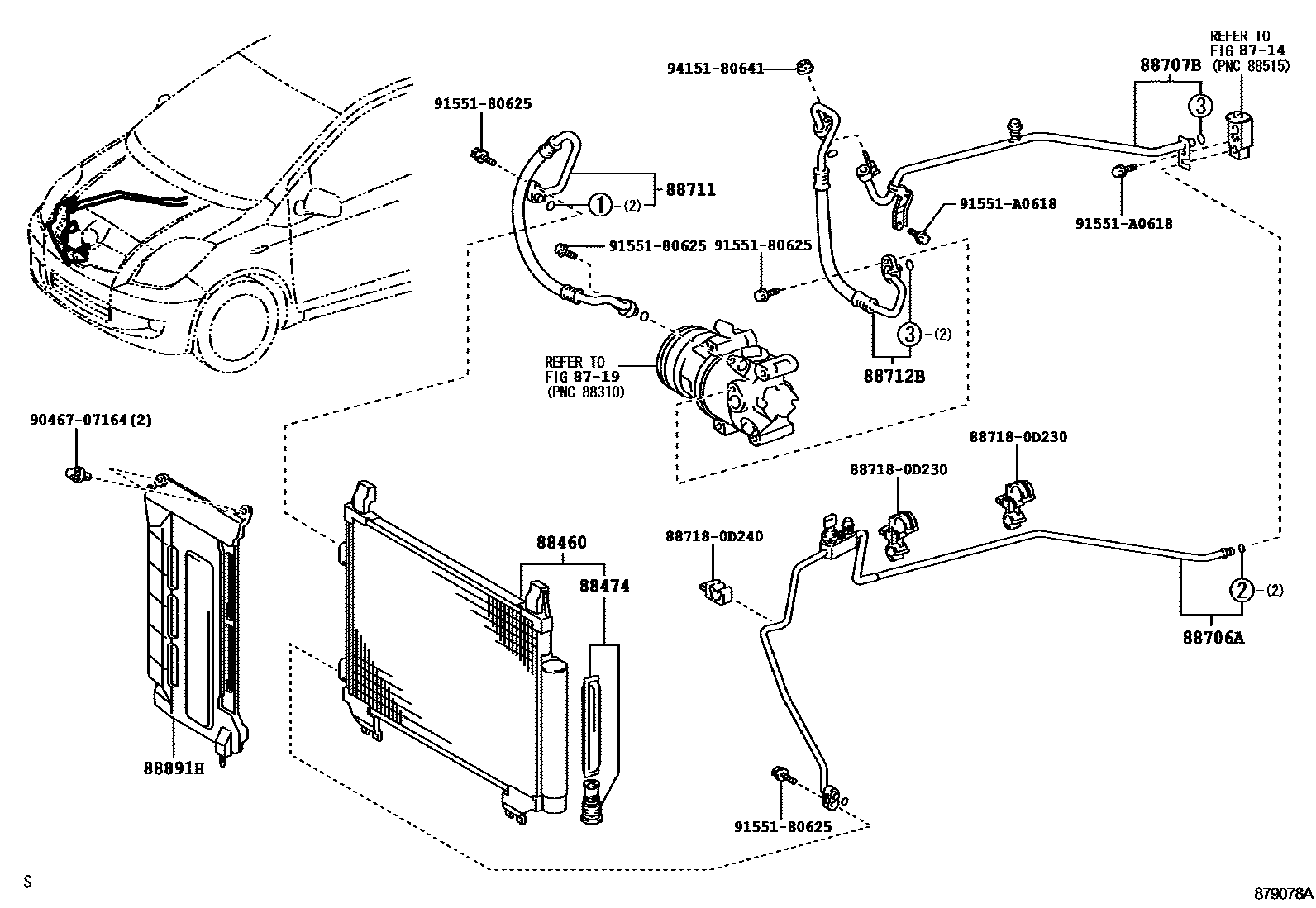

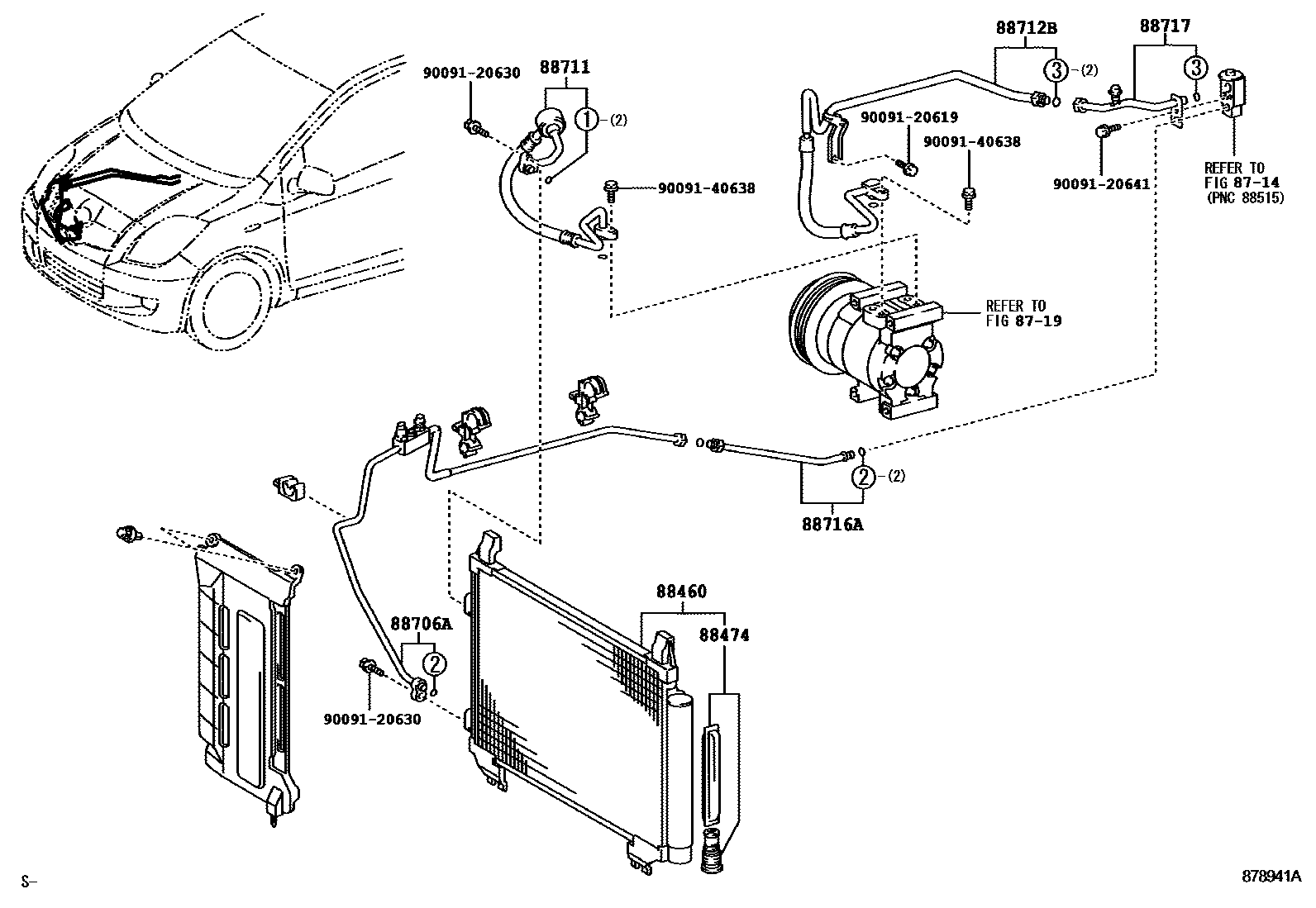

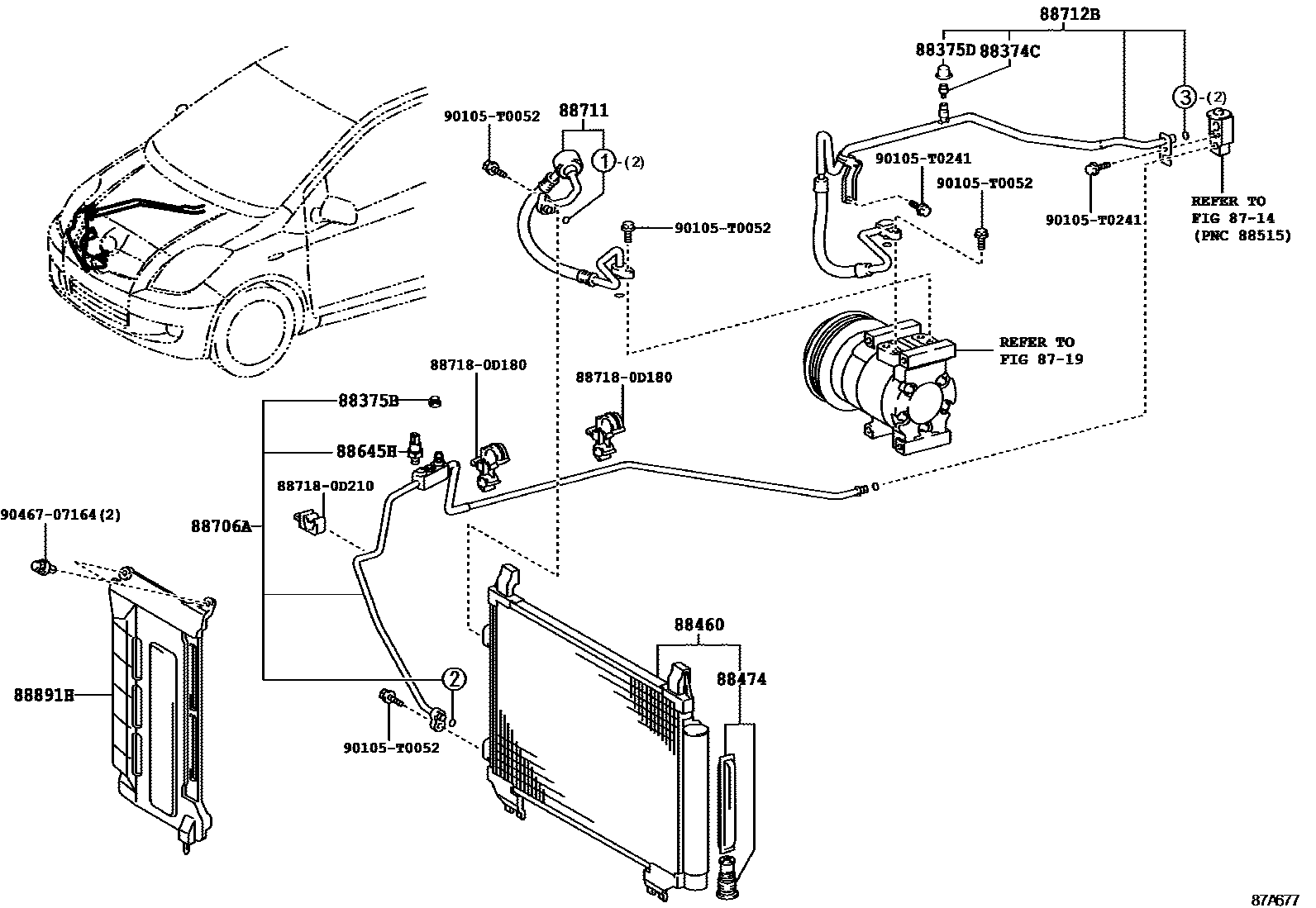

Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-0D070 · 88460-0D080 · 88460-0D130 · 88460-0D180 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88706A | Liquid pipe A sub-assembly | 88706-0D220 · 88706-0D230 · 88706-0D240 |
| 88707B | Suction pipe B sub-assembly | 88707-0D090 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0D150 · 88711-0D160 |
| 88712B | Cooler refrigerant suction hose | 88704-0D050 · 88712-0D190 · 88712-0D210 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0D240 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88717-0D080 |
| 88891H | Cooler cover No. 1 | 88891-0D080 · 88891-0D090 |
