Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

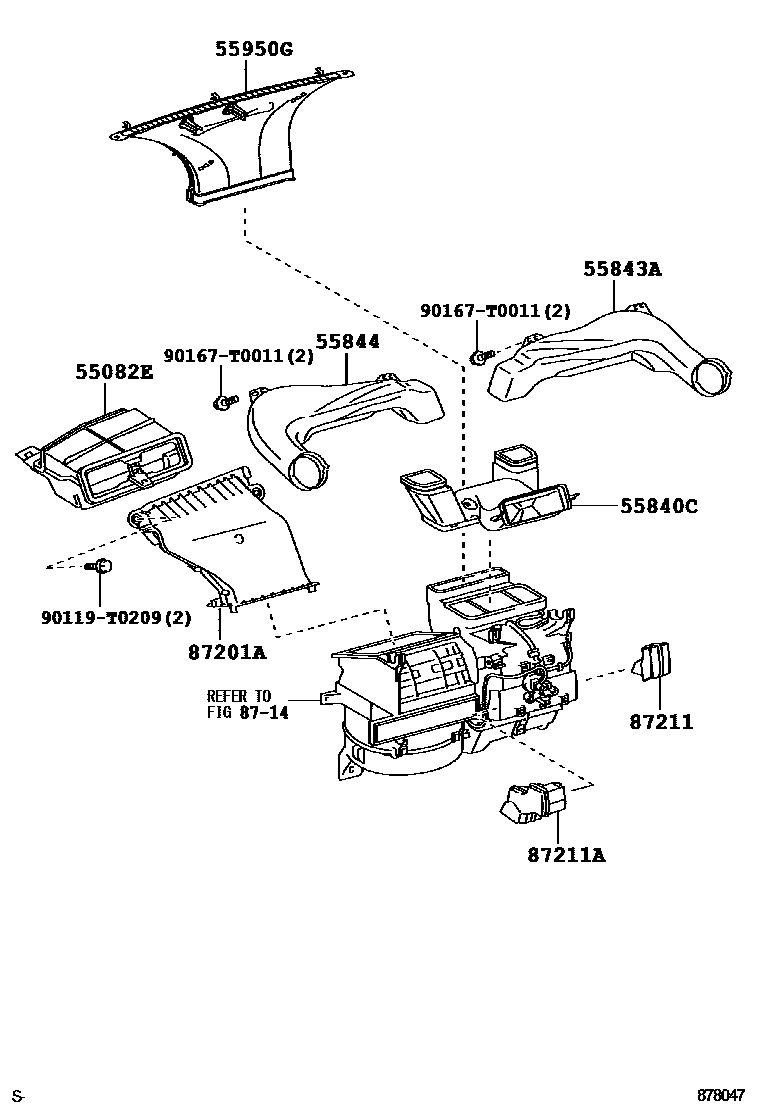

| 55082E | Air duct sub-assembly from front wall to air register No. 2 | 55081-0D050 · 55081-52010 · 55082-0D020 |

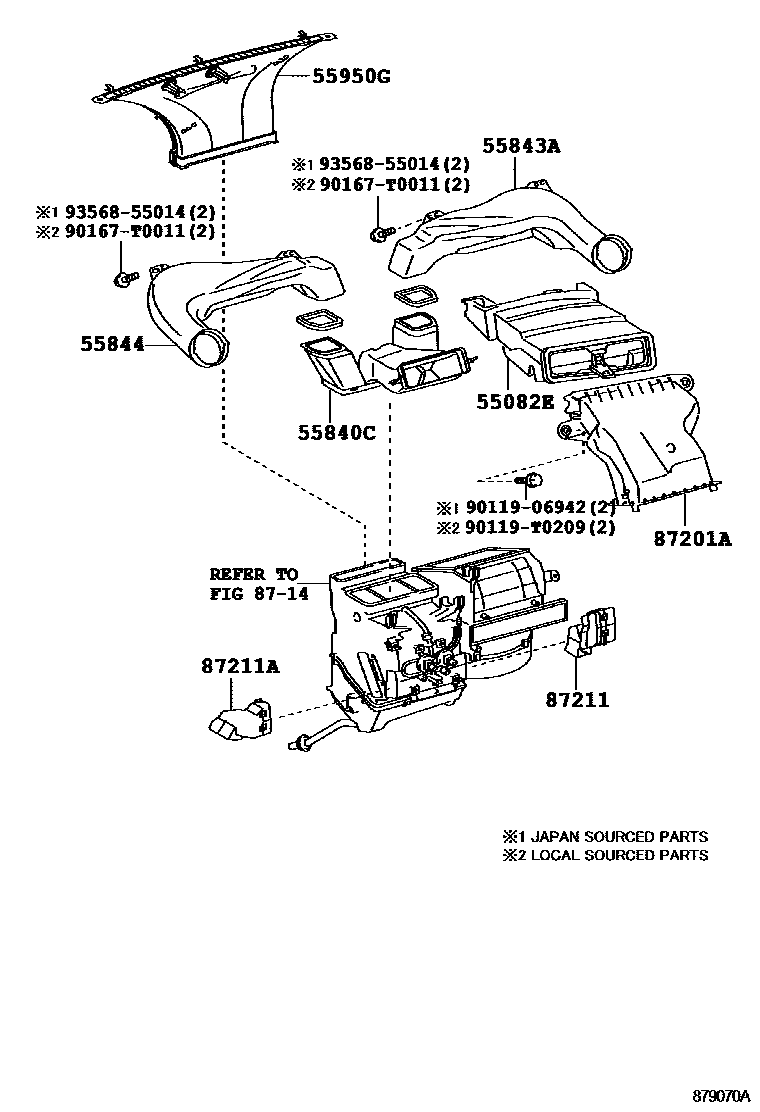

| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-0D030 · 55840-0D040 · 55840-52010 · 55840-52020 |
| 55843A | Air duct No. 1 from heater to air register | 55844-0D100 · 55844-0D150 |
| 55844 | Air duct No. 2 from heater to air regulator | 55843-0D100 · 55843-0D180 · 55843-52170 |

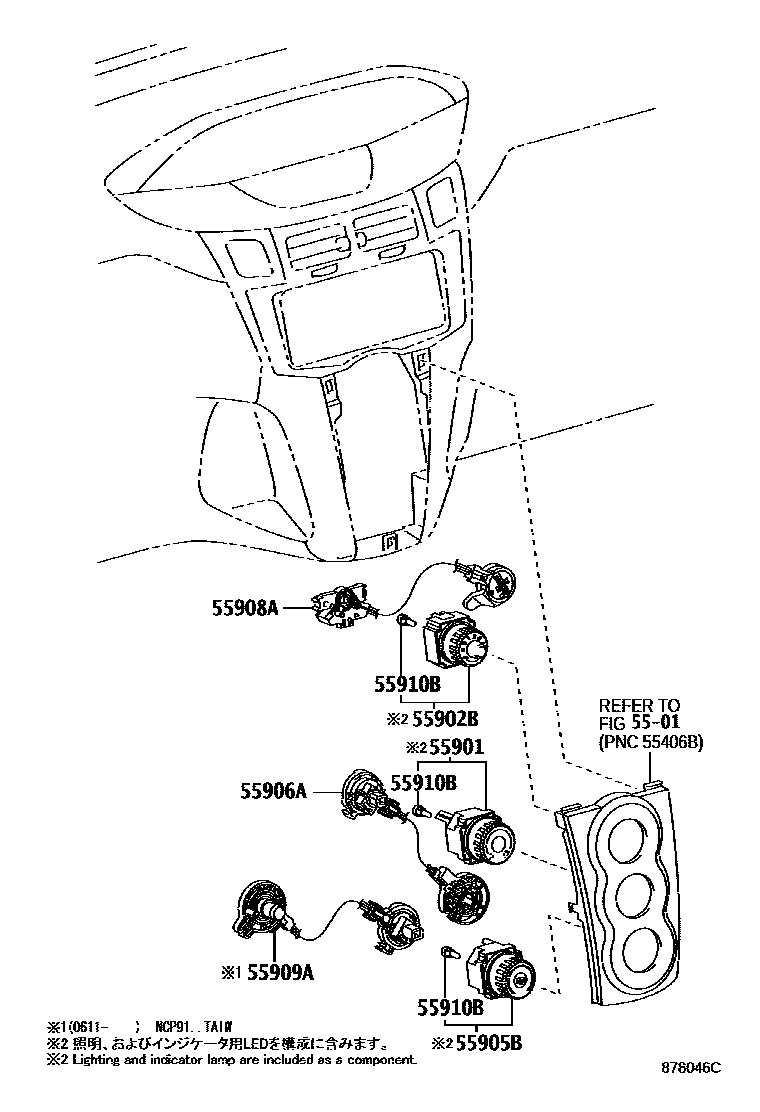

| 55901 | Heater controller base sub-assembly | 55901-0D030 · 55901-0D040 · 55901-0D050 · 55901-0D060 · 55901-0D100 · 55901-0D170 · 55901-0D180 · 55901-0D190 · 55901-0D240 · 55901-52120 · 55901-52160 |
| 55902B | Heater control sub-assembly | 55902-0D020 · 55902-0D030 · 55902-0D040 · 55902-0D050 · 55902-0D140 · 55902-0D150 · 55902-0D210 · 55902-0D220 · 55902-52010 · 55902-52030 |
| 55905B | Heater control button 2 | 55903-0D030 · 55903-0D040 · 55903-0D050 · 55903-0D060 · 55903-0D100 · 55903-0D170 · 55903-0D180 · 55903-0D210 · 55903-0D240 · 55903-52070 · 55903-52120 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0D070 · 55906-52132 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0D080 · 55908-0D090 · 55908-52120 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52120 |
| 55910B | heater control light bulb | 90010-01112 · 90010-01113 |

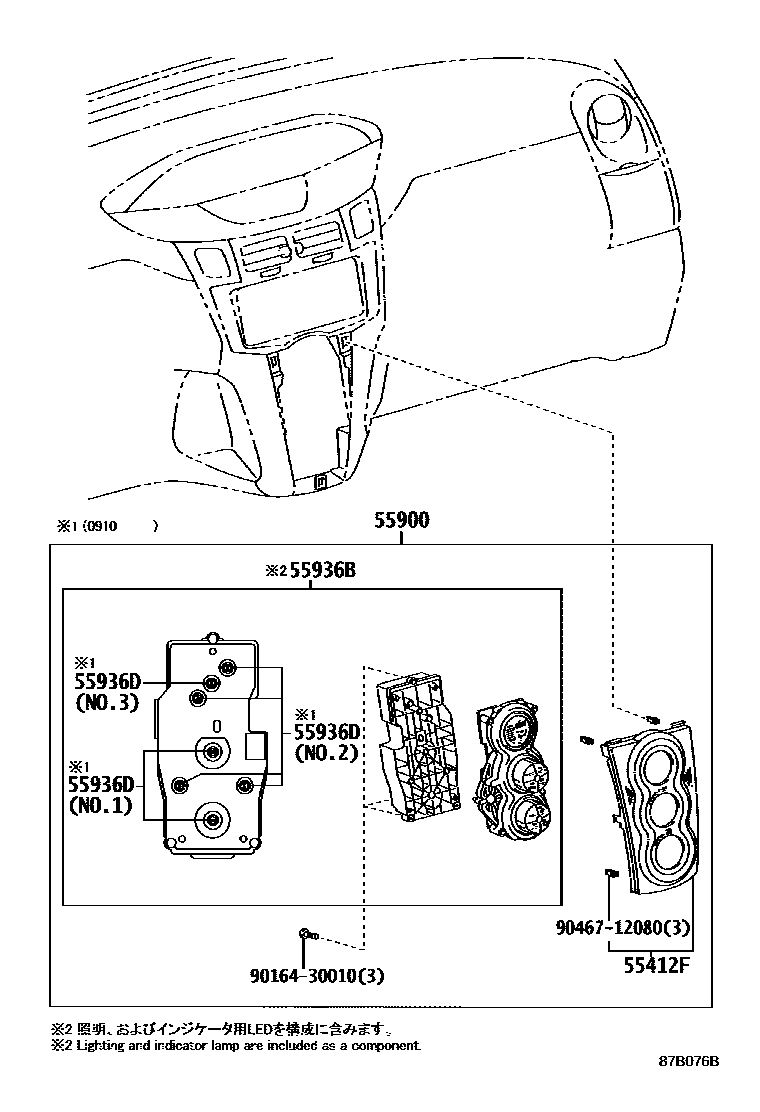

| 55936B | Central instrument cluster module switch | 55936-52350 · 55936-52370 |
| 55936D | Center instrument cluster module switch bulb | 84999-52010 · 84999-52020 · 84999-52030 · 84999-52040 · 84999-52050 · 84999-52060 · 90010-01097 · 90010-01114 · 90010-01115 |
| 55950G | Defroster nozzle assembly | 55950-0D060 · 55950-0D090 |
| 87201A | Air duct sub-assembly | 87201-0D030 · 87201-0D040 · 87201-0D050 |
| 87211 | No. 1 air duct | 87211-0D050 · 87211-0D080 · 87211-0D100 |
| 87211A | Duct No. 2 | 87211-0D060 · 87211-0D070 · 87211-0D071 · 87211-0D090 · 87211-0D091 |

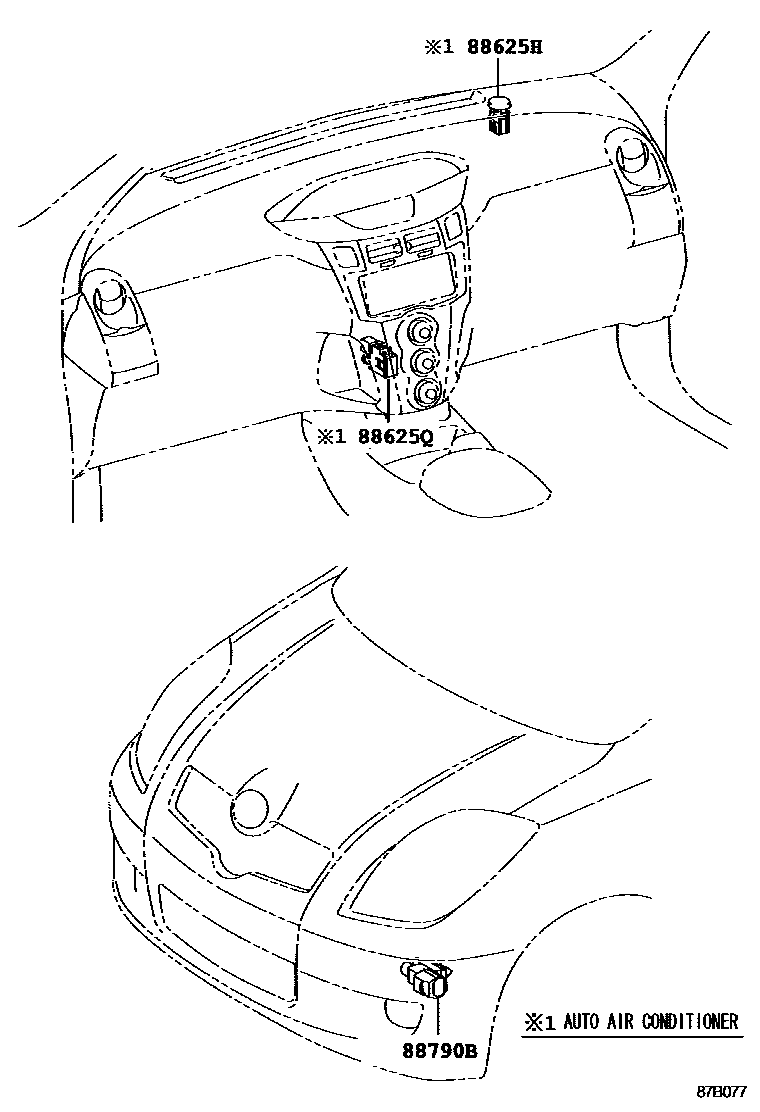

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-22131 |
