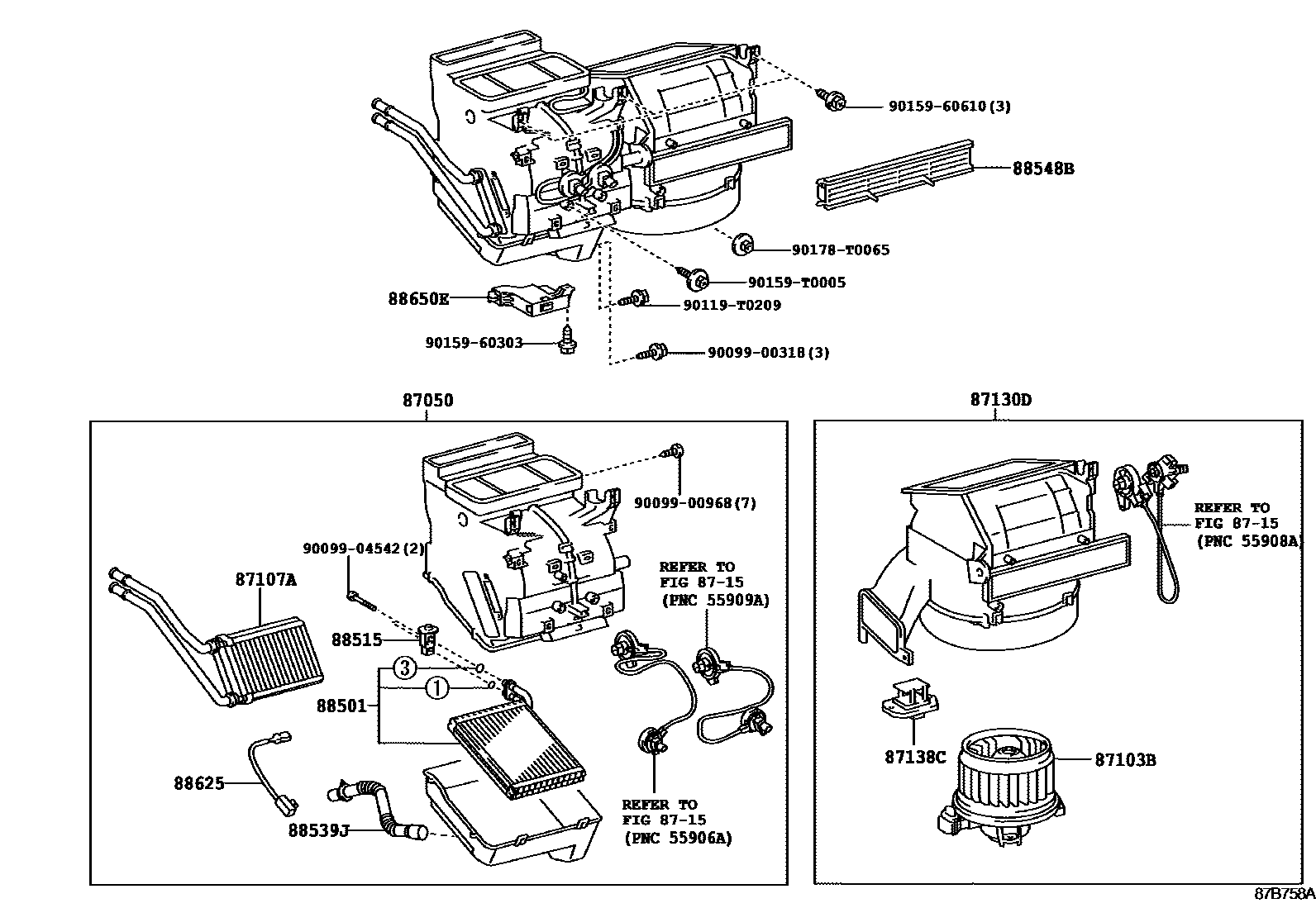

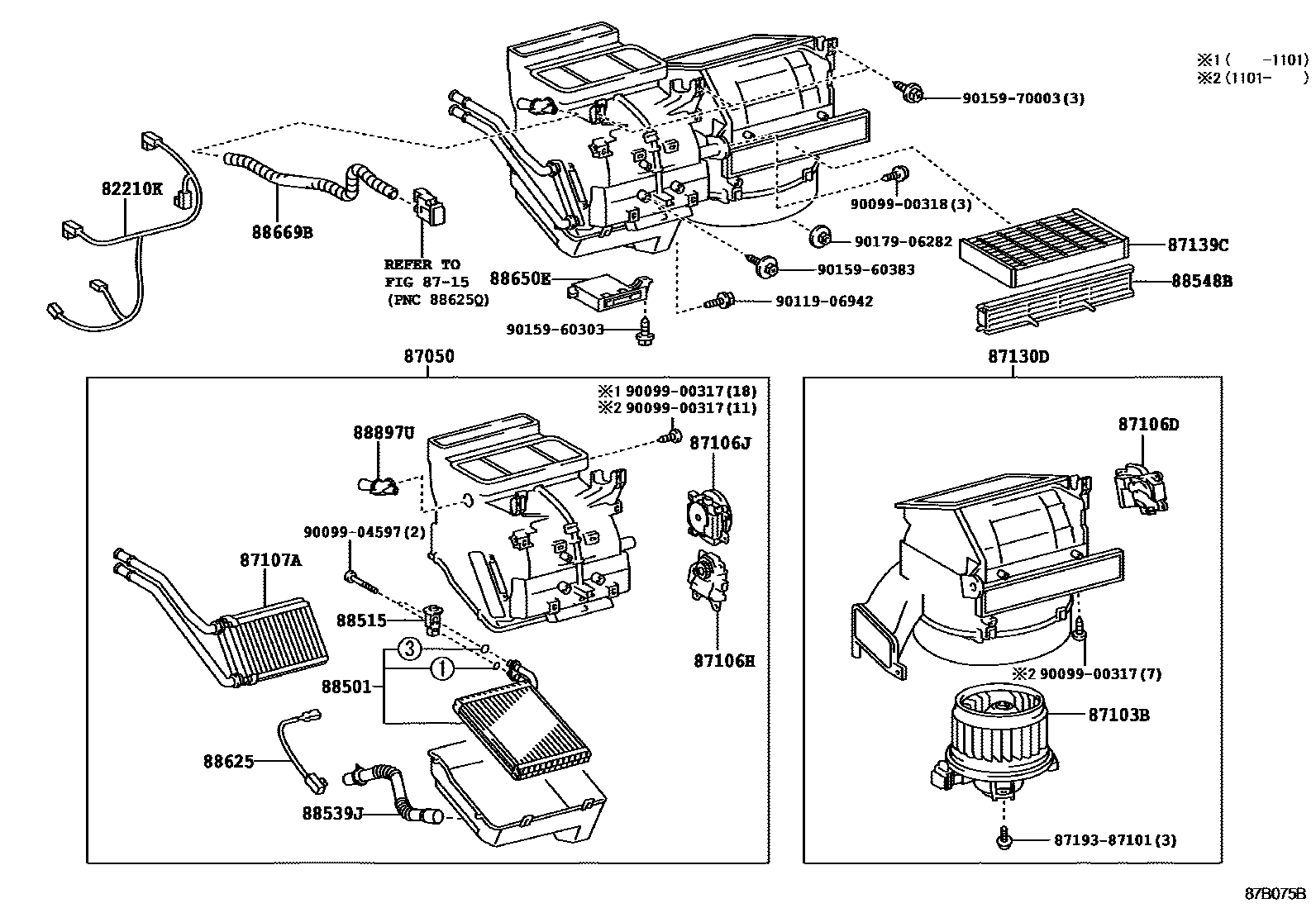

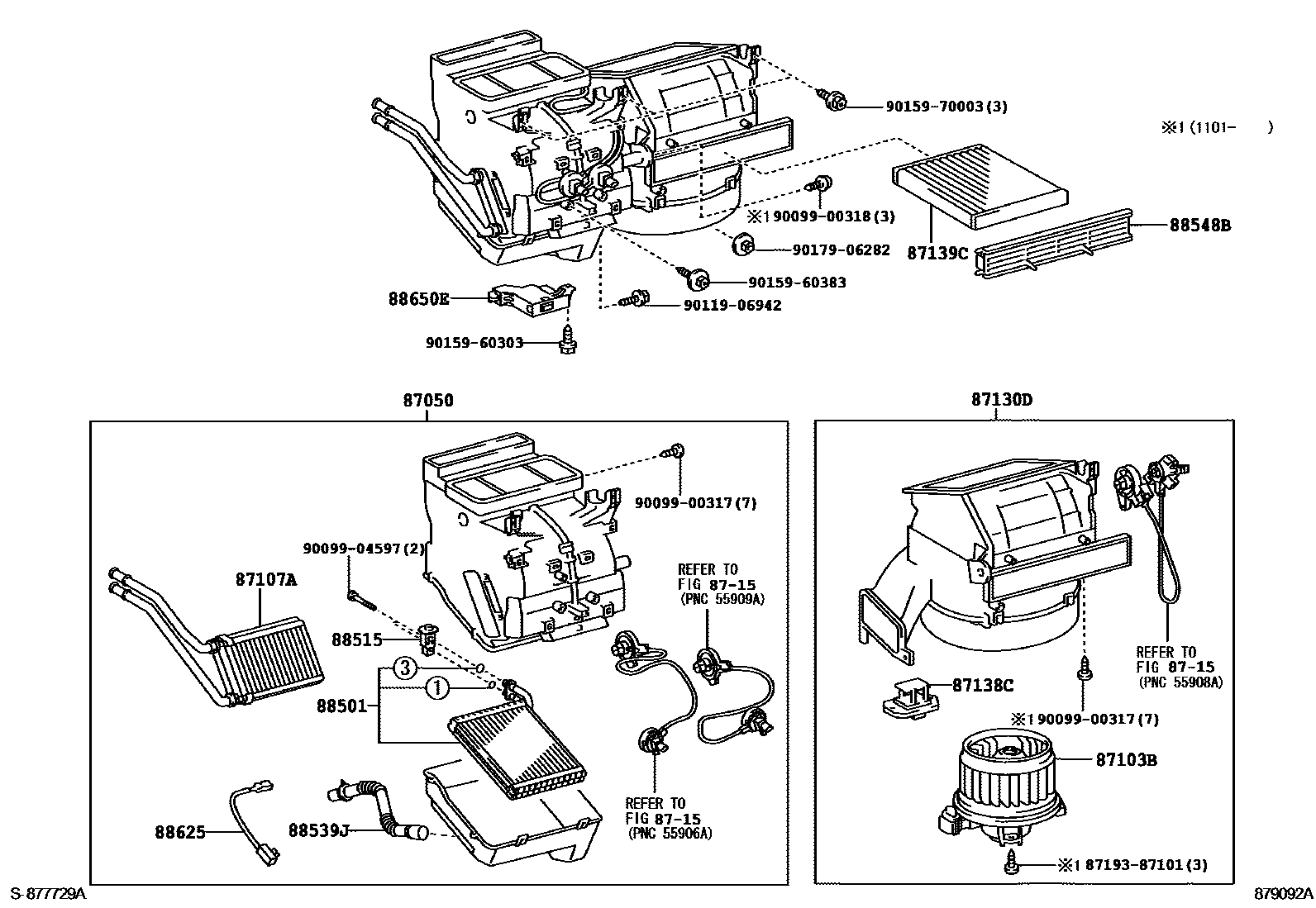

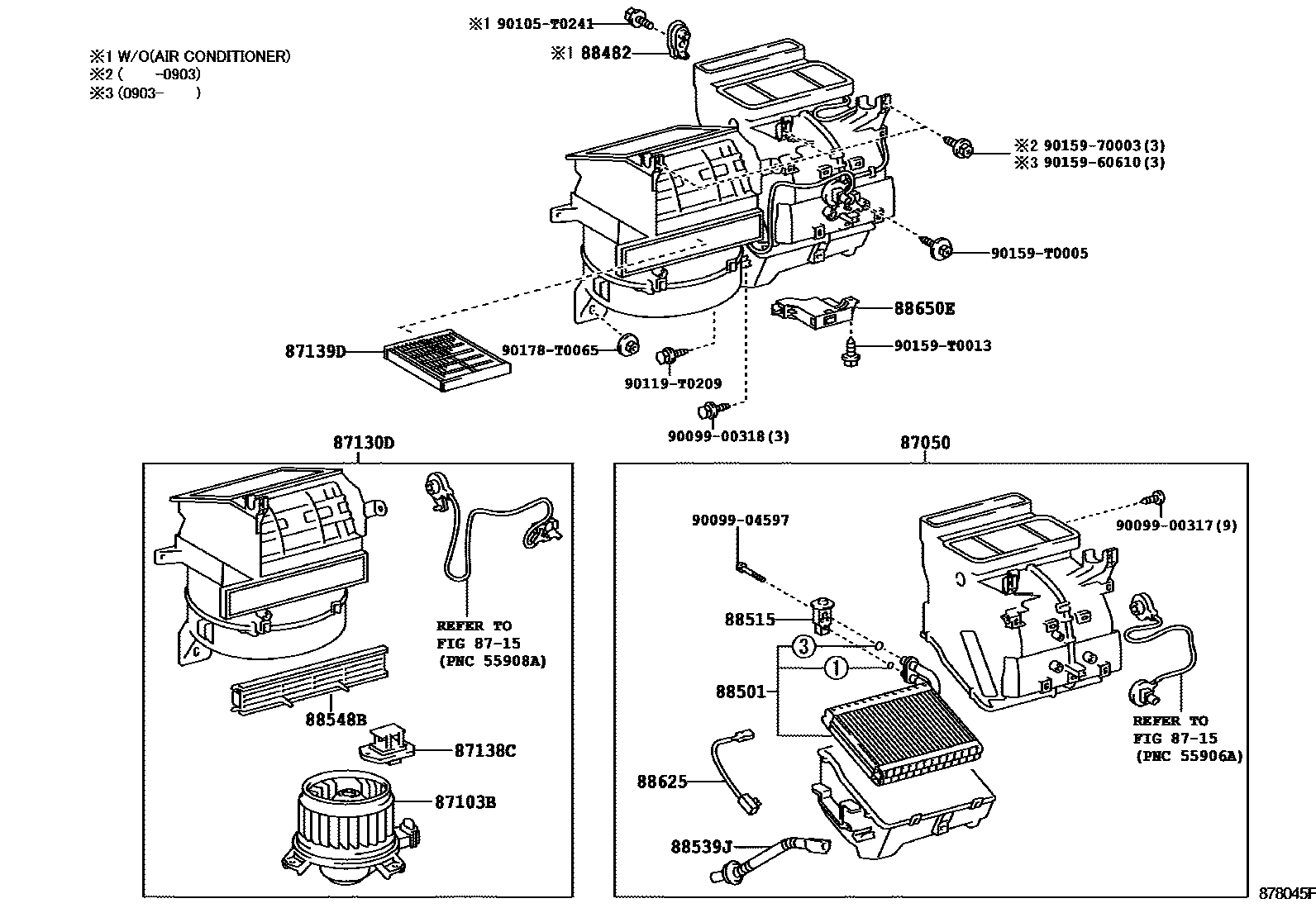

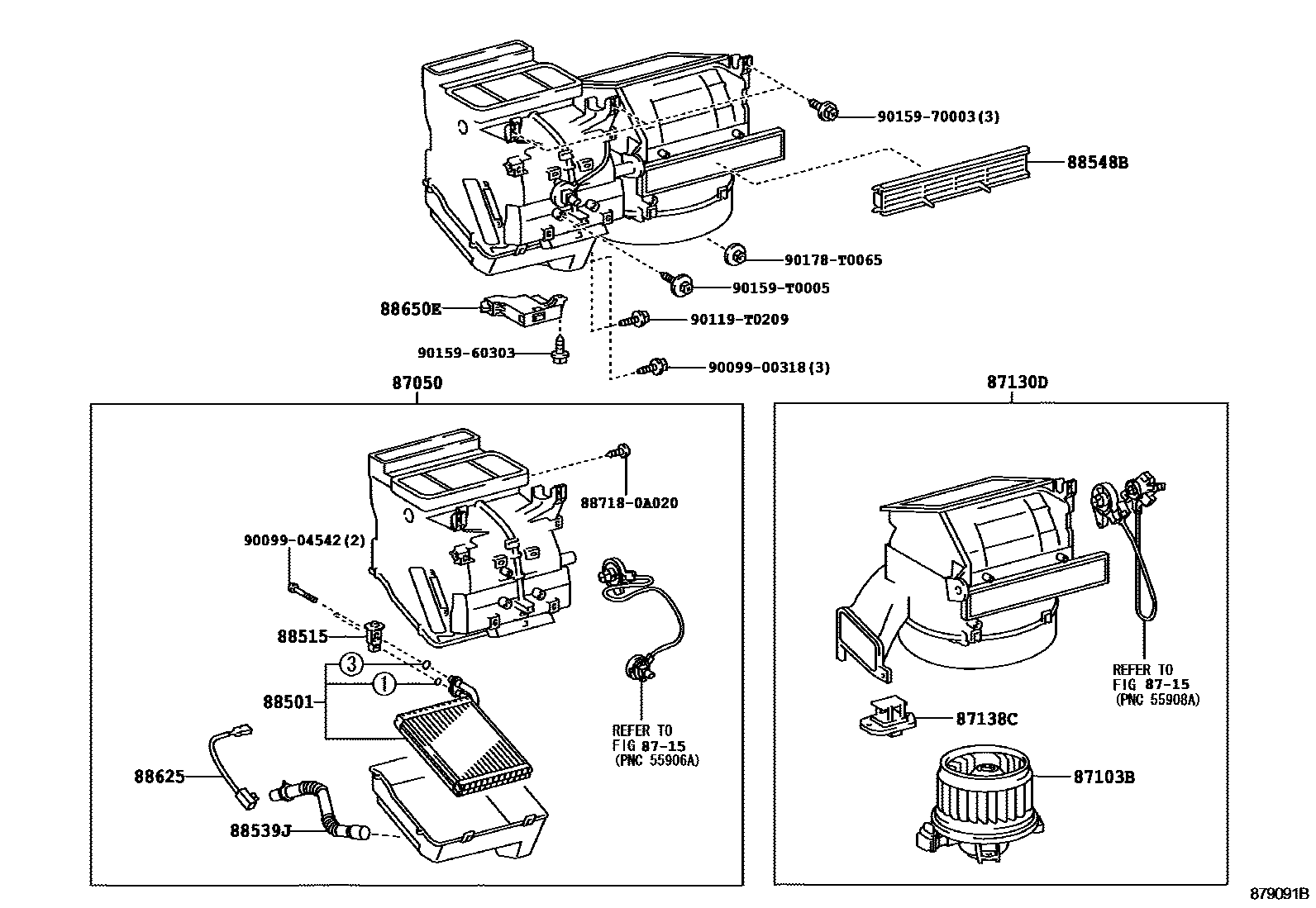

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-52040 |
| 87050 | Air conditioning radiator assembly | 87050-0D111 · 87050-0D112 · 87050-0D120 · 87050-0D130 · 87050-0D160 · 87050-0D220 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D120 · 87103-0D121 · 87103-0D130 · 87103-0D131 · 87103-0D140 · 87103-0D141 · 87103-0D160 · 87103-0D161 · 87103-52151 · 87103-52152 |
| 87106D | No. 1 damper servo mechanism sub-assembly | 87106-52100 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-52080 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-52090 |
| 87107A | Heater radiator device sub-assembly | 87107-0D080 · 87107-0D090 |
| 87130D | Blower assembly | 87130-0D100 · 87130-0D101 · 87130-0D110 · 87130-0D120 · 87130-0D140 · 87130-0D160 |
| 87138C | Blower resistor | 87138-0D070 · 87138-0D090 · 87138-0K090 |
| 87139C | air purification filter | 87139-06070 · 87139-50100 |
| 87139D | Air fine filter element | 87139-06080 |
| 88482 | cooler cover | 88482-0K010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D110 · 88501-0D120 · 88501-0D121 · 88501-0D140 |
| 88515 | Cooler expansion valve | 88515-0D060 · 88515-0D070 · 88515-0D170 · 88515-0D190 · 88515-0K100 · 88515-0K130 |
| 88539J | Cooler drain hose | 88539-0D070 · 88539-0D080 · 88539-0D190 · 88539-0D200 · 88539-0D210 · 88539-0D230 |
| 88548B | air filter housing | 88548-0D060 · 88548-0D080 |
| 88625 | Cooler No. 1 Thermistor | 88620-02100 · 88620-02110 · 88625-02110 · 88625-26090 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0D200 · 88650-0D230 · 88650-52291 · 88650-52292 · 88650-52590 · 88650-52591 |
| 88669B | Cooler air hose | 88669-0D030 |
| 88897U | aspirator tube | 88897-32090 |
