Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 2 images and 7 PNC and OE references.

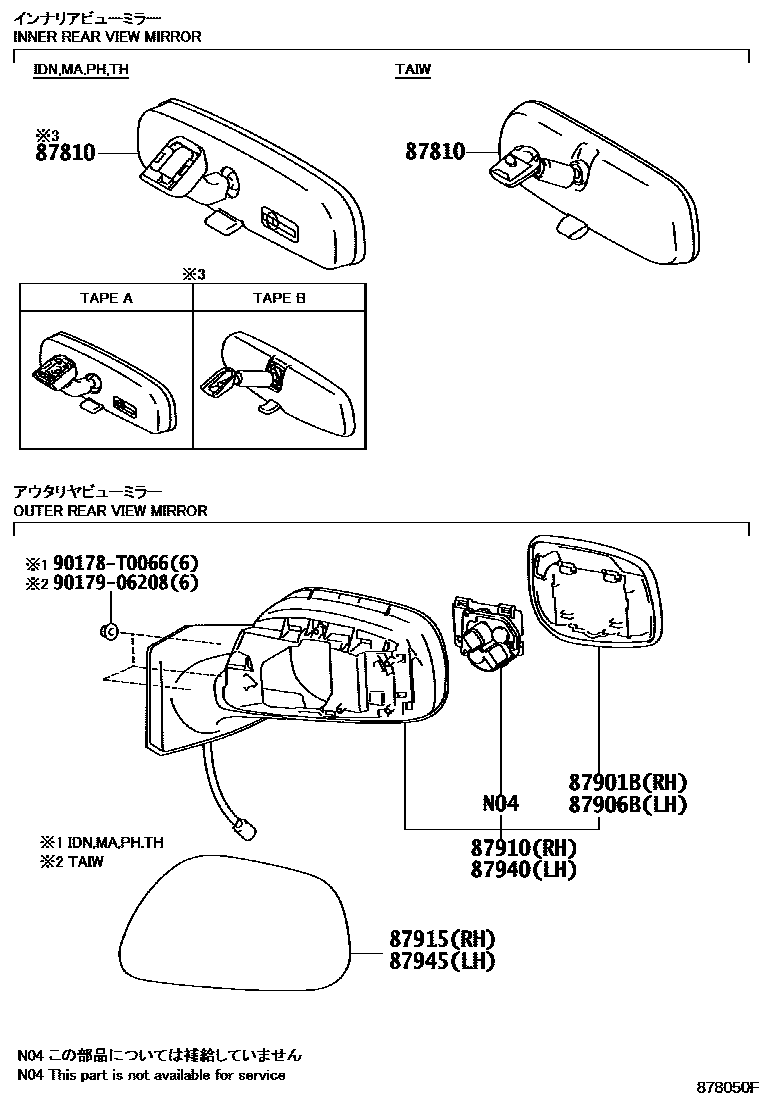

Toyota YARIS 后视镜 EPC diagram — 878050F
后视镜 — 878050F (200601 – 999999)

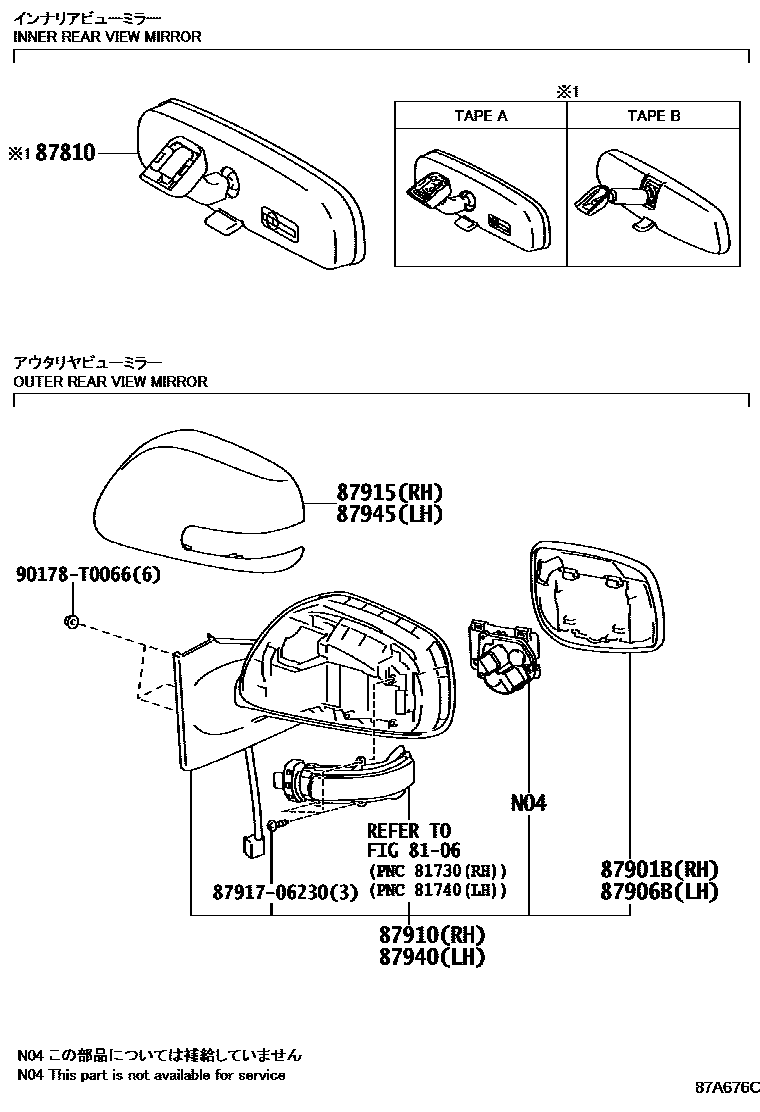

Toyota YARIS 后视镜 EPC diagram — 87A676C
后视镜 — 87A676C (200903 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06030 · 87810-06041 · 87810-AA011
87901BRight exterior rearview mirror sub-assembly87931-0D290 · 87931-8C008
87906BLeft exterior rearview mirror sub-assembly87961-0D290 · 87961-8C008
87910Right exterior rearview mirror assembly87910-0D290 · 87910-0D291 · 87910-0D300 · 87910-0D320 · 87910-0D460 · 87910-0D470 · 87910-0D480 · 87910-0D919 · 87910-0D920 · 87910-0D921 · 87910-0D922
87915Right exterior rearview mirror cover87915-06903 · 87915-0D903 · 87915-0D904
87940Left exterior rearview mirror assembly87940-0D290 · 87940-0D291 · 87940-0D300 · 87940-0D320 · 87940-0D460 · 87940-0D470 · 87940-0D480 · 87940-0D919 · 87940-0D920 · 87940-0D921 · 87940-0D922
87945Left exterior rearview mirror cap87945-06903 · 87945-0D903 · 87945-0D904
