Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601
Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

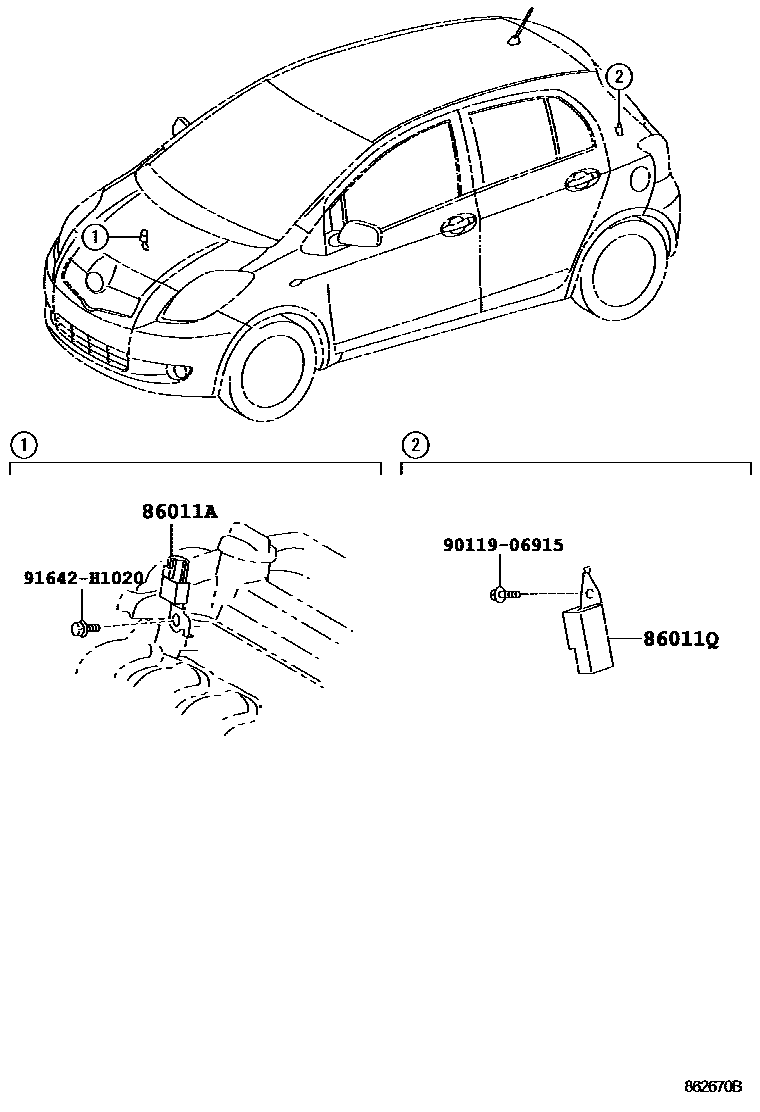

| 86011A | radio settings phase modulator | 90980-04141 |
| 86011Q | radio settings phase modulator | 90980-04148 |

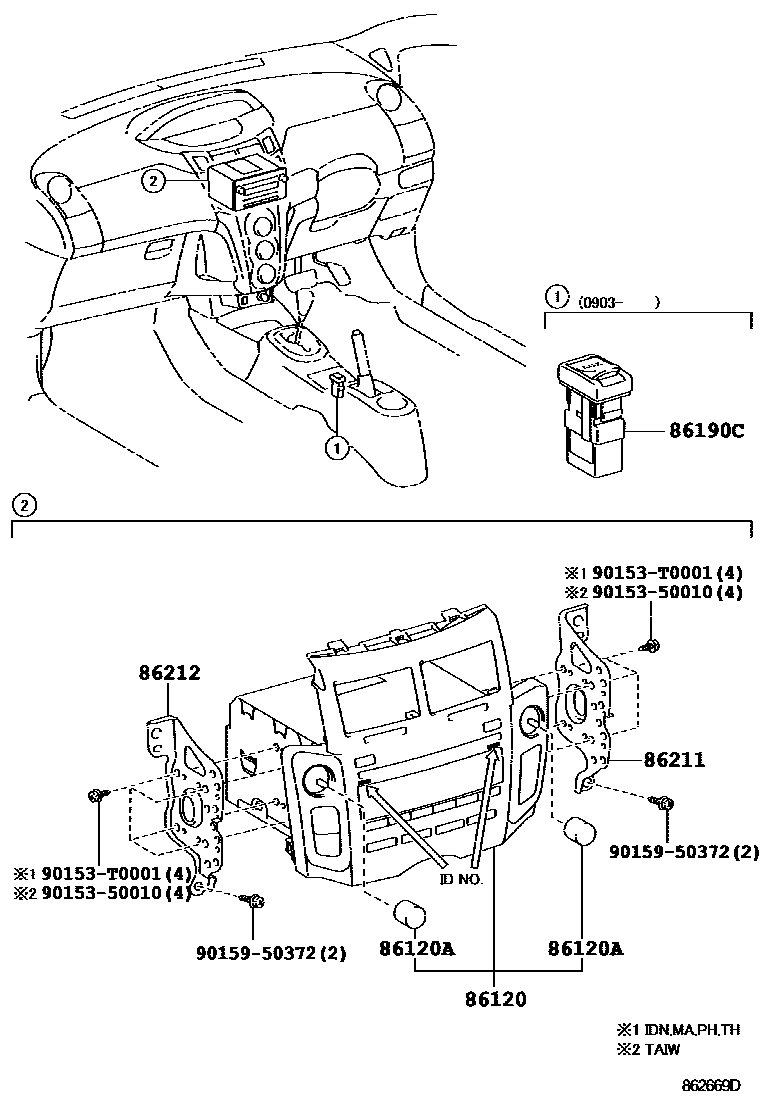

| 86120 | Radio assembly | 86120-0D300 · 86120-0D301 · 86120-0D320 · 86120-0D330 · 86120-0D331 · 86120-0D340 · 86120-0D530 · 86120-0D540 · 86120-0D550 · 86120-0D560 |
| 86120A | Radio switch knob | 90010-23020 · 90011-23015 · 90011-25166 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-52040 |
| 86211 | No. 1 radio bracket | 86211-0D050 · 86211-52190 |
| 86212 | No. 2 radio bracket | 86212-0D050 · 86212-52200 |
