Toyota YARIS 后清洗器 — Figure 8504

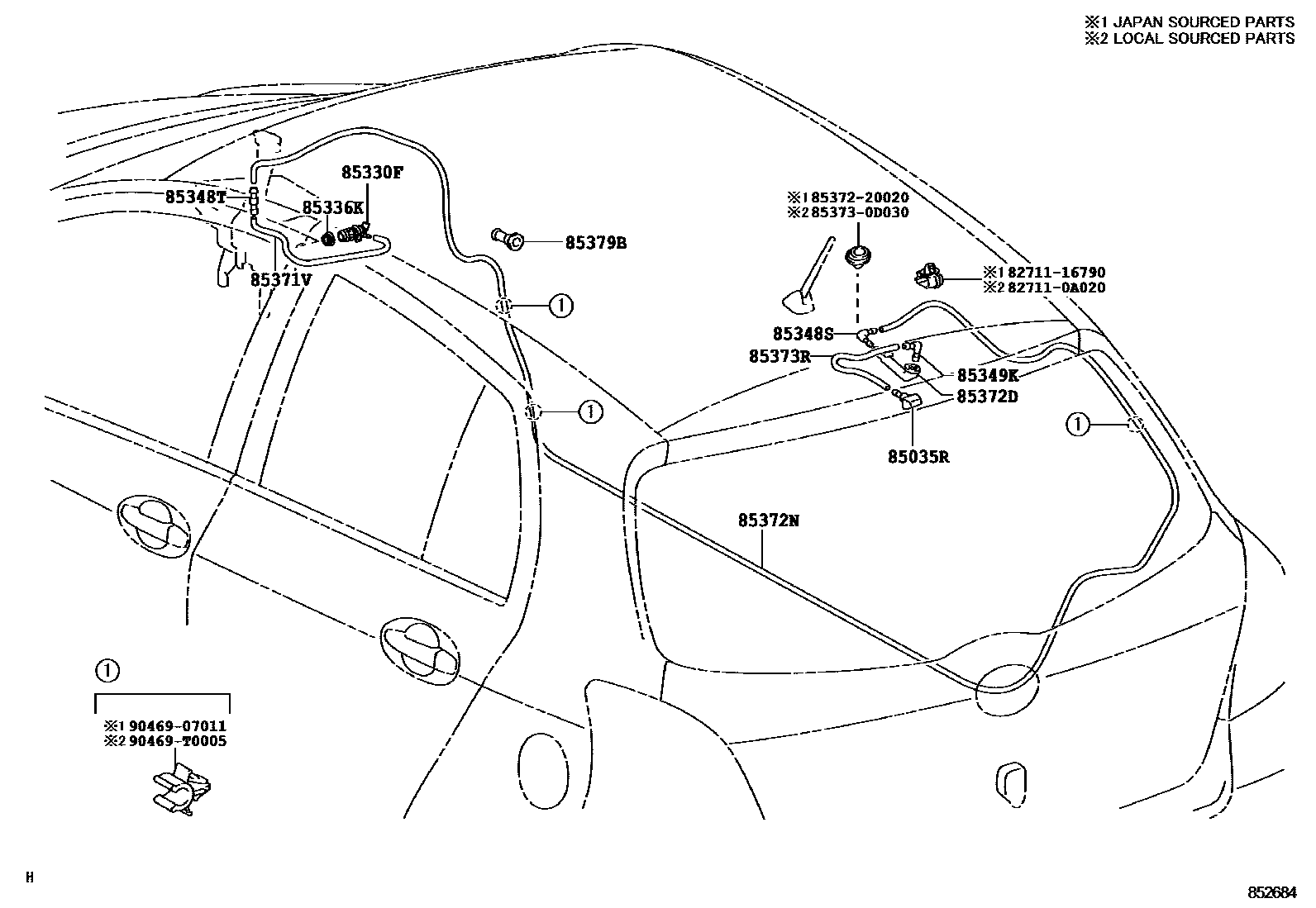

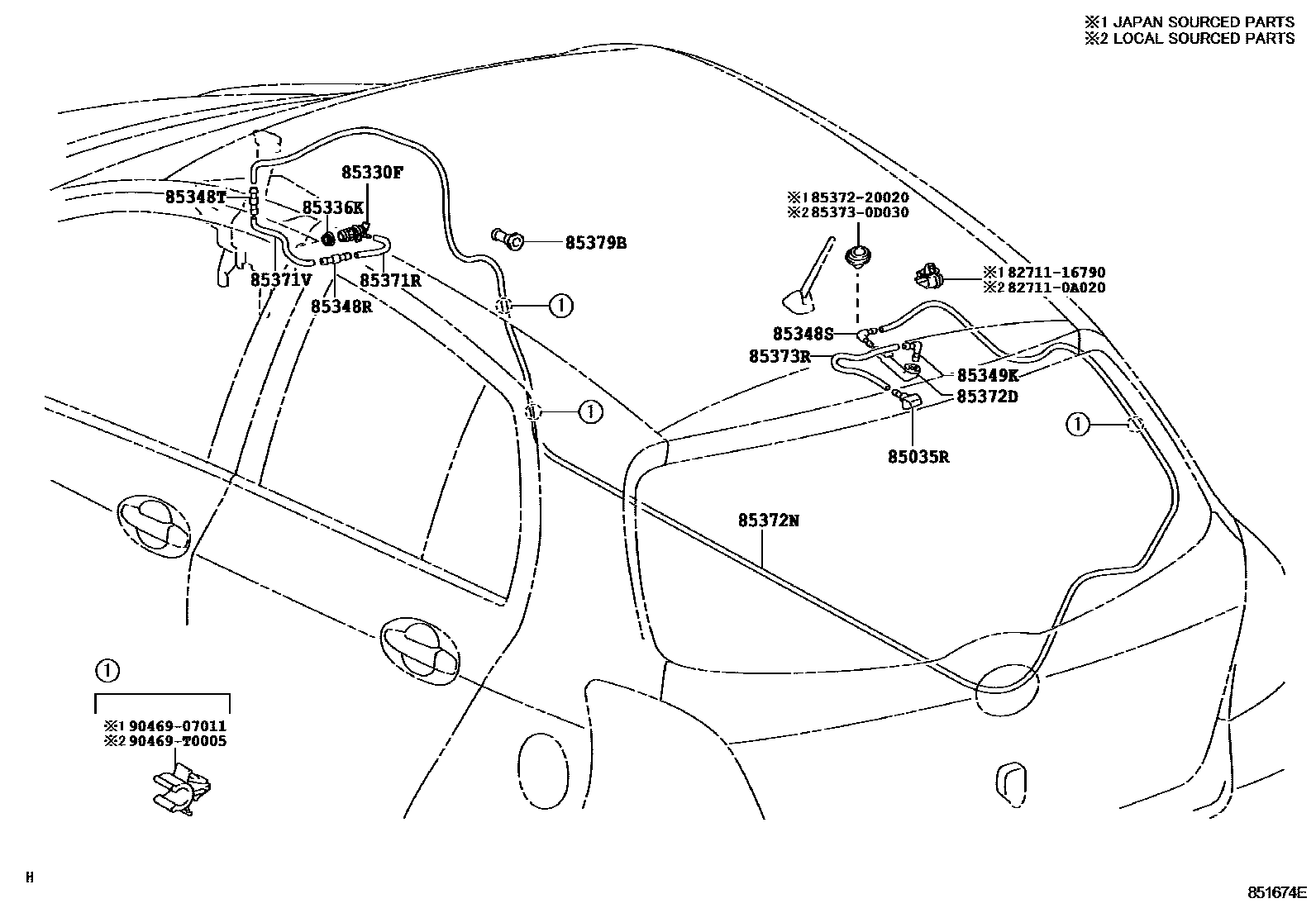

Toyota YARIS EPC diagram 8504, 后清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-52010 |
| 85330F | Rear washer motor and pump assembly | 85330-60160 |
| 85336K | Cleaning fluid tank protection device | 85336-0K020 · 85336-60300 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 · 85375-02330 · 85375-10260 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 · 85377-0D040 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 · 85375-02330 · 85375-10260 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85371R | Rear washer hose (from motor to connector) | 85336-12230 · 85377-0D081 |
| 85371V | Rear washer hose (from fitting to fitting) | 90068-33150 · 90099-62074 |
| 85372D | Rear washer hose seal | 85372-20040 · 85373-0D040 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-59099 |
| 85379B | Cleaner seal A | 85379-0D120 · 85379-52351 |
