Toyota YARIS 挡风玻璃清洗器 — Figure 8503

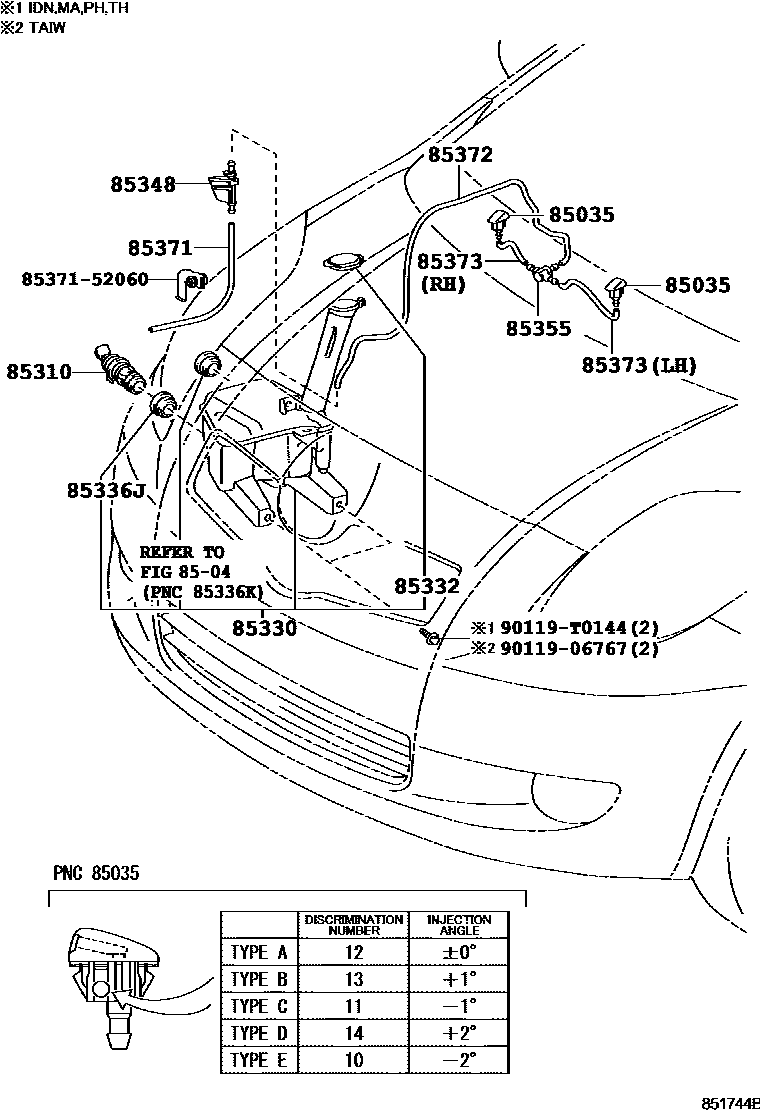

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-52250 · 85381-52280 · 85381-52290 · 85381-52300 · 85381-52310 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D100 · 85330-21010 |
| 85330 | Windshield washer fluid tank assembly | 85315-0D080 · 85315-0D082 · 85315-0D091 · 85315-52170 |
| 85332 | Windshield washer fluid tank cap | 85316-26030 |
| 85336J | Cleaning fluid tank protection device | 85336-0K020 · 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0D111 · 85385-52361 |
| 85355 | Windshield washer hose valve | 85321-30080 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33149 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33151 · 90068-33154 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33152 · 90068-33153 · 90068-33155 · 90068-33156 |
