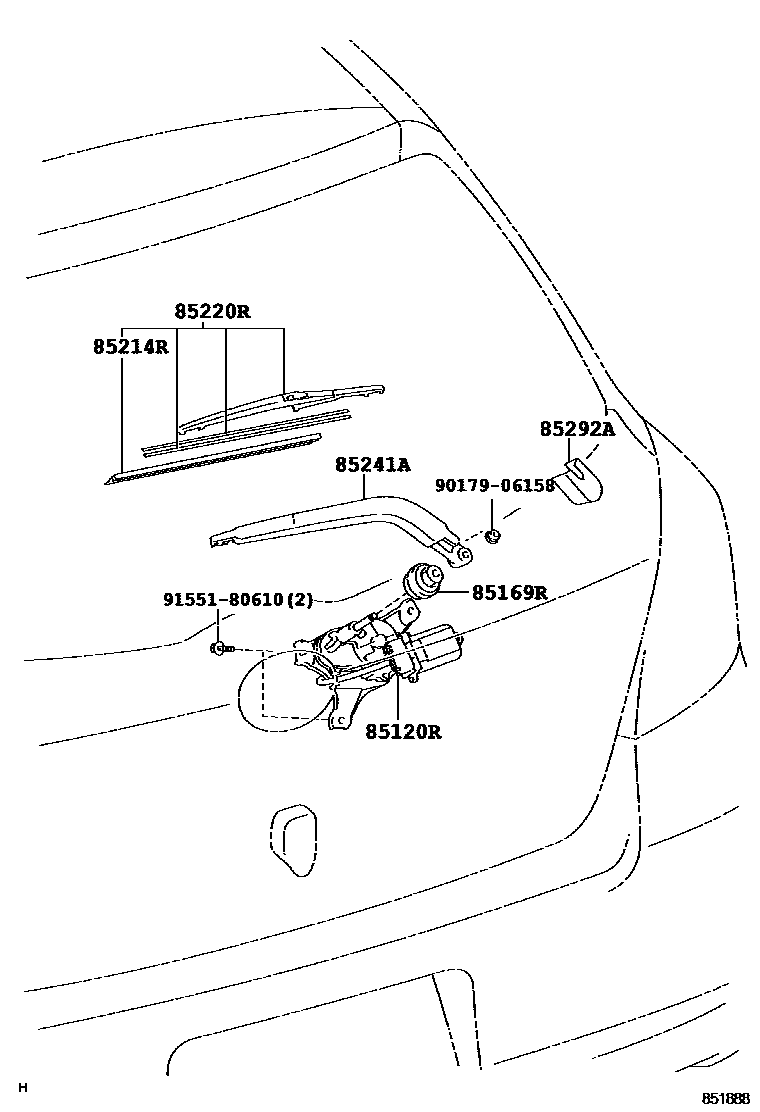

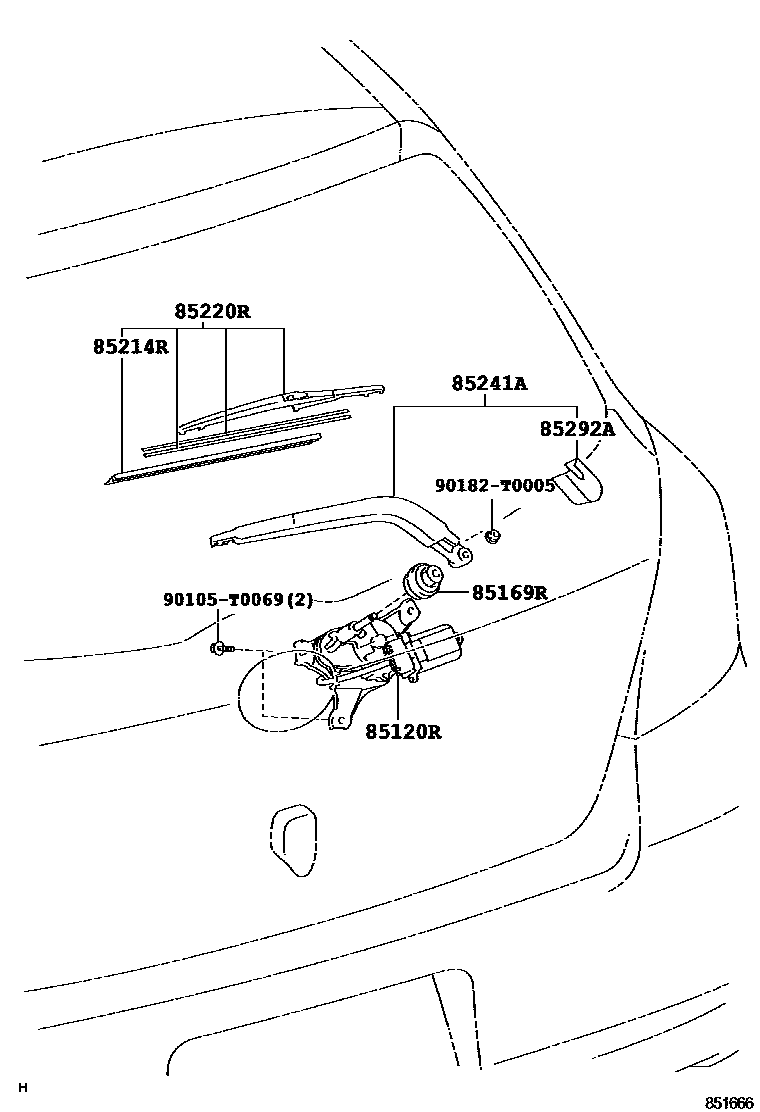

Toyota YARIS 后刮水器 — Figure 8502
Toyota YARIS EPC diagram 8502, 后刮水器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120R | Rear wiper motor and bracket assembly | 85130-0D040 · 85130-52130 · 85130-52180 |
| 85169R | No. 1 rear wiper link pivot washer | 85143-0D030 · 85143-52020 |
| 85214R | Rear wiper rubber strip | 85214-0K010 · 85214-31010 |
| 85220R | Rear wiper blade assembly | 85242-0K010 · 85242-52040 |
| 85241A | rear wiper arm | 85241-0K010 · 85241-52120 |
| 85292A | Rear wiper arm cap | 85292-0K010 · 85292-28030 |
