Toyota YARIS 遥控门锁 — Figure 8420

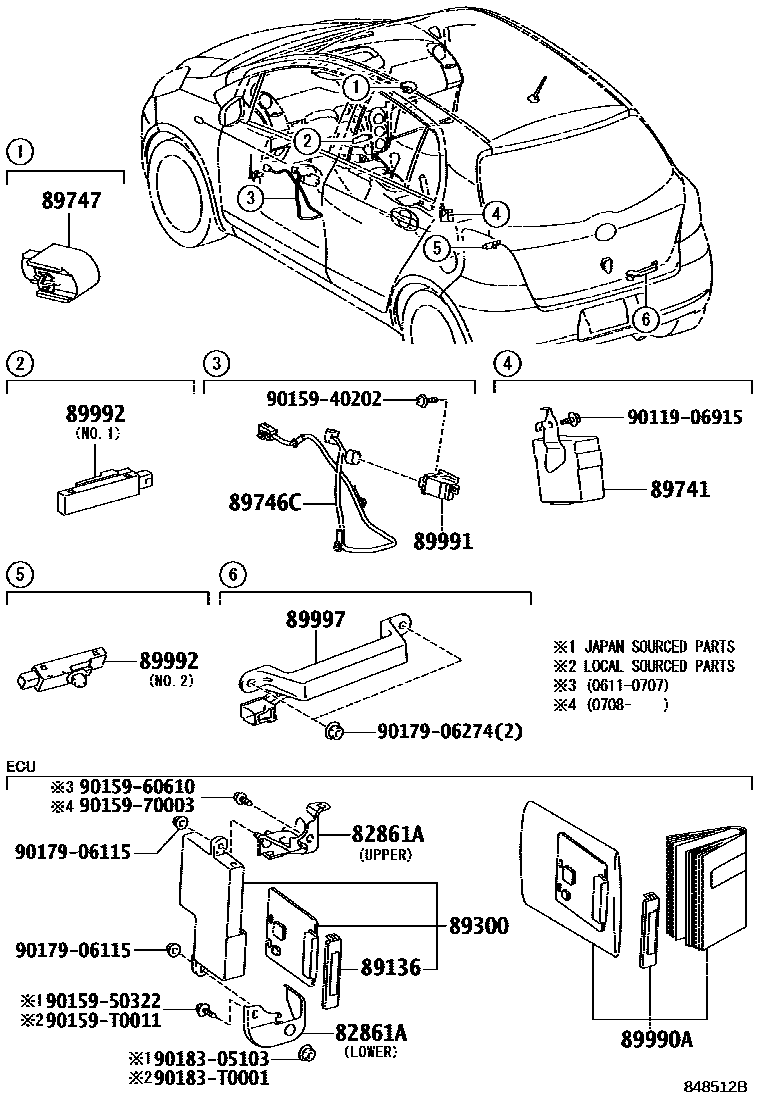

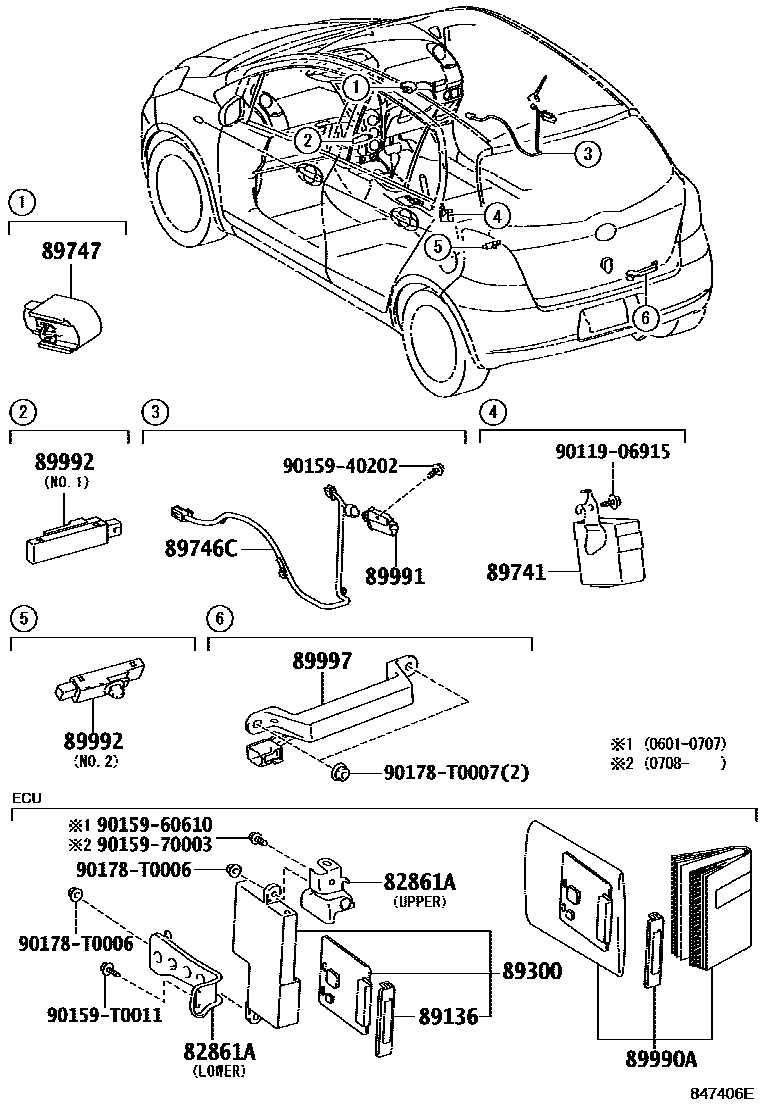

Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82861A | No. 1 ECU integrated bracket | 82861-52010 · 82861-52020 · 82861-52030 · 82861-52040 |
| 89136 | No. 1 ECU integrated box cover | 89136-52010 |
| 89300 | ECU integrated box assembly | 89300-52050 · 89300-52051 · 89300-52070 · 89300-52071 · 89300-52110 |
| 89741 | door control receiver | 89740-52050 · 89740-52051 · 89740-52120 · 89741-52250 · 89741-52251 · 89741-52252 · 89741-52260 · 89741-52261 · 89741-52262 |
| 89746C | No. 1 electronic key wiring harness | 89746-52030 · 89746-52040 |
| 89747 | Remote door lock buzzer | 89747-48020 · 89747-52010 |
| 89990A | Smart key ECU assembly | 89990-52110 · 89990-52111 · 89990-52160 |
| 89991 | Door electronic key oscillator | 89991-30040 · 89991-30050 |
| 89992 | Car electronic key oscillator | 89992-52010 · 89992-52020 |
| 89997 | electronic key antenna | 89997-52010 |
