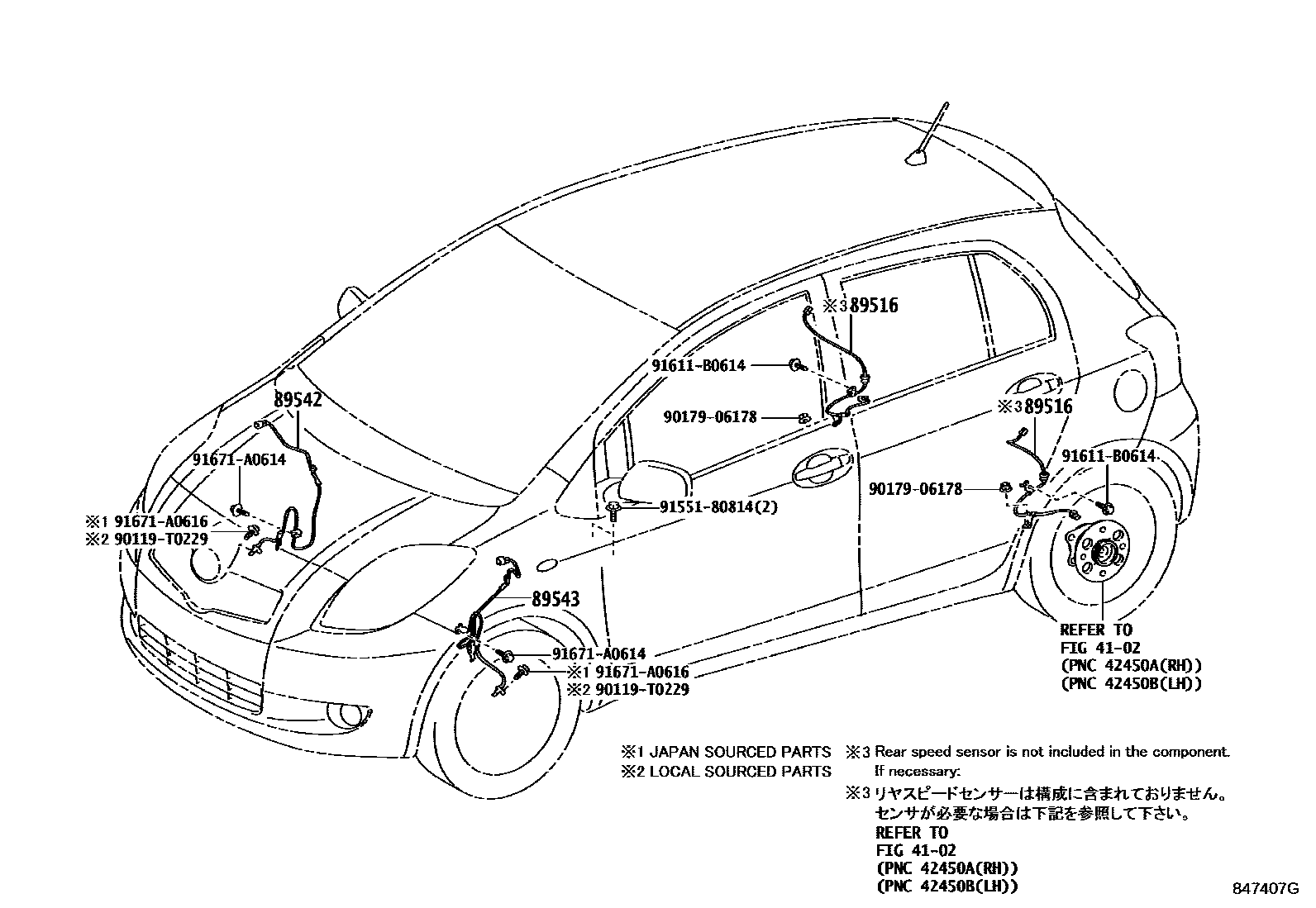

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89516 | Anti-skid control sensor wiring harness | 89516-0D090 · 89516-0D100 · 89516-52090 · 89516-52100 |
| 89542 | Right front wheel speed sensor | 89542-0D040 · 89542-52030 |
| 89543 | Left front wheel speed sensor | 89543-0D040 · 89543-52030 |
