Toyota YARIS 开关和继电器和ECU — Figure 8401

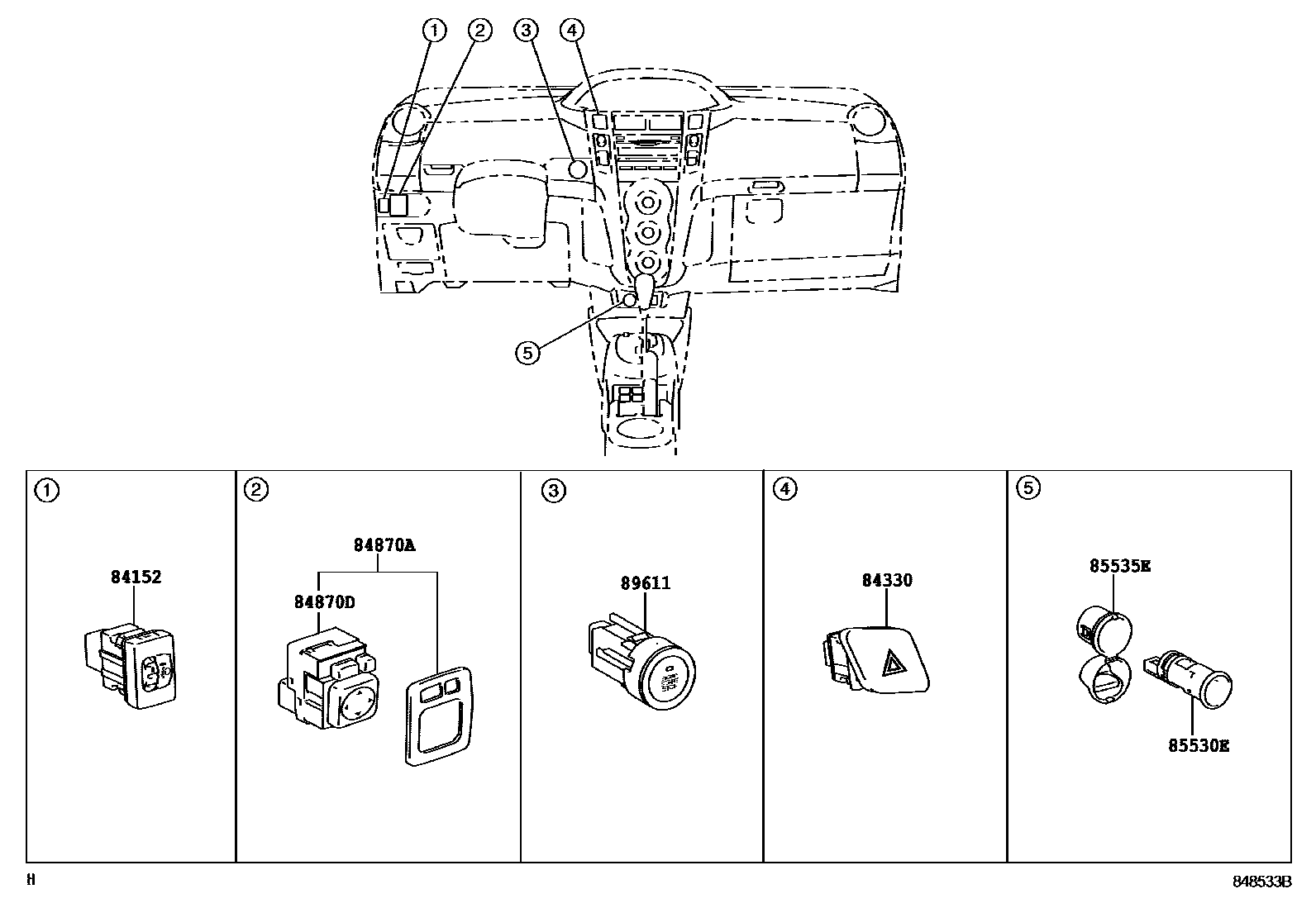

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 9 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0L010 · 28300-21020 · 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 · 90987-T2001 |
| 28371 | No. 1 ignition relay | 90987-02030 · 90987-T2002 · 90987-T2009 |
| 81980 | Turn signal flasher relay assembly | 81980-0D050 · 81980-46010 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82600D | Dashboard fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-52010 |
| 82616A | No.2 fuse puller | 82616-58010 |

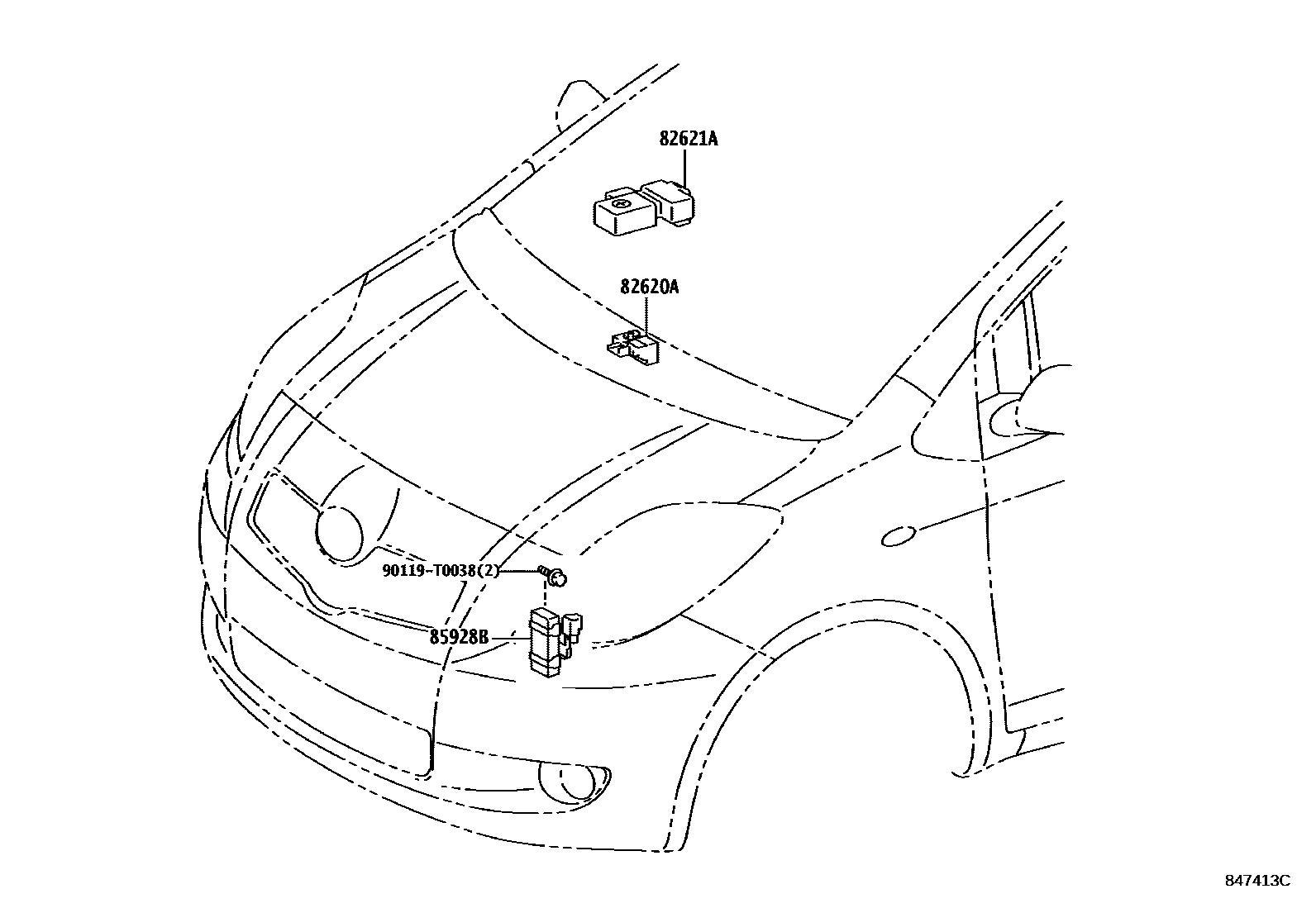

| 82620A | Fuse box assembly | 82620-52050 |
| 82621A | Fuse cover | 82621-52120 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-52020 |
| 82660D | Relay assembly | 82660-26270 |
| 82660F | Relay assembly | 82660-52030 |
| 82660G | Relay assembly | 82660-52030 · 82660-52040 |
| 82662A | No. 1 relay box upper cover | 82662-52390 · 82662-52400 · 82662-52431 · 82662-52441 |
| 82662B | No. 2 relay box upper cover | 82662-52310 · 82662-52320 · 82662-52450 · 82662-52460 |
| 82663 | Relay box lower cover | 82663-52031 |
| 82663A | No. 2 relay box lower cover | 82663-52060 · 82663-52070 |
| 82673A | Junction box bracket | 82673-52050 · 82673-52080 |
| 82673B | Junction box bracket | 82673-52060 · 82673-52090 |
| 82673C | Junction box bracket | 82673-52070 · 82673-52100 |
| 82674 | Junction box lower cover | 82674-46010 |

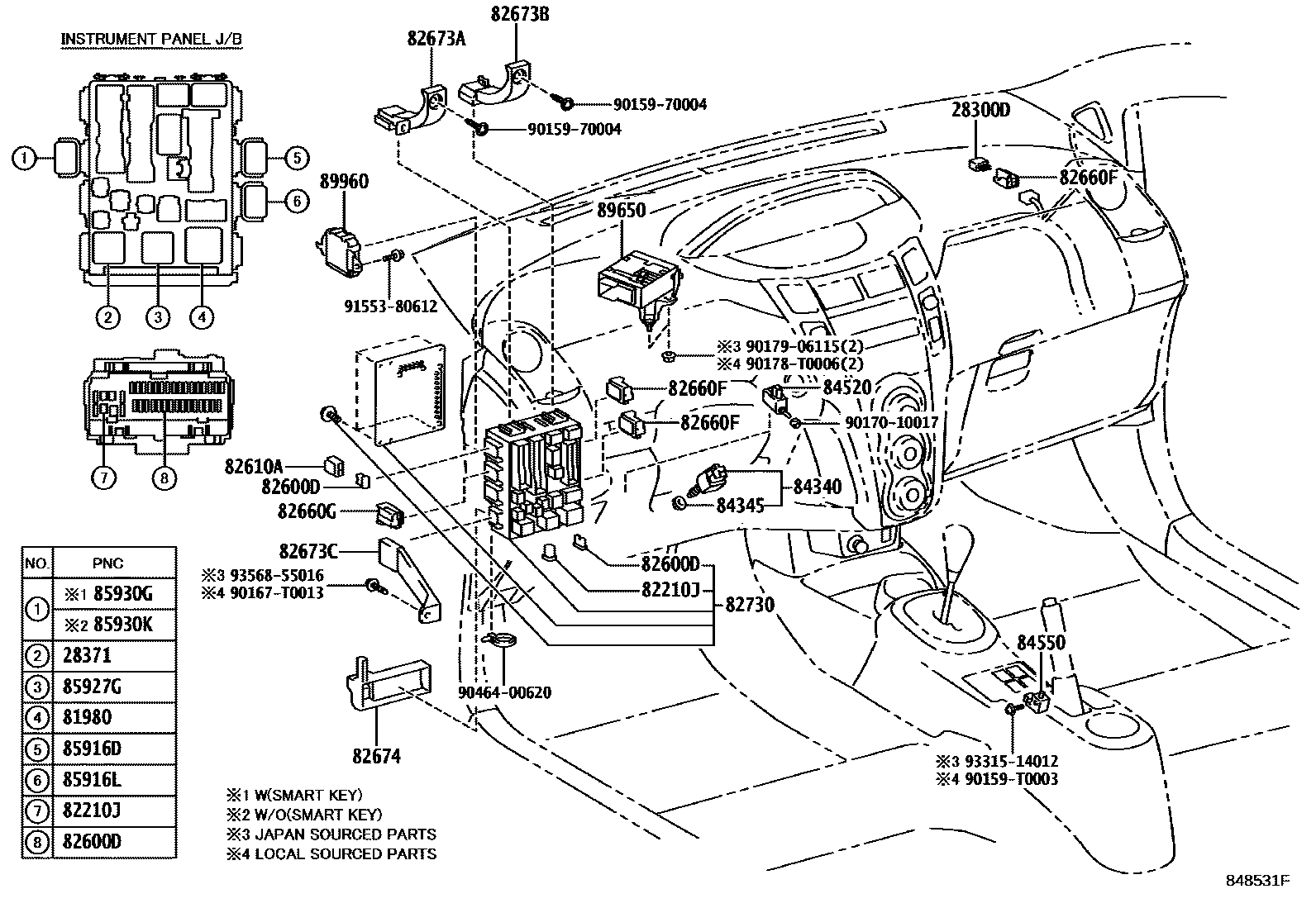

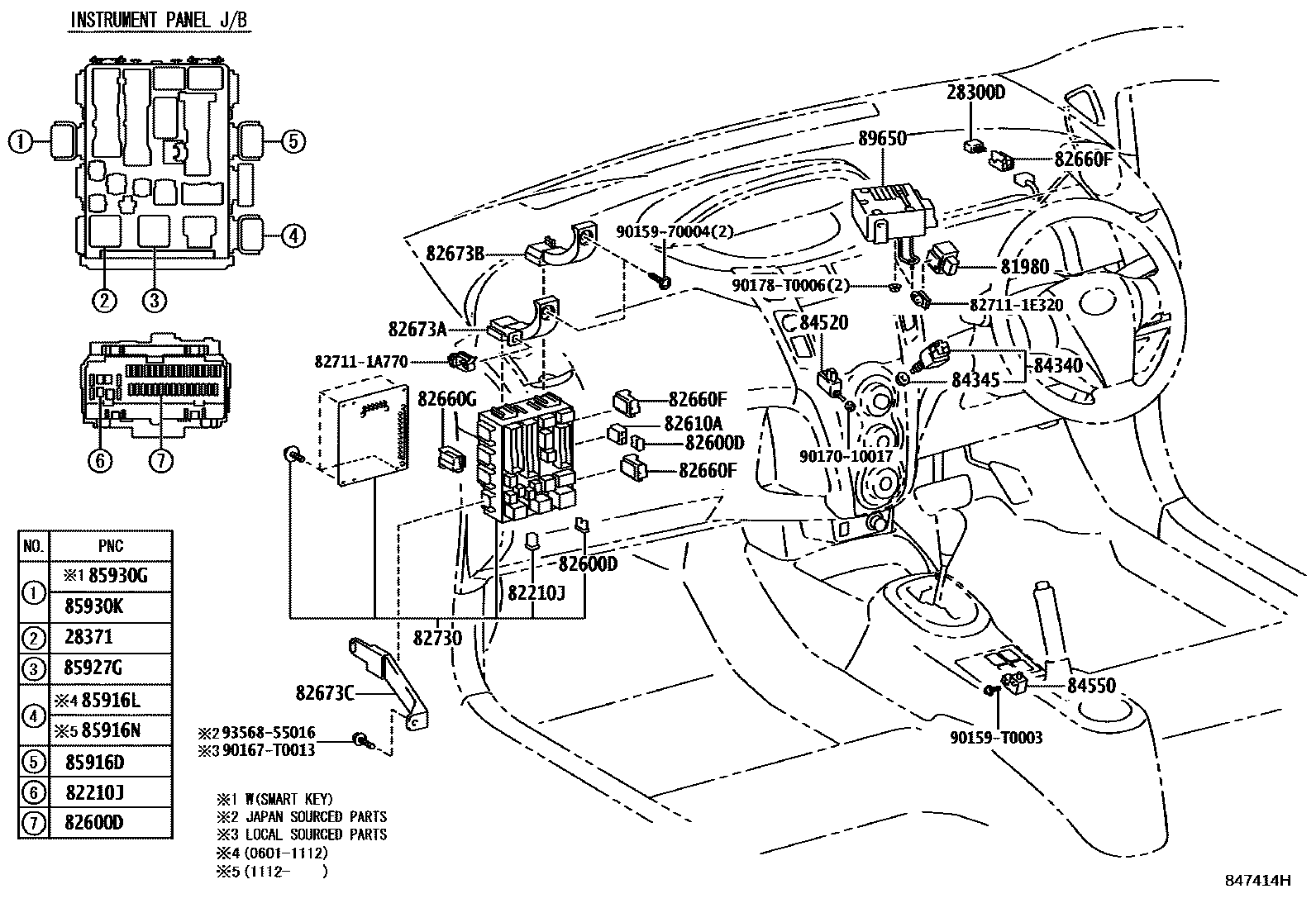

| 82730 | Instrument panel junction box assembly | 82730-52830 · 82730-52A60 · 82730-52A80 · 82730-52A90 · 82730-52B30 · 82730-52B40 · 82730-52L20 · 82730-52L30 · 82730-52L40 |

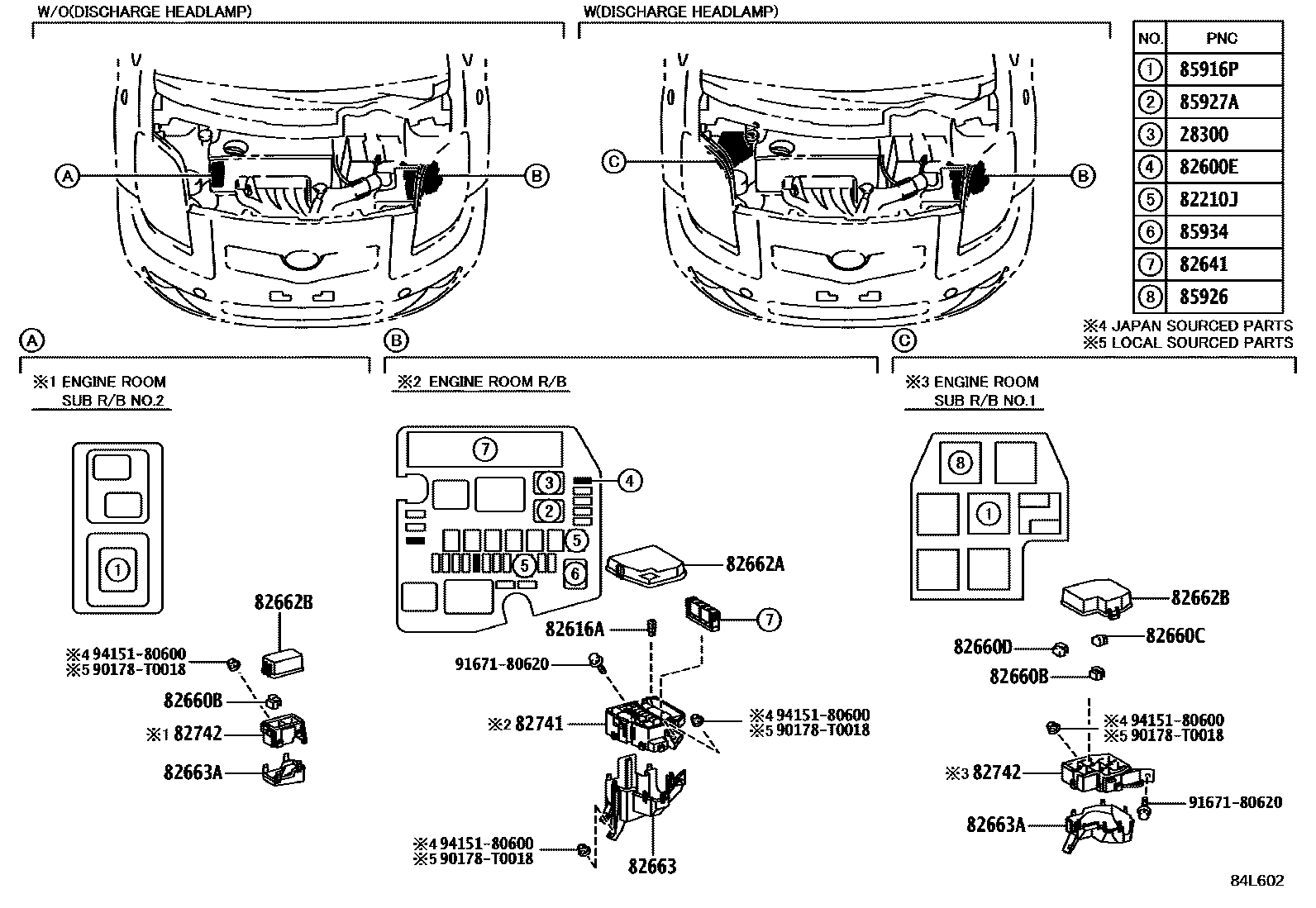

| 82741 | Engine room relay box | 82741-52031 · 82741-52041 |
| 82742 | Engine room No. 2 relay box | 82741-52050 · 82741-52060 |
| 83181G | speedometer sensor | 83181-12020 · 83181-12040 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-0D060 · 83320-52180 · 83320-52181 · 83320-52260 · 83320-52261 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-0K020 · 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-02780 · 84140-06350 · 84140-0D100 · 84140-0D110 · 84140-0D120 · 84140-0D130 · 84140-0D140 · 84140-0D190 · 84140-0D191 · 84140-0D200 · 84140-0D201 · 84140-0D210 · 84140-0D211 · 84140-0K041 |
| 84152 | Headlight beam height adjustment switch | 84152-52080 · 84152-52100 · 84152-52110 |
| 84210 | Reversing light switch assembly | 84210-52010 |
| 84233 | Door control light switch assembly (for front door) | 84231-02040 · 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02080 · 84231-02090 |

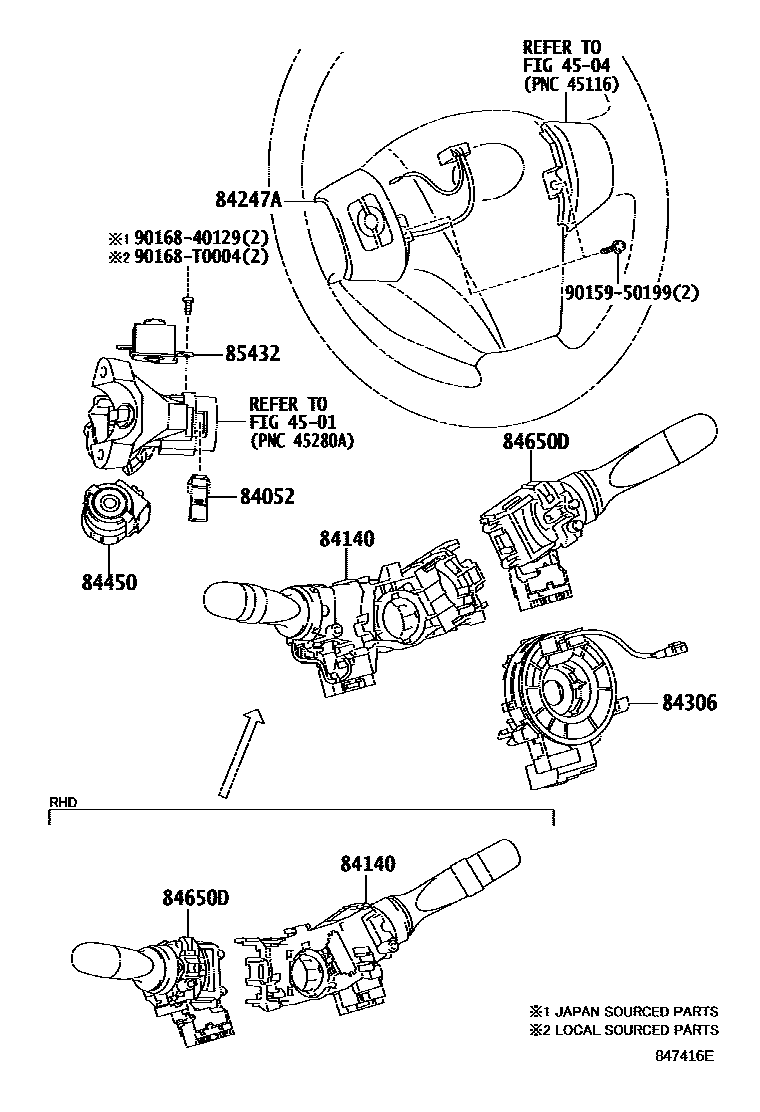

| 84247A | Steering wheel decorative cover left switch | 84247-0D040 · 84247-0D060 · 84247-52120 |
| 84306 | Spiral cable sub-assembly | 84306-06080 · 84306-0D100 · 84306-0D110 · 84306-0K030 · 84306-0K050 · 84306-0K051 |

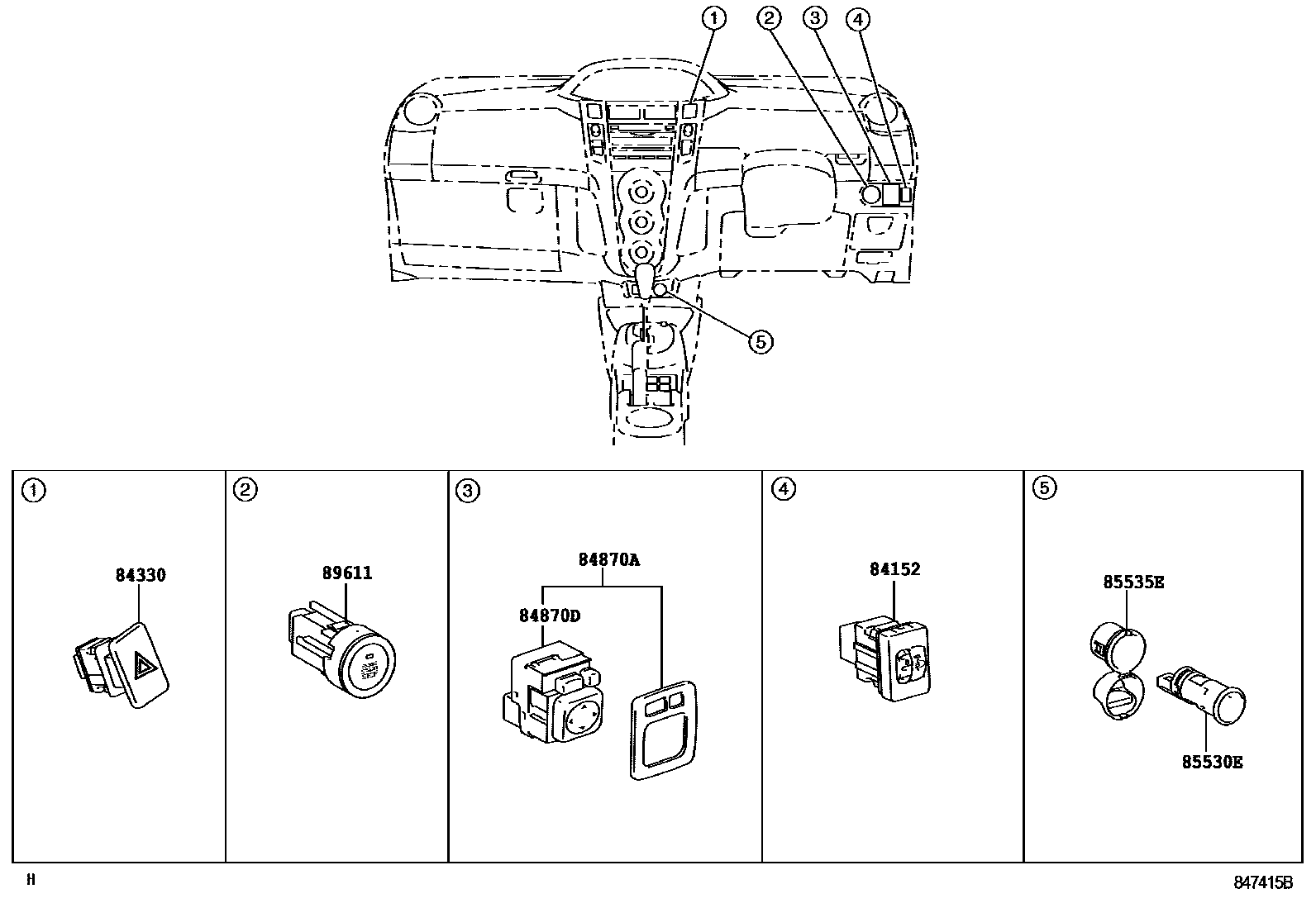

| 84330 | Hazard warning signal switch assembly | 84332-0D030 · 84332-52020 · 84332-52030 |
| 84340 | brake light switch assembly | 84340-09040 · 84340-19025 · 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-0K010 · 84450-71010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 |
| 84550 | Parking brake switch assembly | 84550-02040 · 84550-33010 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-0D050 · 84652-0D080 · 84652-0D100 · 84652-0D101 · 84652-0D110 · 84652-0K141 |

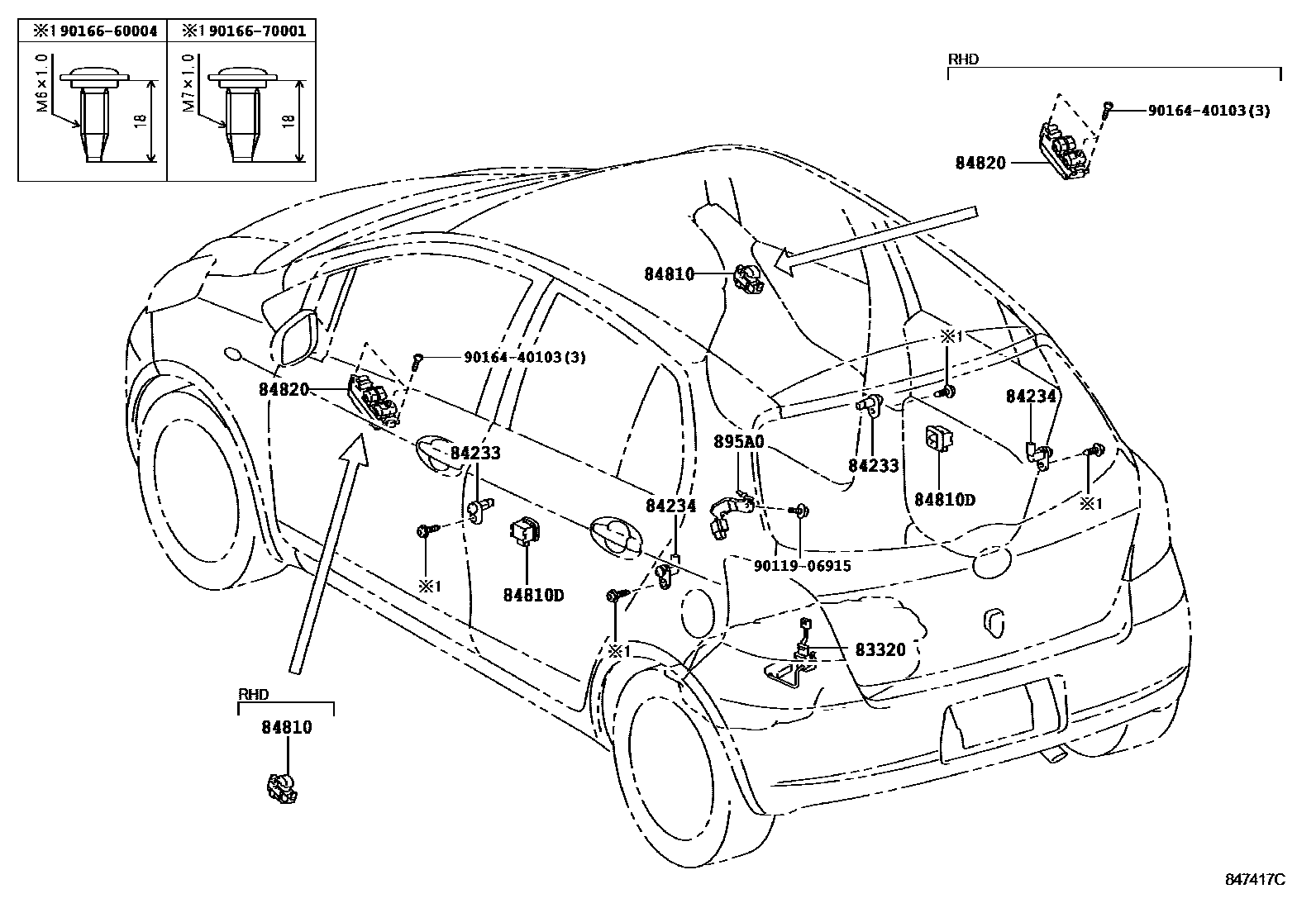

| 84810 | Electric window lift switch assembly | 84810-06040 · 84810-06050 · 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-0D111 · 84820-0D130 · 84820-0D140 · 84820-0D150 · 84820-0D160 · 84820-52200 · 84820-52270 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0D030 · 84870-0K010 · 84870-0M010 · 84870-16070 |
| 84870D | No. 2 exterior rearview mirror switch assembly | 84872-06020 |
| 85432 | Key interlock solenoid valve | 85432-0K010 · 85432-71010 |
| 85530E | No. 3 power socket assembly | 85530-0D030 · 85530-0K010 |
| 85535E | No. 2 power outlet cover | 85535-0D020 · 85535-0D021 · 85535-0D030 · 85535-0D031 |
| 85916D | fog light relay | 90987-02027 · 90987-T2001 |
| 85916L | Rear fog light relay | 90987-02027 · 90987-T2001 |
| 85916N | Tail light relay | 90987-T2001 |
| 85916P | headlight relay | 90987-02025 · 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-04010 · 90987-T2003 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 |
| 85927G | Air conditioning water pump relay | 90987-04010 · 90987-T2003 |
| 85928B | Cooling fan resistor | 85928-52030 |
| 85930G | ACC relay | 90987-02027 · 90987-T2001 |
| 85930K | No. 2 ACC relay | 90080-87009 · 90987-04004 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |

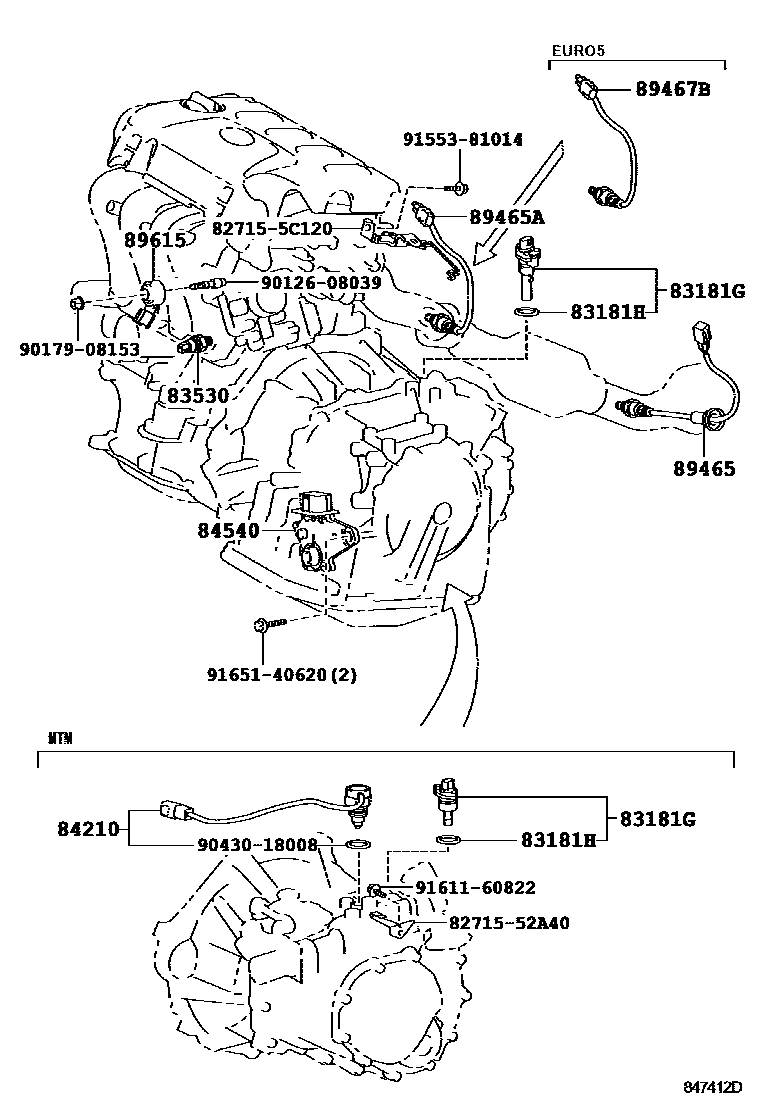

| 89465 | oxygen sensor | 89465-12A90 · 89465-52370 |
| 89465A | Oxygen sensor No. 2 | 89465-52380 |
| 89467B | air fuel ratio sensor | 89467-52230 |
| 895A0 | Brake light control relay assembly | 895A0-52010 · 895A0-52011 |
| 89611 | One-button start switch | 89611-52010 · 89611-52011 · 89611-52012 · 89611-52013 · 89611-52014 · 89611-52020 · 89611-52021 · 89611-52022 · 89611-52023 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52160 · 89650-52170 · 89650-52171 · 89650-52180 · 89650-52190 · 89650-52200 · 89650-52210 · 89650-52410 · 89650-52490 · 89650-52491 · 89650-52500 · 89650-52501 · 89650-52530 · 89650-52531 · 89650-52570 · 89650-52571 · 89650-52580 · 89650-52581 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-52290 |
