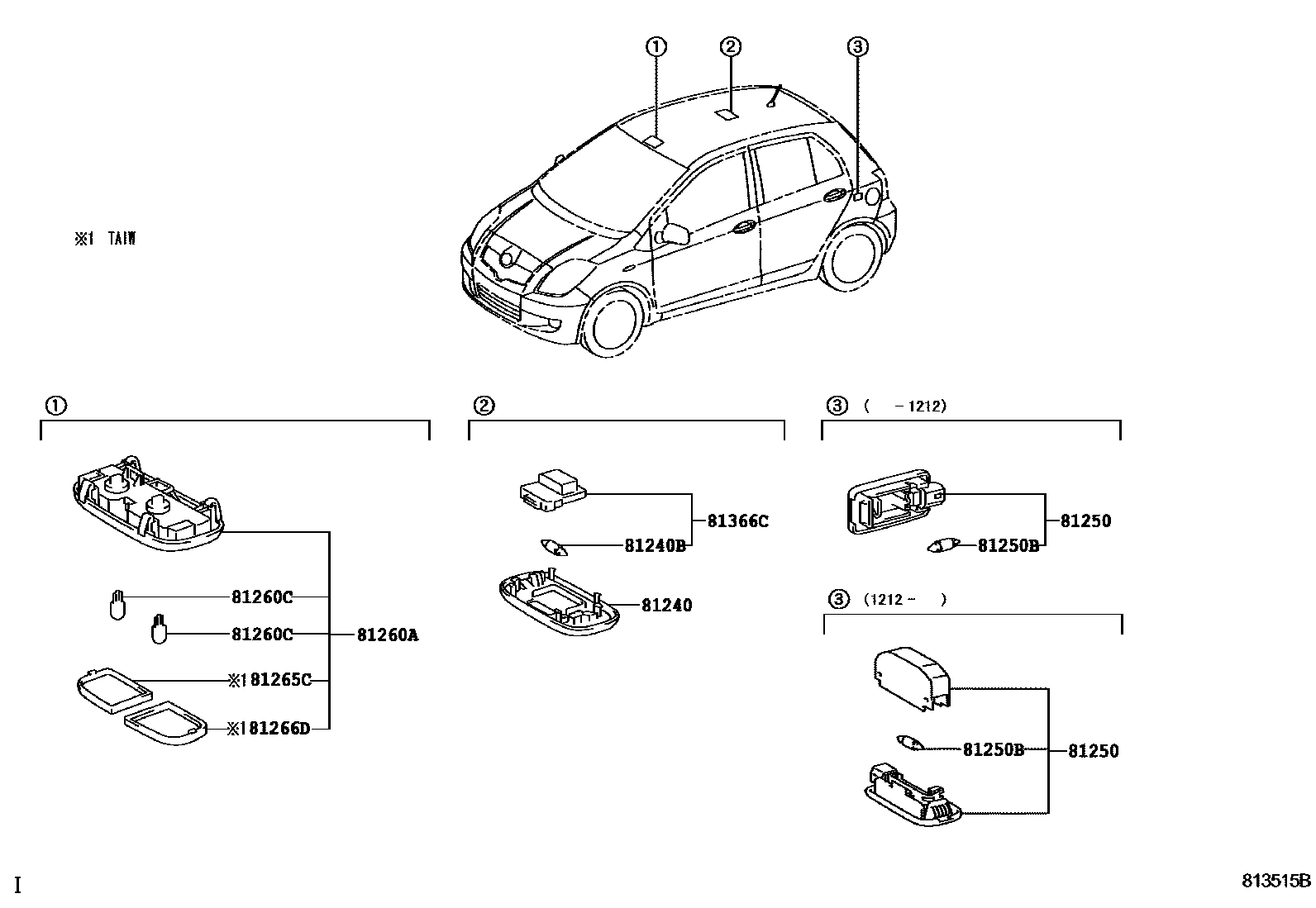

Toyota YARIS 车内灯 — Figure 8121
Toyota YARIS EPC diagram 8121, 车内灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81250 | No. 2 interior light assembly | 81250-05040 · 81330-05021 · 81330-05050 |
| 81250B | Interior light bulb No. 2 | 90981-WE002 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 |
| 81265C | No. 1 reading lamp shade | 81265-8C000 |
| 81266D | Reading lamp shade No. 2 | 81266-8C000 |
| 81366C | Interior light switch base | 81366-68010 |
