Toyota YARIS 高位刹车灯 — Figure 8117

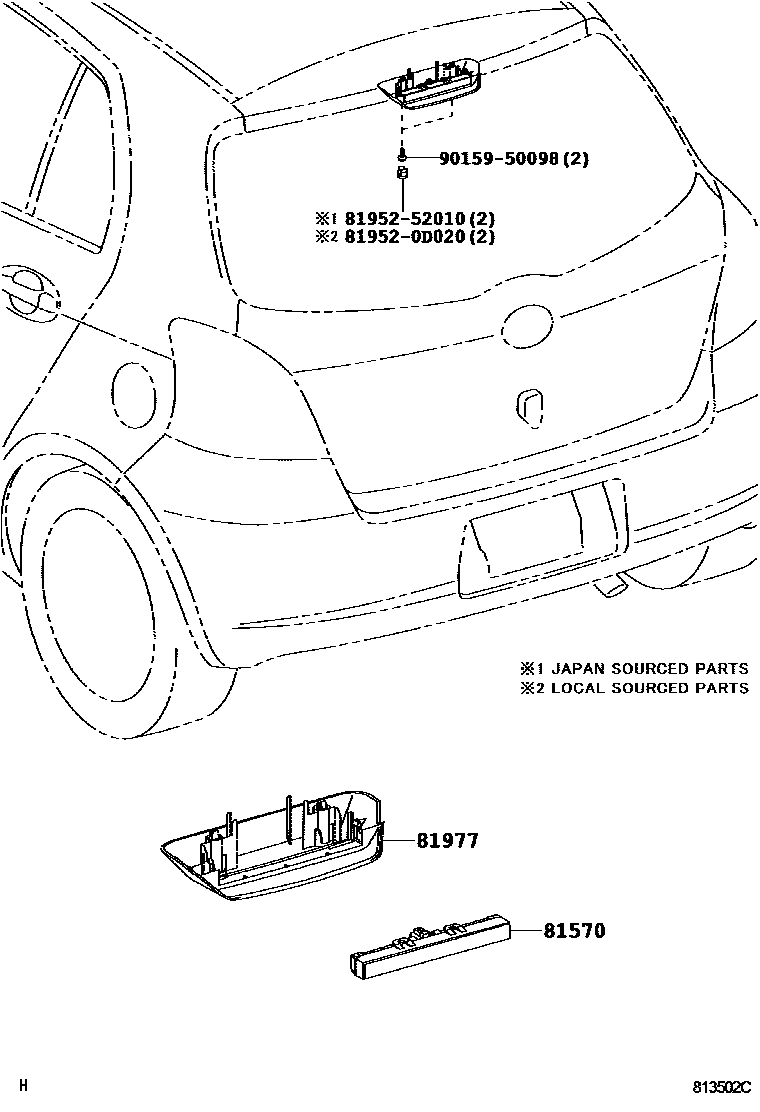

Toyota YARIS EPC diagram 8117, 高位刹车灯, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-0D050 · 81570-0D060 |
| 81977 | Central brake light cover | 81977-0D030 · 81977-0D040 |
