Toyota YARIS 后组合灯 — Figure 8111

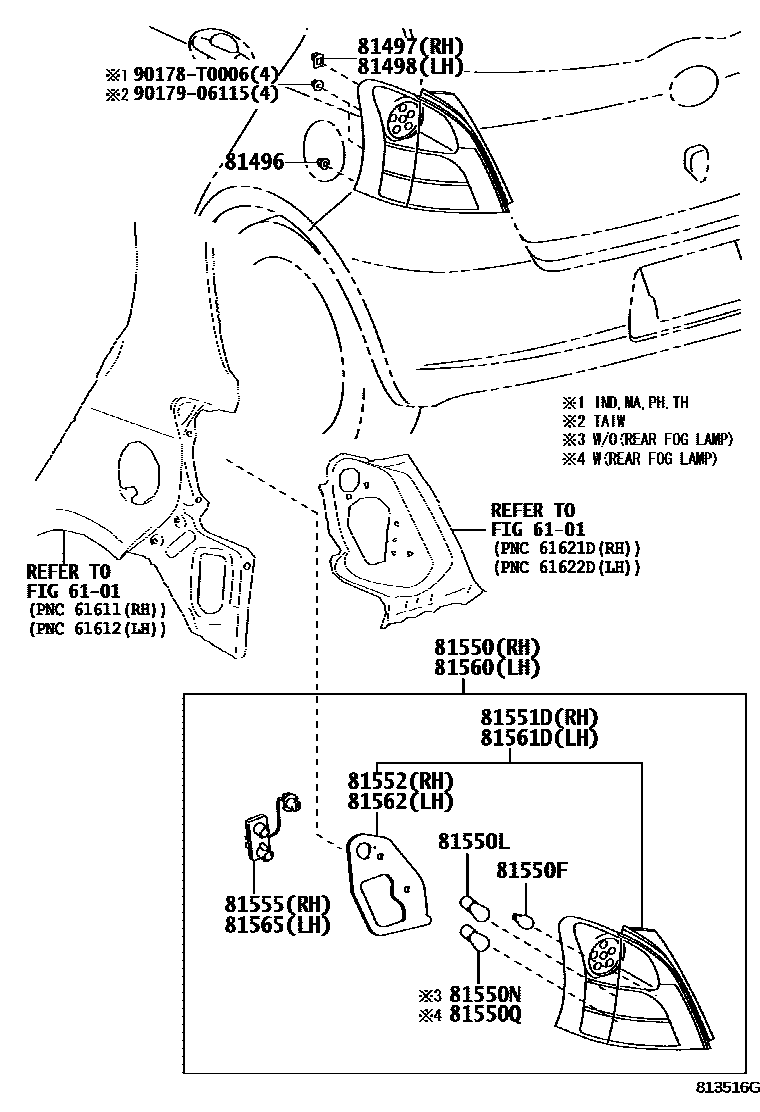

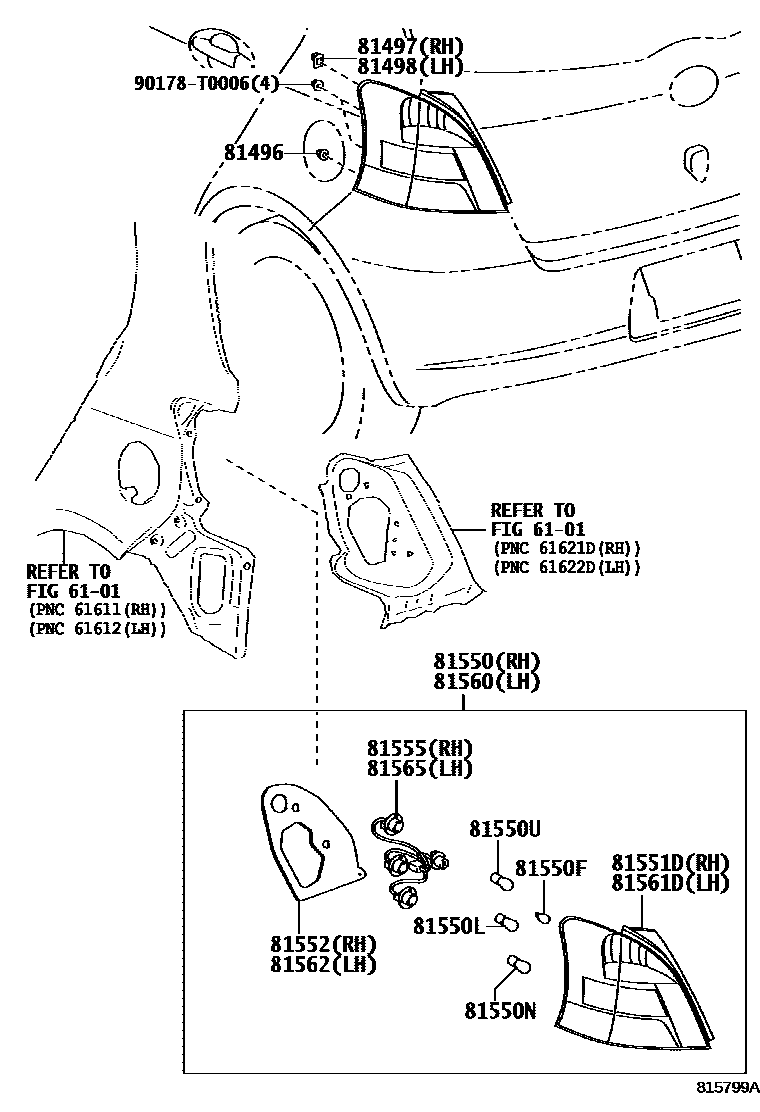

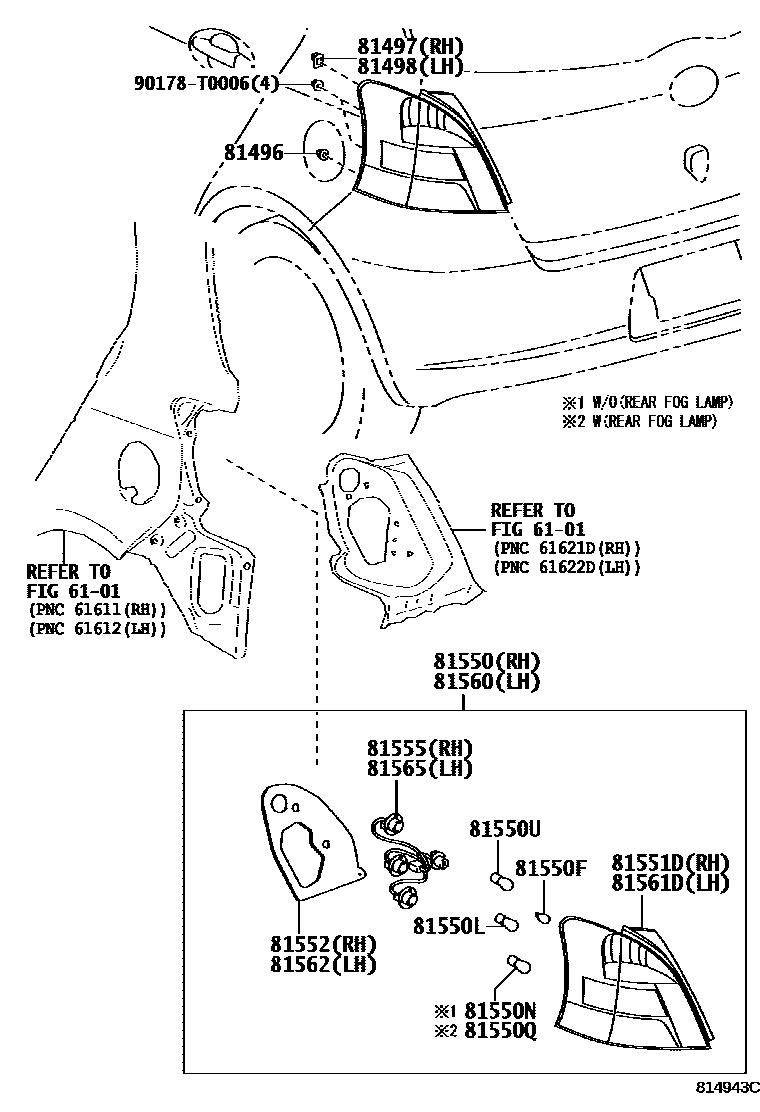

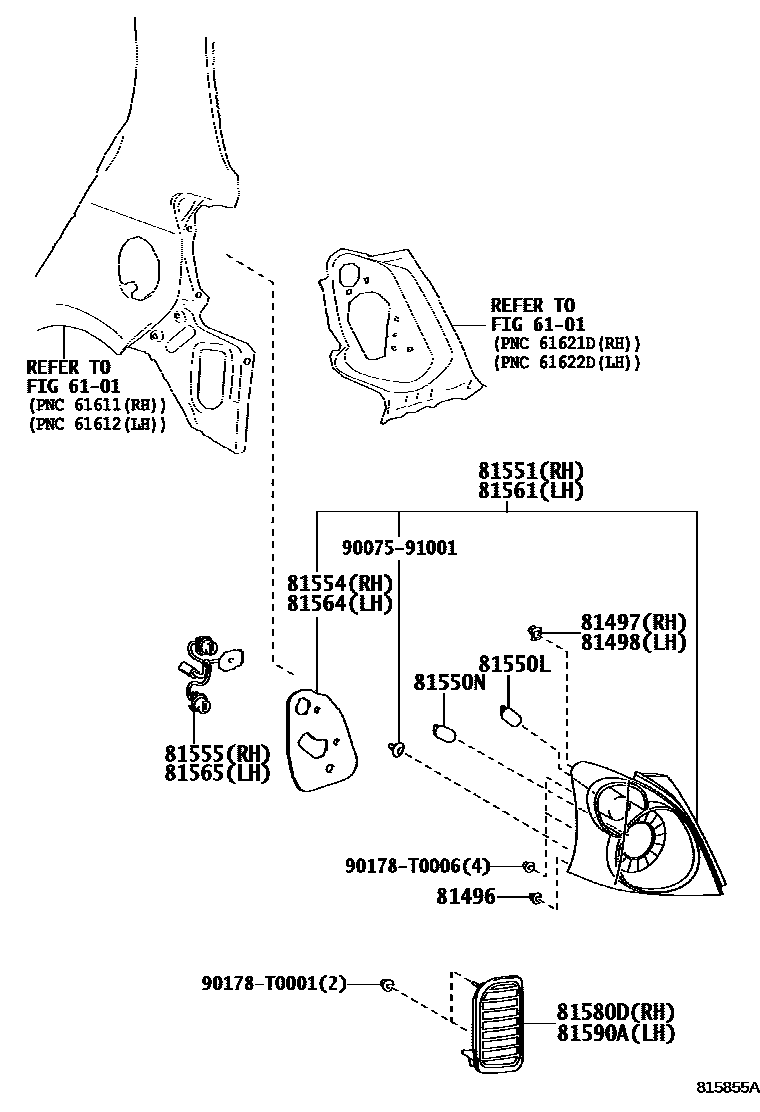

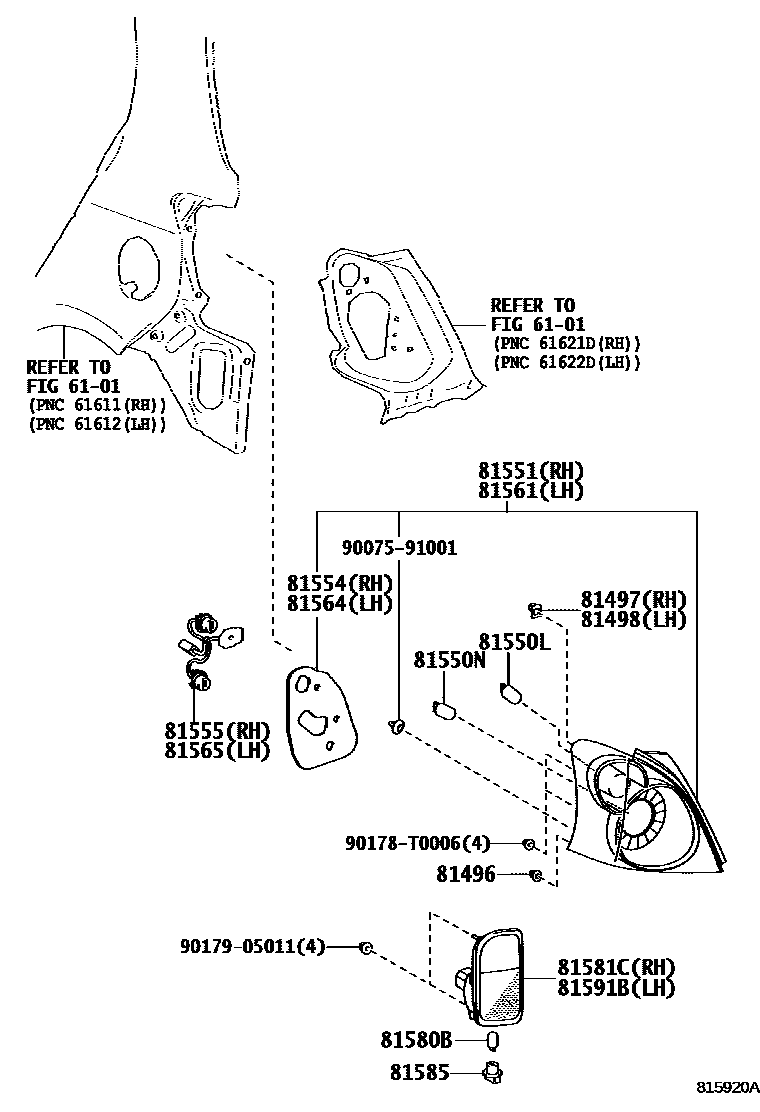

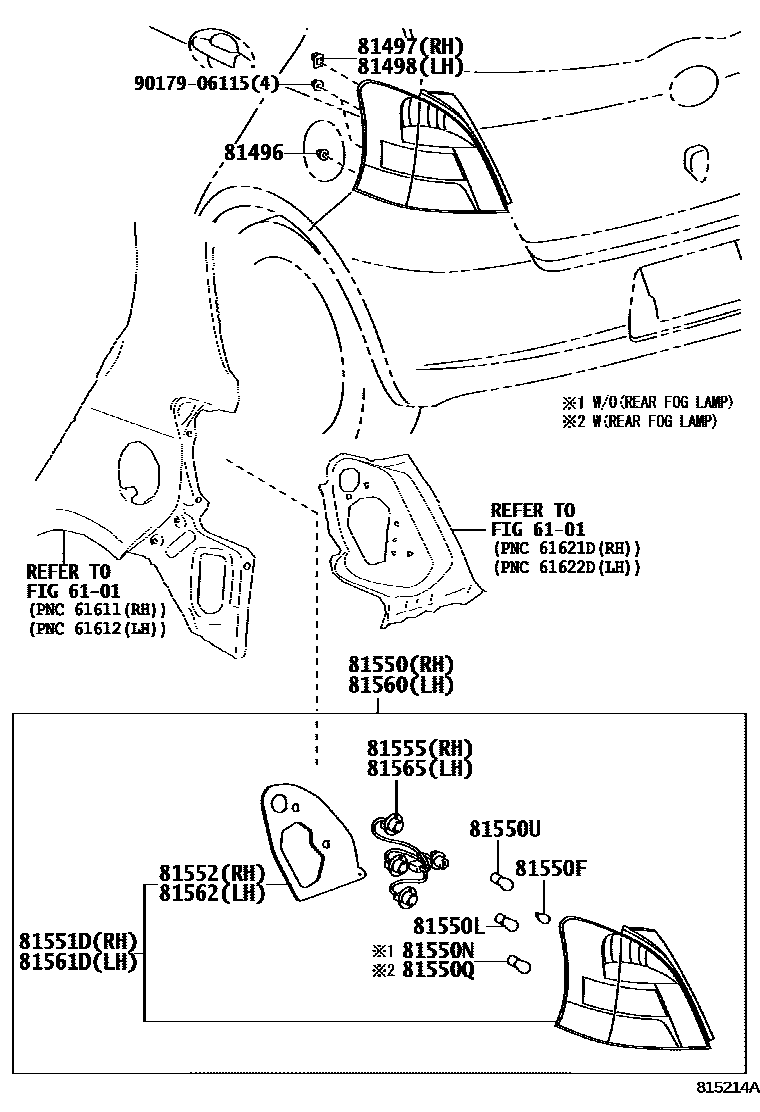

Toyota YARIS EPC diagram 8111, 后组合灯, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-52020 |
| 81498 | Left rear combination lamp cover | 81497-52020 |
| 81550 | Right rear combination light assembly | 81550-0D180 · 81550-0D190 · 81550-0D210 · 81550-0D270 · 81550-0D280 · 81550-0D290 |
| 81550F | tail light bulb | 99132-12050 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15009 · 99132-11210 |
| 81550N | reversing light bulb | 90981-13043 · 99132-11210 |
| 81550Q | Rear fog light bulb No. 1 | 99132-11210 |
| 81550U | brake light bulb | 99132-11210 |
| 81551 | Right rear combination lamp shade | 81551-52570 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0D180 · 81551-0D190 · 81551-0D270 · 81551-0D280 · 81551-0D290 · 81551-8C017 |
| 81552 | Right rear combination lamp shade gasket | 81552-0D180 · 81552-8C006 · 81554-0D290 |
| 81554 | Right rear combination lamp body gasket | 81554-52570 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D180 · 81555-0D190 · 81555-0D270 · 81555-0D280 · 81555-0D290 · 81555-52570 · 81555-8C010 |
| 81560 | Left rear combination light assembly | 81560-0D180 · 81560-0D200 · 81560-0D210 · 81560-0D270 · 81560-0D280 · 81560-0D300 |
| 81561 | Left rear combination lamp shade | 81561-52500 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0D180 · 81561-0D210 · 81561-0D270 · 81561-0D280 · 81561-0D300 · 81561-8C017 |
| 81562 | Left rear combination lamp shade gasket | 81552-8C007 · 81562-0D180 · 81564-0D300 |
| 81564 | Left rear combination lamp body gasket | 81564-52500 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D180 · 81555-0D190 · 81555-0D270 · 81555-0D280 · 81555-52570 · 81555-8C010 · 81565-0D300 |
| 81580B | Bulb (for rear light) | 90981-13043 |
| 81580D | Right rear light assembly | 81580-52220 |
| 81581C | Right rear light lampshade and lamp body | 81581-52210 |
| 81585 | Rear lamp holder and wiring harness | 90075-99080 |
| 81590A | Left rear light assembly | 81590-52120 |
| 81591B | Left rear light shade and body | 81591-52110 |
