Toyota YARIS Headlamp — Figure 8101

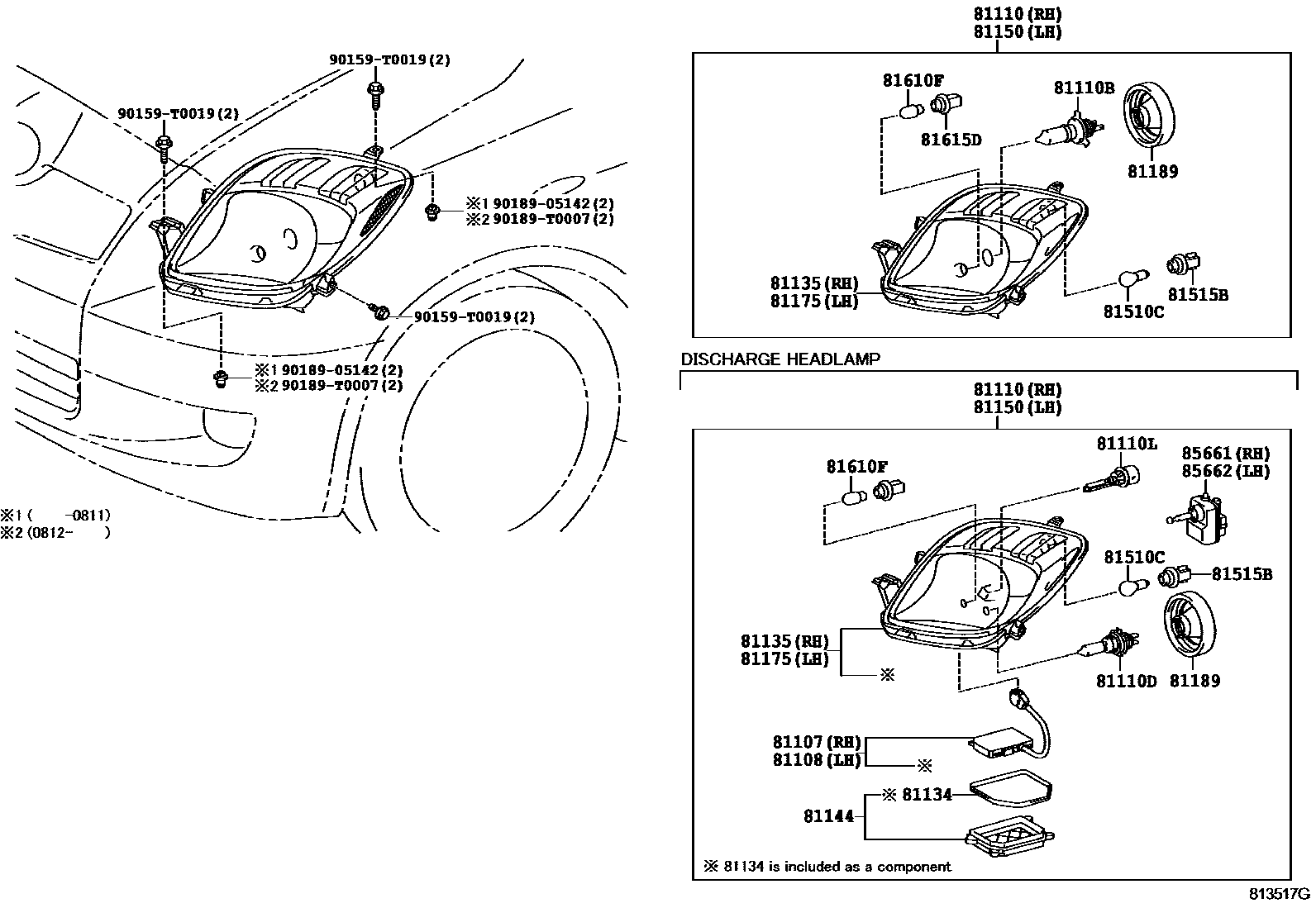

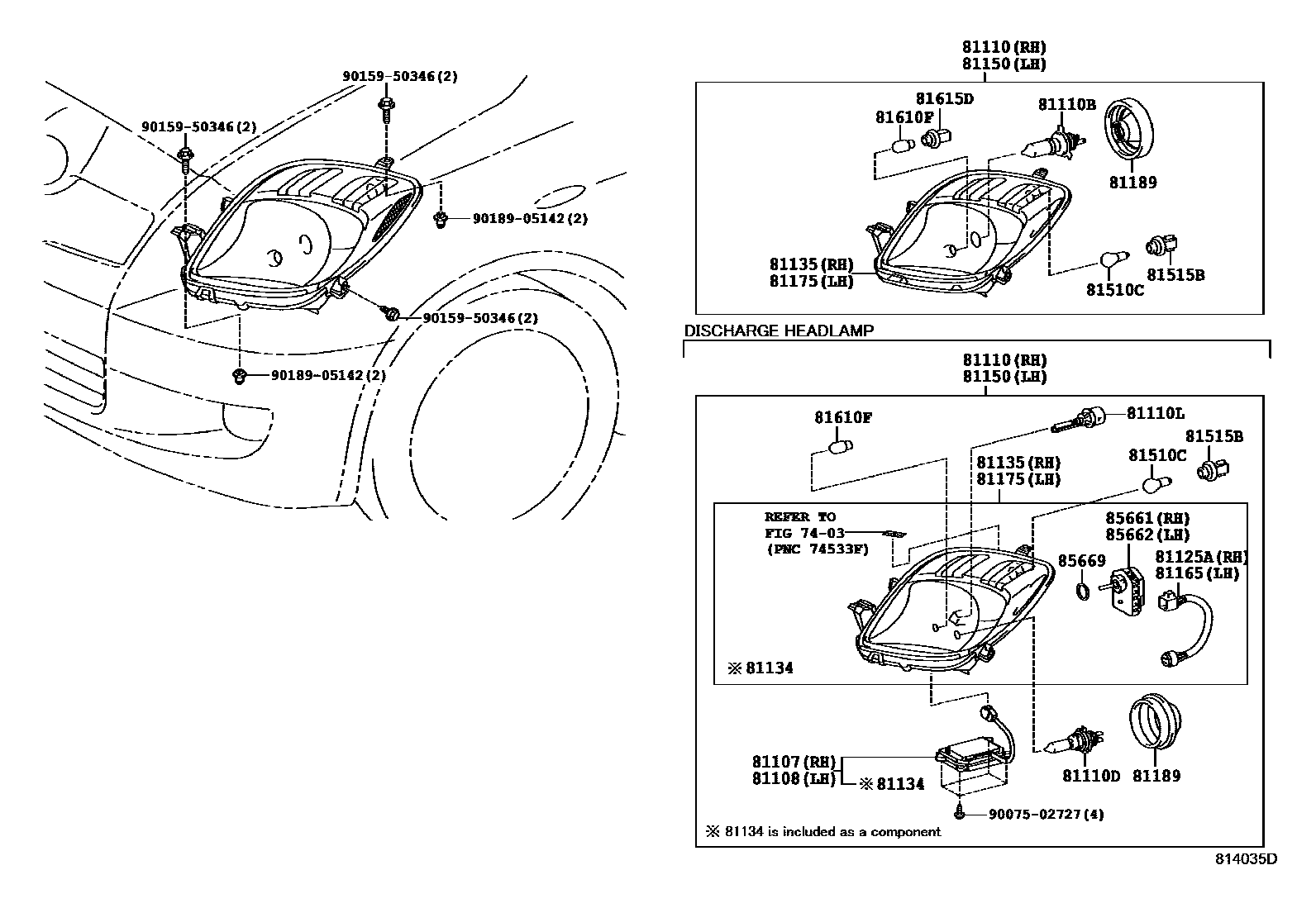

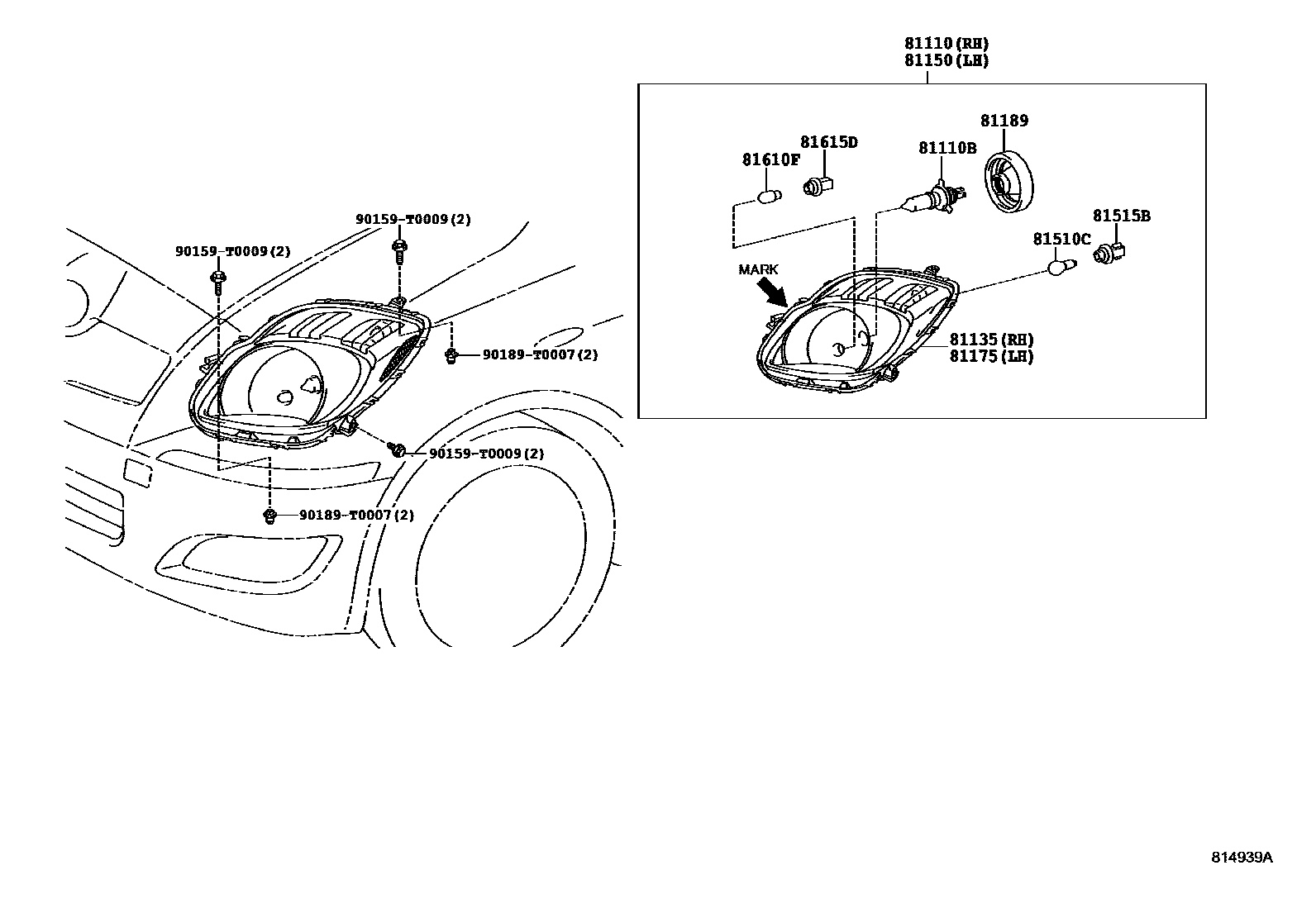

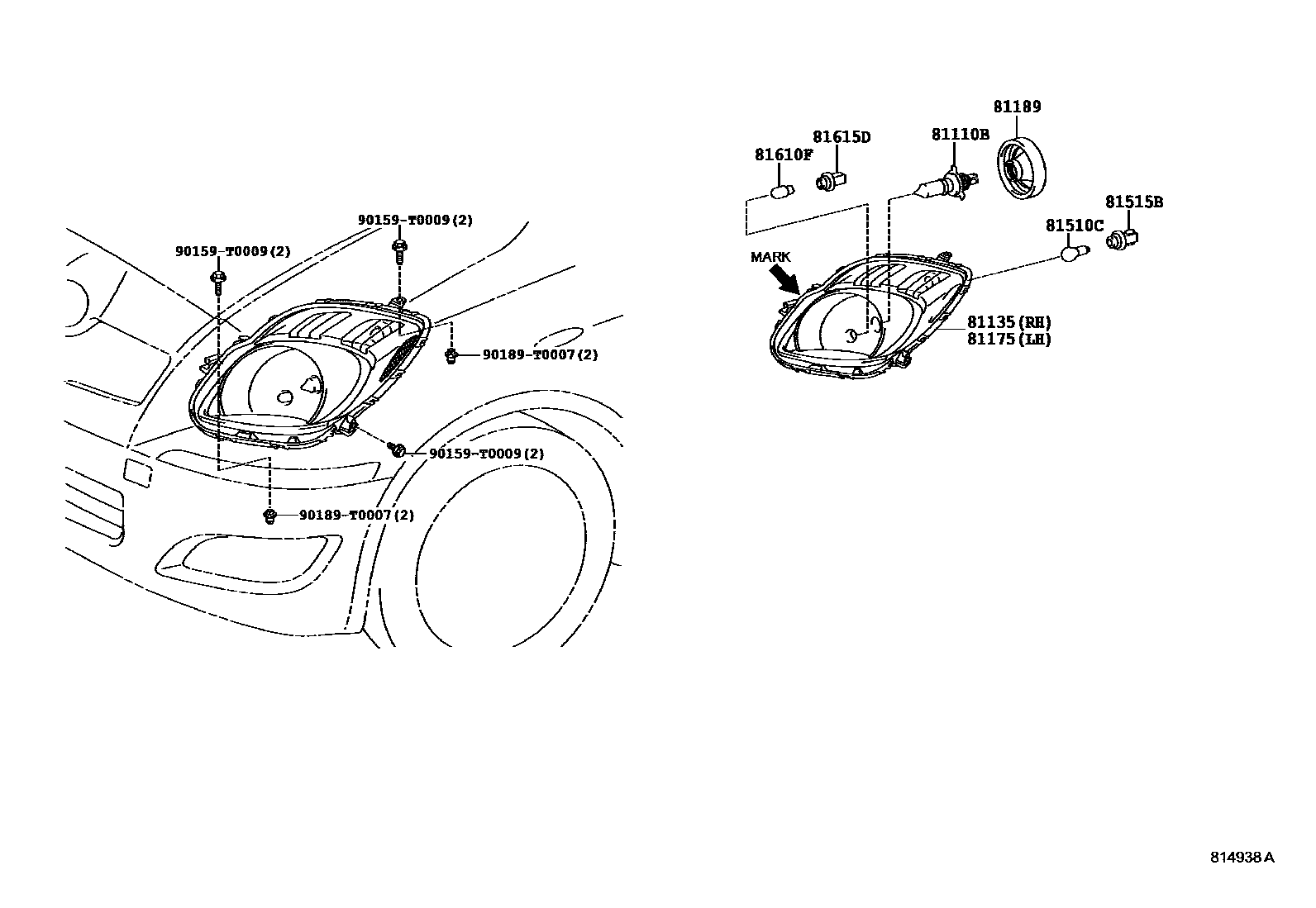

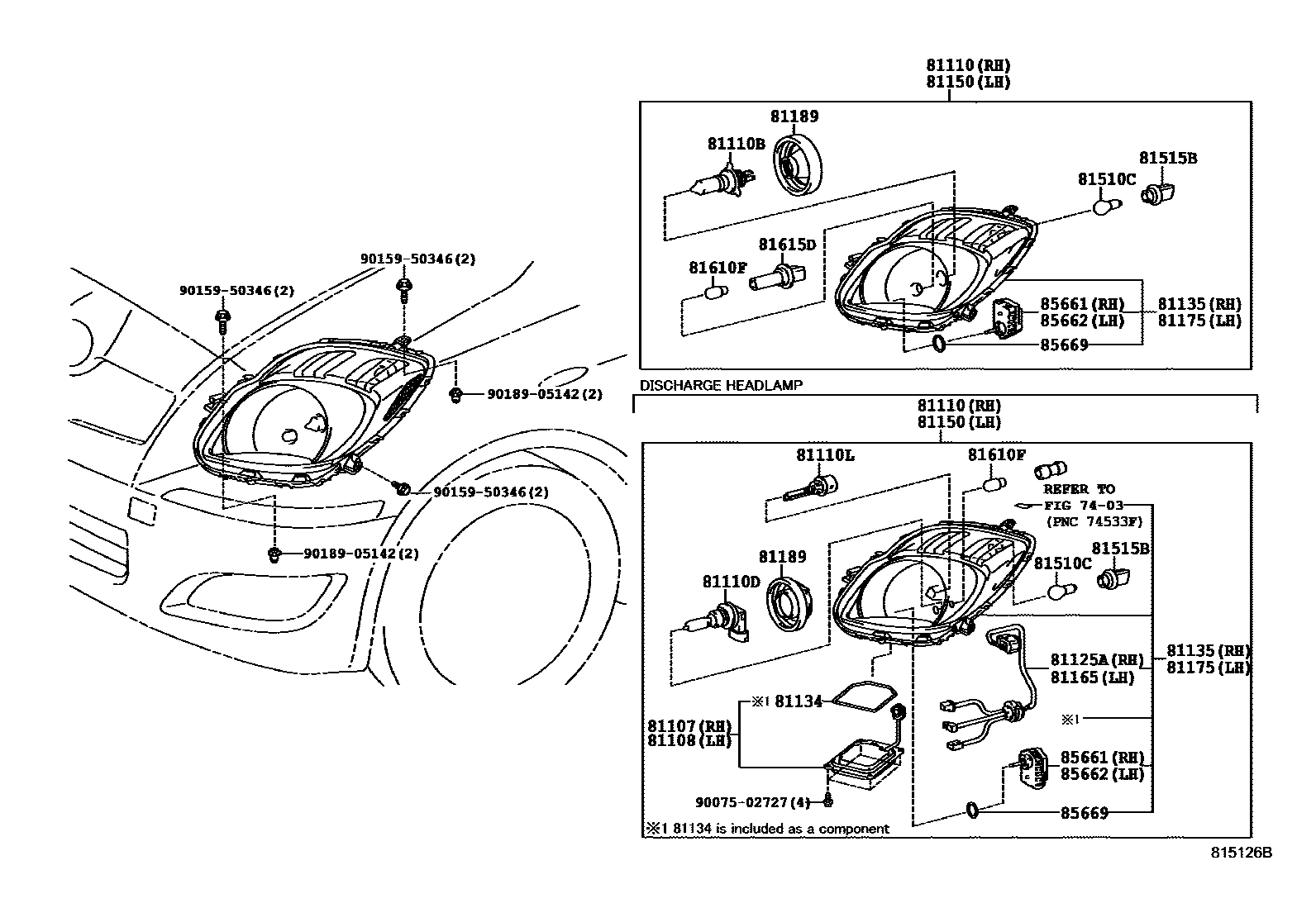

Toyota YARIS EPC diagram 8101, Headlamp, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-0D410 · 81107-52620 · 81107-8C005 |
| 81108 | Left headlight control ECU sub-assembly | 81107-0D410 · 81107-52620 · 81107-8C005 |
| 81110 | Right headlight assembly | 81110-0D210 · 81110-0D240 · 81110-0D250 · 81110-0D260 · 81110-0D390 · 81110-0D400 · 81110-0D410 · 81110-0D520 · 81110-52620 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81110D | Bulb (for headlight No. 2) | 90981-13063 · 90981-13075 · 90981-13079 |
| 81110L | Discharge headlight bulb | 90981-20009 · 90981-20015 · 90981-20029 |
| 81125A | Right headlight wire | 81125-0D410 · 81125-8C004 |
| 81134 | headlight gasket | 81117-8C001 · 81134-52280 · 90075-68007 |
| 81135 | Right headlight assembly assembly | 81130-0D210 · 81130-0D260 · 81130-0D390 · 81130-0D400 · 81130-0D520 · 81130-52B40 · 81130-52G00 · 81130-8C016 · 81145-0D410 · 81145-52620 · 81145-8C007 |
| 81144 | No. 1 headlight cover | 81139-13290 |
| 81150 | Left headlight assembly | 81150-0D210 · 81150-0D240 · 81150-0D250 · 81150-0D260 · 81150-0D390 · 81150-0D400 · 81150-0D410 · 81150-0D520 · 81150-52610 |
| 81165 | Left headlight wire | 81125-0D250 · 81125-0D410 |
| 81175 | Left headlight assembly assembly | 81170-0D210 · 81170-0D260 · 81170-0D390 · 81170-0D400 · 81170-0D520 · 81170-52B30 · 81170-52G00 · 81170-8C016 · 81185-0D410 · 81185-52610 · 81185-8C007 |
| 81189 | headlight cover | 81135-52620 · 81135-8C007 · 81139-52570 · 90075-65017 · 90075-8C008 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15009 · 90981-15020 · 90981-WF005 |
| 81515B | Front turn signal lamp holder | 81515-52570 · 90075-60069 · 9008C-07006 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-52570 · 90075-60046 · 90075-60077 · 90075-8C006 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 · 85661-12020 · 85661-52010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 · 85661-12020 · 85661-52010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-8C004 · 90075-99120 |
