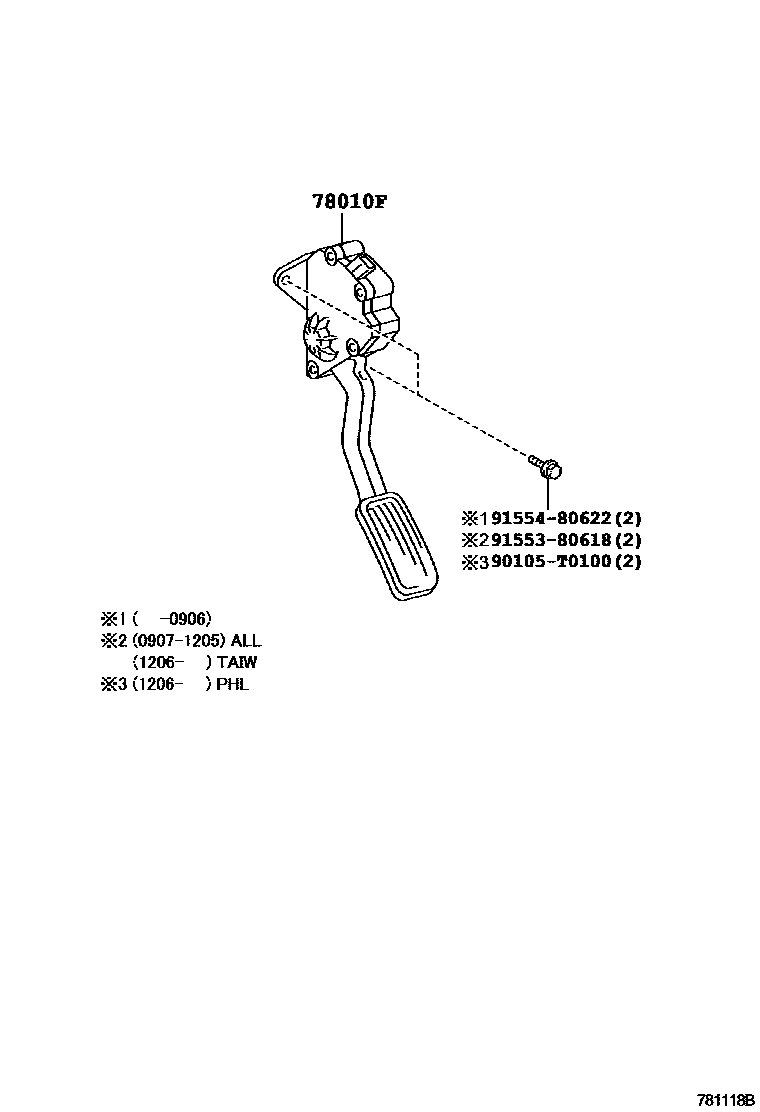

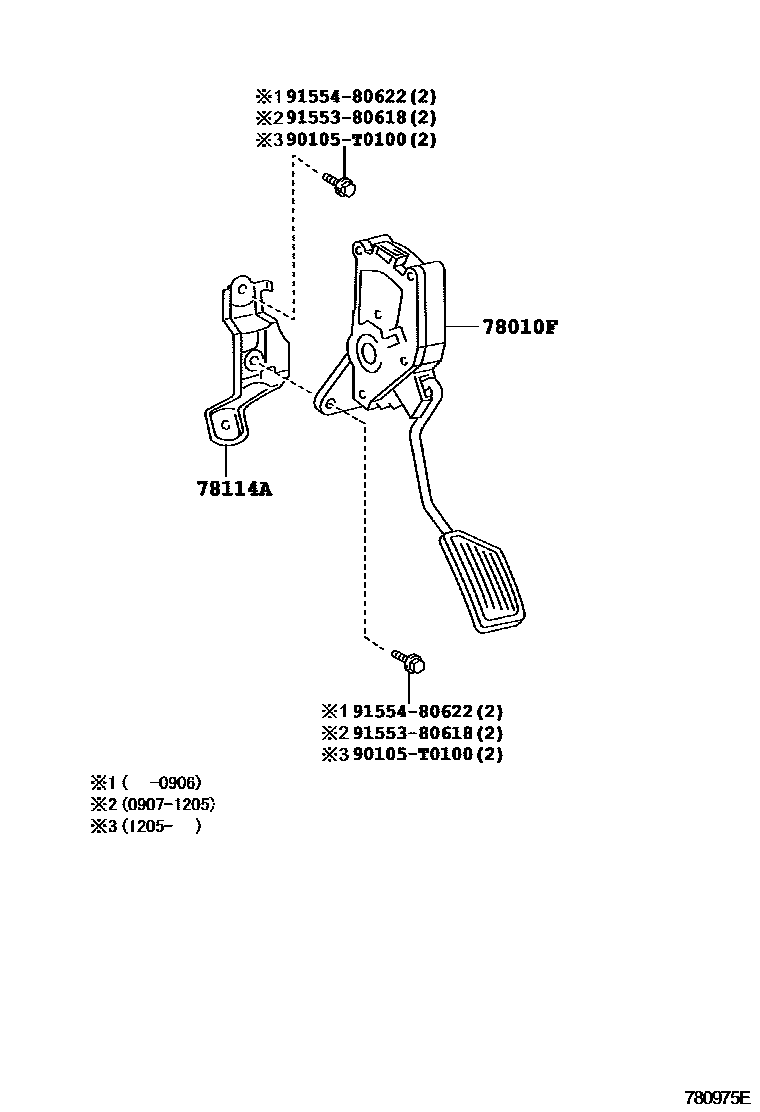

Toyota YARIS accelerator pedal connecting rod — Figure 7801
Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78110-0D070 · 78110-0D071 · 78110-0D080 · 78110-0D081 · 78110-52010 · 78110-52020 · 78110-52021 |
| 78114A | accelerator pedal bracket | 78114-0D040 |
