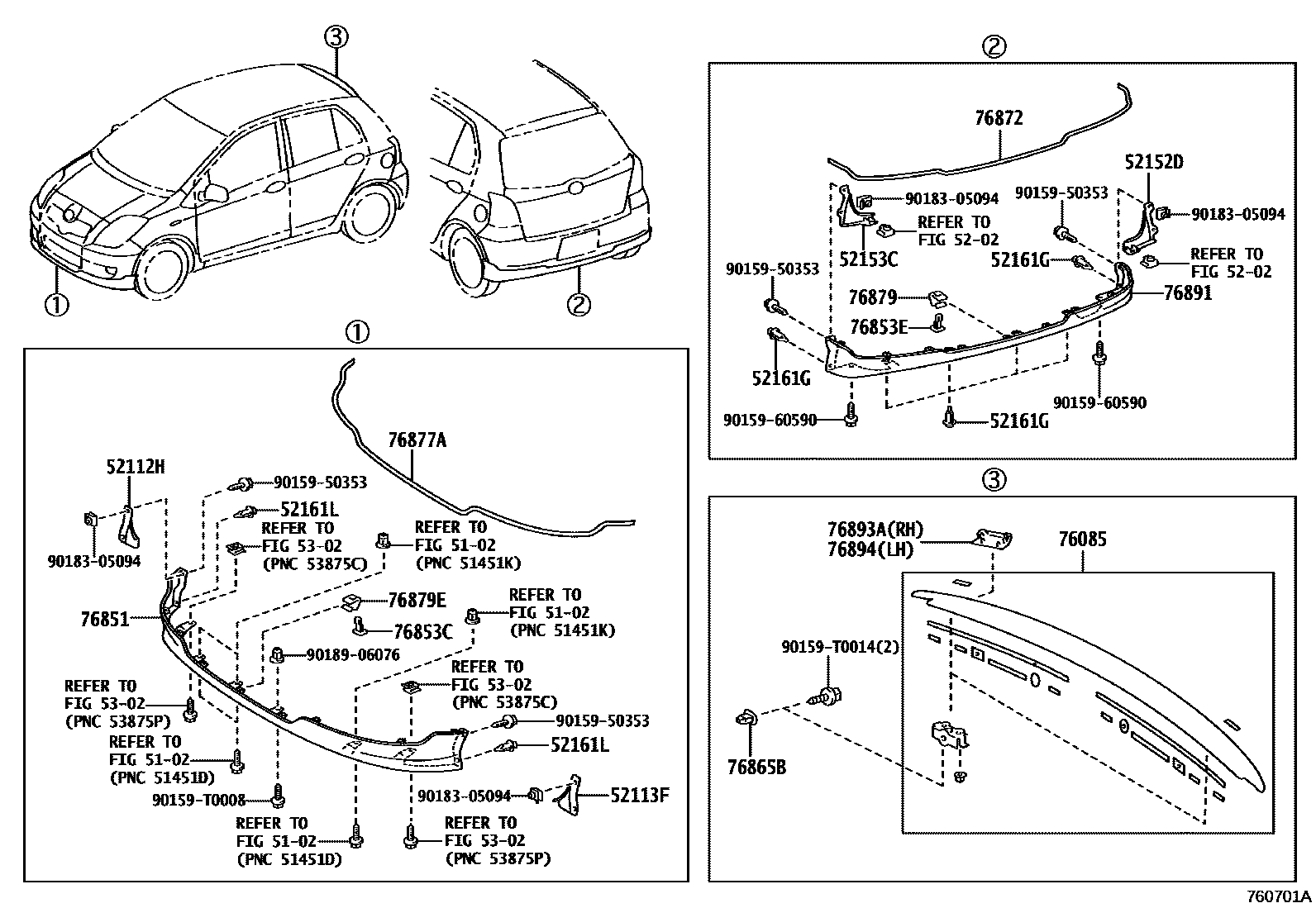

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112H | Front bumper right extension | 52112-0D060 |
| 52113F | Front bumper left extension | 52113-0D060 |
| 52152D | Rear bumper right extension | 52152-0D010 |
| 52153C | Rear bumper left extension | 52153-0D010 |
| 52161G | Rear bumper insert | 52161-0K040 |
| 52161L | front spoiler insert | 52161-0K040 |
| 76085 | Rear spoiler sub-assembly | 76085-0D901 |
| 76851 | front spoiler cover | 76851-0D907 |
| 76853C | No. 1 front spoiler fixing piece | 75392-35200 |
| 76853E | No. 1 rear spoiler fixing piece | 75392-35200 |
| 76865B | Rear spoiler fixings | 76865-0D010 |
| 76879 | No. 1 rear spoiler clip | 76879-44010 |
| 76879E | Front spoiler clip | 76879-44010 |
| 76891 | No. 1 rear spoiler | 76891-0D900 |
| 76893A | Right rear spoiler cover | 76893-0D901 |
| 76894 | Left rear spoiler cover | 76894-0D901 |
| 76901 | Right fender sub-assembly | 76915-0D903 |
| 76902 | Left fender sub-assembly | 76916-0D903 |
| 76919 | Side fender liners | 76919-0D010 · 76919-0D020 |
| 76923 | Side fender fixings | 76923-0D010 |
