Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 11 PNC and OE references.

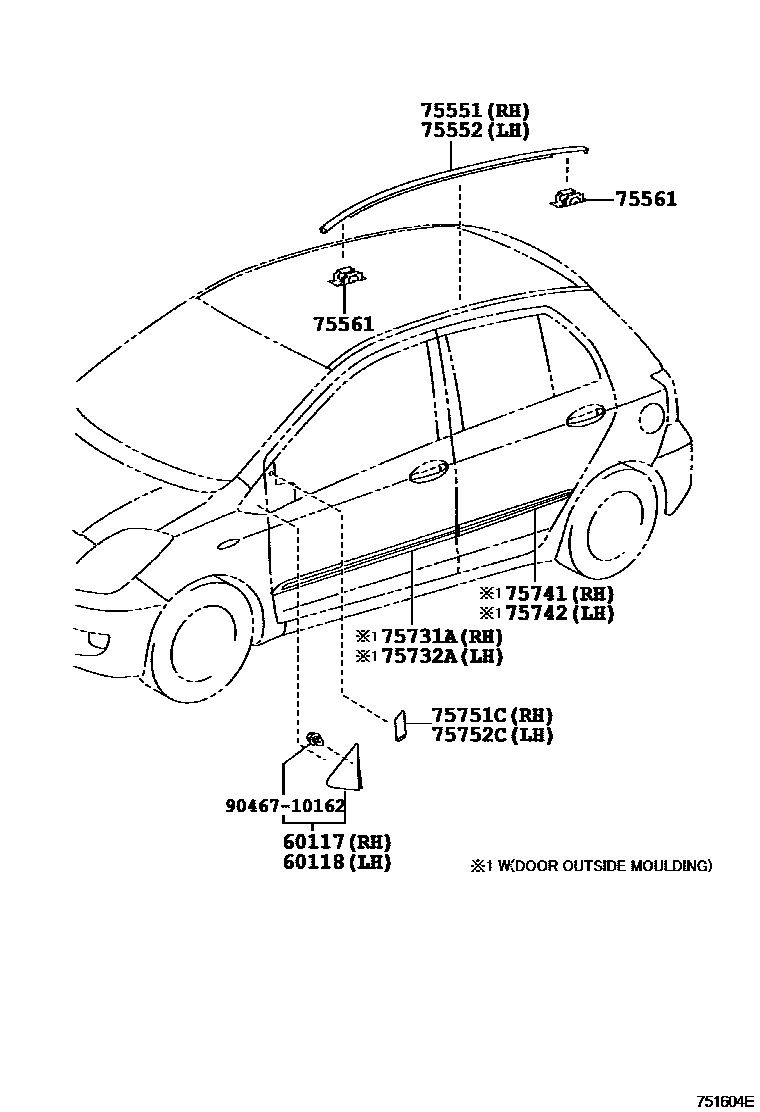

Toyota YARIS 侧防护条 EPC diagram — 751604E
侧防护条 — 751604E (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-0D070
60118Left front pillar upper cover sub-assembly60118-0D070
75551Drainage groove side decorative strip on the right side of the roof75551-0D080 · 75551-52130
75552Drainage groove side decorative strip on the left side of the roof75551-0D080 · 75551-52130
75561No. 1 roof drain channel side decorative strip clip75561-52040
75731ARight front door outer protective strip75731-0D911
75732ALeft front door outer protective strip75732-0D965
75741Right rear door outer protective strip75741-0D911
75742Left rear door outer protective strip75742-0D911
75751CRight front door window frame front protective strip75751-0D020
75752CLeft front door window frame front protective strip75752-0D020
