Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

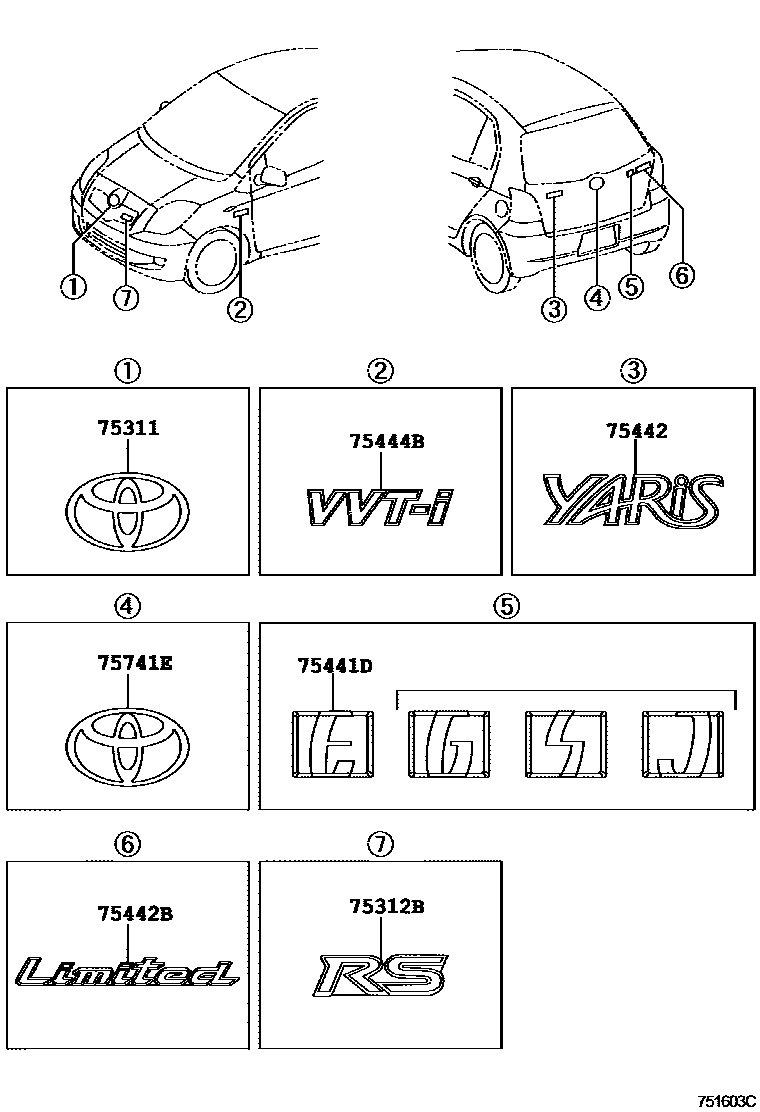

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-0D050 · 75311-52140 · 75311-52260 |
| 75312B | Radiator grille number 2 plate | 75312-52110 |
| 75441D | Trunk door No. 1 name plate | 75444-0D020 · 75444-0D030 · 75444-0D040 · 75444-0D120 |
| 75442 | Trunk door number plate No. 2 | 75442-0D060 · 75442-52210 |
| 75442B | No. 2 nameplate on back door | 75432-0M010 |
| 75444B | Front fender nameplate | 75444-02161 |
| 75741E | logo | 75431-0D070 · 90975-02072 |
