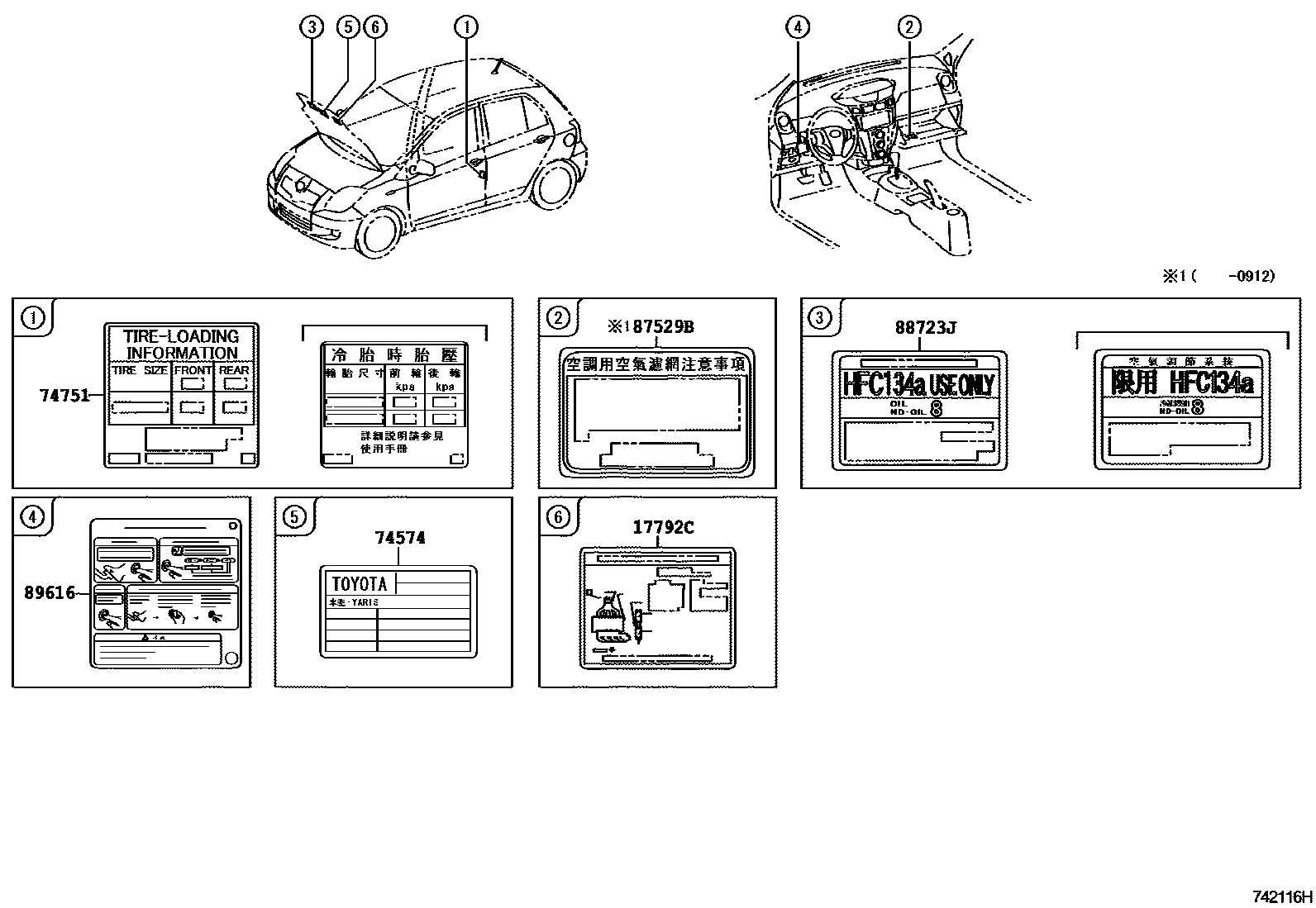

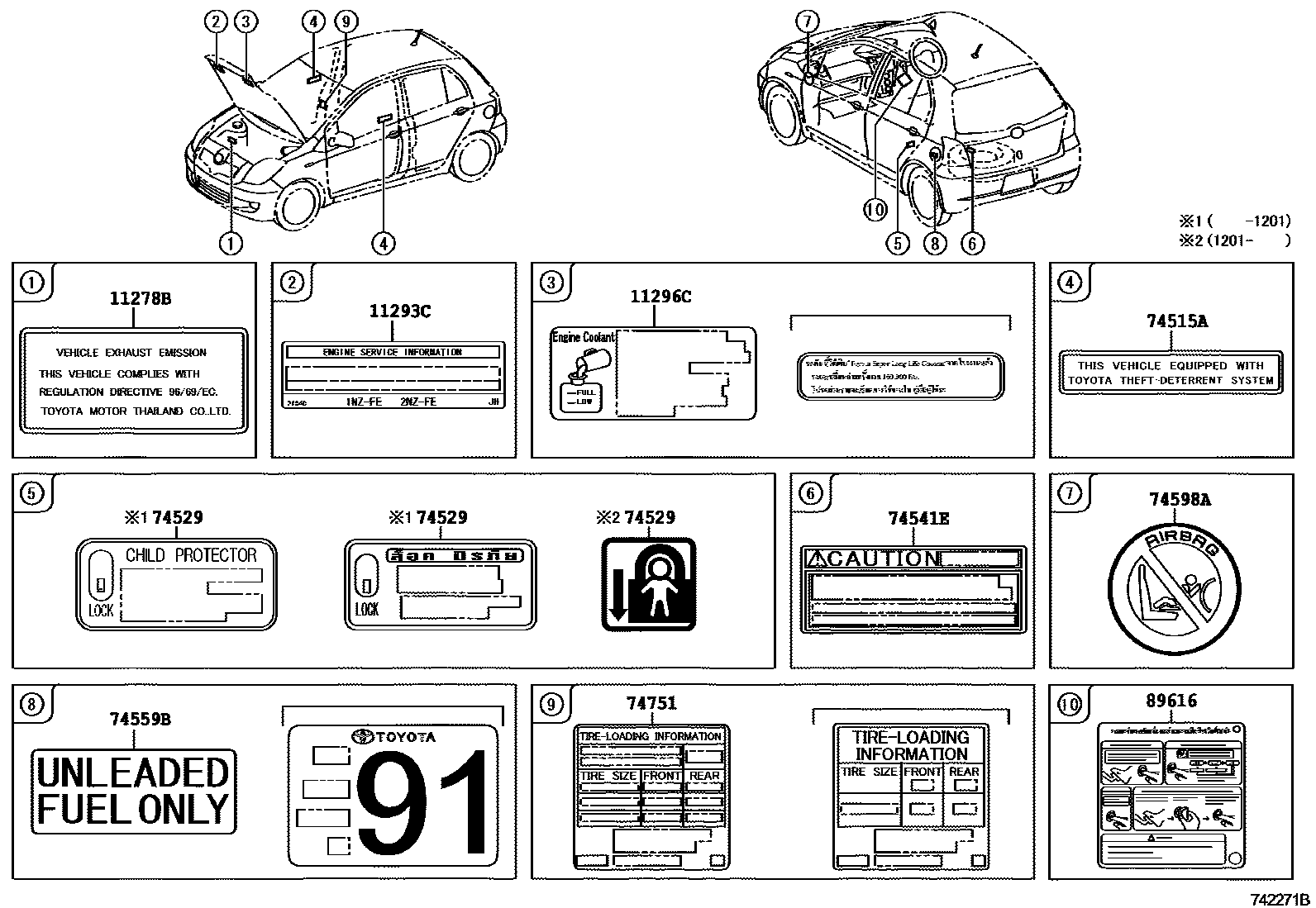

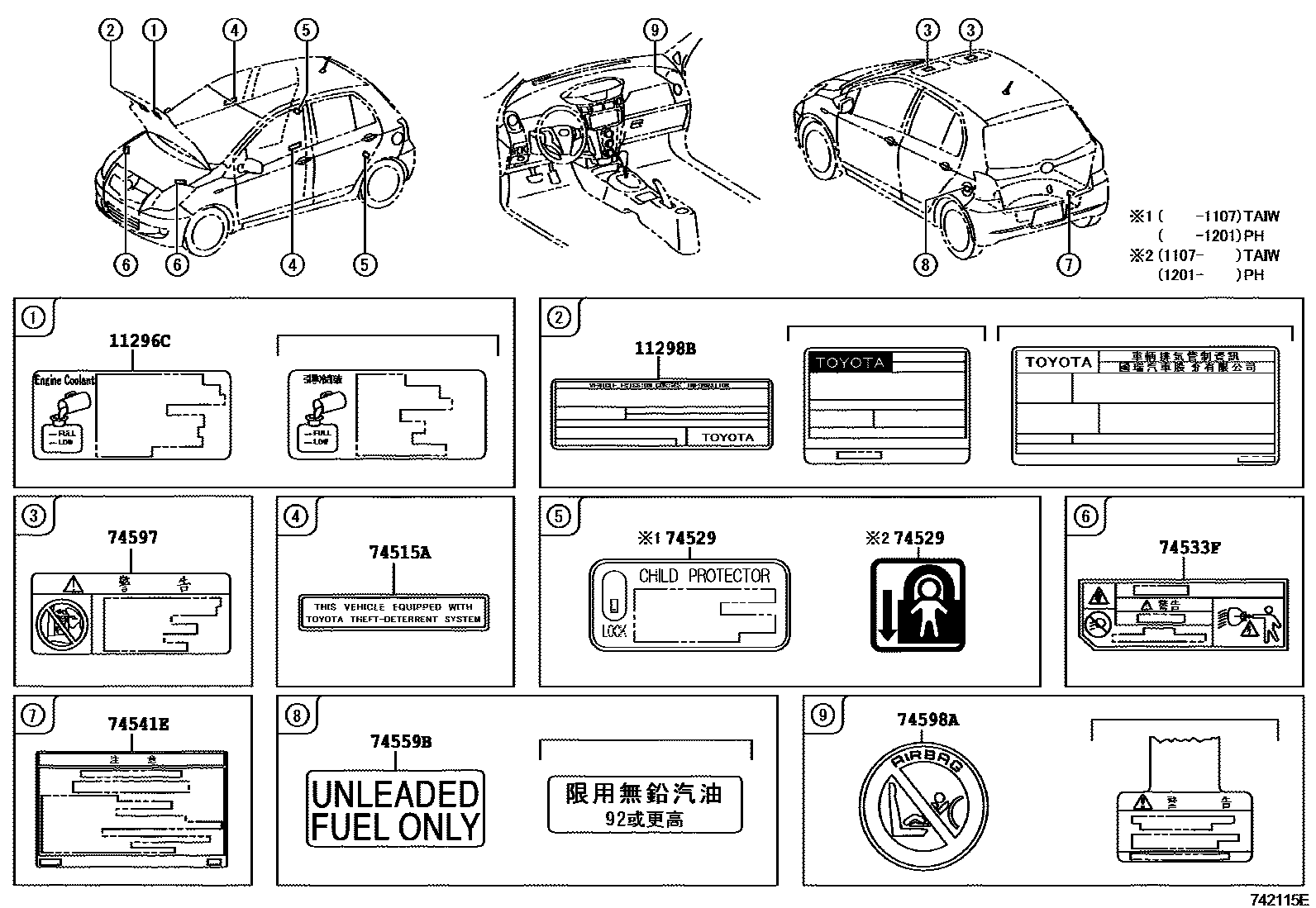

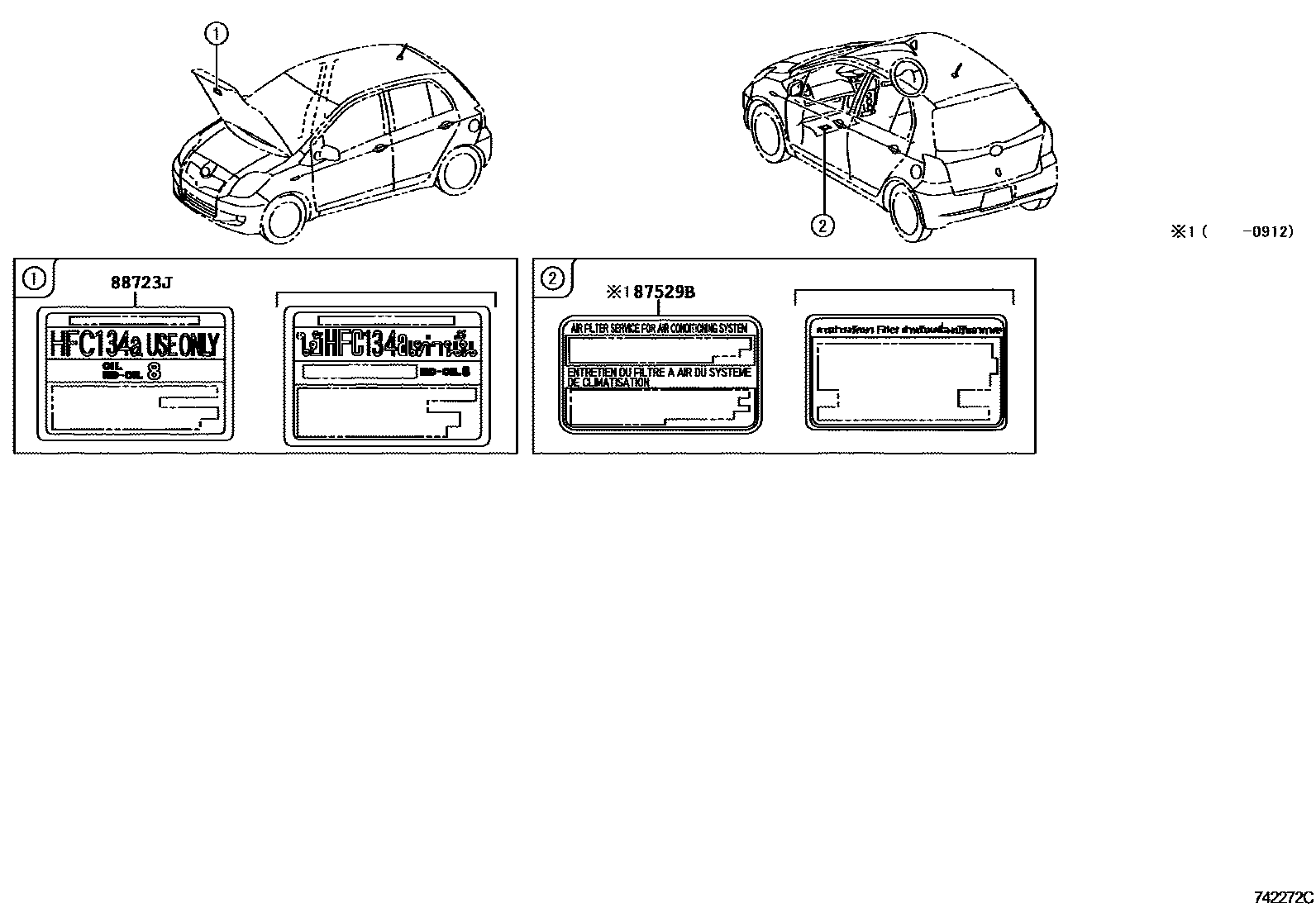

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-15020 |
| 11293C | Adjust specification information label | 11293-21040 |
| 11296C | Engine maintenance information label | 11296-0D020 · 11296-0L010 · 11296-27020 |
| 11298B | Emission Control Information Label | 11298-0M020 · 11298-0M021 · 11298-0M022 · 11298-0M023 · 11298-0M024 · 11298-0M025 · 11298-0M026 · 11298-0M027 · 11298-21050 |
| 16793E | Cooling fan warning label | 16793-02010 · 16793-75010 |
| 17792C | Engine vacuum hose information label | 17792-0M020 · 17792-0M021 · 17792-0M022 · 17792-0M023 · 17792-0M030 · 17792-0M031 |
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-06060 · 69339-06070 · 69339-0A010 · 69339-0D030 · 69339-12010 · 69339-20040 |
| 74533F | Headlight voltage warning label | 74533-8C002 |
| 74541E | Small spare tire warning plate | 42668-0D030 · 42668-16020 |
| 74559B | fuel information label | 74559-02021 · 74559-02050 · 74559-14050 · 74579-0B010 |
| 74574 | Noise identification nameplate | 74574-0D030 · 74574-0D050 · 74574-0D070 · 74574-0D090 · 74574-0D100 · 74574-0D110 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74597-0B020 |
| 74598A | Passenger air bag warning label | 74598-02040 · 74599-0B010 |
| 74751 | tire pressure information label | 42661-0D200 · 42661-0D210 · 42661-0D211 · 42661-0D220 · 42661-0D230 · 42661-0D231 · 42661-0D260 · 42661-0D270 · 42661-0D280 · 42661-0D300 · 42661-0D301 · 42661-0D320 |
| 87529B | Cabin filter information label | 87529-02010 · 87529-06030 · 87529-0M010 · 87529-50010 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-02080 · 88723-0D030 · 88723-28220 |
| 89616 | Launch information labels with one click | 89616-33010 · 89616-33020 |
