Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

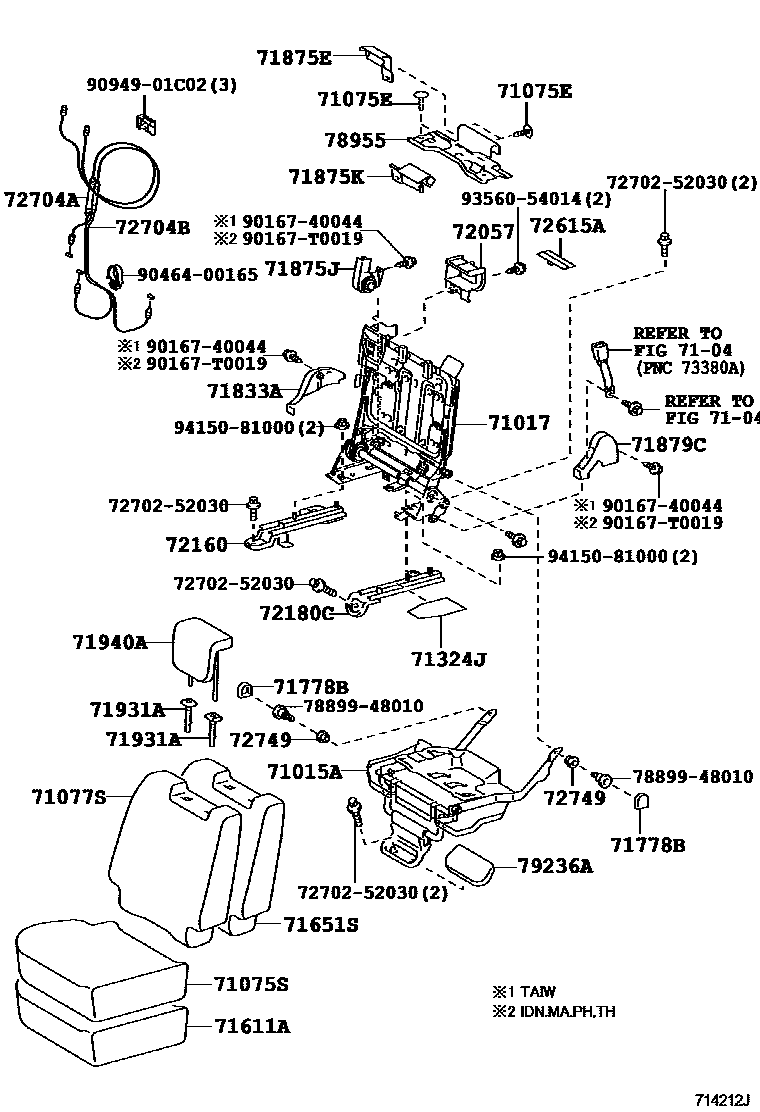

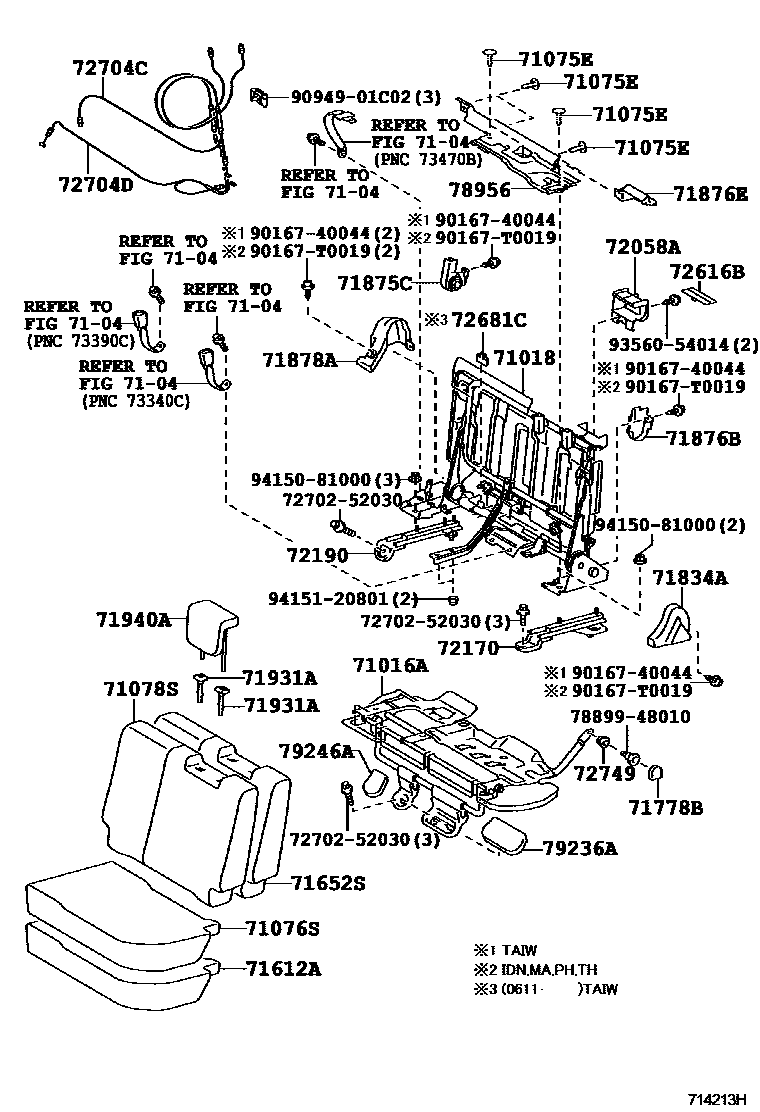

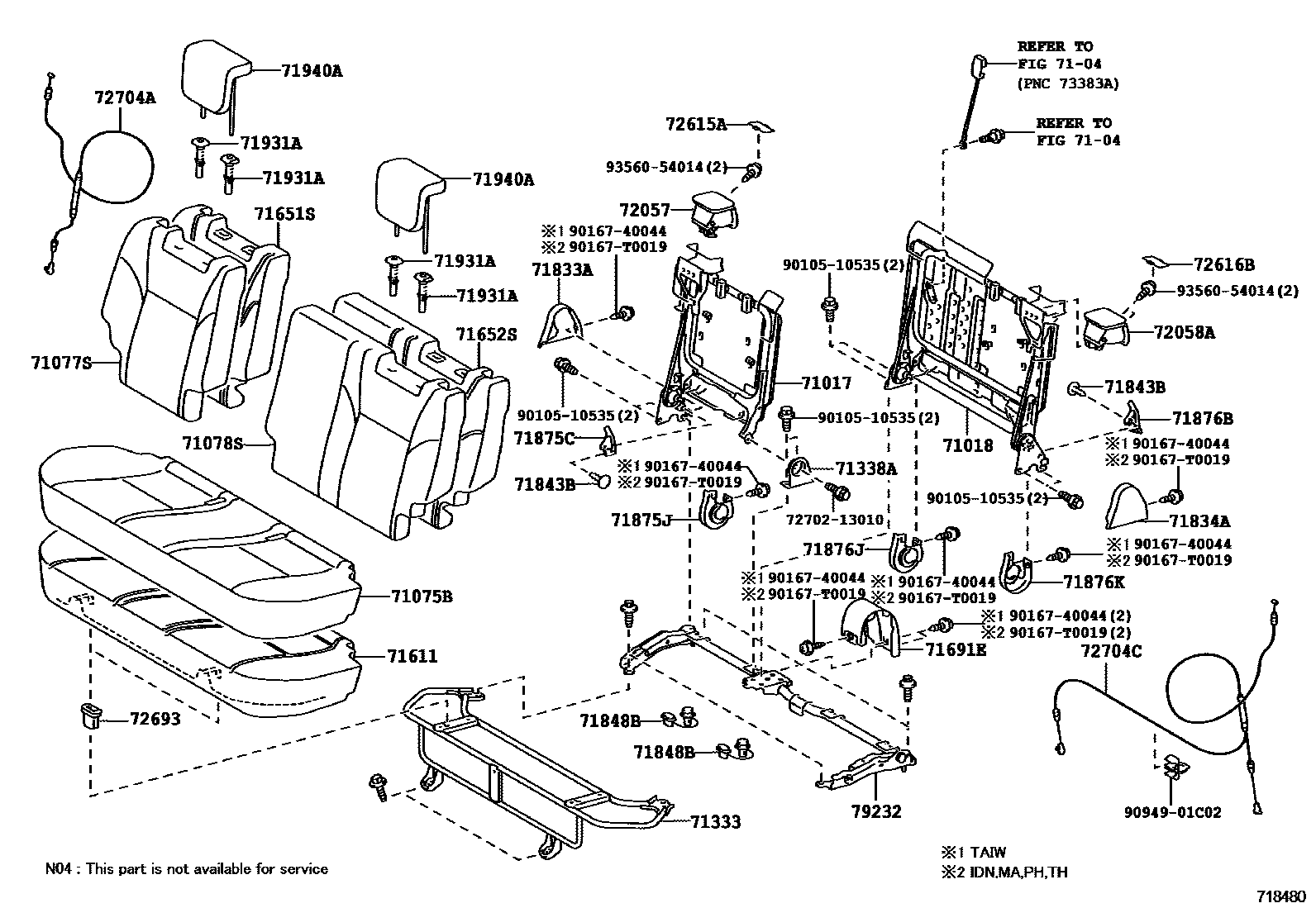

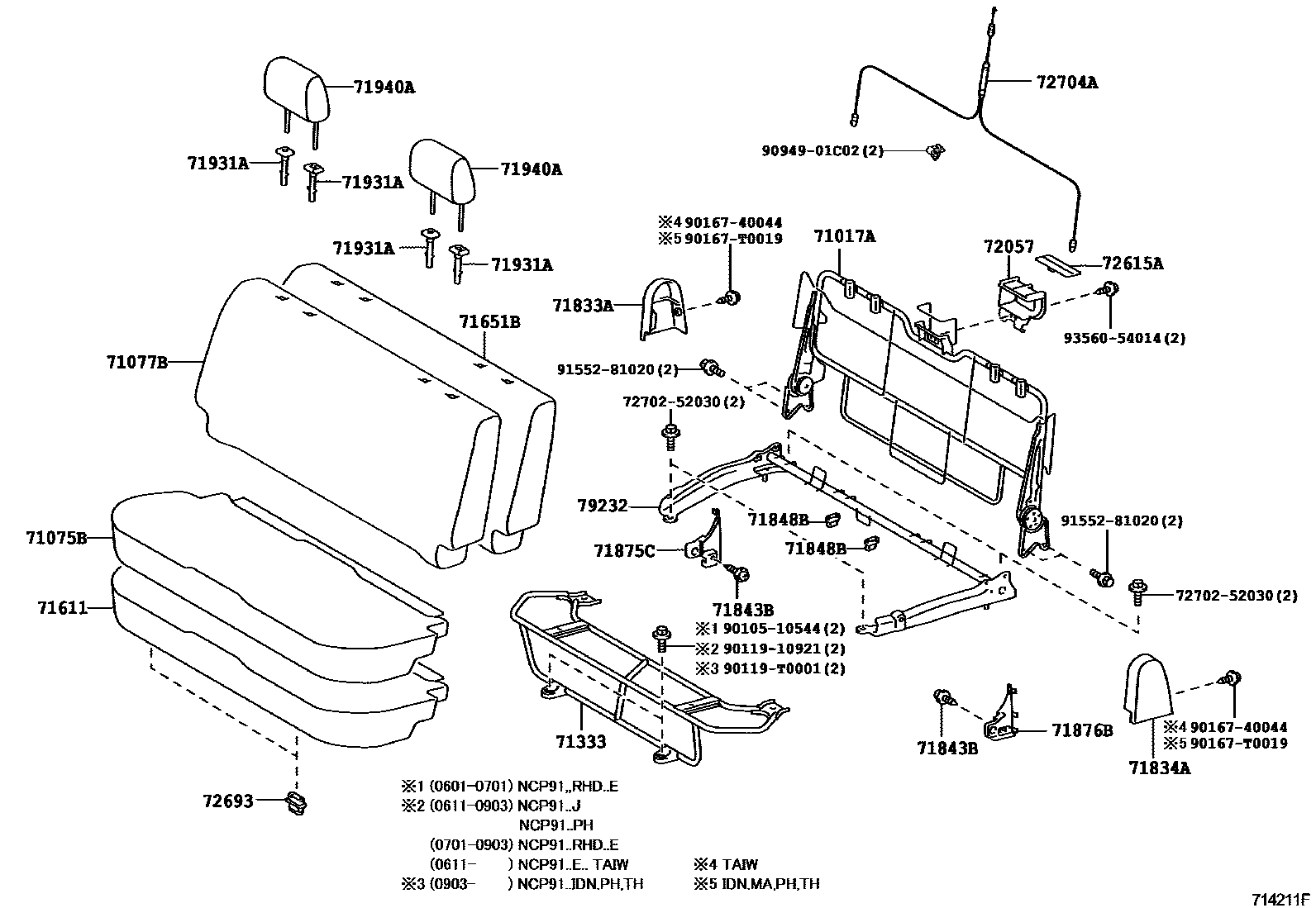

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-0D030 · 71015-0D070 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-0D010 · 71016-0D030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-0D030 · 71017-0D070 · 71017-0D290 · 71017-0D440 |
| 71017A | Rear seat back frame sub-assembly | 71017-0D060 · 71017-0D080 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0D030 · 71018-0D040 · 71018-0D120 · 71018-0D240 |
| 71324J | Rear seat cushion | 71324-0D010 · 71324-0D020 |
| 71333 | Rear seat No. 1 seat cushion and legs | 71333-0D010 · 71333-0D020 · 71333-0D030 |
| 71338A | Footboard of rear seat No. 2 | 71338-52010 |
| 71611 | Rear seat cushion cushion | 71503-0D050 · 71503-0D060 · 71503-0D220 · 71503-0D300 |
| 71611A | Rear right seat cushion | 71611-0D010 · 71611-0D030 |
| 71612A | Rear left seat cushion | 71612-0D010 · 71612-0D020 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-0D040 · 71651-0D060 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0D030 · 71651-0D050 · 71651-0D250 · 71651-0D470 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0D030 · 71652-0D040 · 71652-0D160 · 71652-0D270 |
| 71778B | Rear right side seat hinge outer cover | 71778-0D010 · 71778-0D020 · 71778-52010 |
| 71848B | Right seat adjuster cover | 71848-52030 |
| 72160 | Rear right seat outer slide rail assembly | 72160-52020 |
| 72170 | Rear left seat outer slide rail assembly | 72170-52030 |
| 72180C | Rear right seat inner slide rail assembly | 72160-52030 |
| 72190 | Rear left seat inner slide rail assembly | 72170-52020 |
| 72681C | Rear seat backrest lower hook | 72681-52010 |
| 72693 | Rear seat cushion hook | 72693-02020 |
| 72704A | Rear seat backrest tilt control cable | 72704-52020 · 72704-52030 |
| 72704B | Rear No. 2 seat backrest inclination control cable | 72704-52050 |
| 72704C | Rear No. 2 seat backrest inclination control cable | 72704-52040 |
| 72704D | Rear No. 2 seat backrest inclination control cable | 72704-52060 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 79232 | Right leg support for rear seat No. 2 | 79232-0D010 · 79232-0D020 · 79232-0D040 · 79232-52050 |
