Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

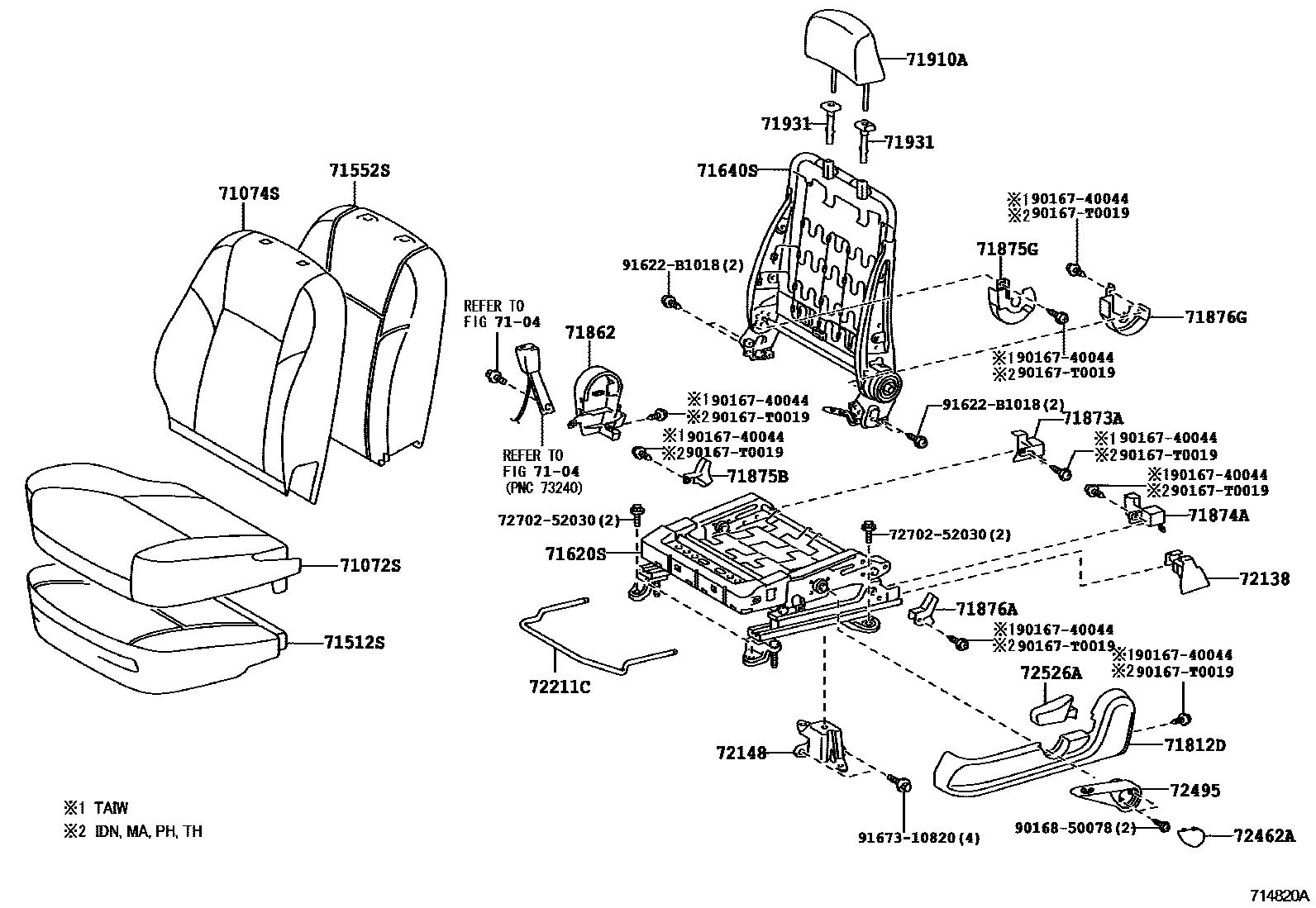

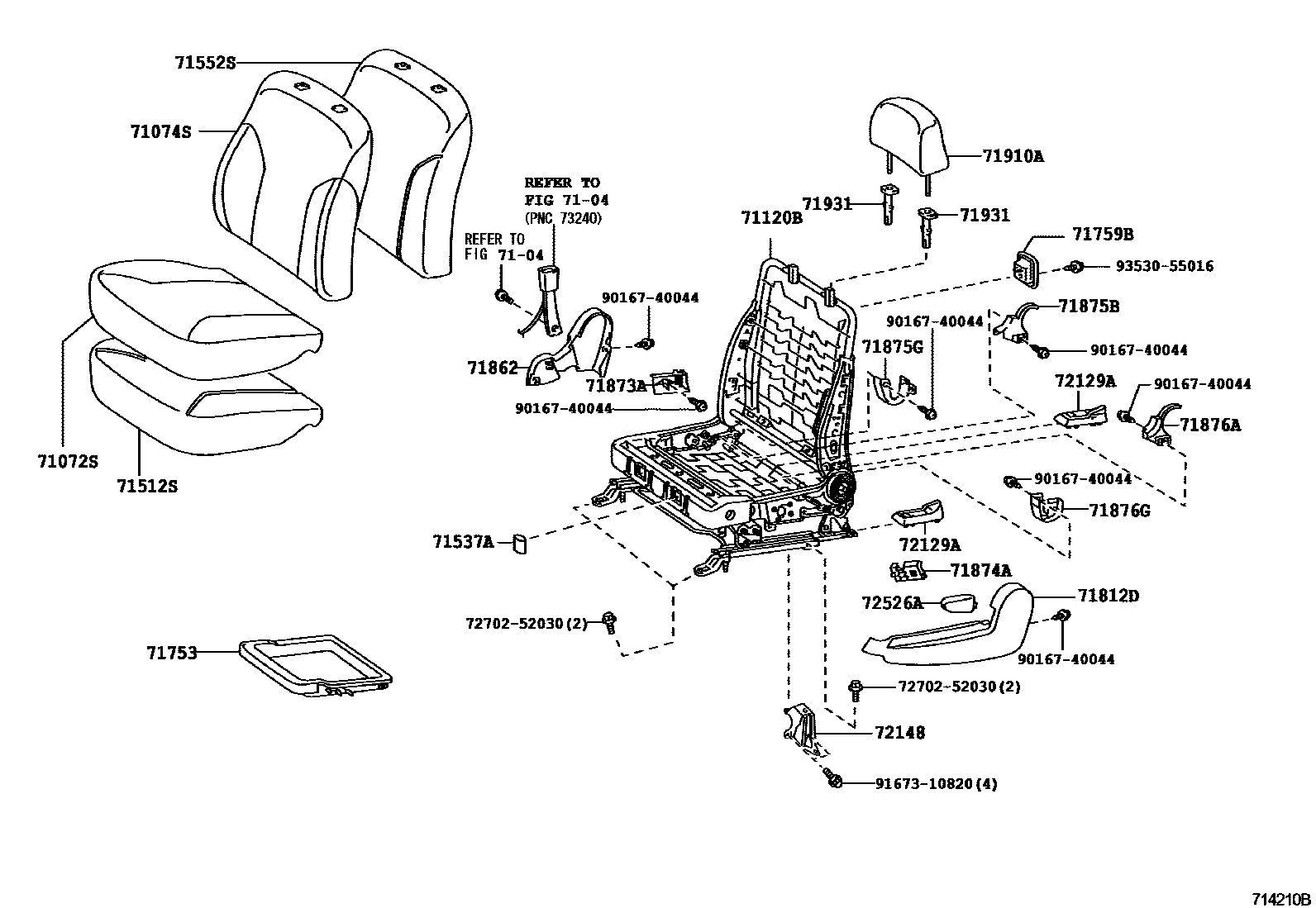

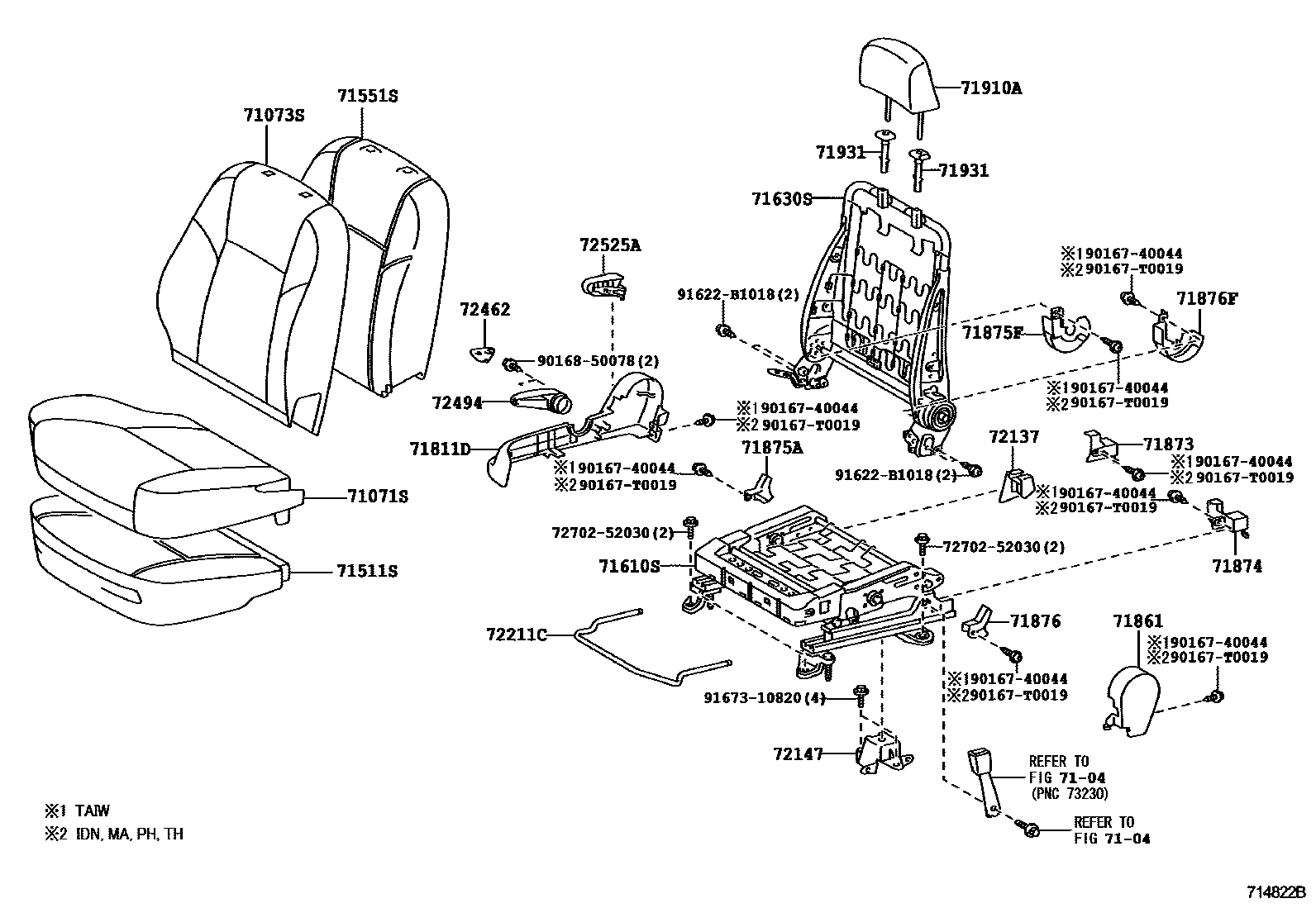

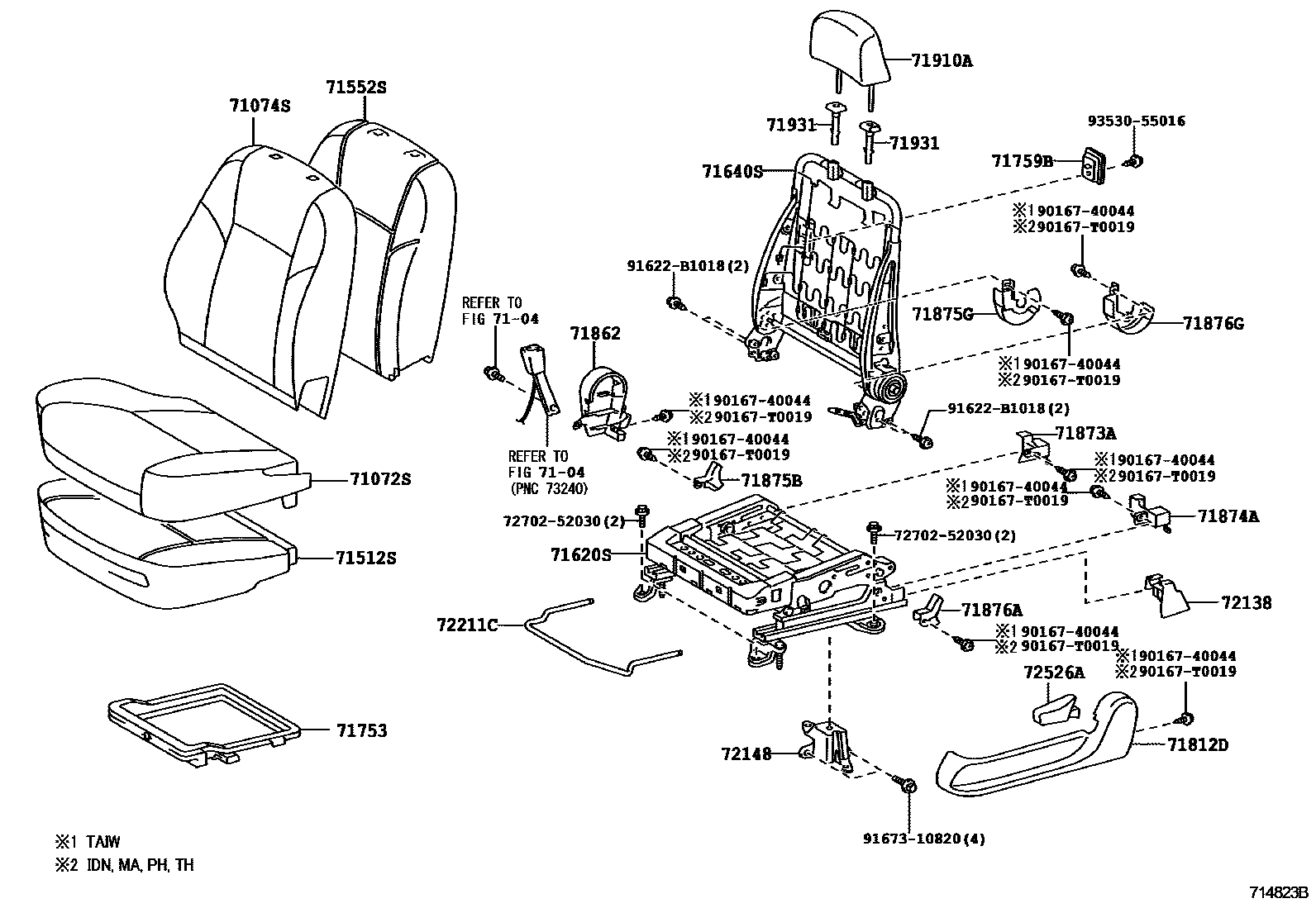

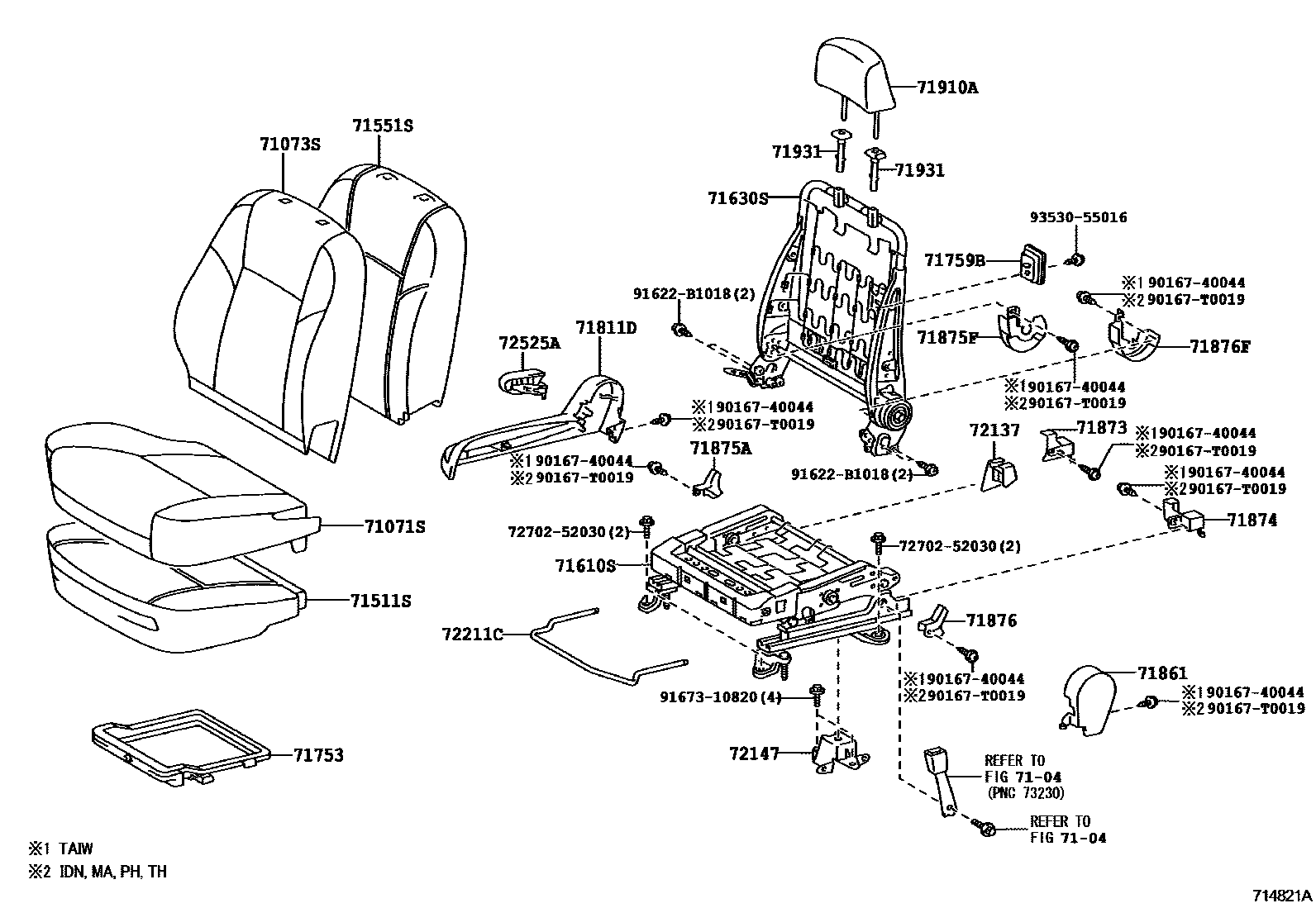

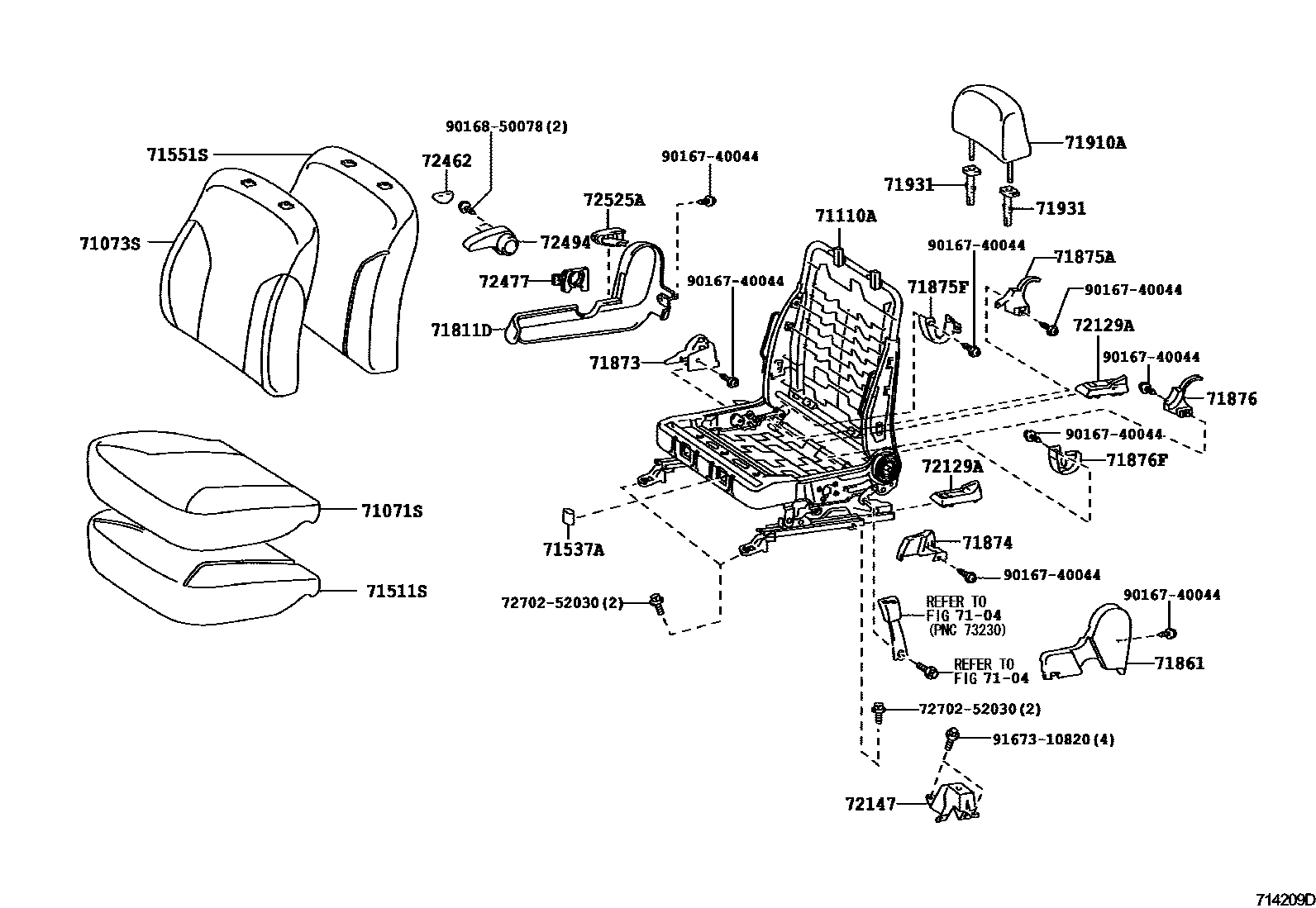

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-0D010 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-0D010 · 71120-0D020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0D030 · 71511-0D050 · 71511-0D060 · 71511-0D120 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0D010 · 71512-0D020 · 71512-0D030 · 71512-0D090 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D070 · 71551-0D090 · 71551-0D100 · 71551-0D170 · 71552-0D050 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D030 · 71552-0D040 · 71552-0D050 · 71552-0D120 · 71552-0D130 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0D010 · 71610-0D020 · 71610-0D080 · 71610-0D120 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0D010 · 71620-0D070 · 71620-0D080 · 71620-0D090 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0D120 · 71630-0D170 · 71630-0D180 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0D090 · 71640-0D140 · 71640-0D150 |
| 71873 | Front right seat cushion lower guard panel | 71873-0D030 |
| 71873A | Front seat cushion lower guard | 71873-0D030 |
| 71874 | Front left seat cushion lower guard | 71874-0D030 |
| 71874A | Front left seat cushion lower guard | 71874-0D030 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-06370 · 71876-06400 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06370 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71875-06370 · 71876-06400 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06400 |
| 71910A | Front seat headrest assembly | 71910-0D450 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-52030 |
| 72137 | Right seat outer slide rail cover | 72137-0D070 |
| 72138 | Left seat outer slide rail cover | 72138-0D050 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D020 · 72147-0D030 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D020 · 72148-0D030 |
| 72211C | Seat slide adjustment handle | 72211-0D040 |
| 72477 | Height adjuster spacer | 72477-58010 |
