Toyota YARIS 锁芯组件 — Figure 6712

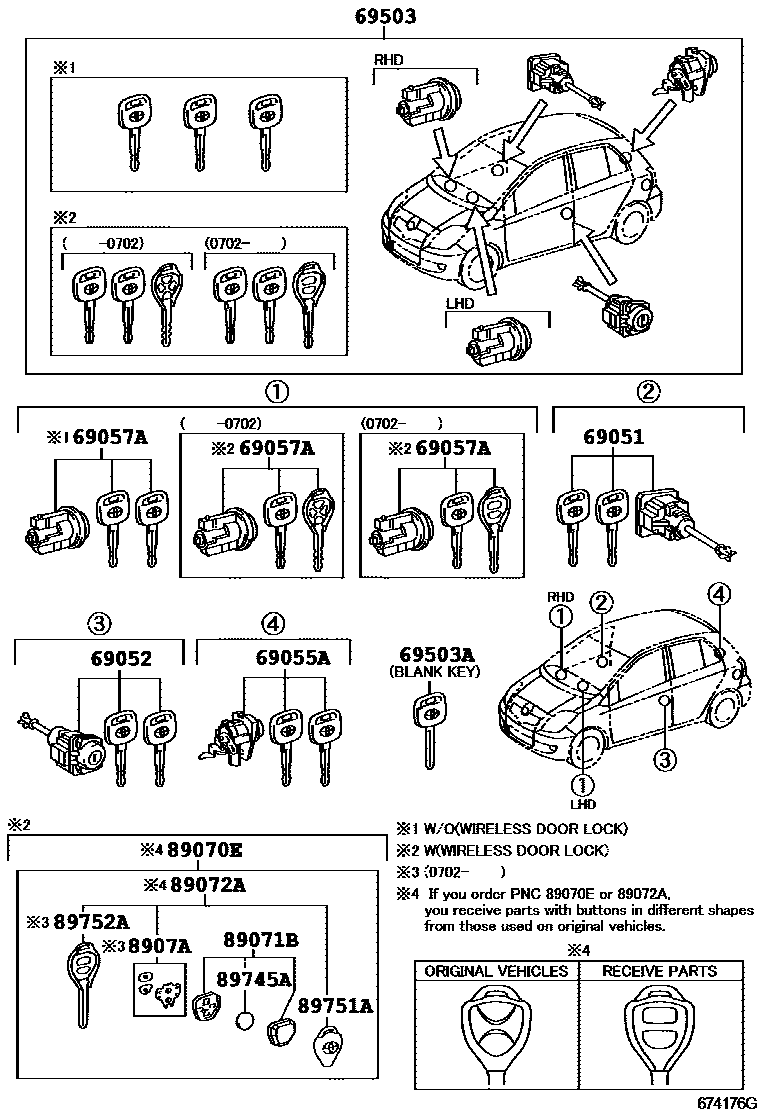

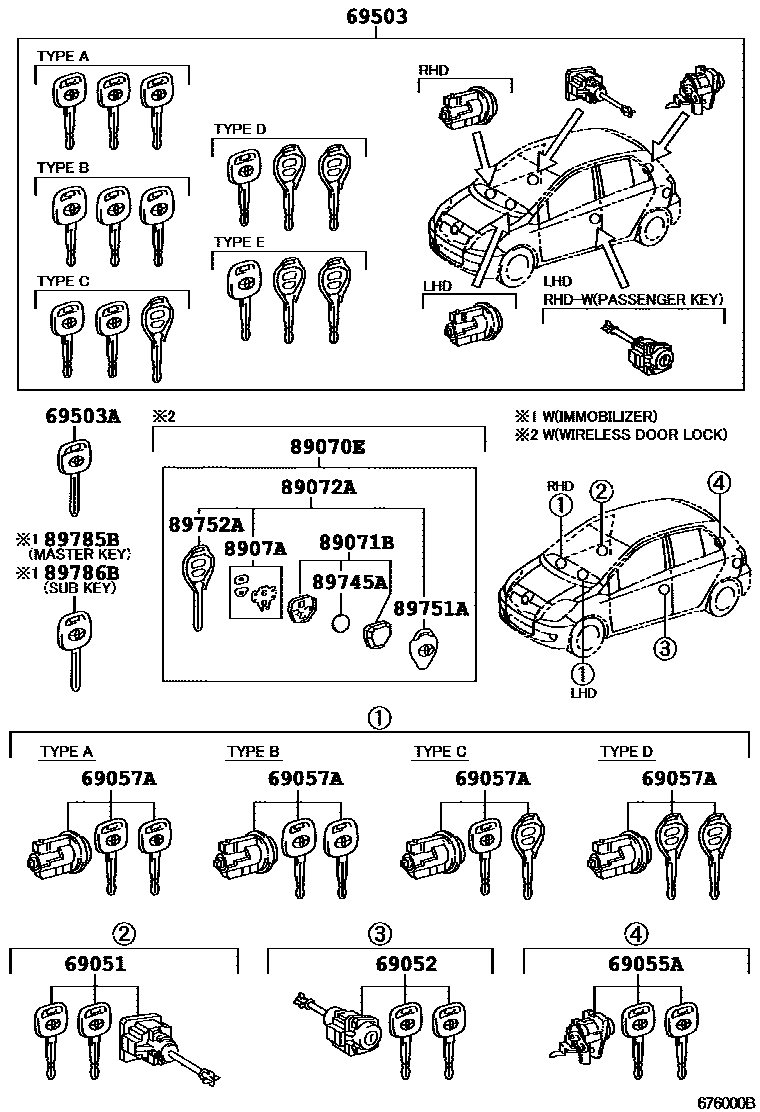

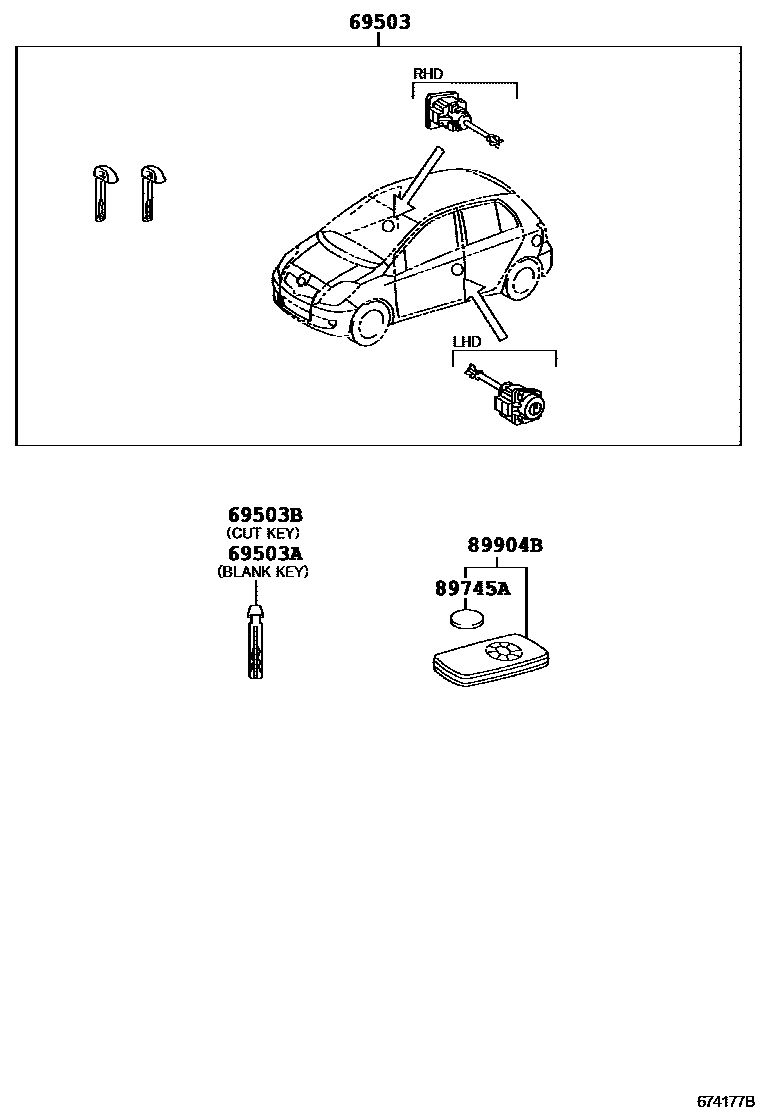

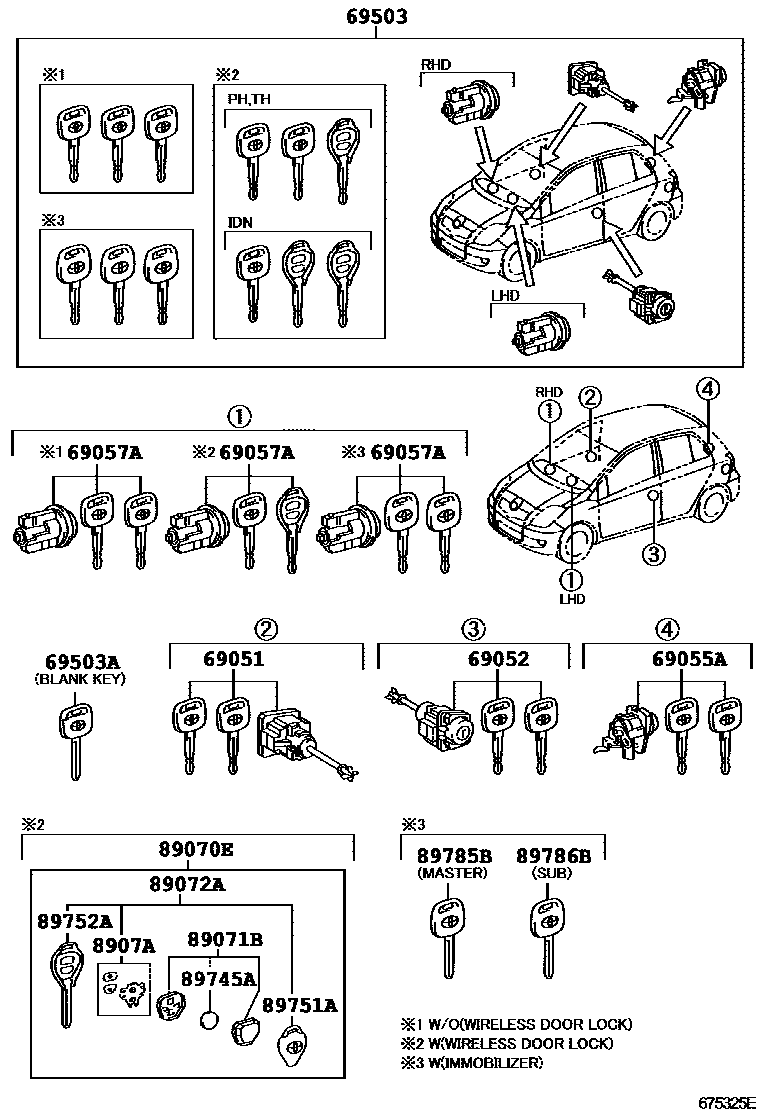

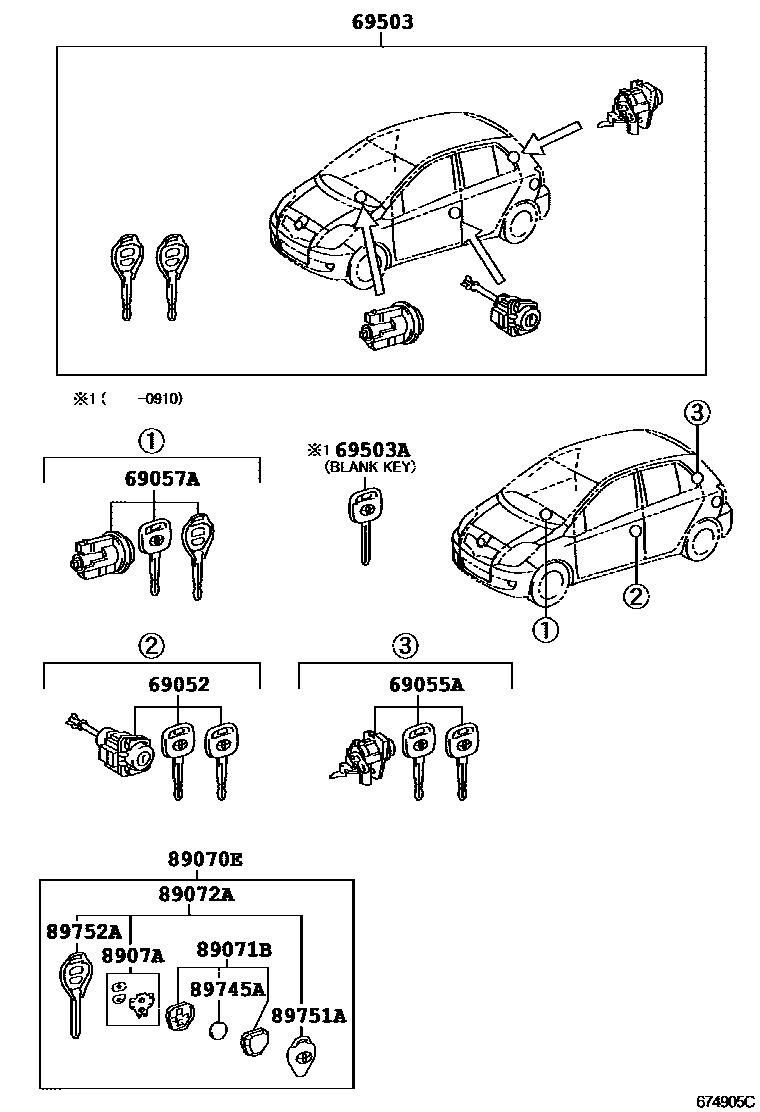

Toyota YARIS EPC diagram 6712, 锁芯组件, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D070 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D070 · 69052-0D090 |
| 69055A | Luggage lock cylinder and key assembly | 69055-0D060 · 69055-0D080 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0D090 · 69057-0D100 · 69057-0D101 · 69057-0D141 · 69057-0D200 · 69057-0D220 · 69057-0D320 |
| 69503 | Door lock cylinder components | 69005-0D110 · 69005-0D120 · 69005-0D121 · 69005-0D130 · 69005-0D193 · 69005-0D200 · 69005-0D310 · 69005-0D320 · 69005-0D321 · 69005-0D600 · 69005-0D620 |
| 69503A | external tooth key | 69515-52120 · 90999-00199 |
| 69503B | internal tooth key | 69515-52110 |
| 89070E | Remote key assembly | 89070-0D210 · 89070-0D220 · 89070-0D221 · 89070-0D280 · 89070-0K341 · 89070-0K450 · 89070-0K470 · 89070-52740 |
| 89071B | Remote key sub-assembly module assembly | 89071-52180 · 89071-71010 · 89071-71050 · 89071-71051 |
| 89072A | Remote key shell assembly | 89072-0D060 · 89072-0D090 · 89072-0D150 · 89072-0K101 · 89072-0K190 · 89072-0K200 |
| 8907A | Transmitter switch assembly | 8907A-71010 |
| 89745A | Transmitter battery | 89745-52020 · 89745-52030 · 89745-71010 |
| 89751A | Transmitter housing cover | 89751-0D030 · 89751-0K040 · 89751-52120 · 89751-52140 · 89751-52150 |
| 89752A | transmitter housing | 89752-0K040 · 89752-0K070 · 89752-12080 |
| 89785B | transceiver key master transmitter | 89785-08020 · 89785-08040 |
| 89786B | transceiver key secondary transmitter | 89786-08020 · 89786-08040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-52050 · 89904-52070 · 89904-52071 · 89904-52130 · 89904-52140 |
