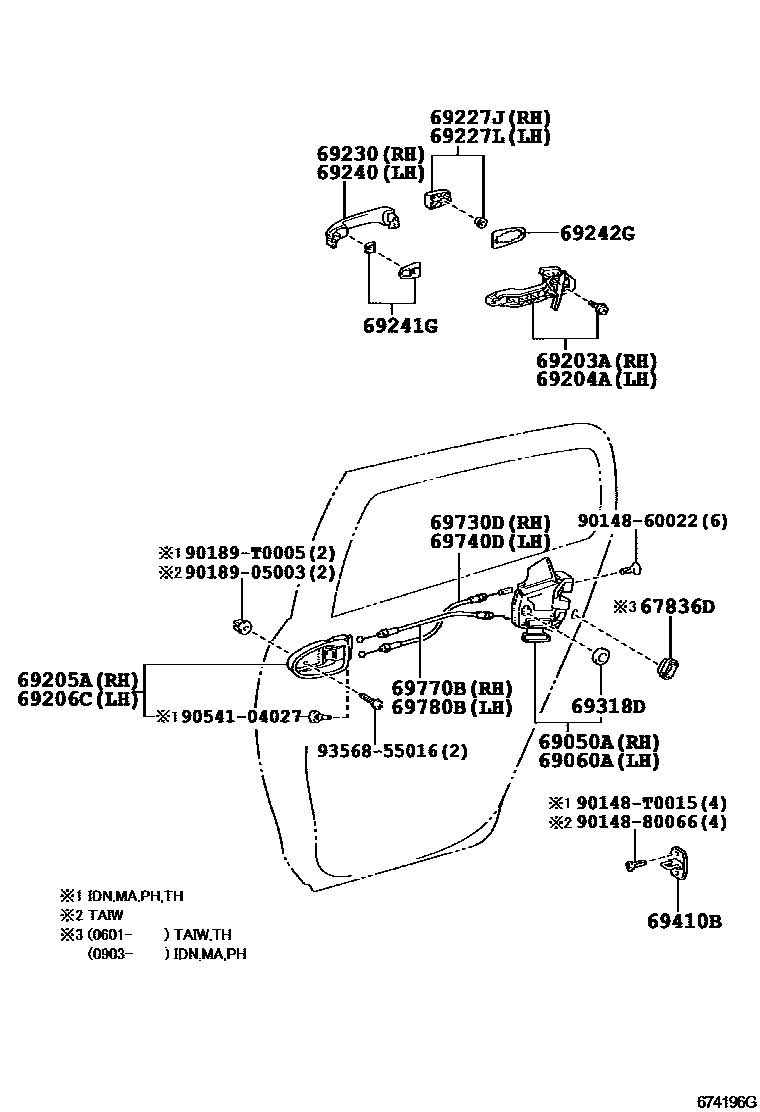

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-02030 · 67836-06030 |
| 69050A | Right rear door lock assembly with motor | 69050-0D080 · 69050-0D090 · 69050-0D100 |
| 69060A | Left rear door lock assembly with motor | 69060-0D080 · 69060-0D090 · 69060-0D100 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0D040 · 69203-0D050 · 69203-52040 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0D040 · 69204-0D050 · 69204-52050 |
| 69227J | Right rear door outer handle cover | 69227-06906 · 69227-0D902 · 69227-42901 |
| 69227L | Left rear door outer handle cover | 69227-06906 · 69227-0D902 · 69227-42901 |
| 69230 | Right rear door outer handle assembly | 69210-06905 · 69211-12903 |
| 69240 | Left rear door outer handle assembly | 69210-06905 · 69211-12903 |
| 69241G | Rear door front exterior handle pad | 69241-06030 · 69241-0D060 · 69241-48020 |
| 69242G | Rear door rear outer handle pad | 69242-06020 · 69242-42010 |
| 69318D | door lock harness seal | 69318-0D010 · 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-06010 · 69410-0D040 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0D070 · 69730-0D080 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0D070 · 69730-0D080 |
| 69770B | Right rear door inner lock cable assembly | 69770-0D050 · 69770-0D060 |
| 69780B | Left rear door inner lock cable assembly | 69770-0D050 · 69770-0D060 |
