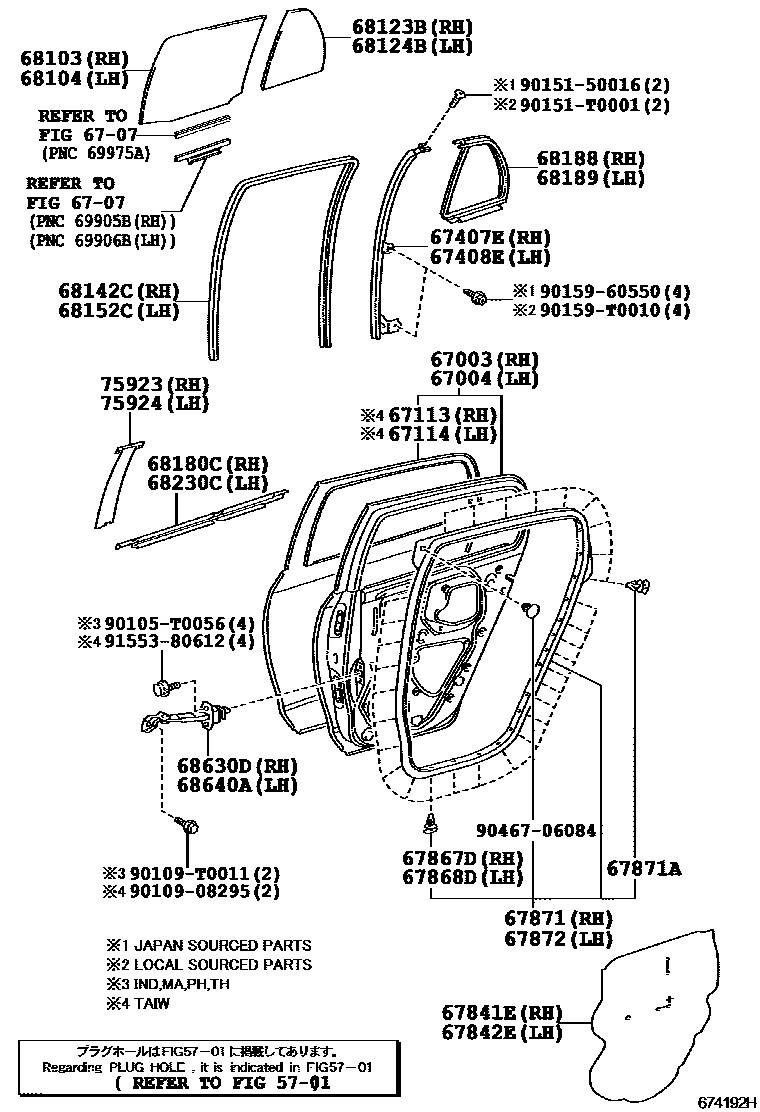

Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0D140 · 67003-0D150 |
| 67004 | Left rear door panel sub-assembly | 67004-0D140 · 67004-0D150 |
| 67113 | Right rear door outer panel | 67113-52160 |
| 67114 | Left rear door outer panel | 67114-52160 |
| 67407E | Right rear door window divider sub-assembly | 67407-0D040 · 67407-52110 |
| 67408E | Left rear door window divider sub-assembly | 67408-0D040 · 67408-52110 |
| 67603B | Catch (for rear door trim panel) | 90467-09203 · 90467-09206 · 90467-09231 |
| 67841E | Right rear door access hole cover | 67841-0D060 |
| 67842E | Left rear door access hole cover | 67841-0D060 |
| 67867D | Right rear door seal strip fixing | 67868-0D030 |
| 67868D | Left rear door seal strip fixing | 67867-0D090 |
| 67871 | Right rear door sealing strip | 67871-0D060 |
| 67871A | Fixings (for rear door sealing strip) | 67867-0D100 · 67867-0D110 |
| 67872 | Left rear door sealing strip | 67872-0D060 |
| 68103 | Right rear door glass sub-assembly | 68113-0D060 · 68113-0D061 · 68113-0D070 |
| 68104 | Left rear door glass sub-assembly | 68114-0D060 · 68114-0D061 · 68114-0D070 |
| 68123B | Right rear door corner window glass | 68123-0D060 · 68123-0D061 · 68123-0D070 |
| 68124B | Left rear door corner window glass | 68124-0D060 · 68124-0D061 · 68124-0D070 |
| 68142C | Right rear door glass lift slot | 68142-0D060 |
| 68152C | Left rear door glass lift slot | 68152-0D060 |
| 68173B | Right rear door glass inner sealing strip | 68173-0D090 |
| 68174A | Left rear door glass inner sealing strip | 68174-0D090 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-0D060 |
| 68188 | Right rear door corner window seal | 68188-0D060 |
| 68189 | Left rear door corner window seal | 68189-0D060 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-0D060 |
| 68630D | Right rear door opening limiter assembly | 68630-0D070 · 68630-0D071 · 68630-0D080 · 68630-0D081 |
| 68640A | Left rear door opening limiter assembly | 68630-0D071 · 68630-0D080 · 68630-0D081 · 68640-0D060 |
| 75923 | No. 2 right side light-shielding film | 75923-0D020 |
| 75924 | No. 2 left shading film | 75924-0D020 |
