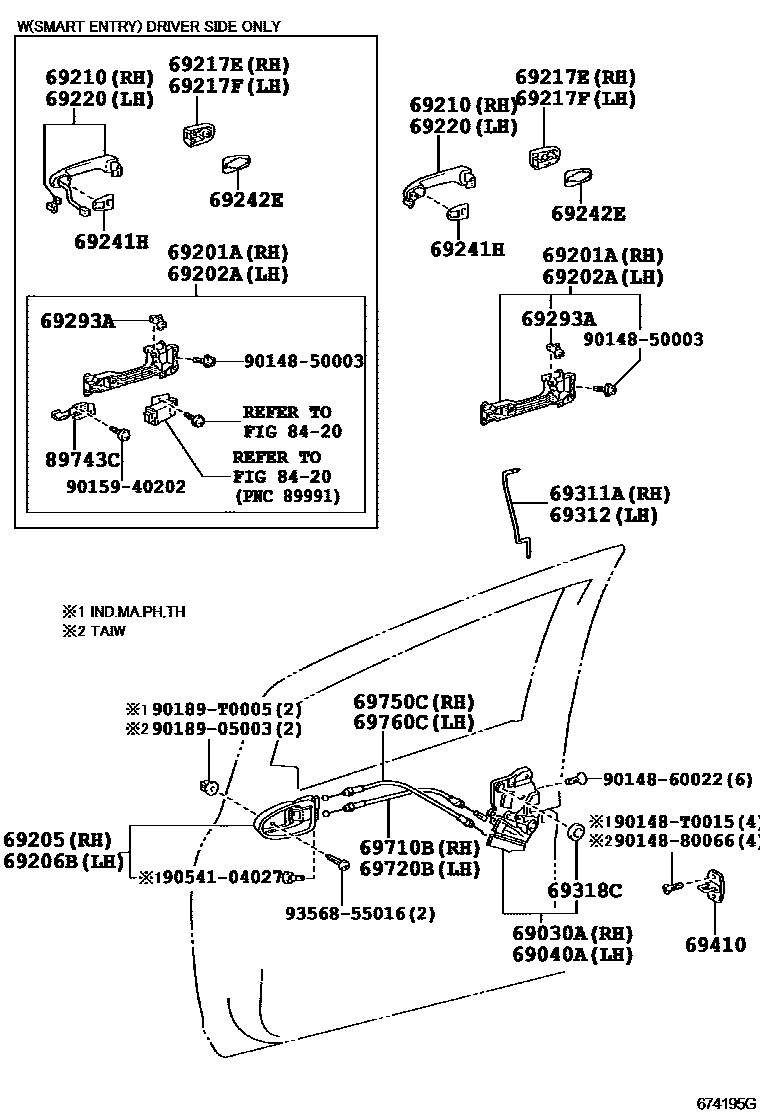

Toyota YARIS 前门锁和车门把手 — Figure 6703
Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-06130 · 69030-0D160 · 69030-0D220 |
| 69040A | Left front door door lock assembly with motor | 69040-06120 · 69040-0D150 · 69040-0D160 · 69040-0D170 · 69040-0D180 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0D060 · 69201-0D080 · 69201-52040 · 69201-52060 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0D030 · 69202-0D050 · 69202-52020 · 69202-52040 |
| 69210 | Right front door outer handle assembly | 69210-06905 · 69211-12903 |
| 69217E | Right front door outer handle cover | 69217-06908 · 69217-12020 |
| 69217F | Left front door outer handle cover | 69217-06908 · 69217-0D910 · 69217-0D913 · 69217-12020 · 69217-12905 |
| 69220 | Left front door outer handle assembly | 69210-06905 · 69211-12903 |
| 69241H | Front door exterior handle pad | 69241-06020 · 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-06020 · 69242-42010 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 · 69293-20010 · 69293-20030 · 69293-33010 · 69293-33020 |
| 69311A | Right front door lock opening lever | 69311-0D080 · 69311-0D090 |
| 69312 | Left front door lock opening lever | 69312-0D080 · 69312-0D090 |
| 69318C | door lock harness seal | 69318-0D010 · 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-06010 · 69410-0D040 |
| 69710B | Right front door lock remote control cable assembly | 69710-0D100 · 69710-0D110 |
| 69720B | Left front door lock remote control cable assembly | 69710-0D100 · 69710-0D110 |
| 69750C | Right front door inner lock cable assembly | 69750-0D060 · 69750-0D070 |
| 69760C | Left front door inner lock cable assembly | 69750-0D060 · 69750-0D070 |
| 89743C | Electronic key harness bracket | 89743-47010 · 89743-47020 |
