Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 2 images and 37 PNC and OE references.

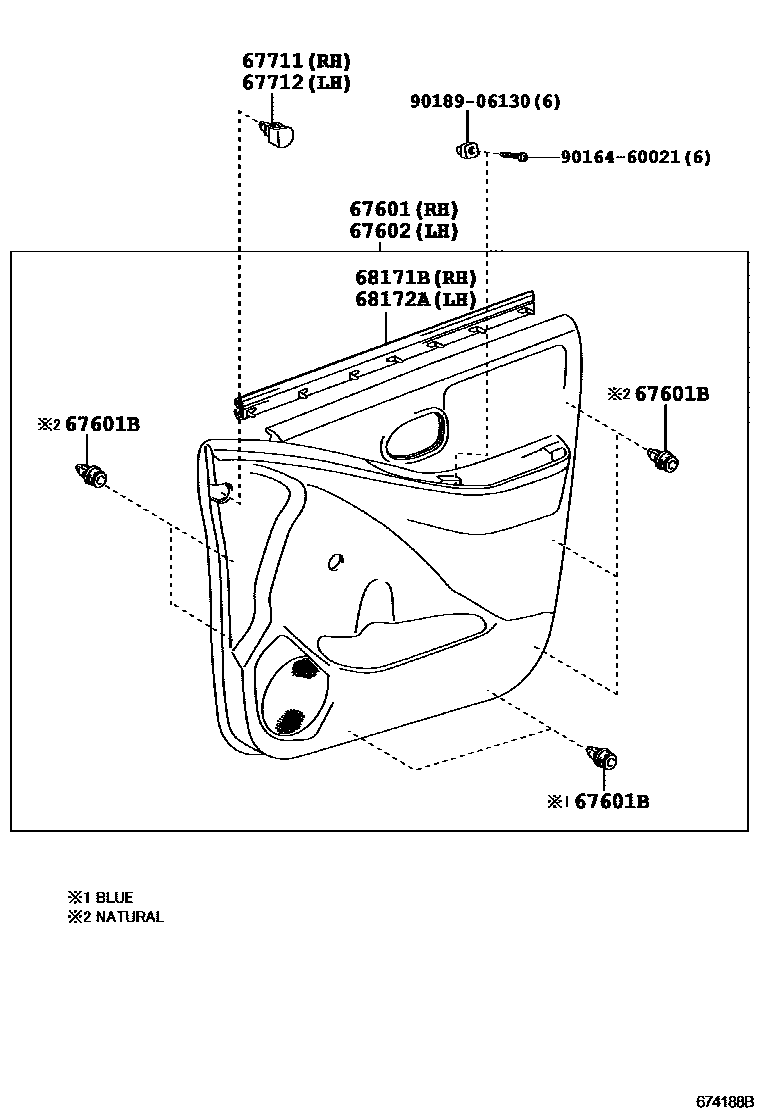

Toyota YARIS 前门板和前门玻璃 EPC diagram — 674188B
前门板和前门玻璃 — 674188B (200601 – 999999)

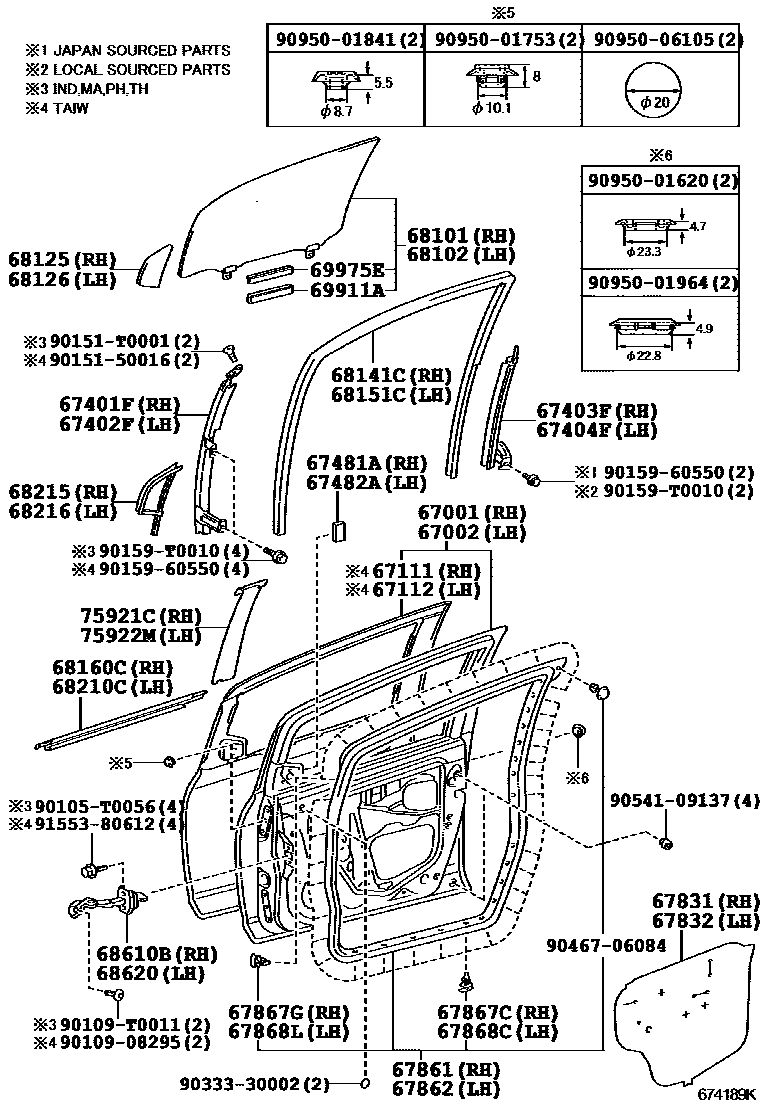

Toyota YARIS 前门板和前门玻璃 EPC diagram — 674189K
前门板和前门玻璃 — 674189K (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-0D190 · 67001-0D200
67002Left front door panel sub-assembly67002-0D190 · 67002-0D200
67111Outer right front door panel67111-52150
67112Outer left front door panel67112-52100
67401FRight front door front lower door frame sub-assembly67401-0D020 · 67401-52090
67402FLeft front door front lower door frame sub-assembly67402-0D020 · 67402-52060
67403FRight front door rear lower door frame sub-assembly67403-0D050 · 67403-0D070
67404FLeft front door rear lower door frame sub-assembly67404-0D050 · 67404-0D070
67481ARight front door front lower door frame seal67481-0D030 · 67481-52010
67482ALeft front door front lower door frame seal67481-0D030 · 67481-52010
67601BCatch (for front door trim panel)90467-09203 · 90467-09206
67831Right front door access hole cover67831-0D110 · 67831-0D130
67832Left front door access hole cover67831-0D110 · 67832-0D080
67861Right front door seal67861-0D080
67862Left front door seal67862-0D080
67867CRight front door seal strip fixing67867-0D070
67867GRight door sealing strip fixing67867-0D080
67868CLeft front door seal strip fixing67867-0D090
67868LLeft door seal strip fixing67867-0D100
68101Right front door glass sub-assembly68110-0D090 · 68110-0D091 · 68110-0D092 · 68110-0D100 · 68110-0D101
68102Left front door glass sub-assembly68120-0D090 · 68120-0D091 · 68120-0D092 · 68120-0D100 · 68120-0D101
68125Right front door fixed window glass68125-0D040 · 68125-0D041 · 68125-0D050
68126Left front door fixed window glass68126-0D040 · 68126-0D041 · 68126-0D050
68141CRight front door glass lift channel68141-0D110
68151CLeft front door glass lift channel68151-0D110
68160CRight front door glass outer sealing strip assembly68160-0D080
68171BRight front door glass inner sealing strip68171-0D110
68172ALeft front door glass inner sealing strip68172-0D110
68210CLeft front door glass outer sealing strip assembly68210-0D080
68215Right front door fixed window seal68215-0D020
68216Left front door fixed window seal68216-0D020
68610BRight front door opening limiter assembly68610-02050 · 68610-02051 · 68610-02080 · 68610-02081
68620Left front door opening limiter assembly68610-02051 · 68610-02081 · 68620-02050 · 68620-02080
69911ANo. 1 front door glass slot69911-0D040 · 69911-13010
69975ENo. 1 front door glass groove filler69975-0D030 · 69975-0D060
75921CNo. 1 right side light-shielding film75921-0D020
75922MNo. 1 left shading film75922-0D020
