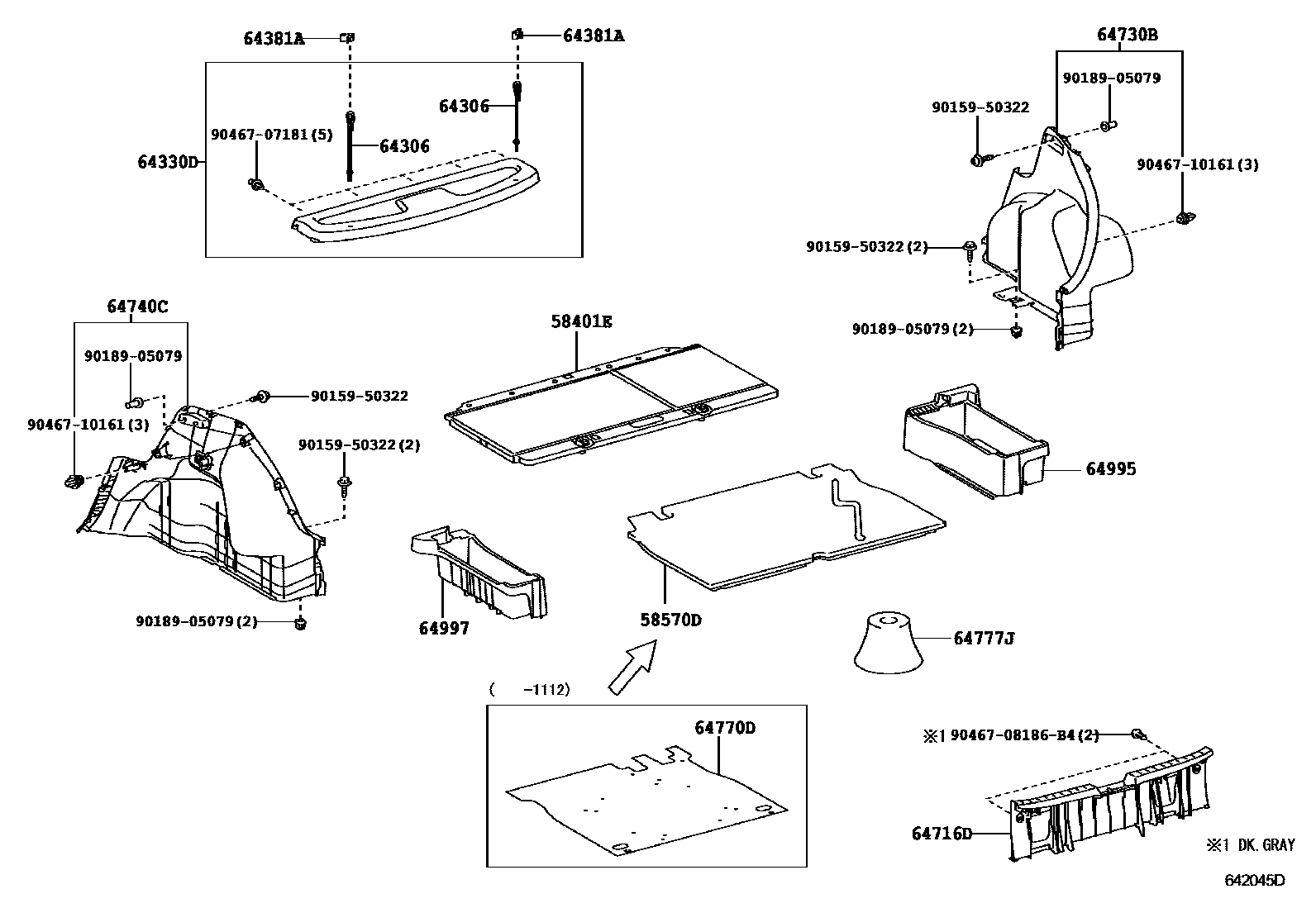

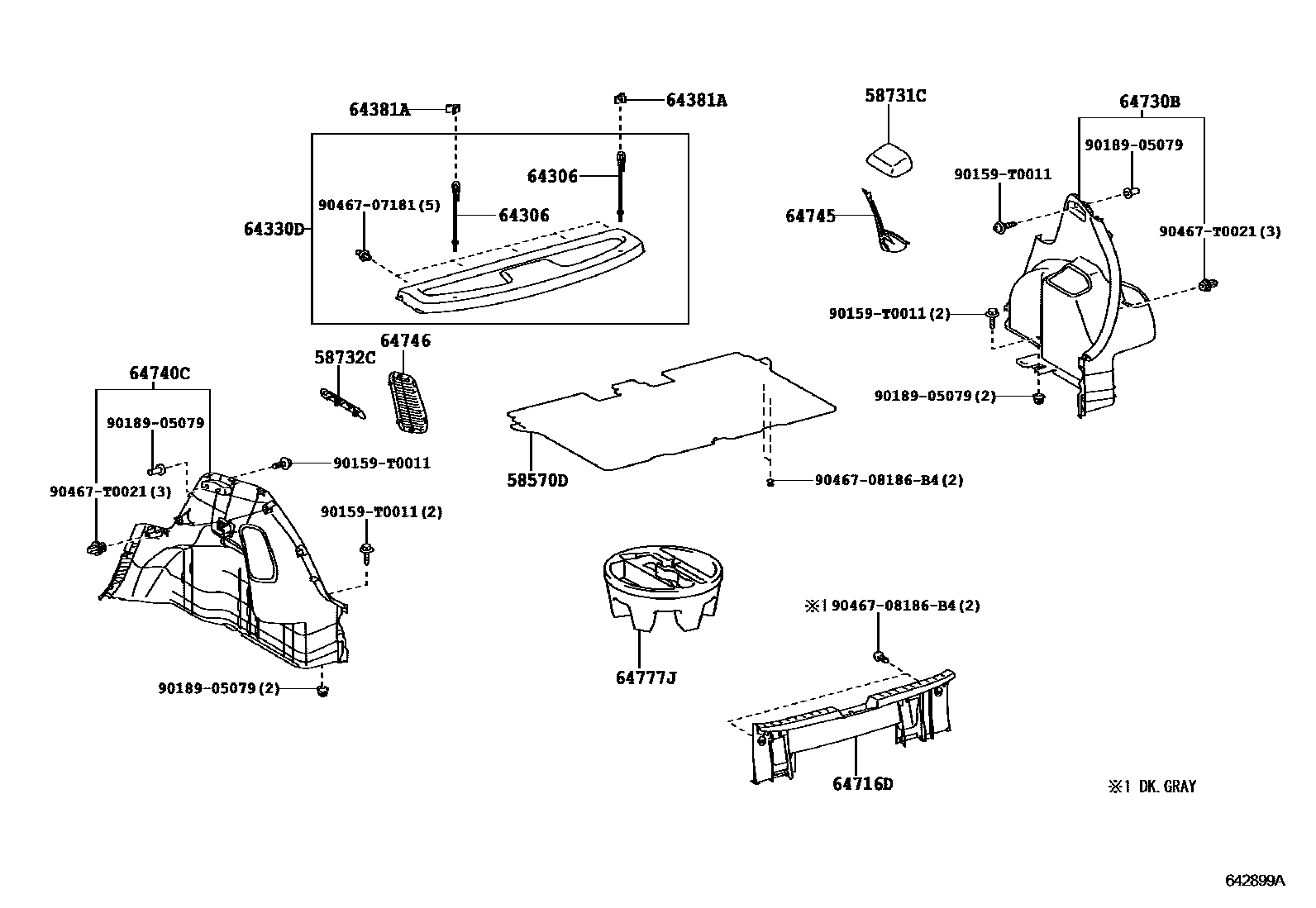

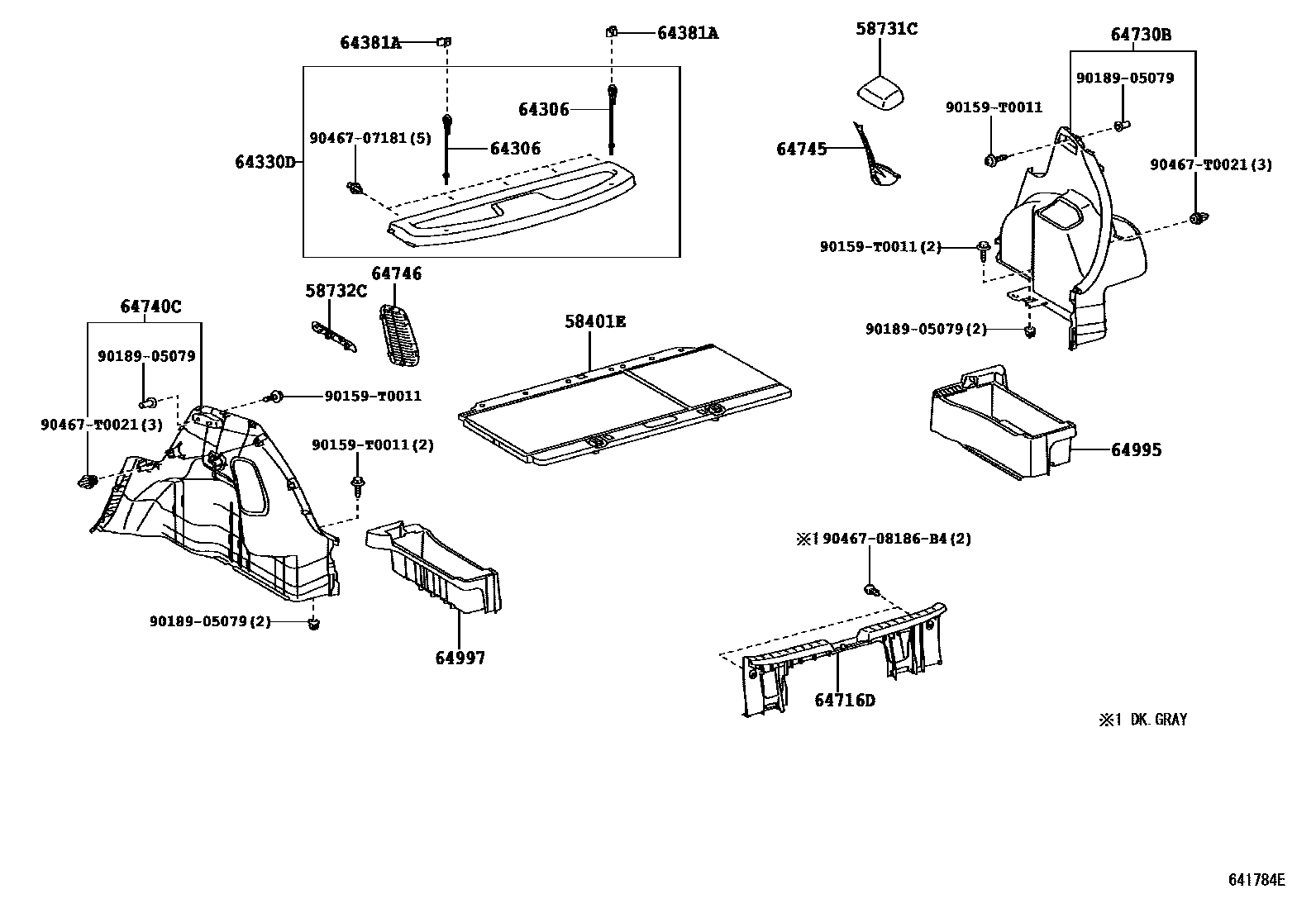

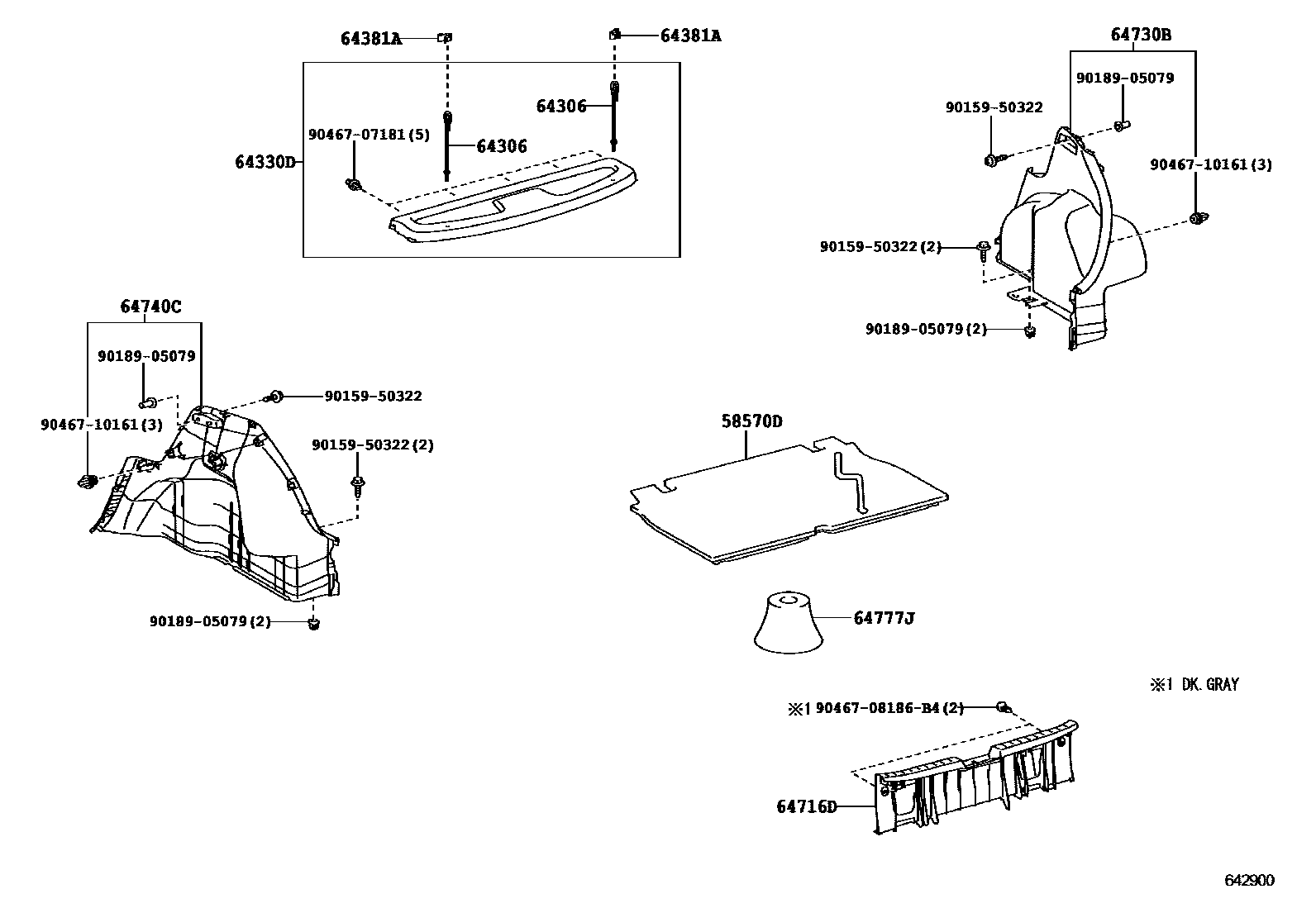

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-0D050 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64770D | Spare tire cover assembly | 64771-0D110 |
| 64777J | Spare tire cushion | 64777-0D030 · 64777-0D080 |
| 64995 | Bottom right floor box | 64995-0D020 |
| 64997 | Bottom left floor box | 64997-0D020 |
