Toyota YARIS 车顶内衬和消声垫 — Figure 6402

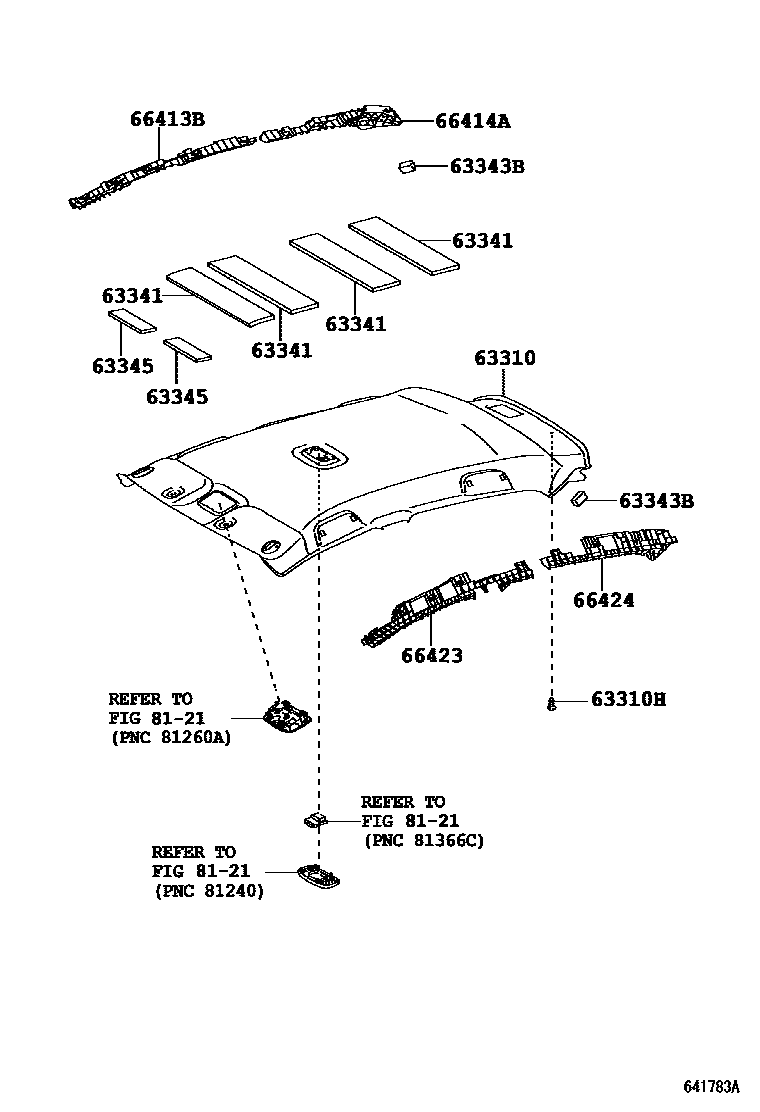

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0D040 |
| 63343B | Rear roof silencer pad | 63343-0D040 |
| 63345 | No. 5 roof silencer mat | 63345-0D020 · 63345-52030 |
| 66413B | Right front longitudinal member spacer | 66413-0D110 · 66413-0D120 |
| 66414A | Right rear longitudinal member spacer | 66414-0D110 · 66414-0D120 |
| 66423 | Left front longitudinal member spacer | 66423-0D100 · 66423-0D110 |
| 66424 | Left rear longitudinal member spacer | 66424-0D110 · 66424-0D120 |
