Toyota YARIS 内饰板和车门防水胶条 — Figure 6401

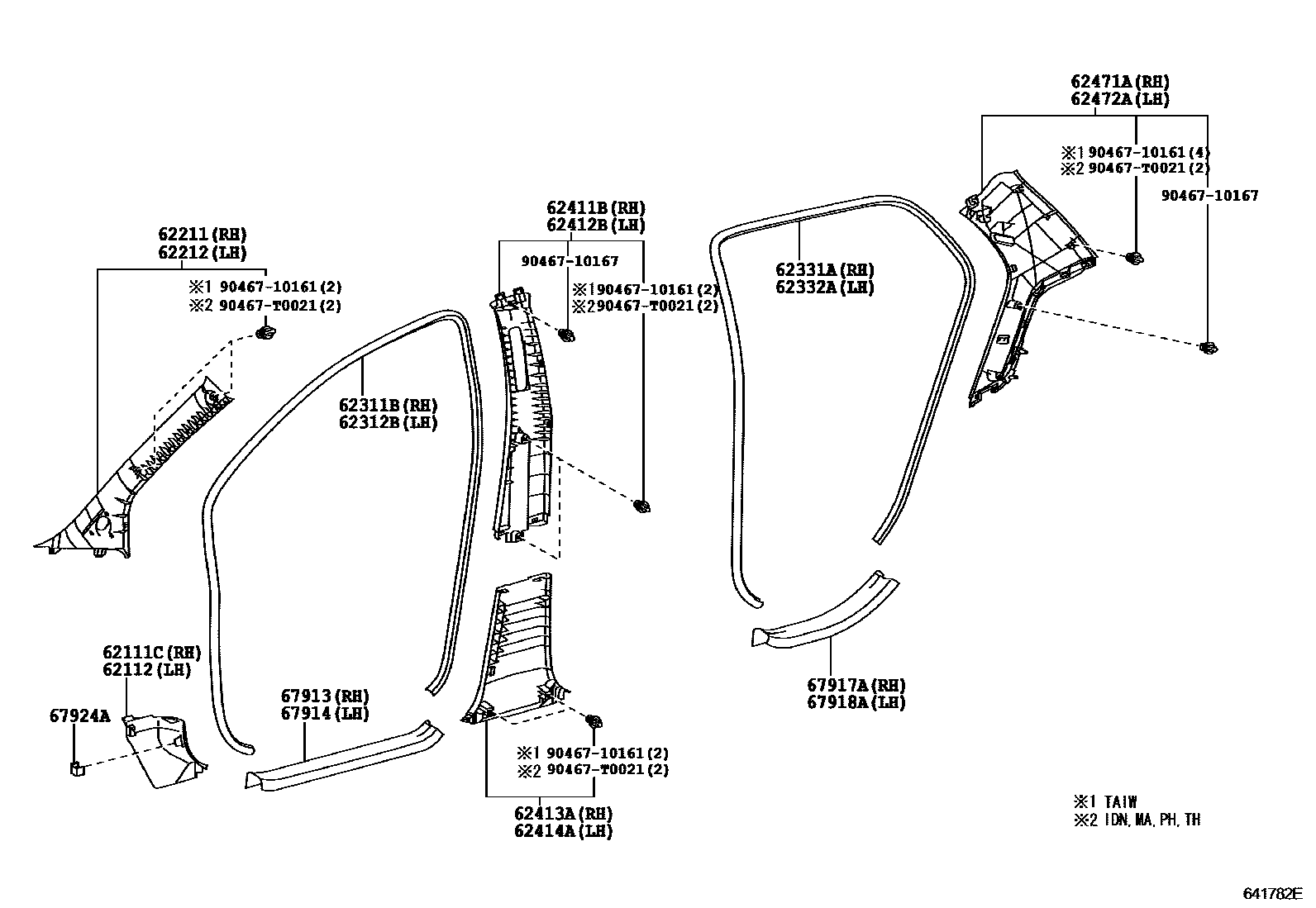

Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62311B | Right front door opening waterproof tape | 62311-0D100 · 62311-0D320 |
| 62312B | Left front door opening waterproof tape | 62312-0D100 · 62312-0D280 |
| 62331A | Right rear door opening waterproof tape | 62331-0D020 · 62331-0D210 |
| 62332A | Left rear door opening waterproof tape | 62332-0D020 · 62332-0D190 |
| 67924A | Door No. 2 wear plate clip | 67924-52140 |
