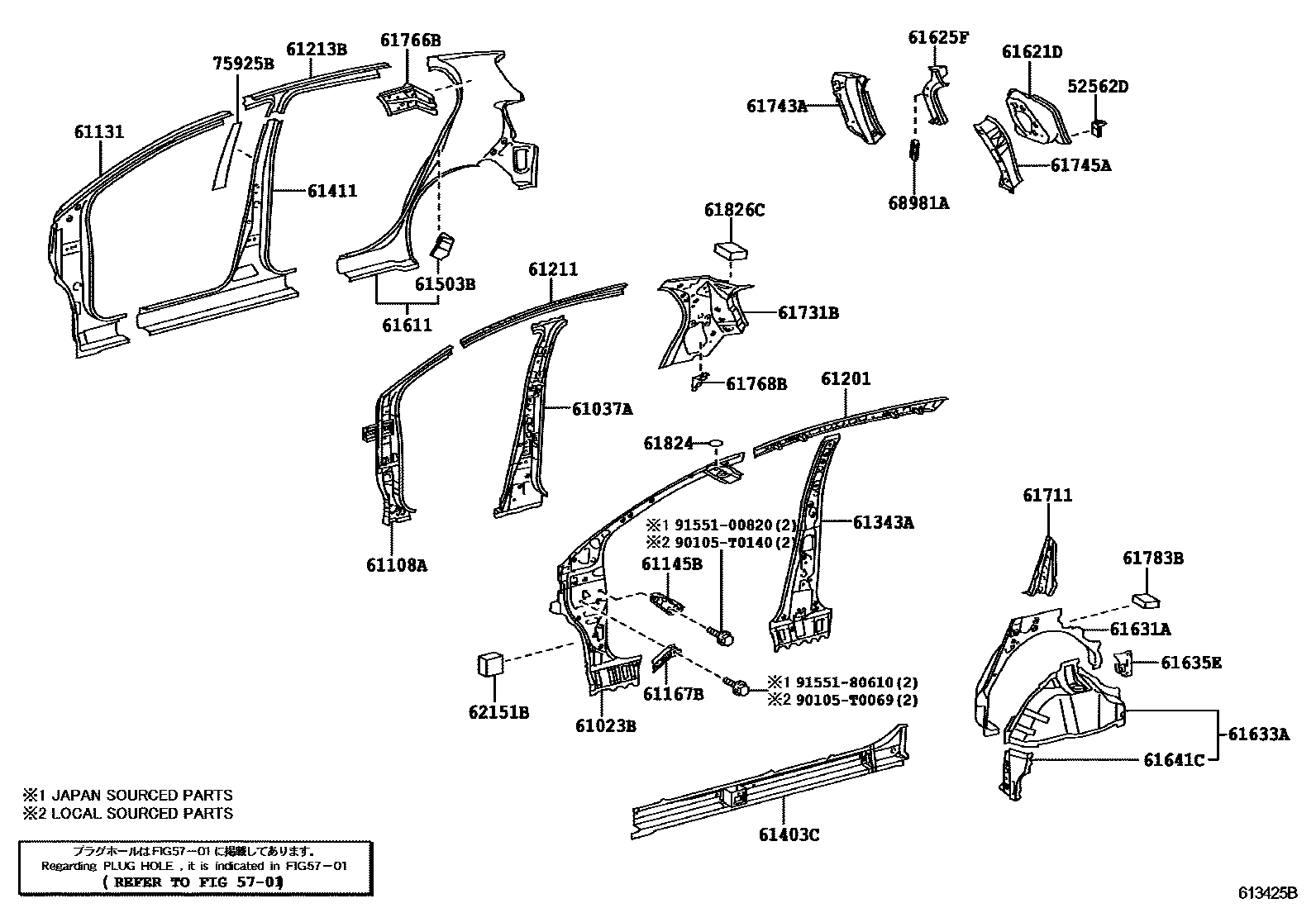

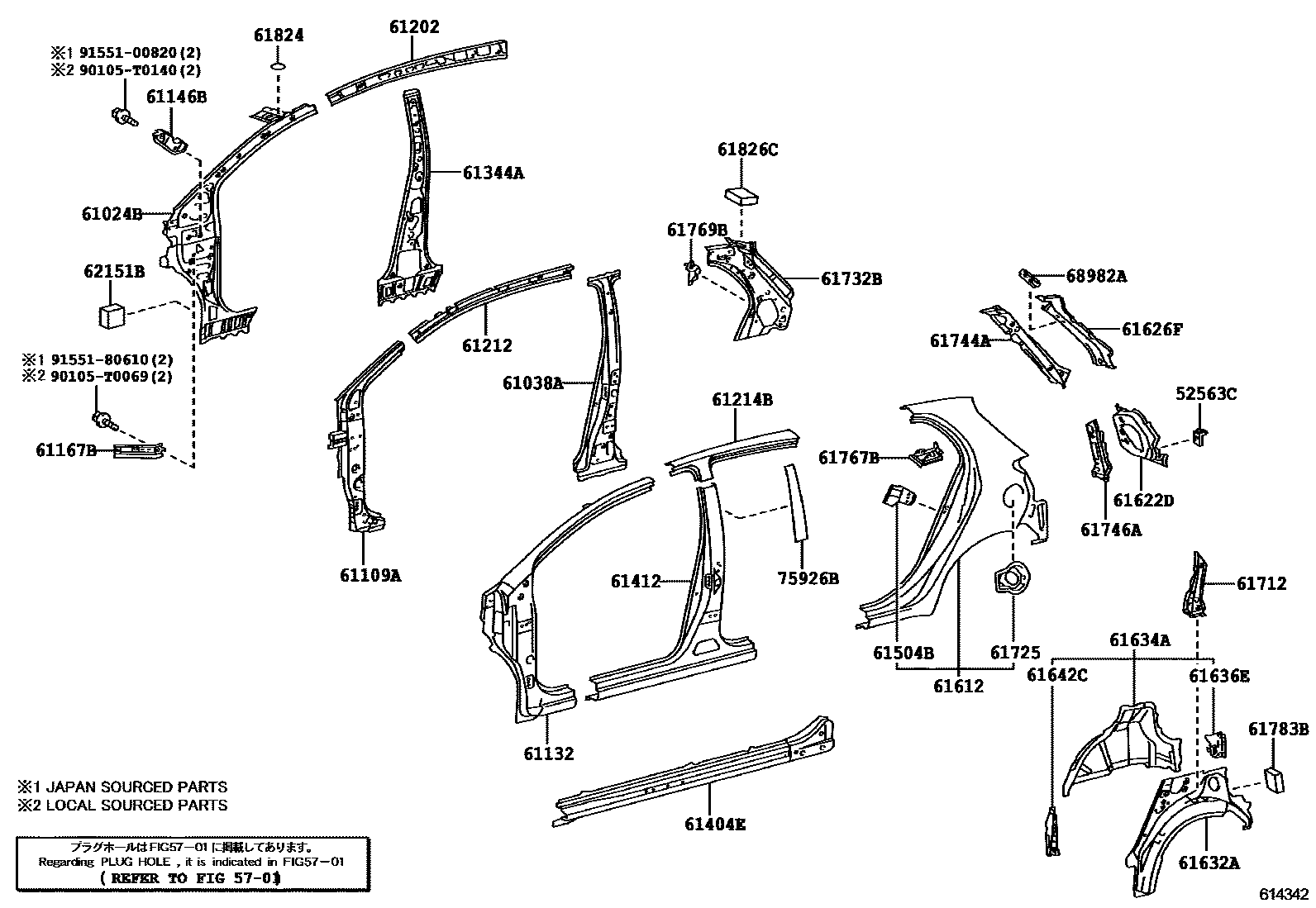

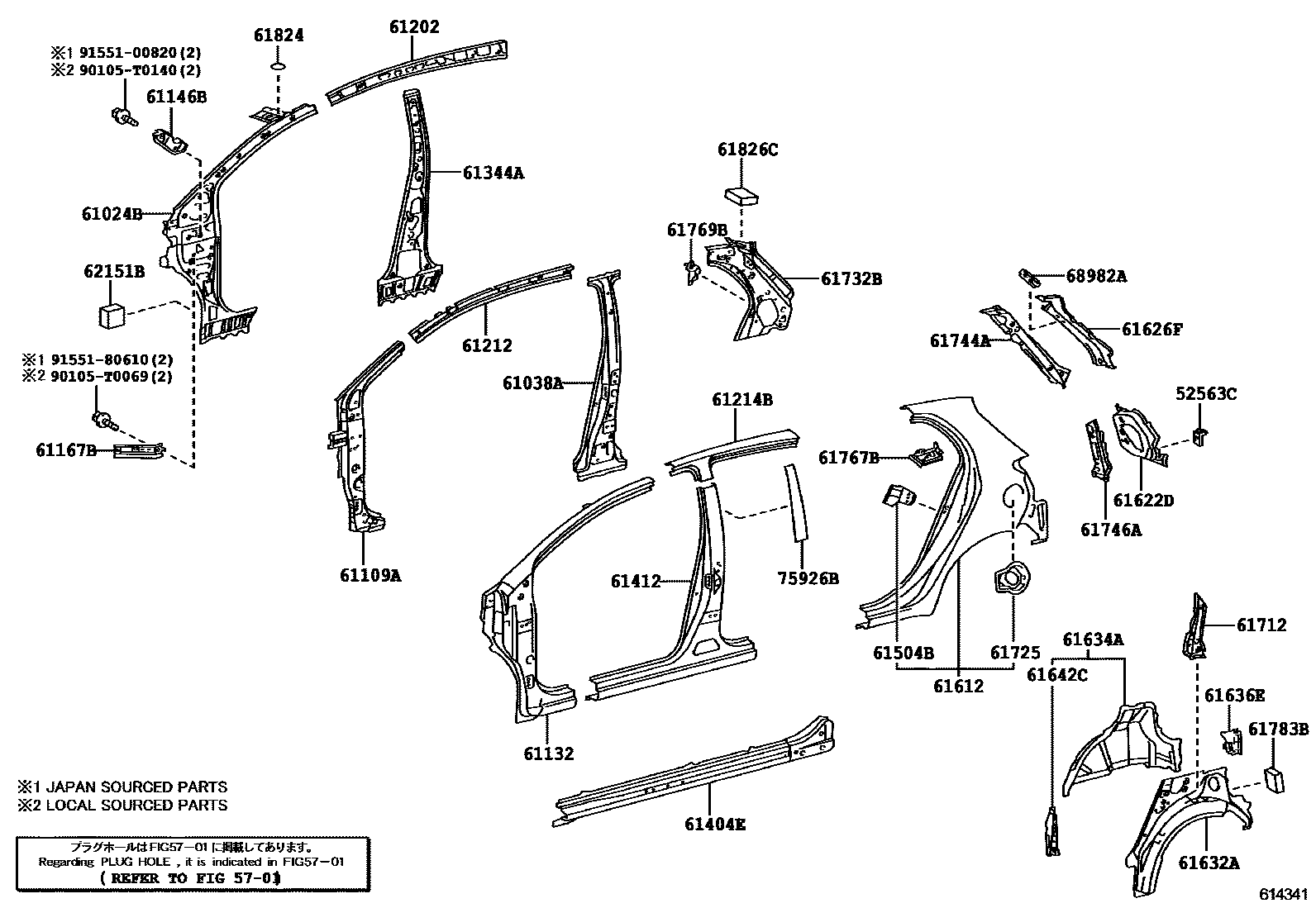

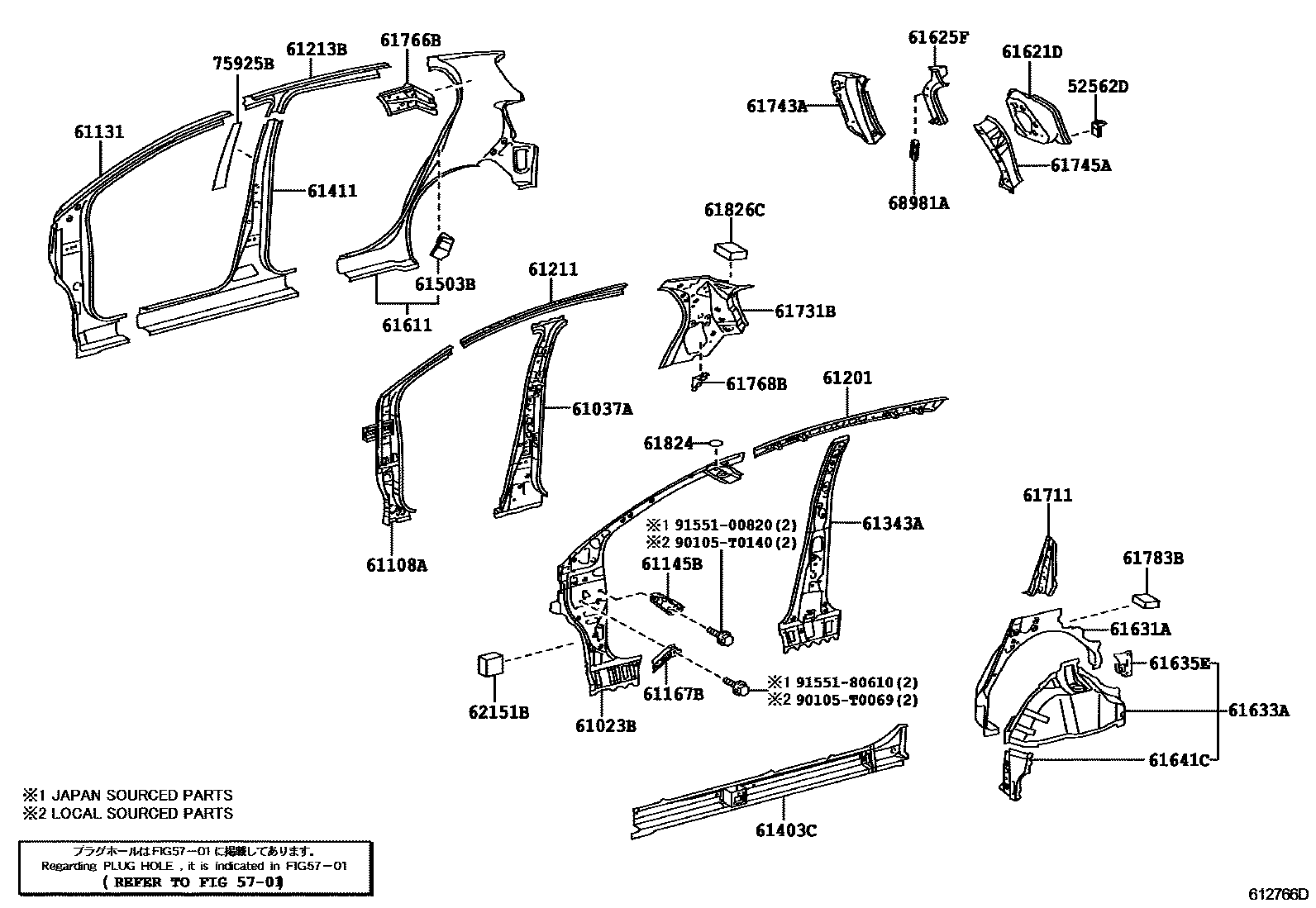

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 4 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562D | Rear bumper upper right side fixing bracket | 52562-0D010 · 52562-52030 |
| 52563C | Rear bumper upper left side fixing bracket | 52562-0D010 · 52562-52030 |
| 61023B | Right body inner front pillar sub-assembly | 61023-0D100 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0D110 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0D210 · 61037-0D901 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0D210 · 61038-0D901 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-0D060 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-0D060 |
| 61131 | Right body outer front upper pillar | 61131-0D090 · 61131-0D100 |
| 61132 | Left body outer front upper pillar | 61132-0D090 · 61132-0D100 |
| 61145B | Right body front pillar lower corner panel | 61145-0D030 |
| 61146B | Left body front pillar lower corner panel | 61146-0D030 |
| 61167B | Body front pillar lower bracket | 61167-0D020 · 61167-52010 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-0D040 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-0D040 |
| 61211 | Roof right outer longitudinal beam | 61211-0D080 |
| 61212 | Roof left outer longitudinal beam | 61212-0D080 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-0D080 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-0D080 |
| 61343A | Right body inner center pillar | 61032-0D030 |
| 61344A | Left body inner center pillar | 61042-0D030 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0D080 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0D080 |
| 61411 | Right door outer sill panel | 61411-0D110 · 61411-0D120 |
| 61412 | Left door outer sill panel | 61412-0D110 · 61412-0D120 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-0D050 · 61503-0D090 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-0D050 · 61504-0D090 |
| 61611 | Right side hoarding | 61601-0D110 · 61601-0D120 · 61601-0D140 |
| 61612 | left side panel | 61602-0D130 · 61602-0D140 · 61602-0D160 |
| 61621D | Back door right opening slot | 61621-52110 |
| 61622D | Rear door left opening slot | 61622-52110 |
| 61625F | Extension on right side panel | 61625-52110 |
| 61626F | Extension on left side panel | 61626-52110 |
| 61631A | Right wheel cover outer panel | 61631-0D060 · 61631-52120 |
| 61632A | Left side wheel cover outer panel | 61632-0D060 · 61632-52120 |
| 61633A | Right wheel housing lining panel | 61607-0D903 · 61607-0D904 |
| 61634A | Left side wheel housing lining panel | 61608-0D903 · 61608-0D904 |
| 61635E | Right wheel housing extension | 61635-0D030 · 61635-52060 |
| 61636E | Left side wheel housing extension | 61636-0D030 · 61636-52060 |
| 61641C | Right front side wheel housing corner panel | 61641-0D070 · 61641-52100 |
| 61642C | Left front side wheel housing corner panel | 61642-0D070 · 61642-52100 |
| 61711 | Roof right side outer panel | 61711-0D060 |
| 61712 | Roof left outer panel | 61712-0D040 |
| 61725 | Fuel inlet | 61725-0D040 |
| 61731B | Roof right inner panel | 61731-0D070 |
| 61732B | Roof left inner panel | 61732-0D070 · 61732-0D071 |
| 61743A | Rear door opening right reinforcement | 61743-0D020 · 61743-0D030 |
| 61744A | Rear door opening left reinforcement | 61744-0D020 · 61744-0D030 |
| 61745A | Back door opening lower right reinforcement | 61745-0D020 · 61745-52080 |
| 61746A | Rear door opening lower left reinforcement | 61746-0D020 · 61746-52080 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-0D060 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-0D060 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-0D040 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-0D040 |
| 61783B | No. 1 rear fender outer panel pad | 61783-0D010 |
| 61824 | Noise Control Panel No. 1 | 61824-0D020 · 61825-0D020 · 61825-52060 |
| 61826C | No. 3 silencer panel gasket | 61826-0D030 · 61826-52040 |
| 62151B | Front cowl side silencer pads | 62151-0D020 |
| 68981A | Back door right side support rod fixing | 68981-0D010 |
| 68982A | Back door left support rod fixing | 68981-0D010 |
| 75925B | No. 3 right side light-blocking film | 75925-0D020 |
| 75926B | No. 3 left shading film | 75926-0D020 |
