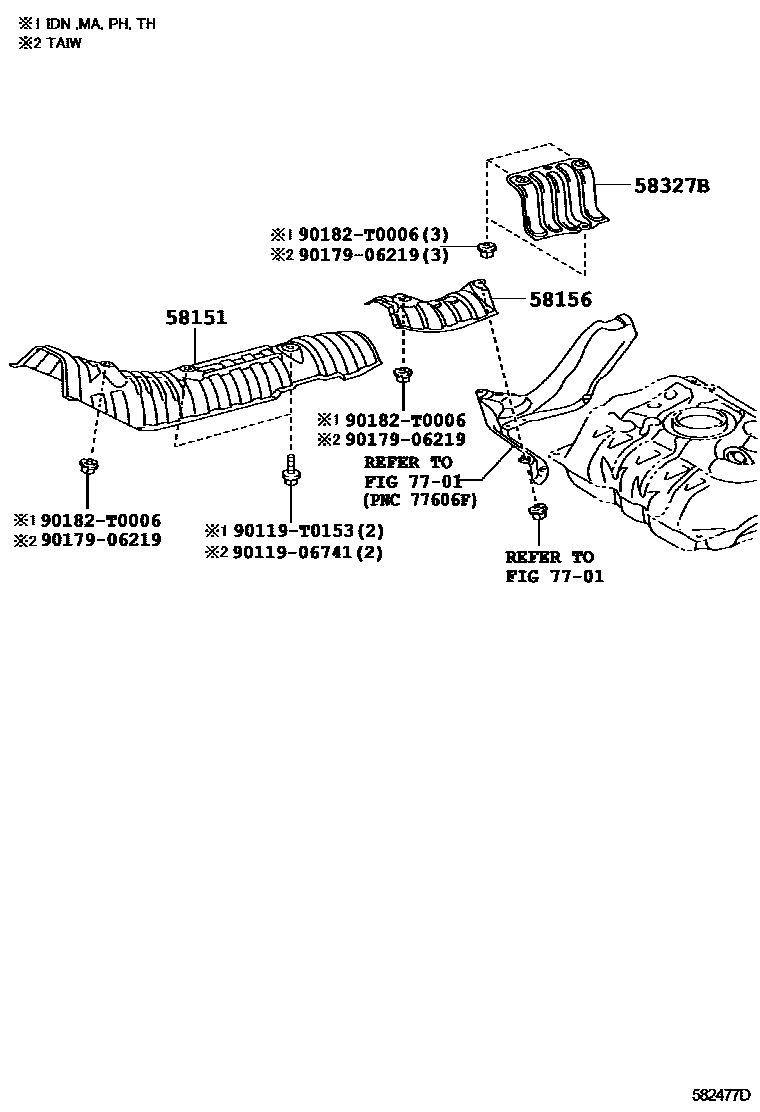

Toyota YARIS 地板隔热垫 — Figure 5802
Toyota YARIS EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-0D030 · 58151-0D031 · 58151-0D050 · 58151-0D051 · 58151-52062 |
| 58156 | Front floor insulation mat No. 4 | 58156-52010 |
| 58327B | Main muffler heat insulation pad | 58327-0D060 · 58327-52110 · 58327-52111 |
