Toyota YARIS hole plug — Figure 5701

Toyota YARIS EPC diagram 5701, hole plug, with 3 images and 0 PNC and OE references.

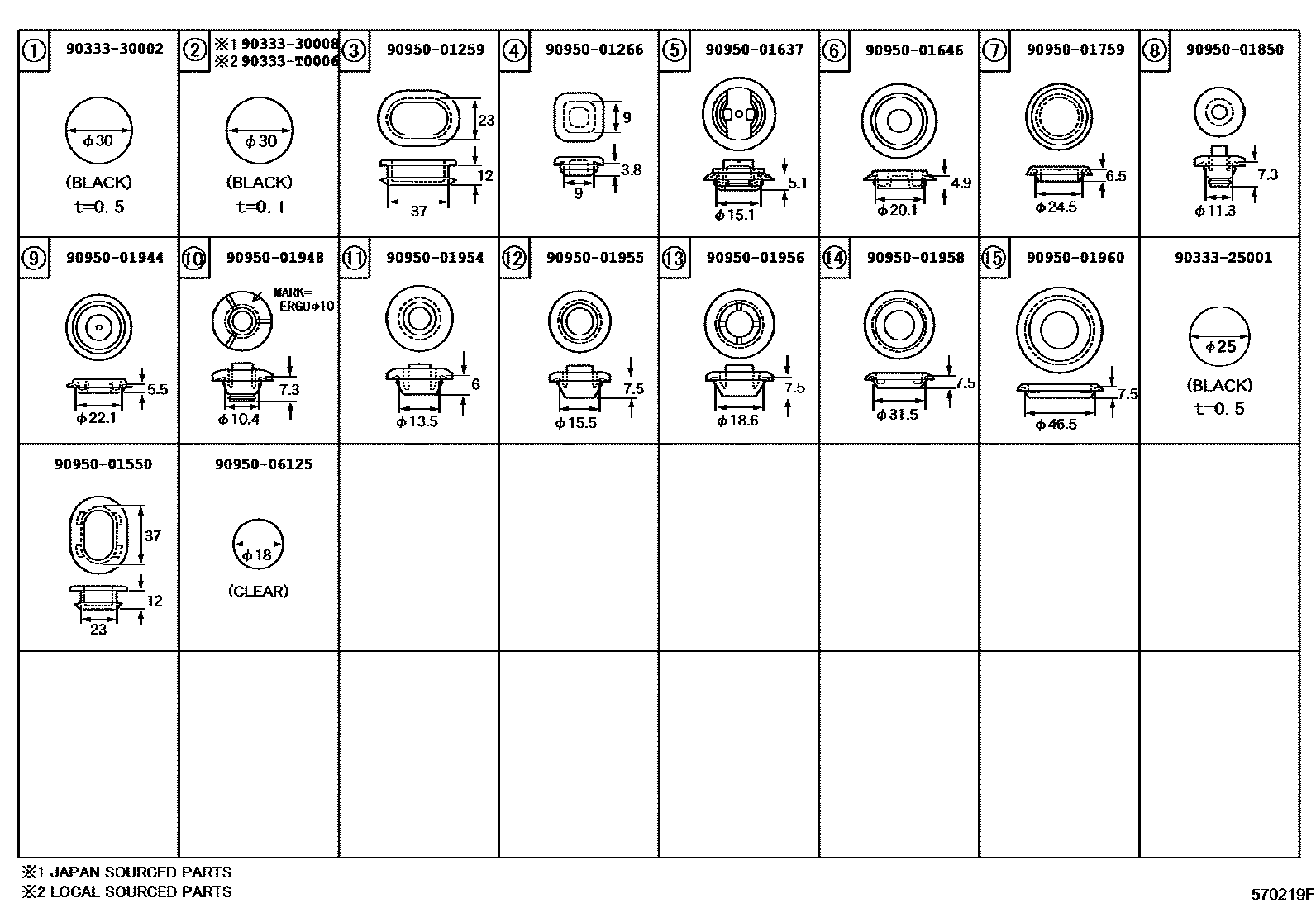

Toyota YARIS hole plug EPC diagram — 570219F
hole plug — 570219F (200601 – 999999)

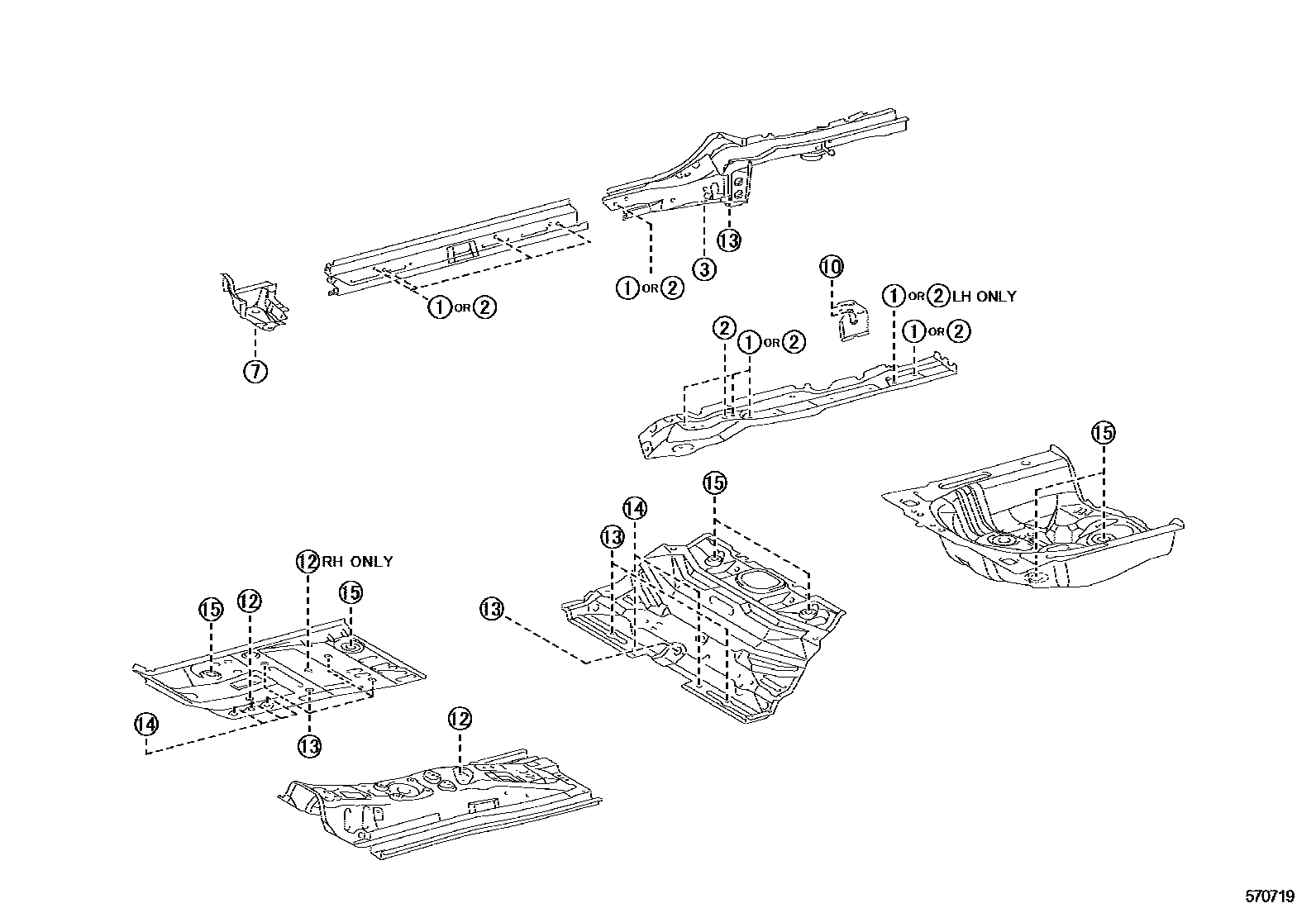

Toyota YARIS hole plug EPC diagram — 570719
hole plug — 570719 (200601 – 999999)

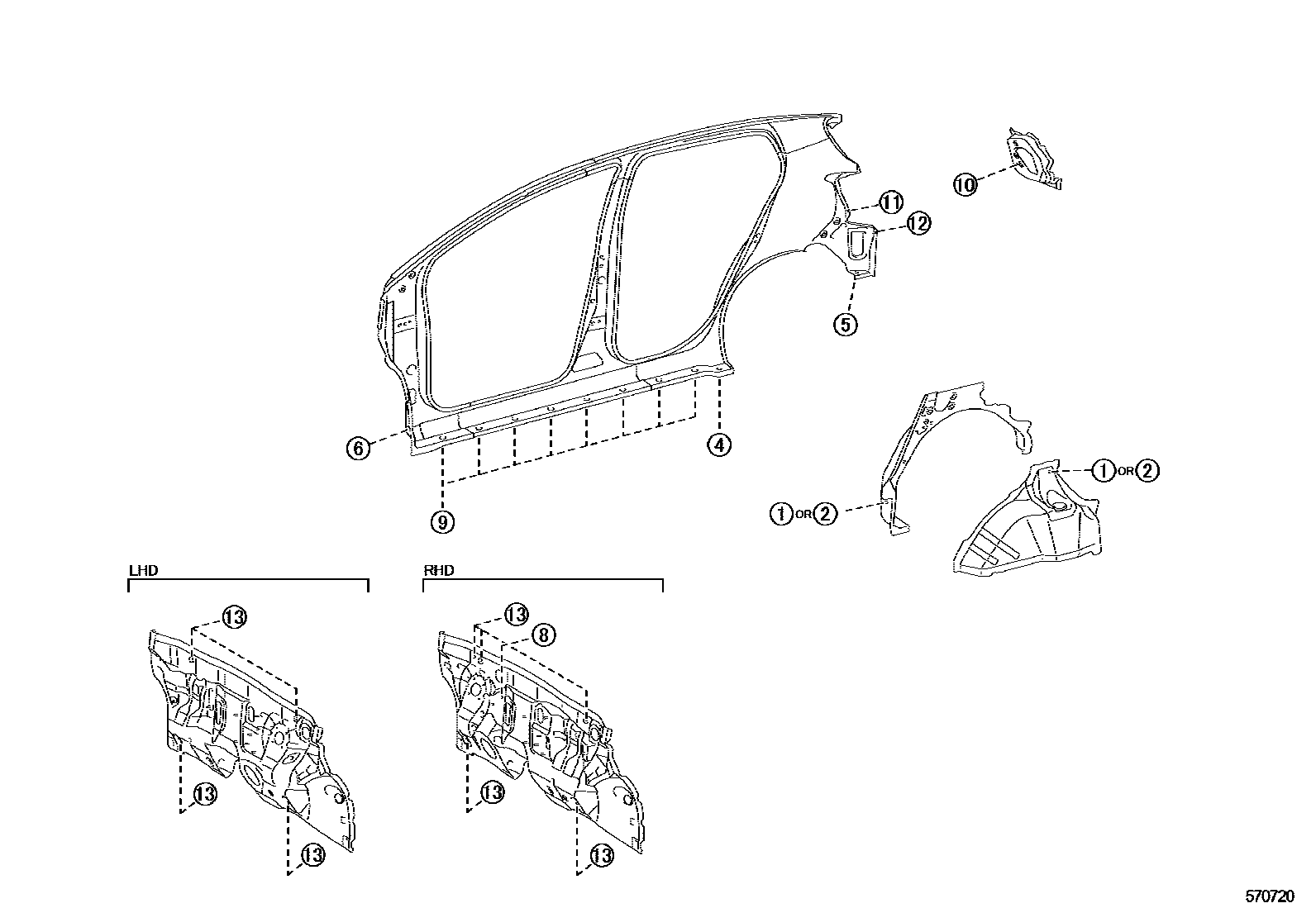

Toyota YARIS hole plug EPC diagram — 570720
hole plug — 570720 (200601 – 999999)
