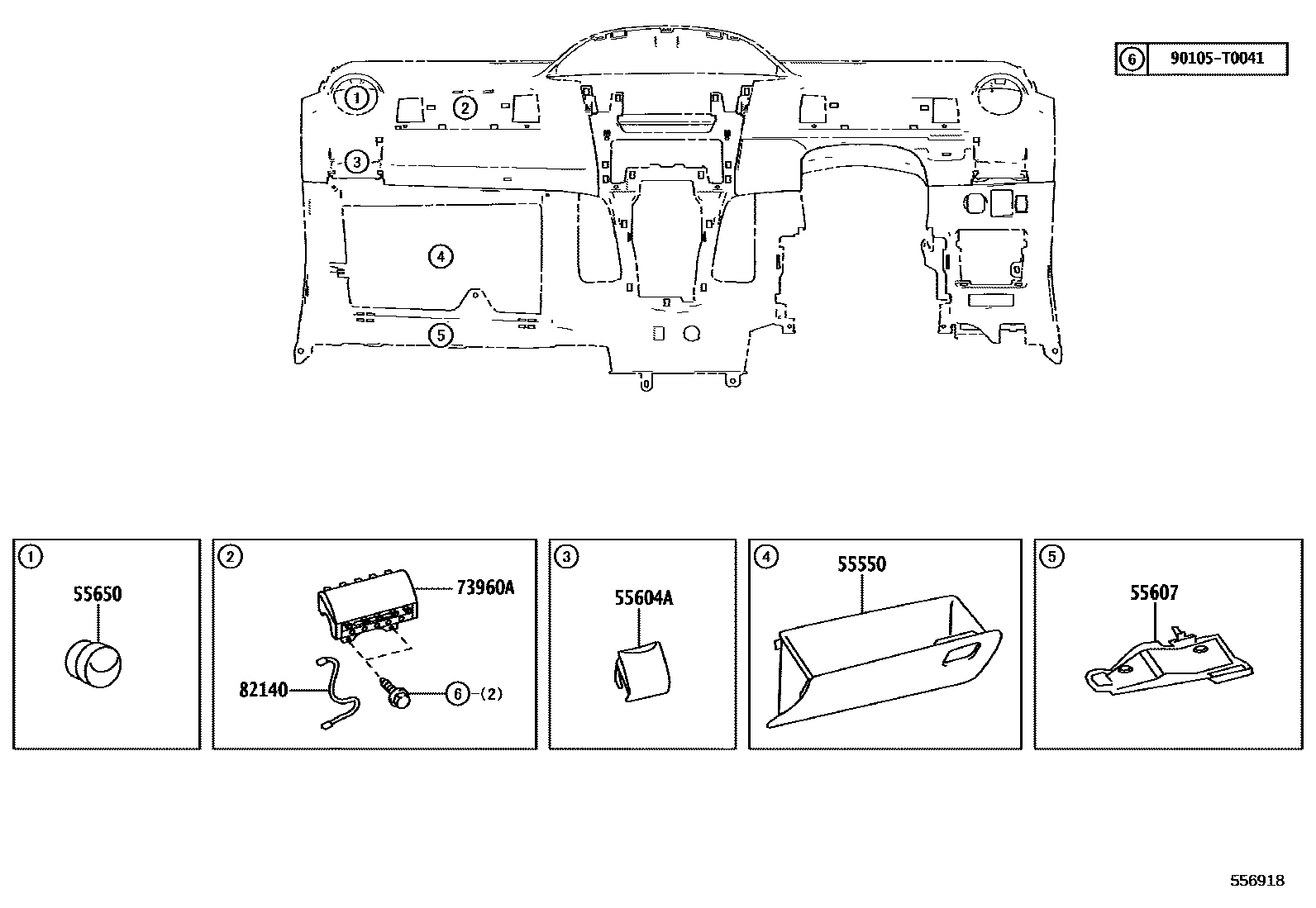

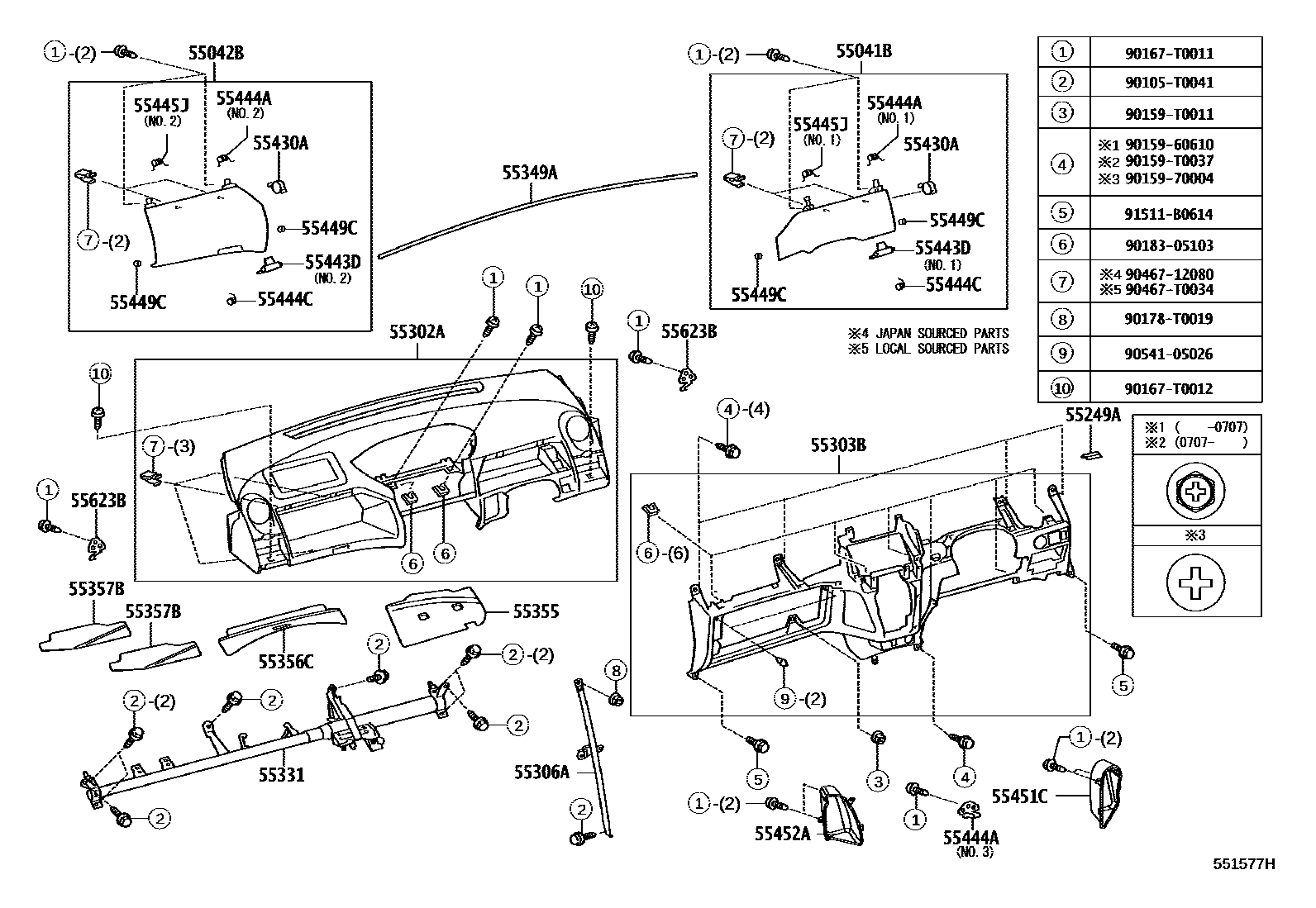

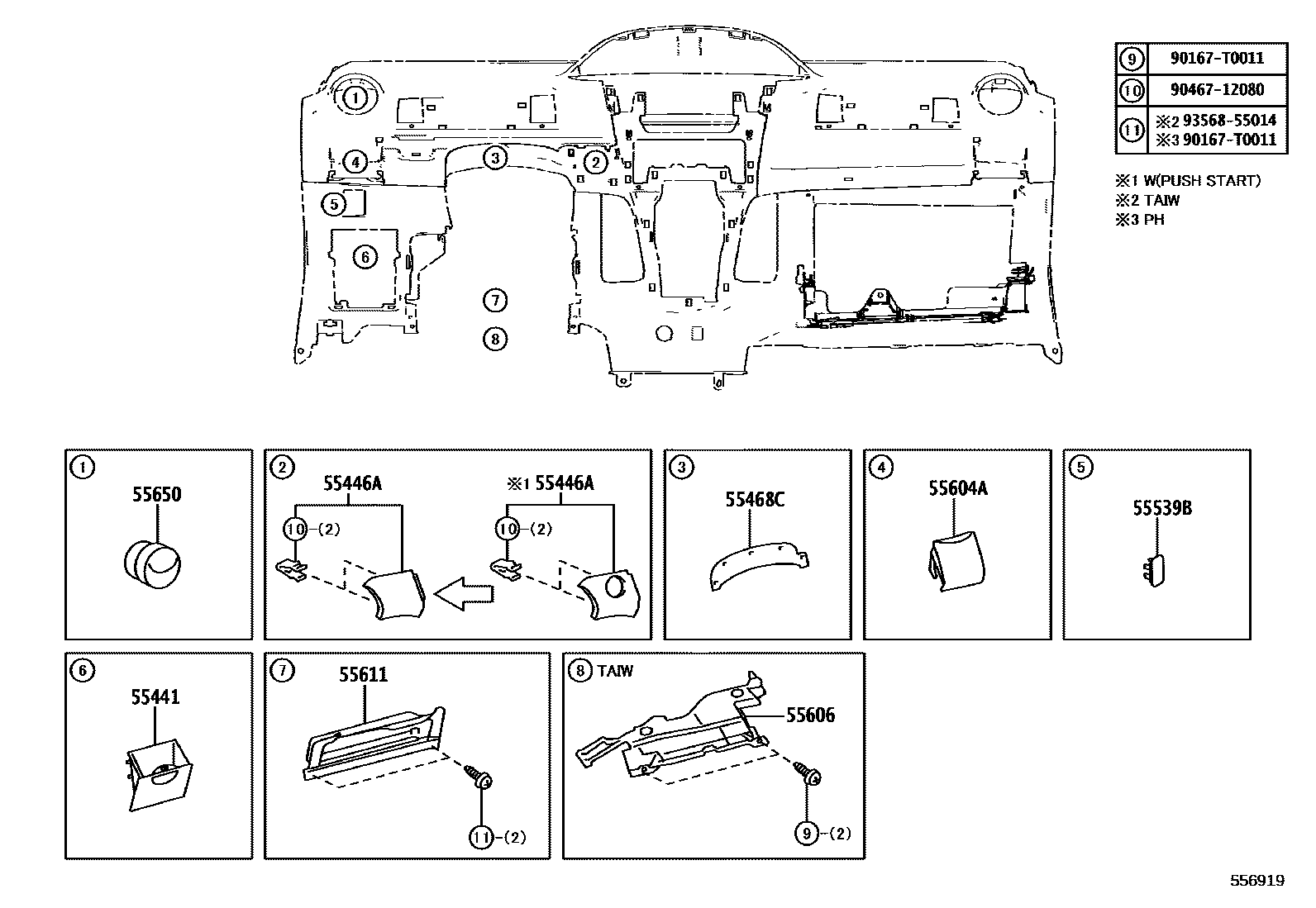

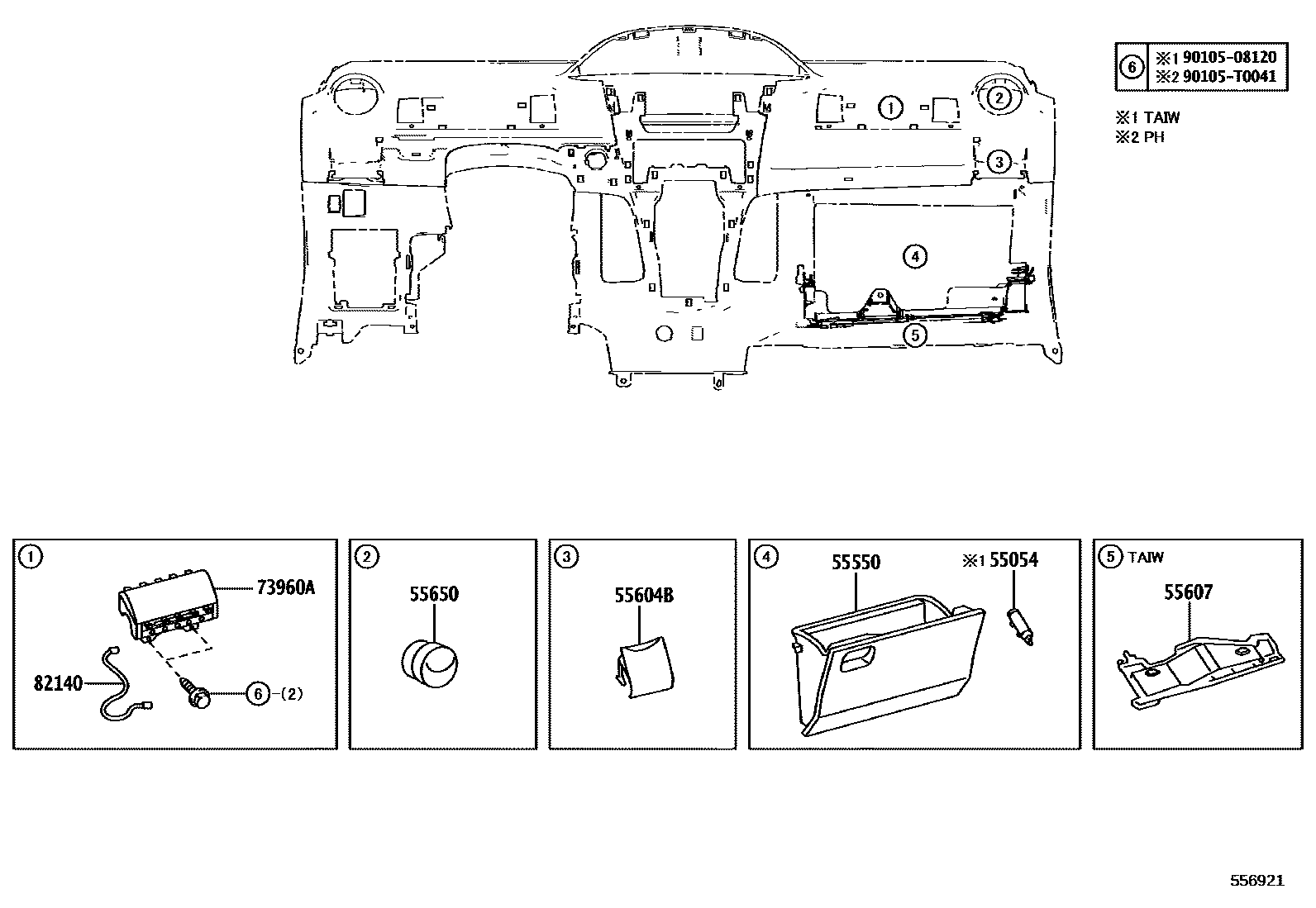

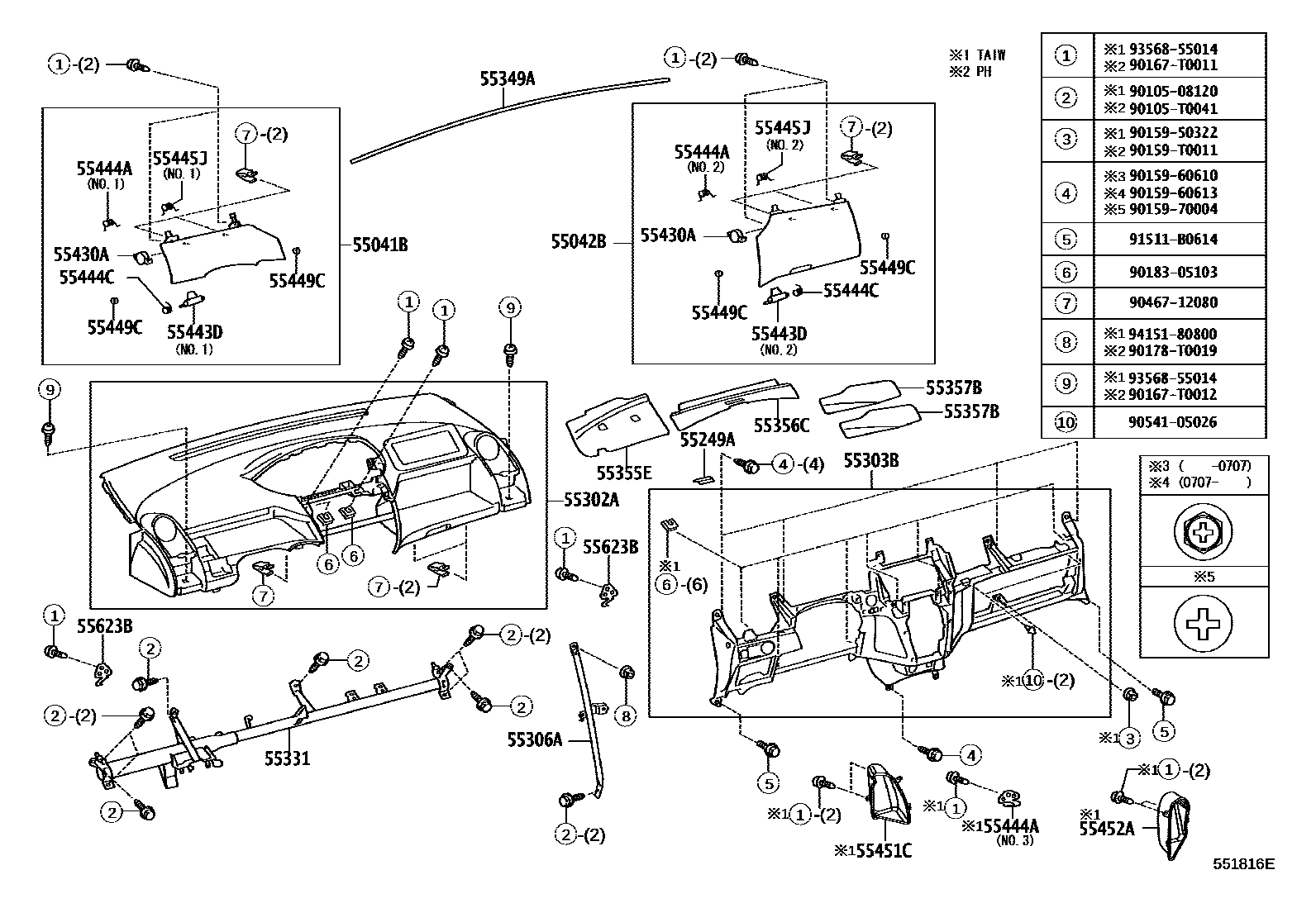

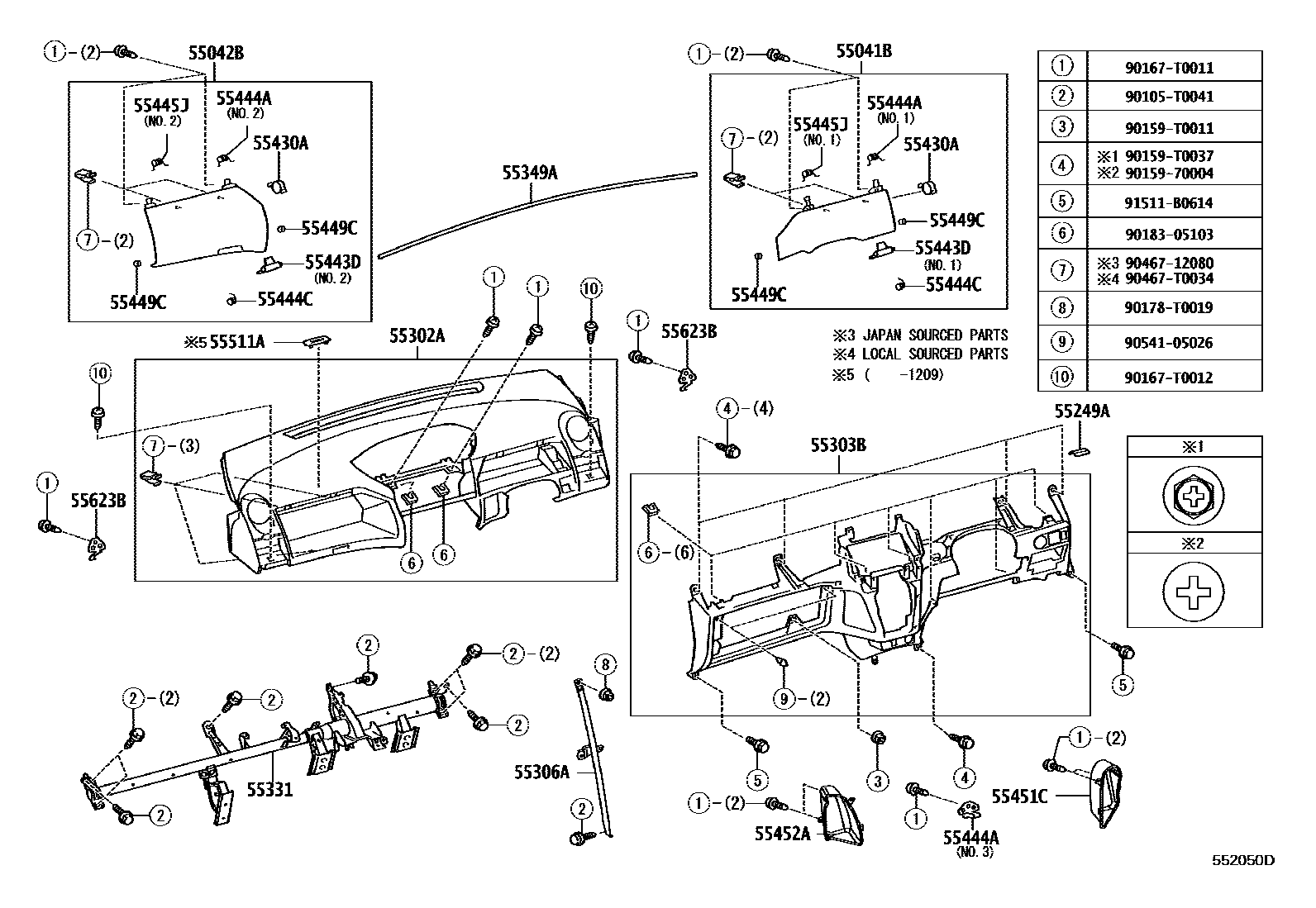

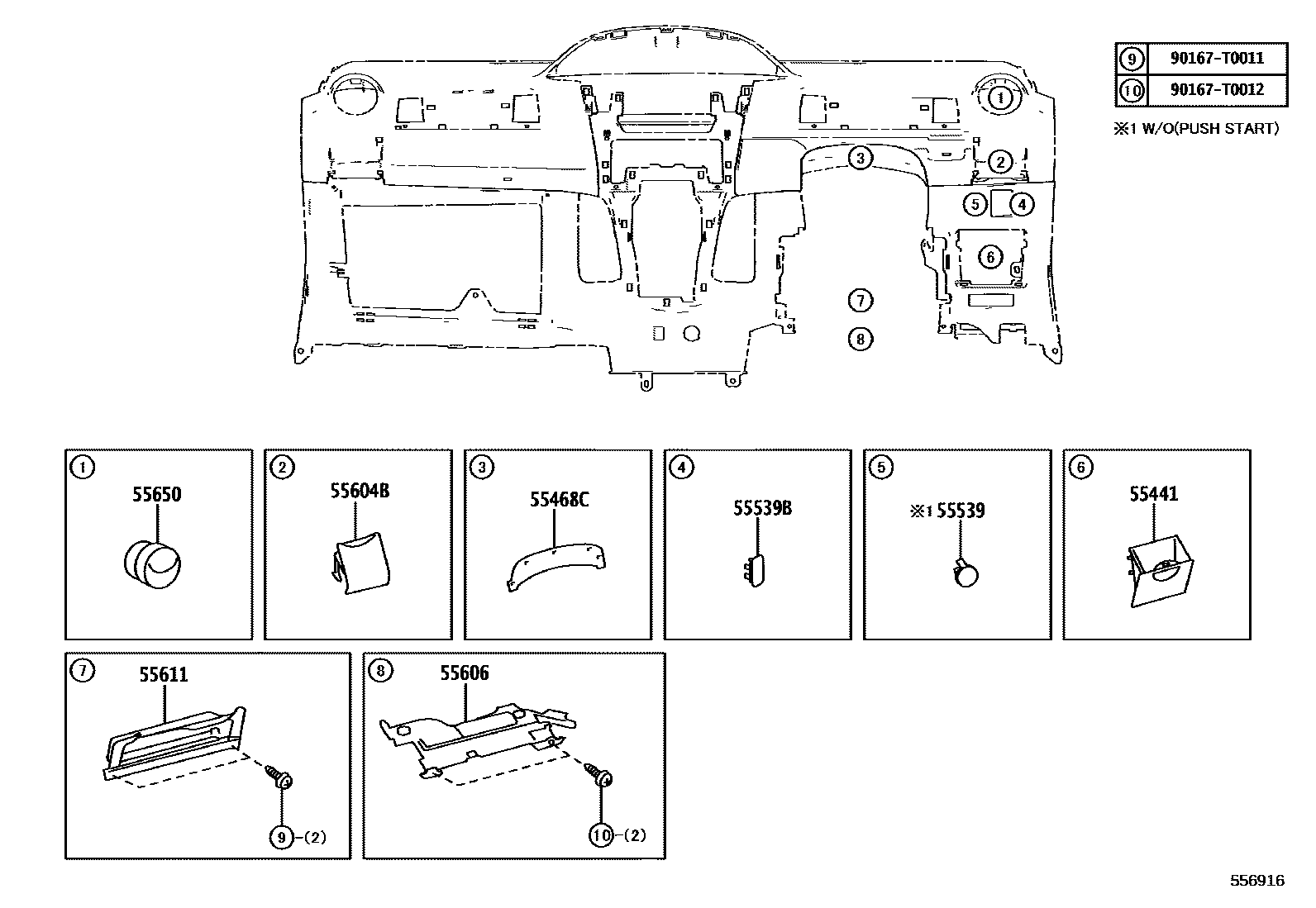

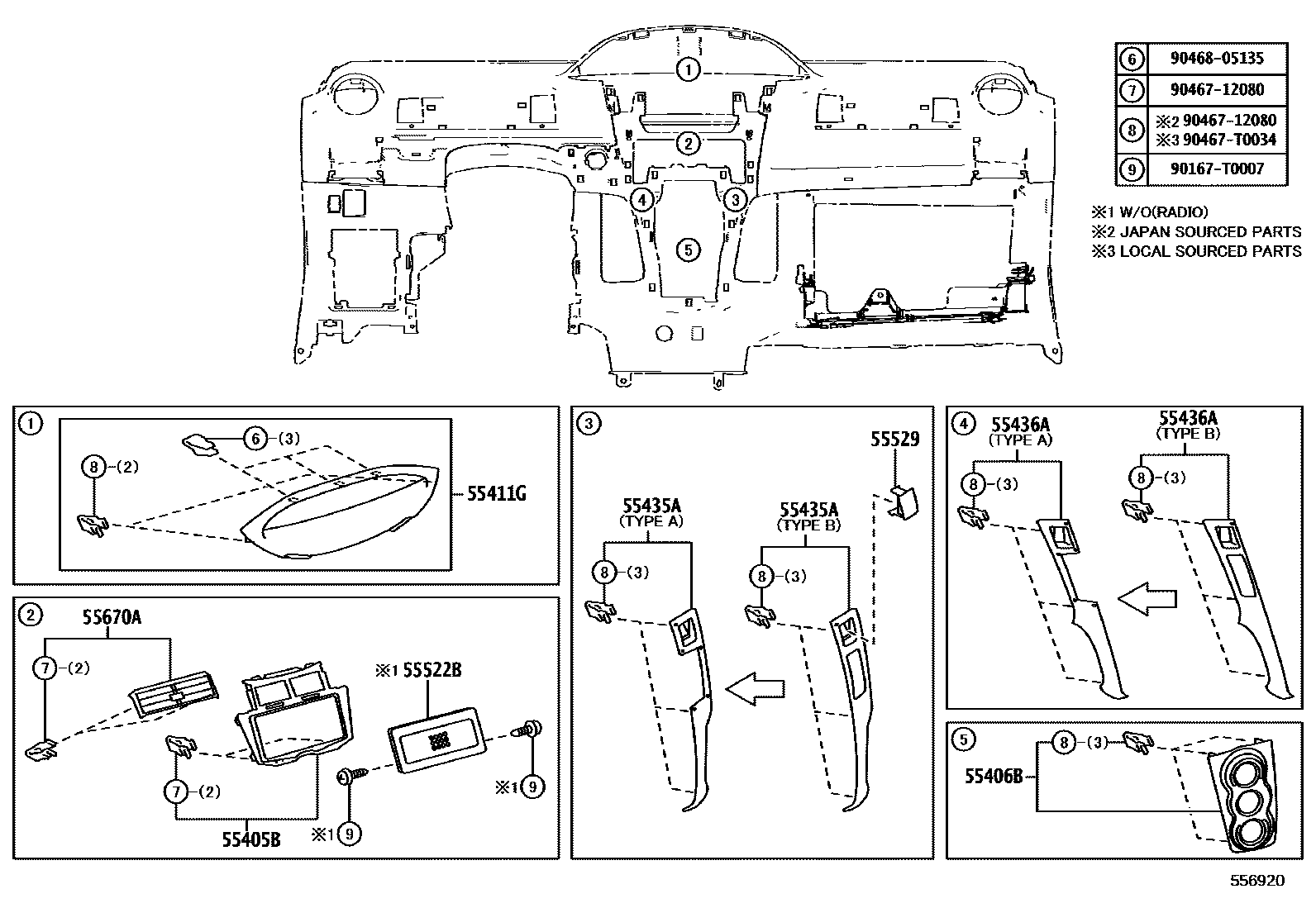

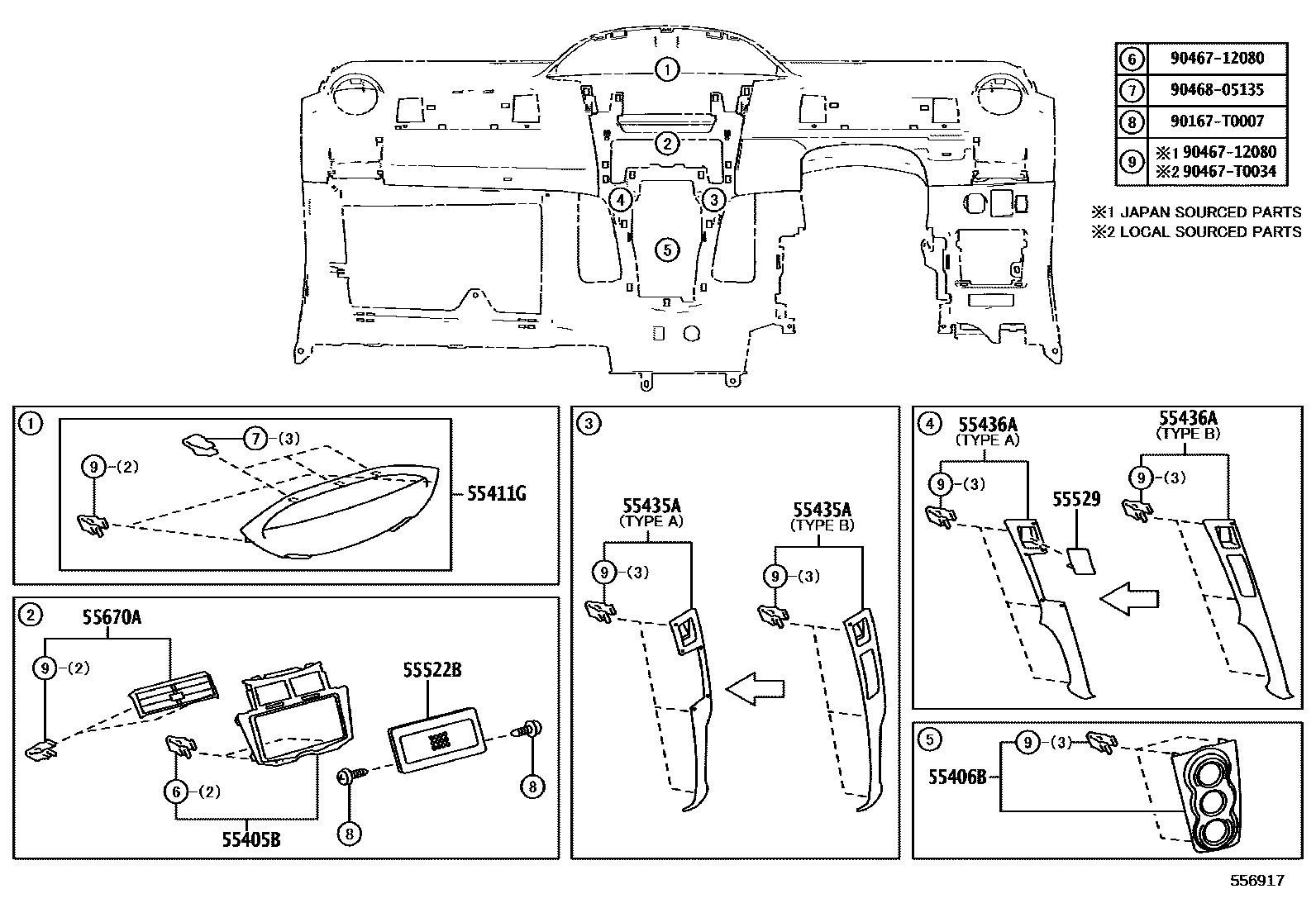

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 9 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55249A | front panel seal | 55249-0D020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D130 · 55306-0D140 · 55306-52160 |
| 55331 | Dashboard reinforcement | 55330-0D230 · 55330-0D240 · 55330-0D330 · 55330-52490 |
| 55349A | Dashboard cushion | 55349-0D070 · 55349-52060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D050 · 55355-0D051 |
| 55355E | Dashboard cushion | 55355-0D050 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D060 · 55356-0D061 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0D080 · 55357-0D110 · 55357-0D111 |
| 55430A | Instrument cluster decorative panel damper assembly | 55430-52020 |
| 55444A | Dashboard storage box spring | 55444-0D190 · 55444-0D200 · 55444-52230 · 55444-52250 · 55444-52270 |
| 55444C | Dashboard storage box spring | 55478-52020 |
| 55445J | Dashboard storage box spring | 55445-0D090 · 55445-0D100 · 55445-52160 · 55445-52180 |
| 55449C | Dashboard No. 2 decorative panel cushion | 55449-28020 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D030 · 55468-52010 |
| 55522B | Radio tuner opening cover | 55522-0K010 |
| 55529 | Warning light hole cover | 55529-0D010 · 55529-0D020 · 55529-52010 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D030 · 55606-0D031 · 55606-0D040 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D030 · 55607-0D031 · 55607-0D040 |
| 55623B | Dashboard cup holder spring | 55623-52020 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D030 · 73960-52110 |
| 82140 | Instrument panel wiring harness assembly | 82140-0D020 |
