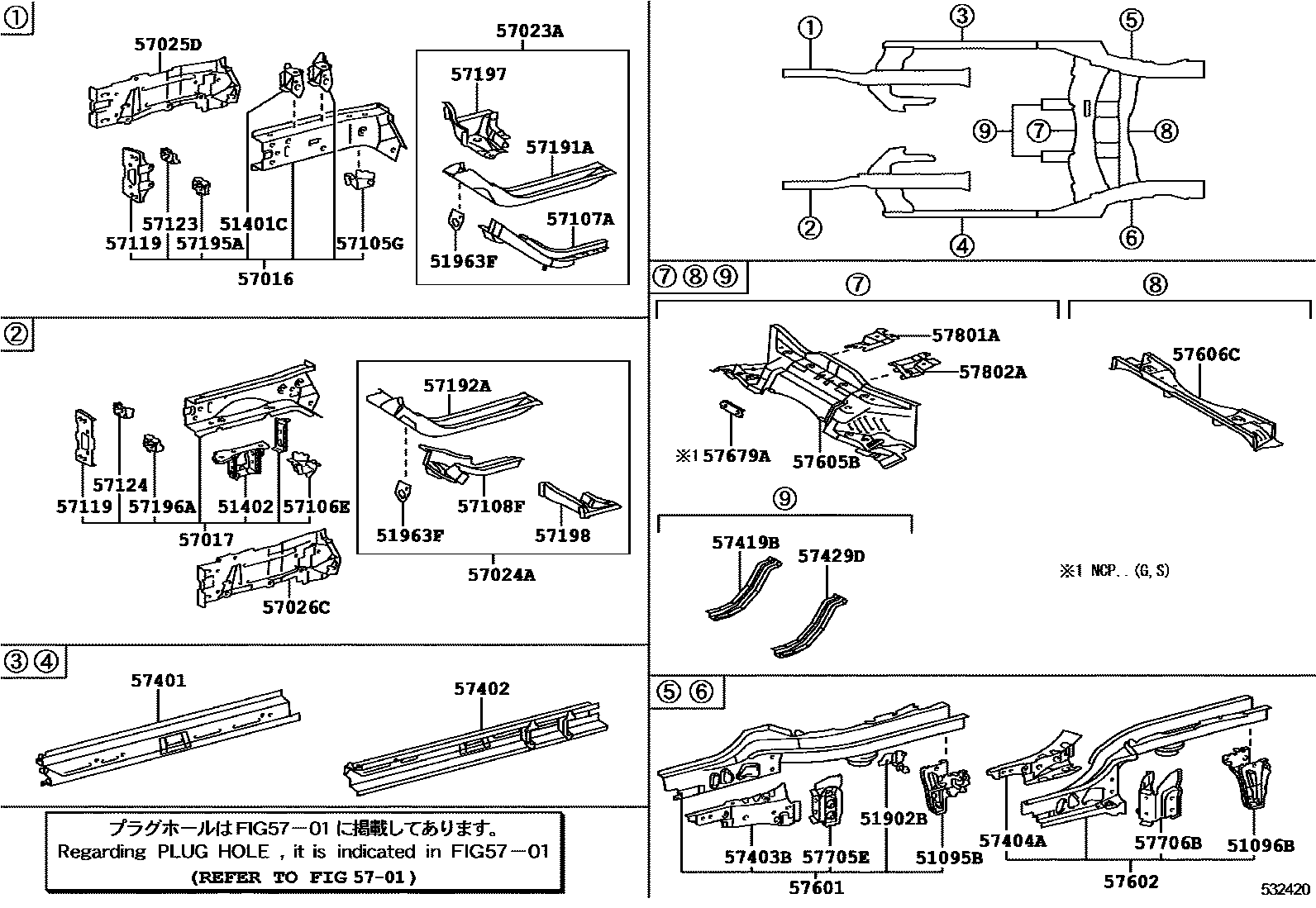

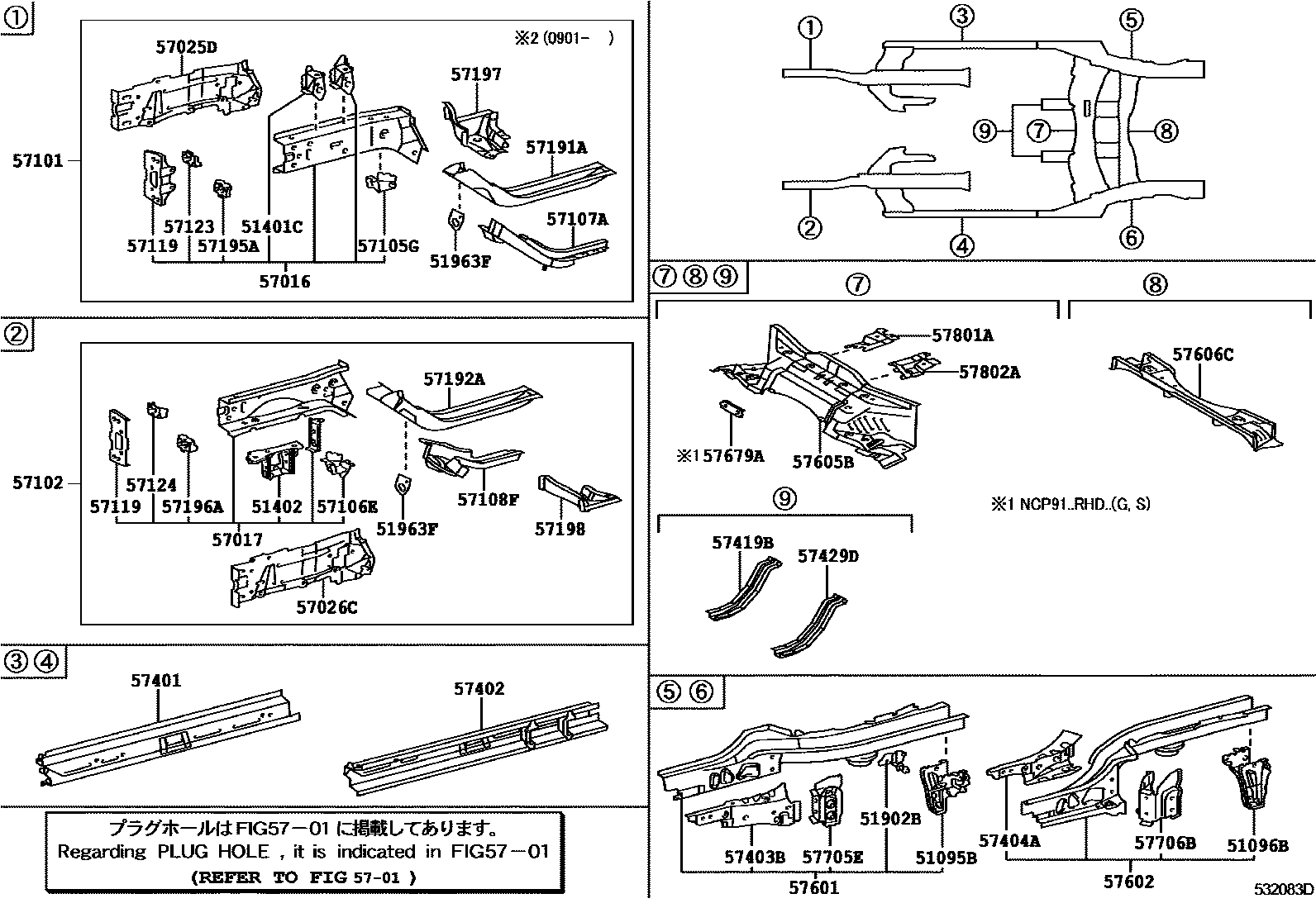

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 2 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51095B | Right rear transport hook sub-assembly | 51095-0D020 |
| 51096B | Left rear transport hook sub-assembly | 51096-0D020 |
| 51401C | Engine right front mounting bracket sub-assembly | 51401-0D020 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-0D020 |
| 51902B | No. 2 exhaust pipe hanger sub-assembly | 51902-0D020 · 51902-52010 |
| 51963F | transport hook | 51963-0D030 · 51963-52050 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-0D070 · 57016-0D090 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-0D130 · 57017-0D140 |
| 57023A | Right rear longitudinal beam sub-assembly | 57023-0D110 |
| 57024A | Left rear longitudinal beam sub-assembly | 57024-0D100 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-0D030 · 57025-52010 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-0D030 · 57026-52010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-0D100 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-0D160 |
| 57105G | Right front suspension cross member spacer sub-assembly | 57105-0D040 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-0D020 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-0D060 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-0D060 |
| 57119 | Front longitudinal beam front panel | 57119-0D020 · 57129-0D020 |
| 57123 | Right front longitudinal beam bracket | 57123-0D020 |
| 57124 | Left front longitudinal beam bracket | 57124-0D020 |
| 57191A | Right rear longitudinal member inside front floor | 57191-52020 |
| 57192A | Left rear longitudinal member inside front floor | 57192-52020 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-0D020 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-0D020 |
| 57197 | Right front torsion box section piece | 57197-0D040 |
| 57198 | Left front anti-torsion box section piece | 57198-0D040 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-0D110 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-0D110 |
| 57403B | Floor inner right reinforcement sub-assembly | 57403-0D010 |
| 57404A | Floor inner left reinforcement sub-assembly | 57404-0D010 |
| 57419B | Front floor and rear lower reinforcement | 57419-0D050 |
| 57429D | Left rear reinforcement under front floor | 57429-0D050 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0D090 · 57601-0D110 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0D090 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-0D060 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0D060 |
| 57679A | Rear floor cross member fasteners | 57679-0D020 |
| 57705E | Rear suspension cross member right rear mounting bracket sub-assembly | 57705-0D020 · 57705-0D021 |
| 57706B | Rear suspension arm left rear bracket sub-assembly | 57706-0D020 · 57706-0D021 |
| 57801A | Rear floor right longitudinal beam reinforcement sub-assembly | 57801-0D050 |
| 57802A | Rear floor left longitudinal beam reinforcement sub-assembly | 57802-0D040 |
