Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

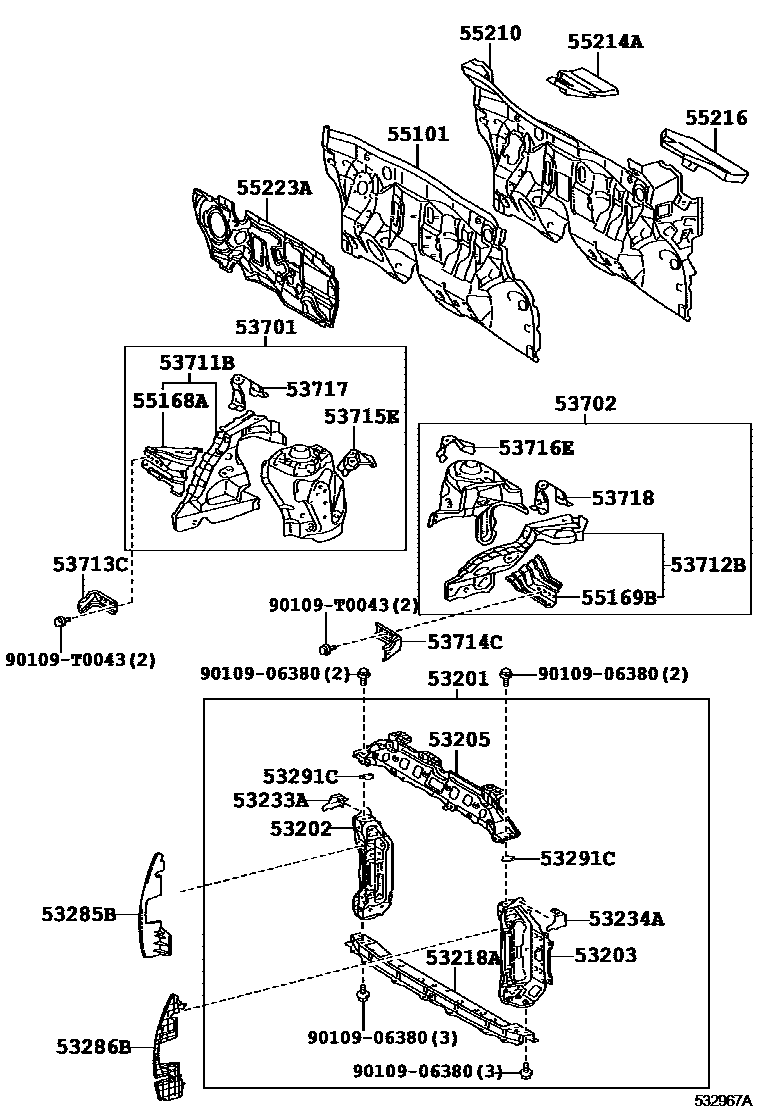

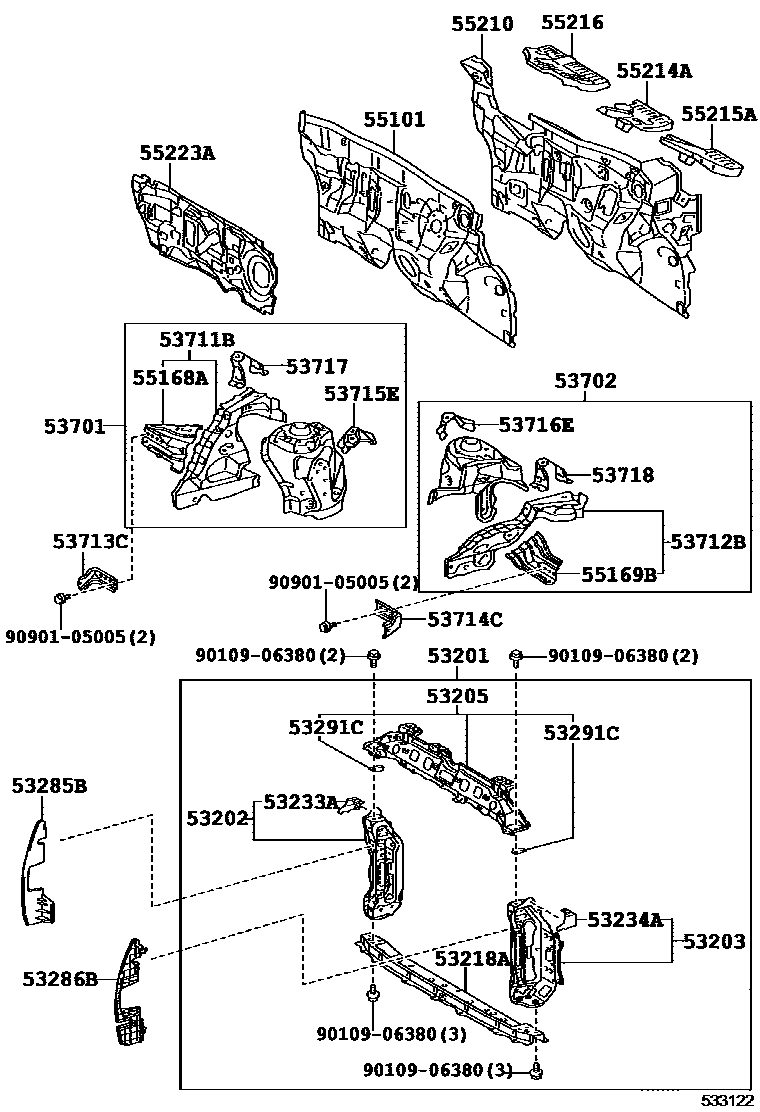

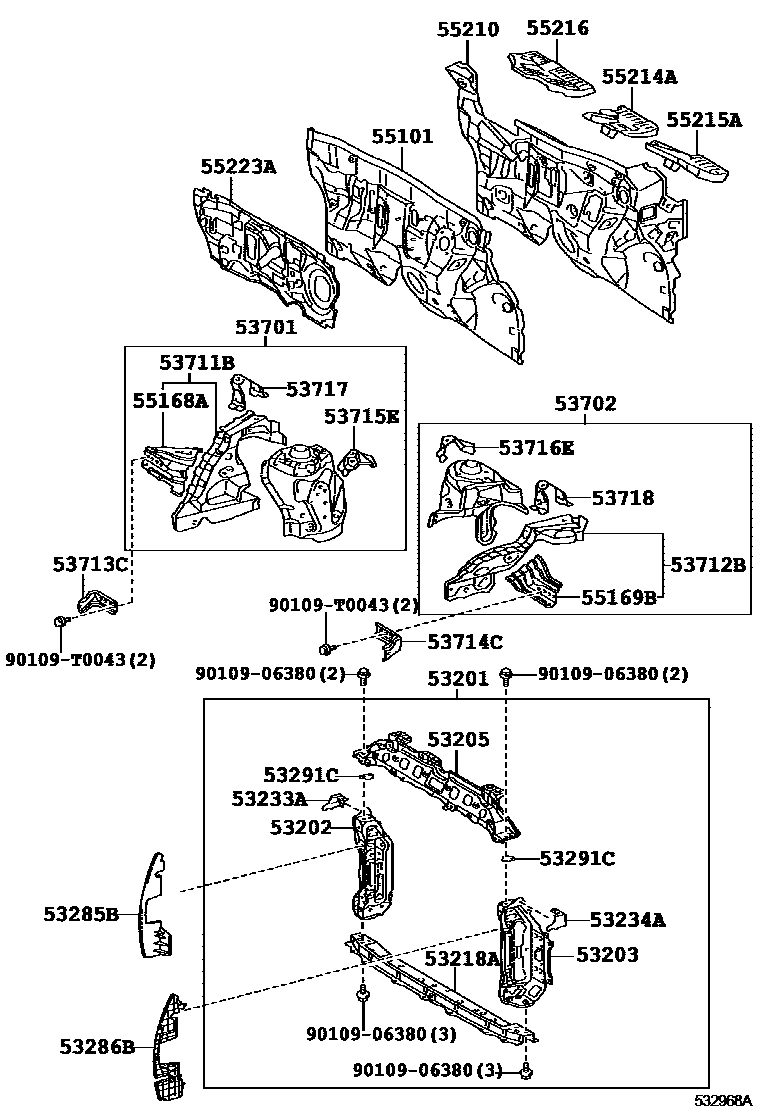

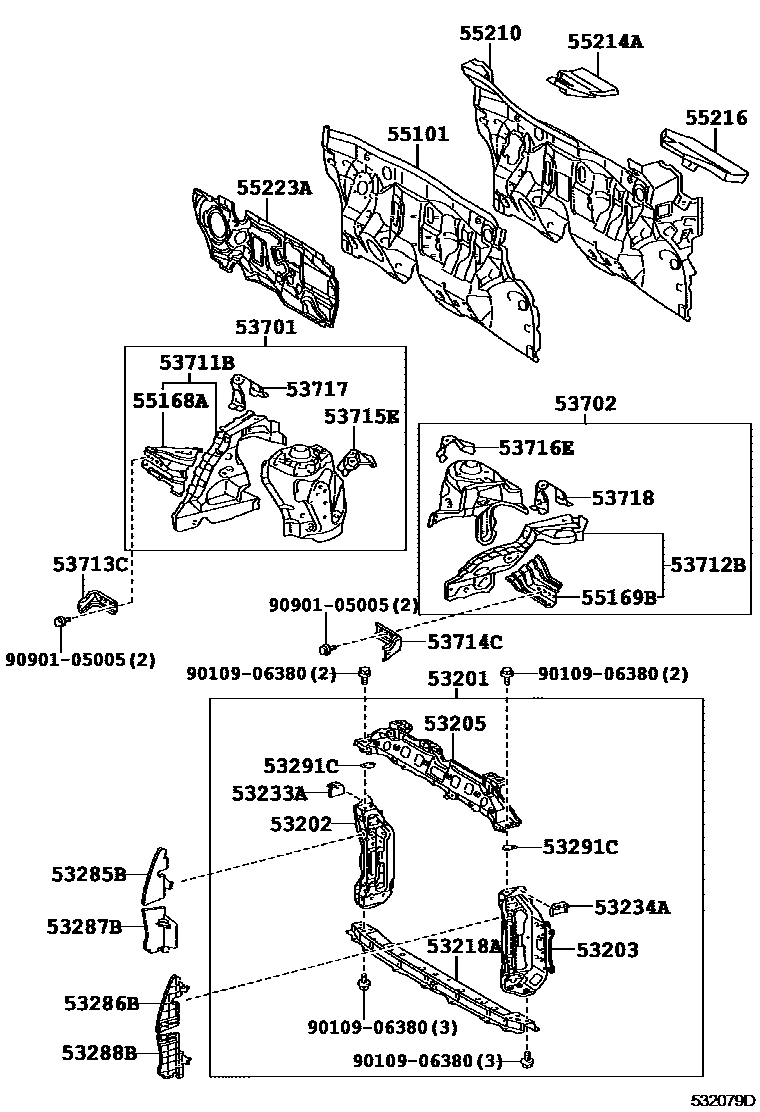

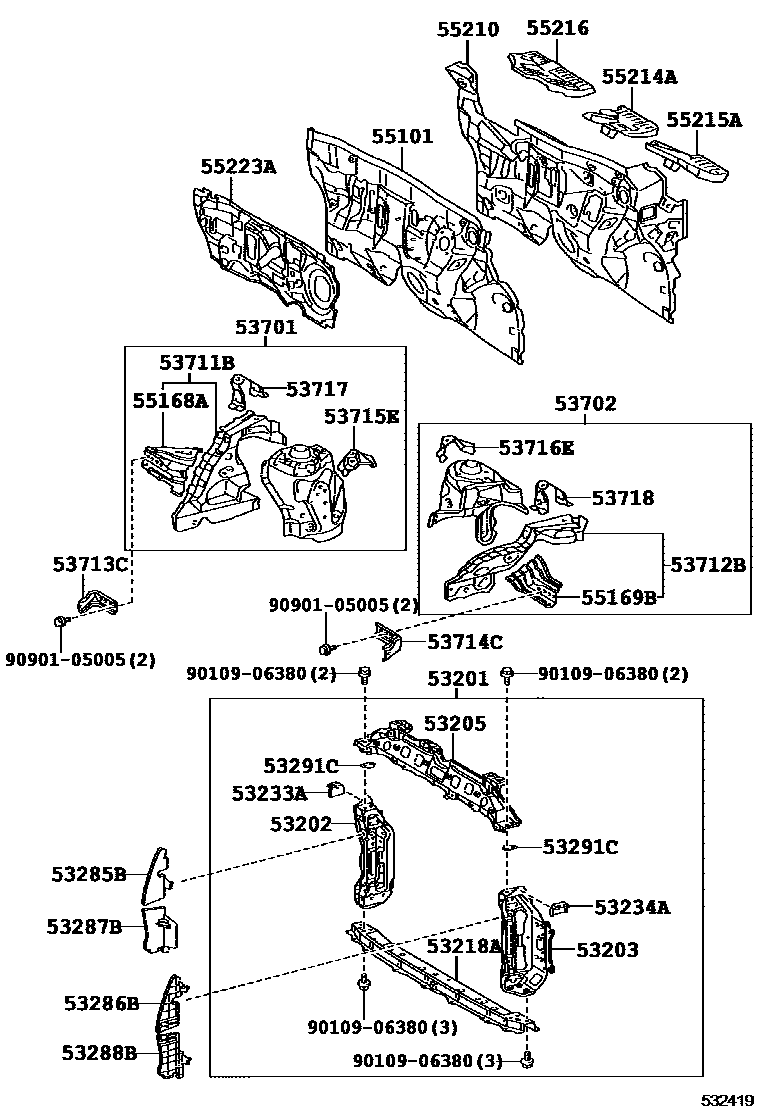

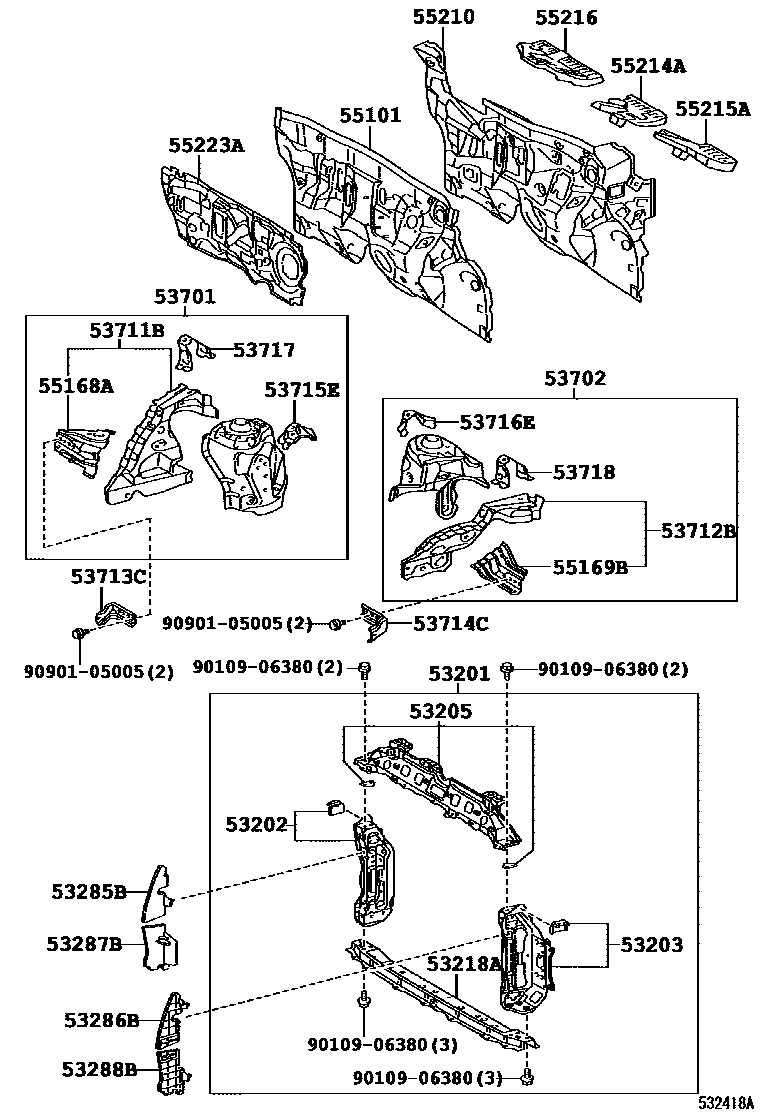

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-0D070 · 53201-0D080 · 53201-0D100 · 53201-0D120 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0D070 · 53202-0D903 · 53202-0D905 |
| 53203 | Radiator left bracket sub-assembly | 53203-0D070 · 53203-0D903 · 53203-0D905 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0D030 · 53205-0D903 · 53205-52090 |
| 53218A | Radiator lower support | 53028-0D040 · 53028-52070 |
| 53233A | No. 1 right headlight bracket | 53233-0D020 · 53233-0D040 · 53233-52030 |
| 53234A | No. 1 left headlight bracket | 53234-0D020 · 53234-0D040 · 53234-52040 |
| 53285B | Radiator side 1 air seal | 53285-0D040 · 53285-0D100 · 53285-52170 · 53285-52300 |
| 53286B | Radiator No. 2 side air seal | 53286-0D040 · 53286-0D100 · 53286-52100 · 53286-52240 |
| 53287B | Radiator right side bracket extension | 53287-0D010 · 53287-52010 |
| 53288B | Radiator left bracket extension | 53288-0D010 · 53288-52010 |
| 53291C | Radiator bracket to frame seal | 53291-0D020 · 53291-52070 |
| 53701 | Right front fender fender sub-assembly | 53701-0D100 · 53701-0D150 |
| 53702 | Left front fender fender sub-assembly | 53702-0D090 · 53702-0D140 |
| 53711B | Right front fender front fender | 53707-0D020 |
| 53712B | Left front fender front fender | 53708-0D020 |
| 53713C | Right front fender fender front extension | 53713-0D020 · 53713-52010 |
| 53714C | Left front fender fender front extension | 53714-0D020 · 53714-52020 |
| 53715E | Right front fender fender rear extension | 53715-0D020 · 53715-52030 |
| 53716E | Left front fender fender rear extension | 53716-0D020 · 53716-52030 |
| 53717 | Right fender fender side panel | 53717-0D020 · 53717-52080 |
| 53718 | Left fender fender side panel | 53718-0D020 · 53718-52080 |
| 55101 | Front apron sub-assembly | 55101-0D120 · 55101-0D230 · 55101-0D300 · 55101-0D330 · 55101-0D340 · 55101-0D360 |
| 55168A | Right front fender mounting bracket | 55168-0D050 |
| 55169B | Left front fender mounting bracket | 55169-0D050 |
| 55210 | Front wall insulation pad assembly | 55210-0D130 · 55210-0D170 · 55210-0D460 · 55210-52180 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-0D060 · 55214-0D080 · 55214-52140 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-0D070 · 55215-52110 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-0D030 · 55216-0D070 · 55216-52021 |
| 55223A | Front wall outer heat insulation pad | 55223-0D070 · 55223-0D110 · 55223-0D280 · 55223-52090 · 55223-52110 |
