Toyota YARIS 后保险杠及附件 — Figure 5202

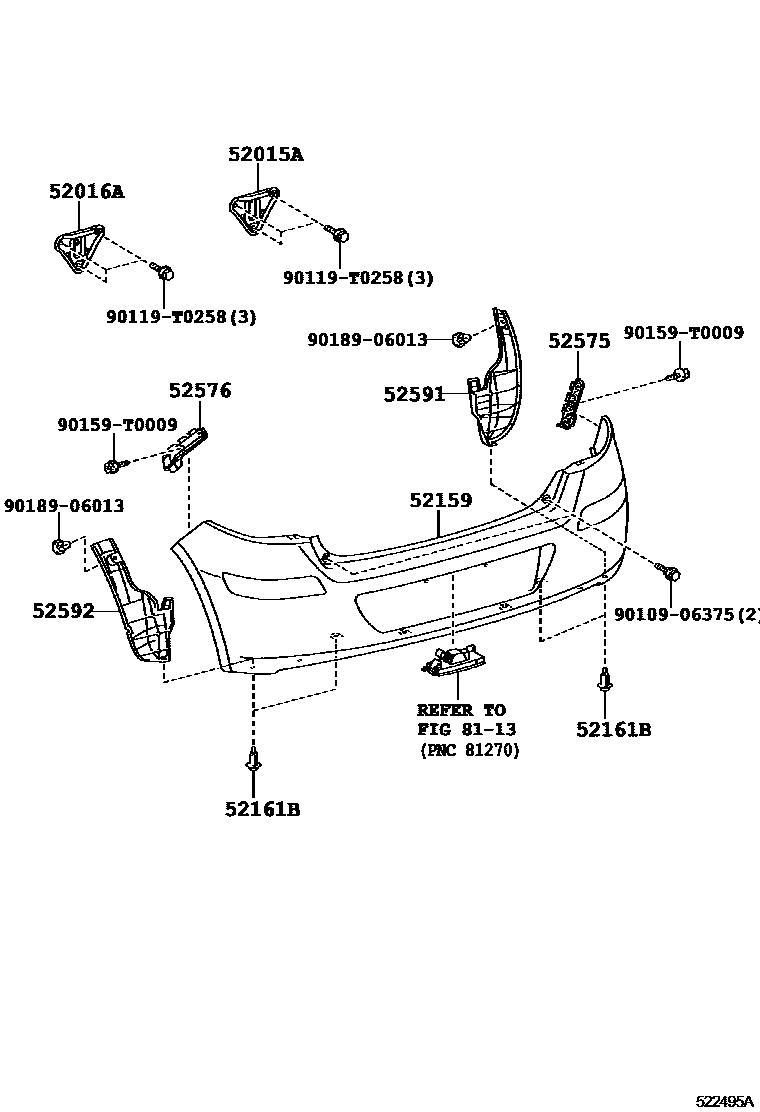

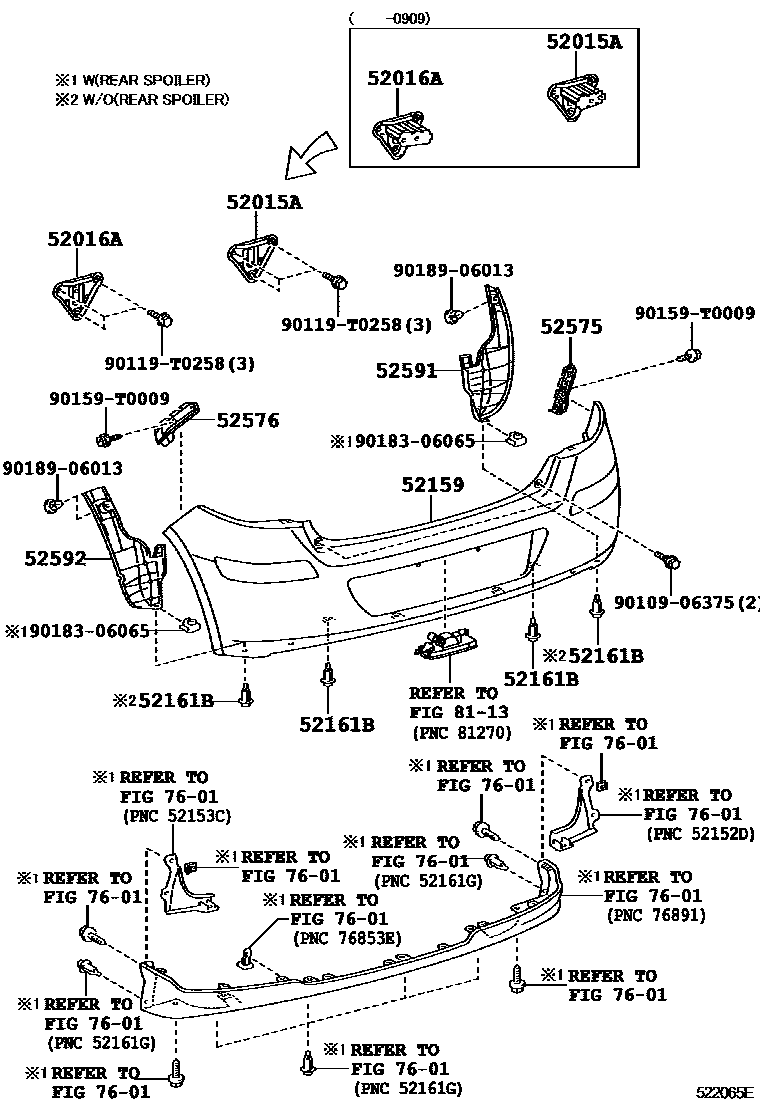

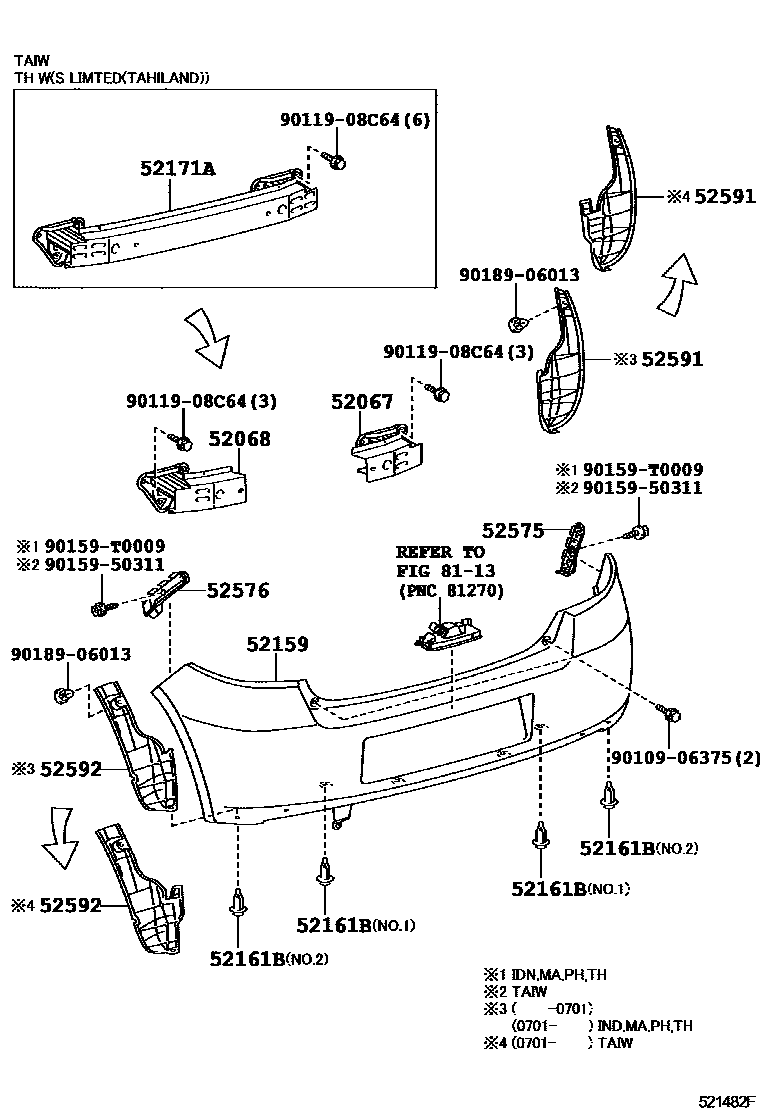

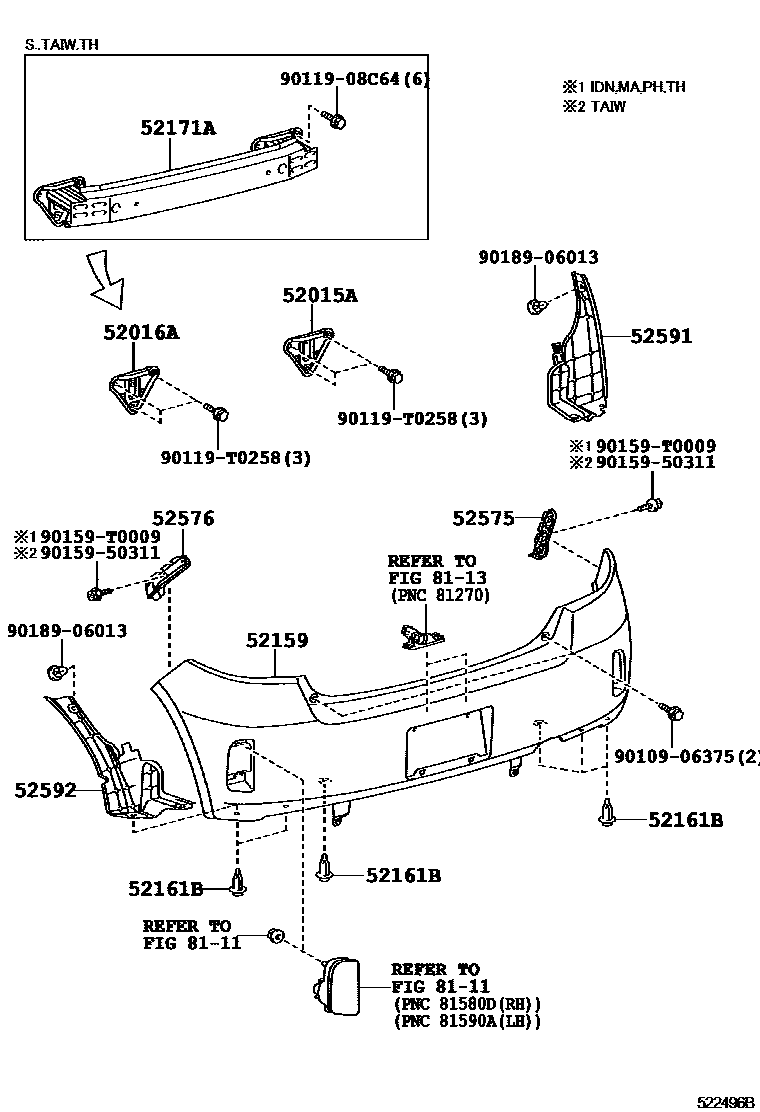

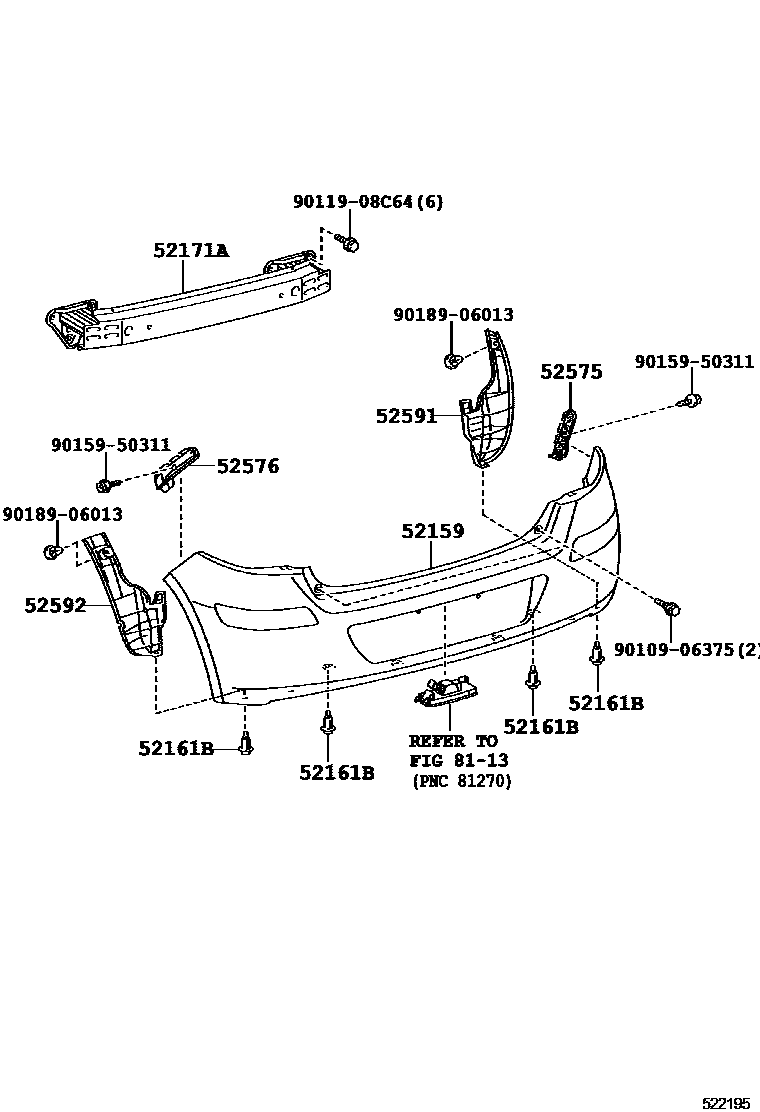

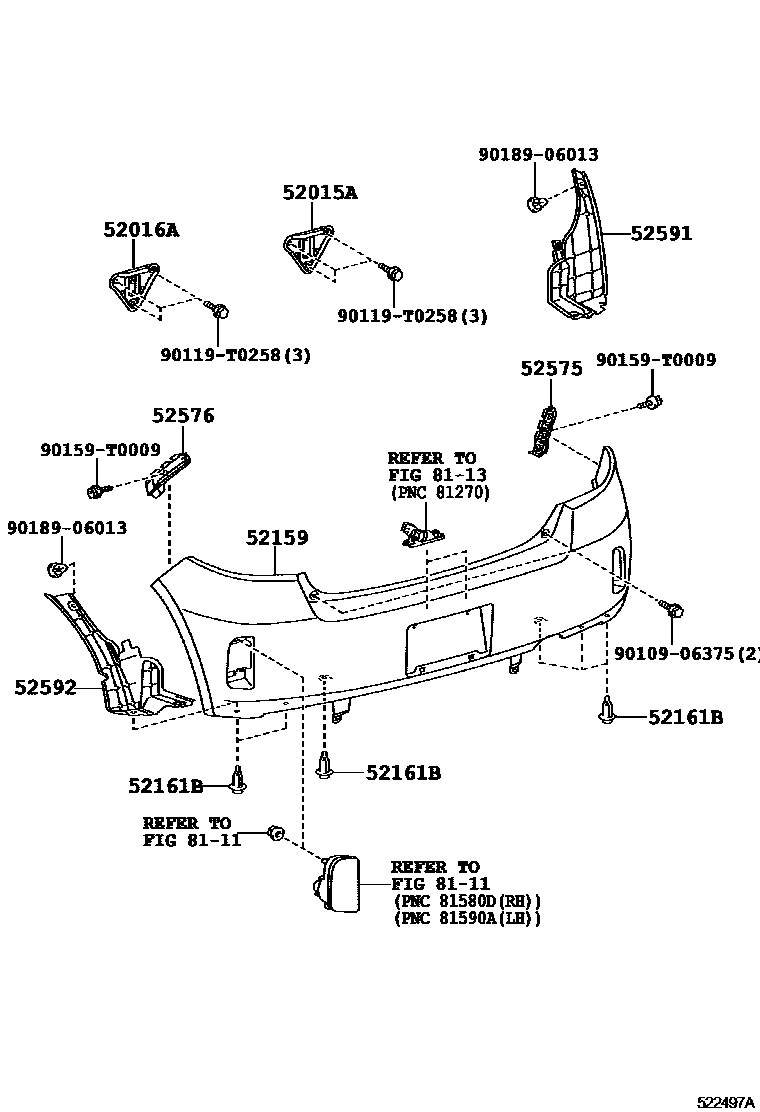

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 6 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-0D040 · 52163-0D040 |
| 52016A | Rear bumper left arm sub-assembly | 52016-0D030 · 52164-0D040 |
| 52067 | Rear bumper right side bracket sub-assembly | 52067-0D010 |
| 52068 | Rear bumper left bracket sub-assembly | 52068-0D010 |
| 52159 | rear bumper cover | 52159-0D909 · 52159-0D910 · 52159-0D920 · 52159-0D977 · 52159-0D978 · 52159-0D979 · 52159-0D988 |
| 52161B | Rear bumper insert | 52161-0K040 · 52161-16010 · 52161-20010 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-0D020 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D060 · 52575-52111 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D060 · 52576-52091 |
| 52591 | Rear bumper right seal | 52591-0D070 · 52591-0D100 · 52591-52180 · 52591-52181 · 52591-52280 |
| 52592 | Rear bumper left seal | 52592-0D070 · 52592-0D100 · 52592-52170 · 52592-52171 · 52592-52260 |
