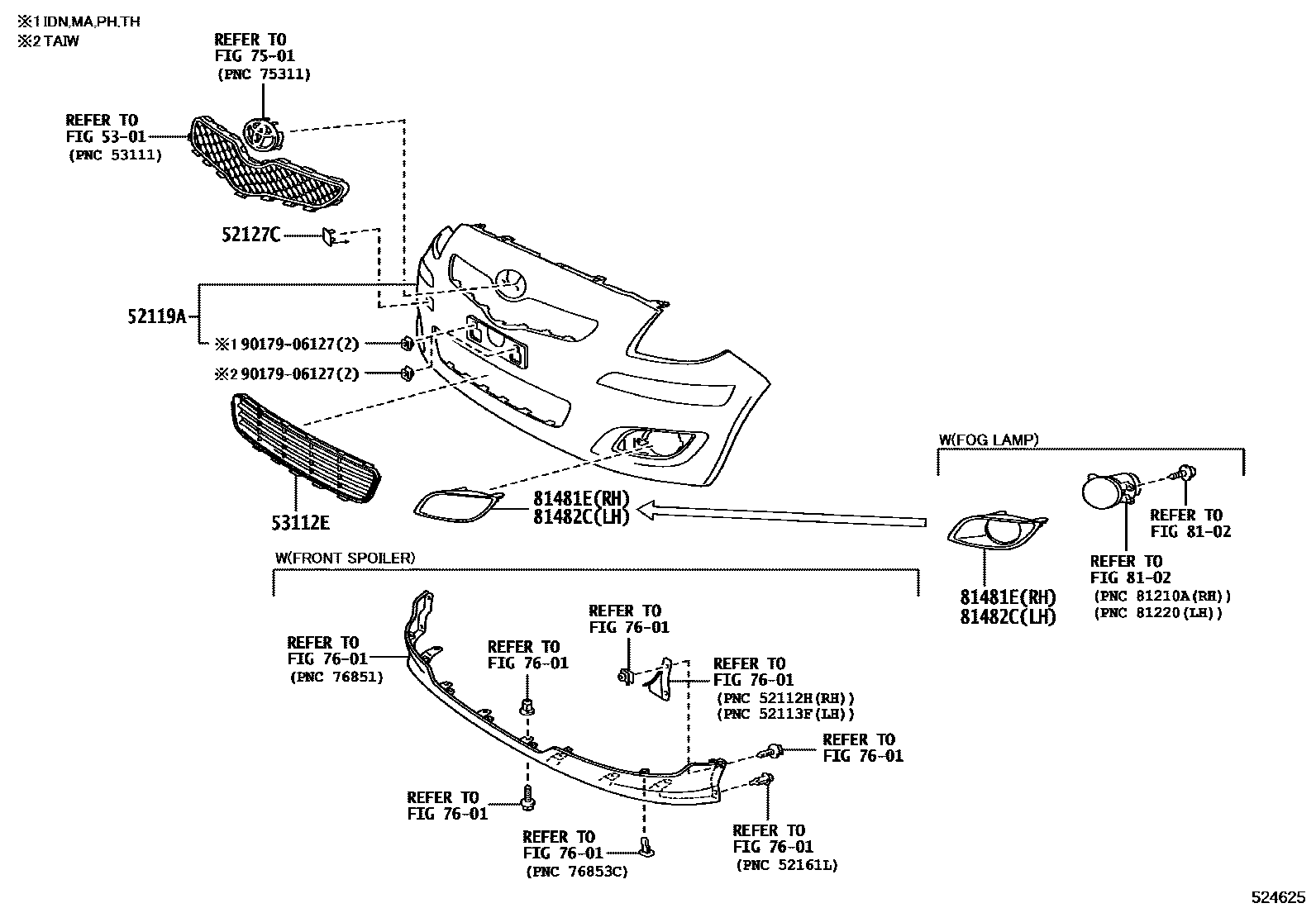

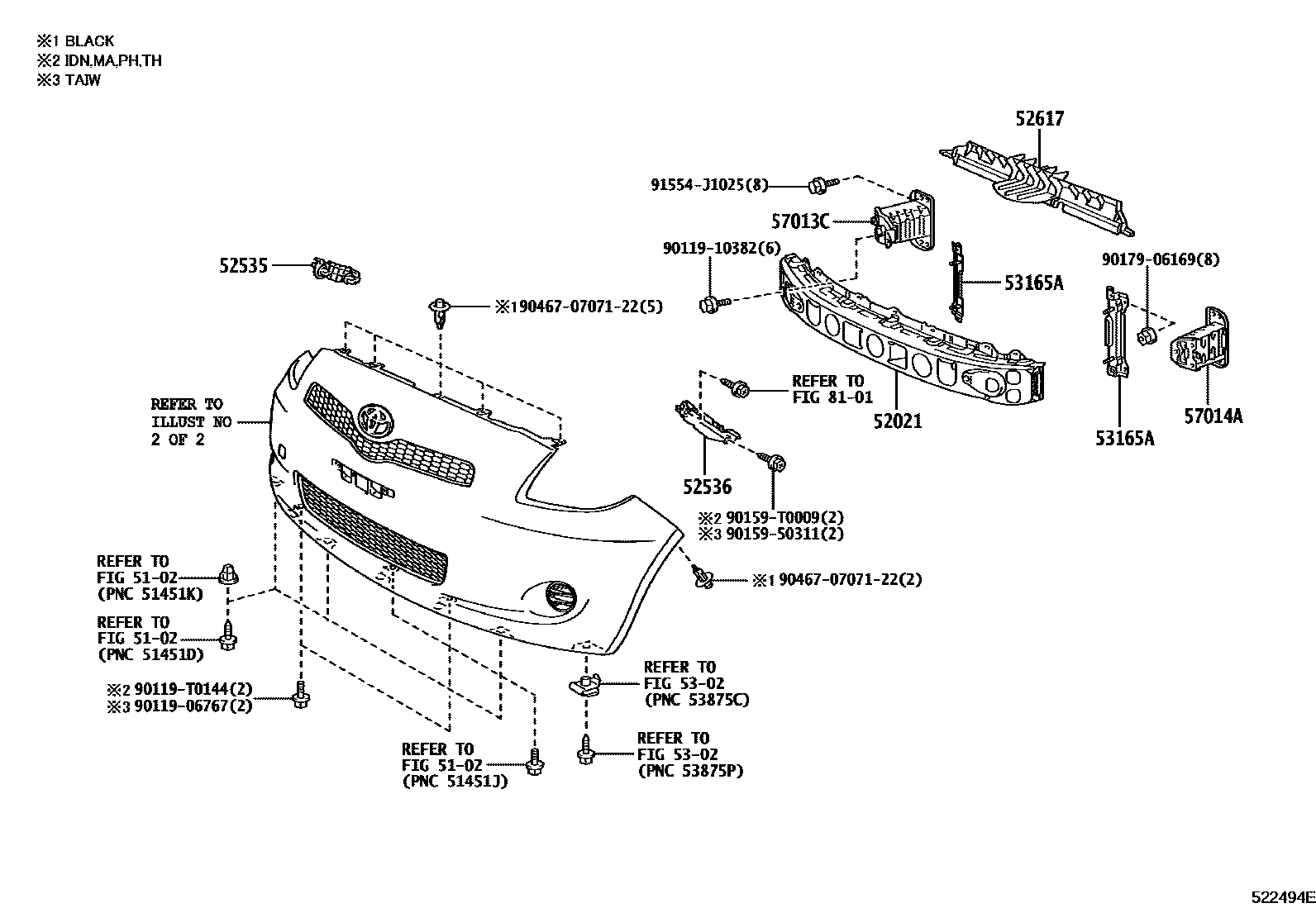

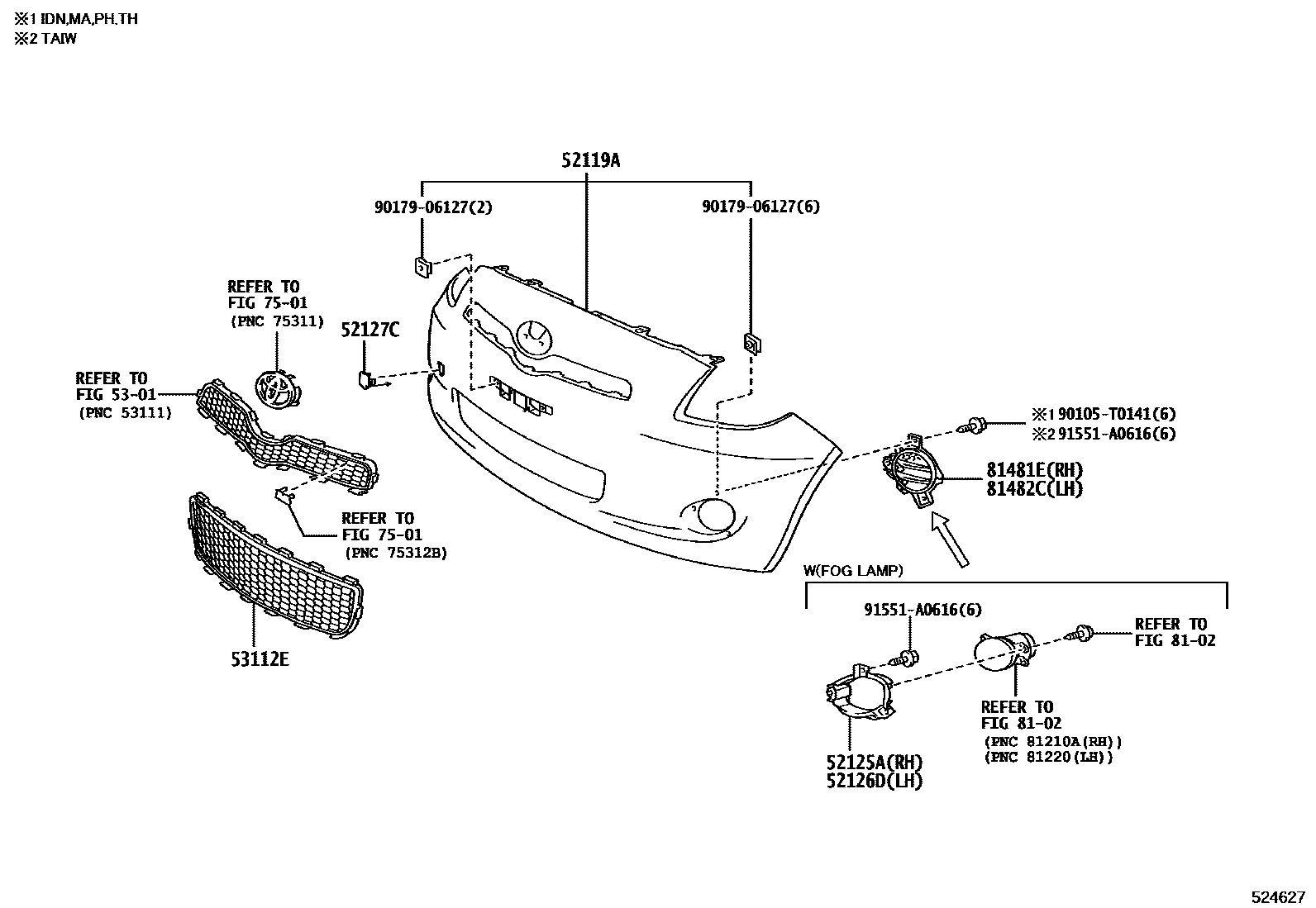

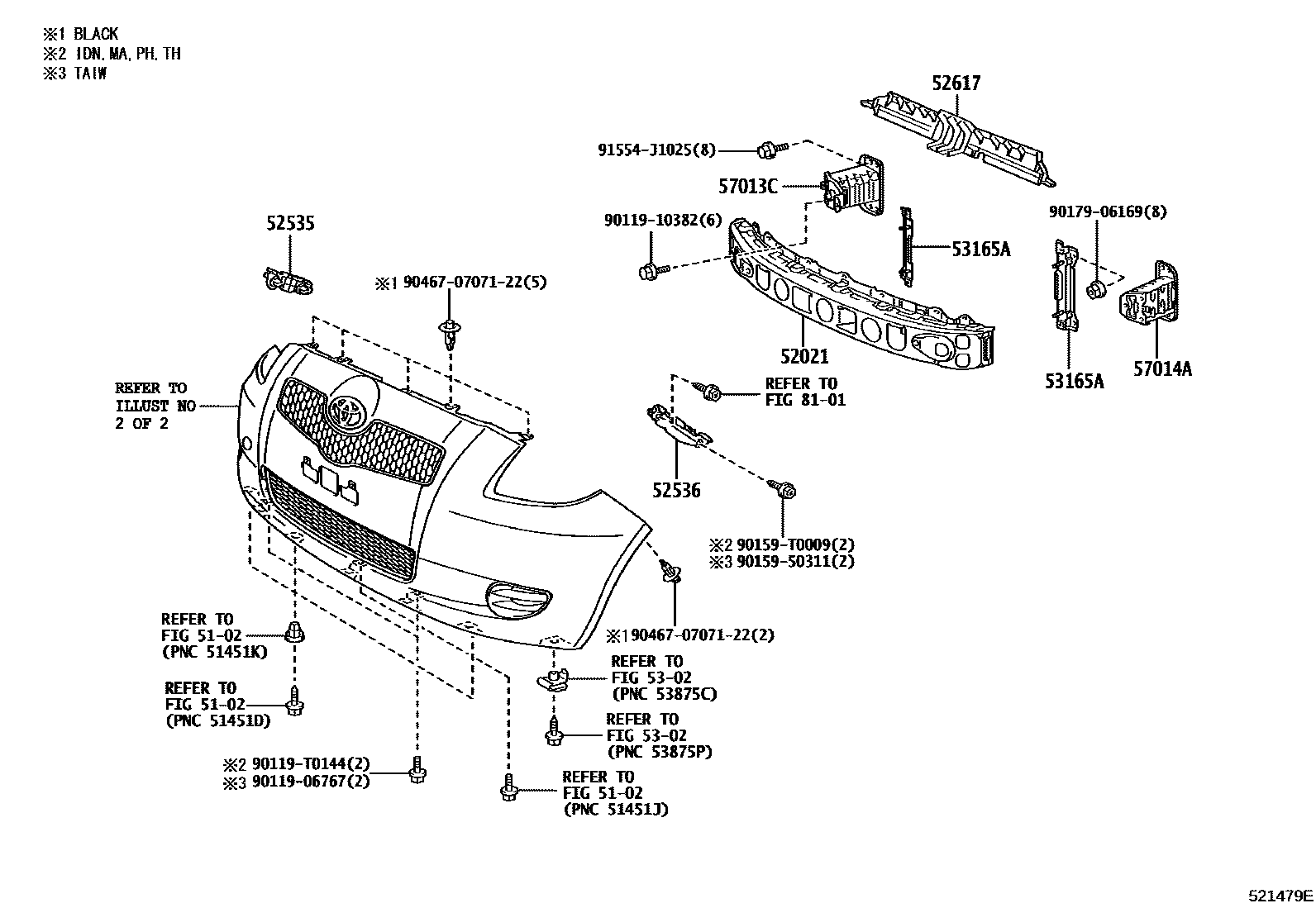

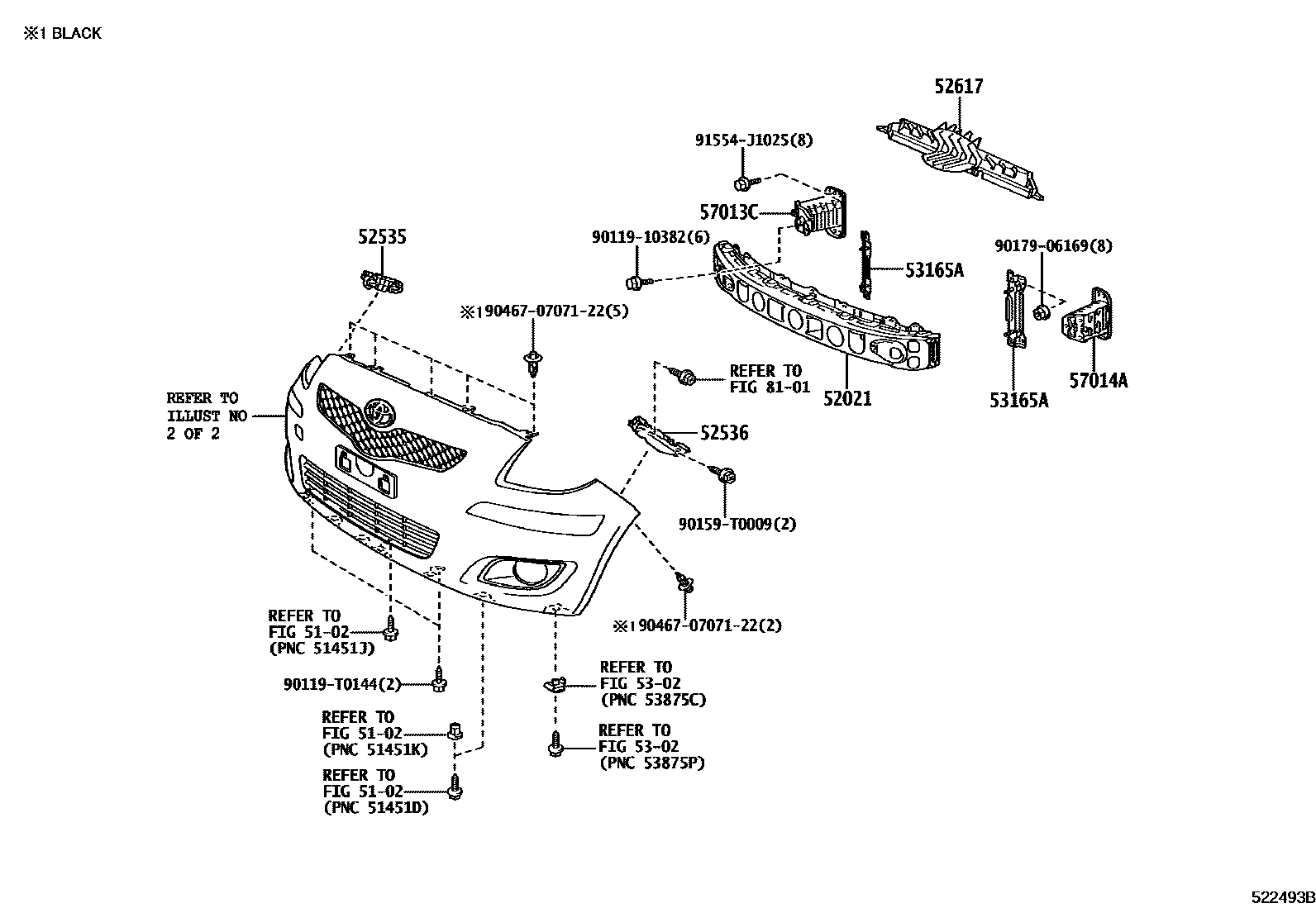

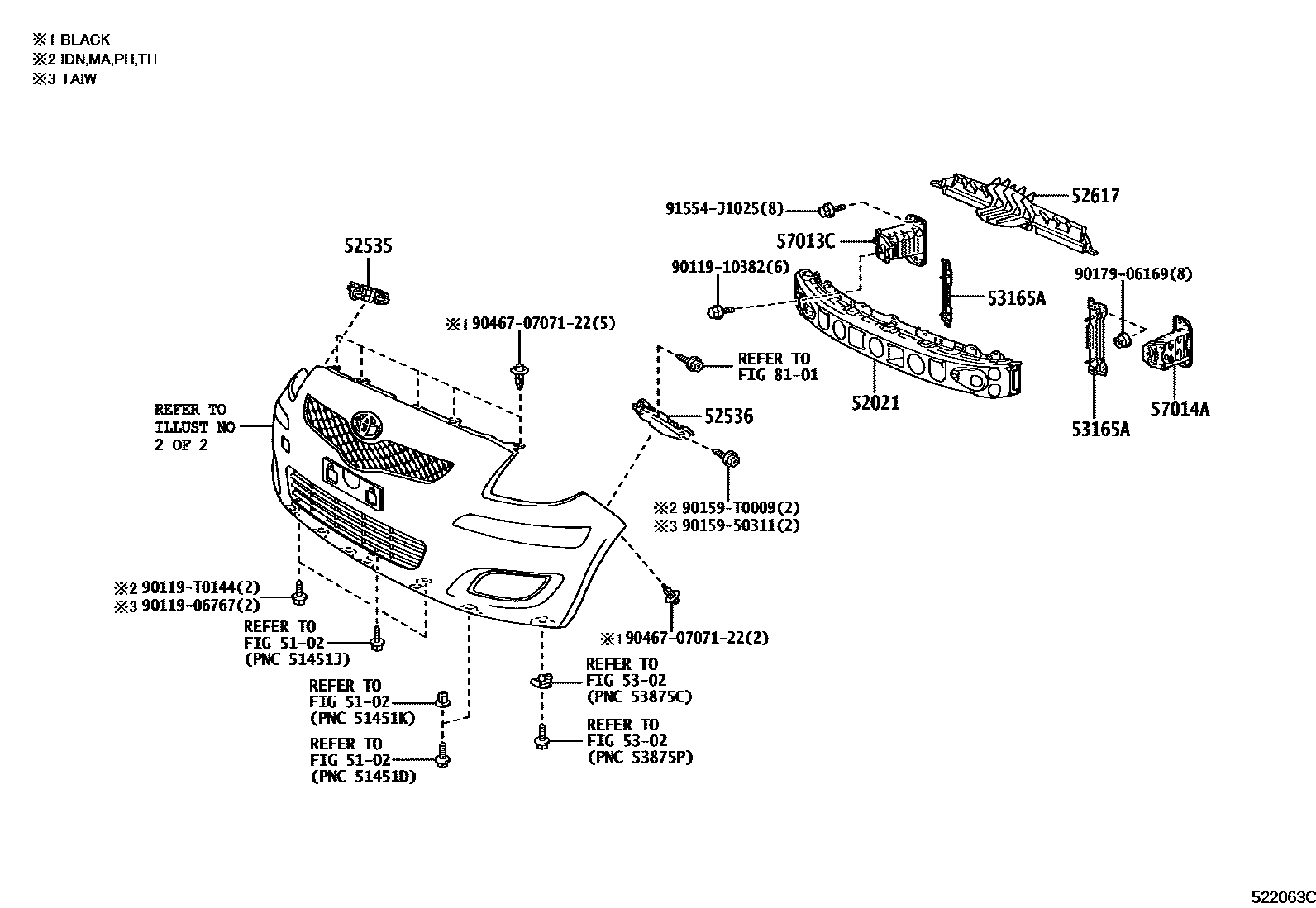

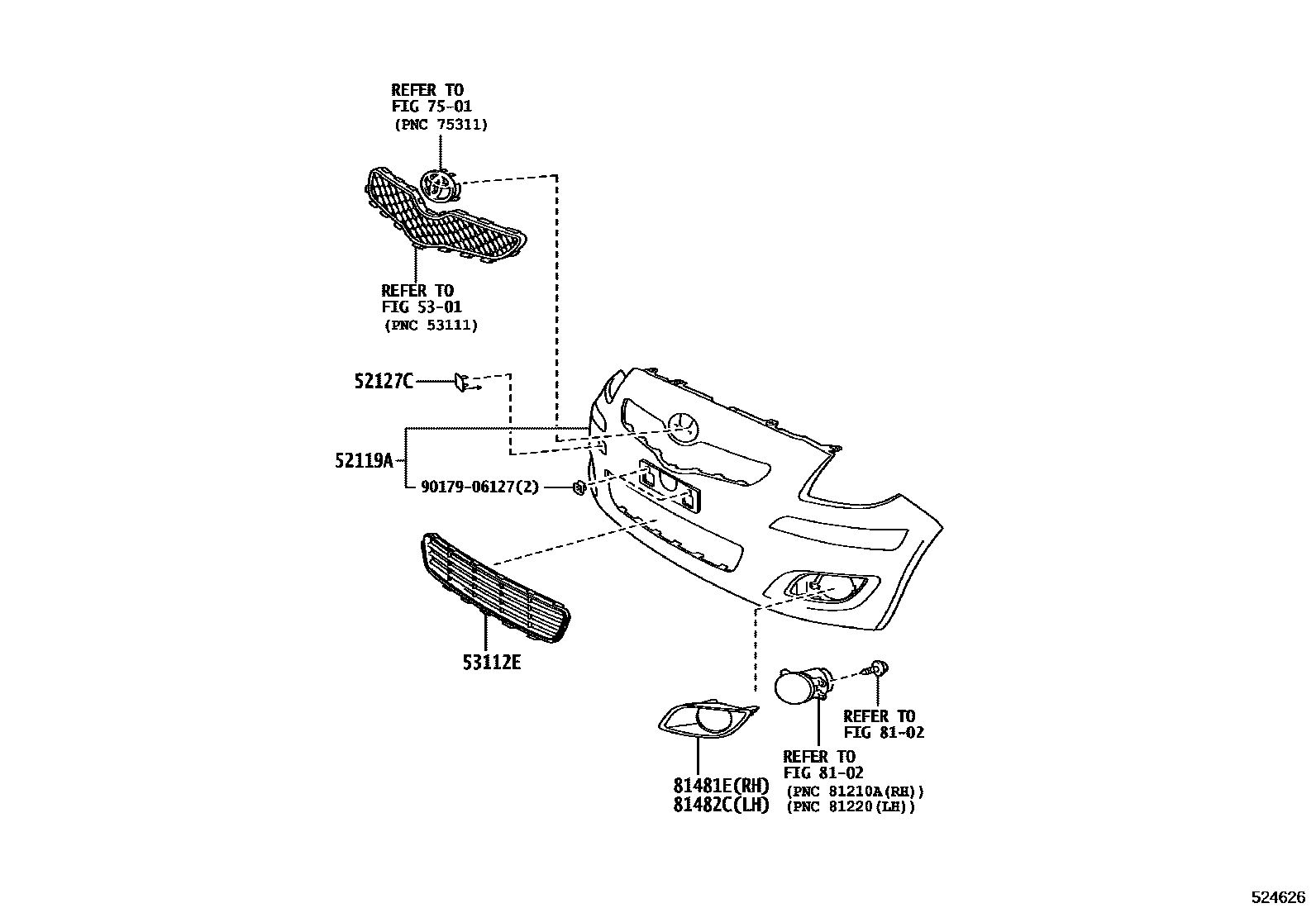

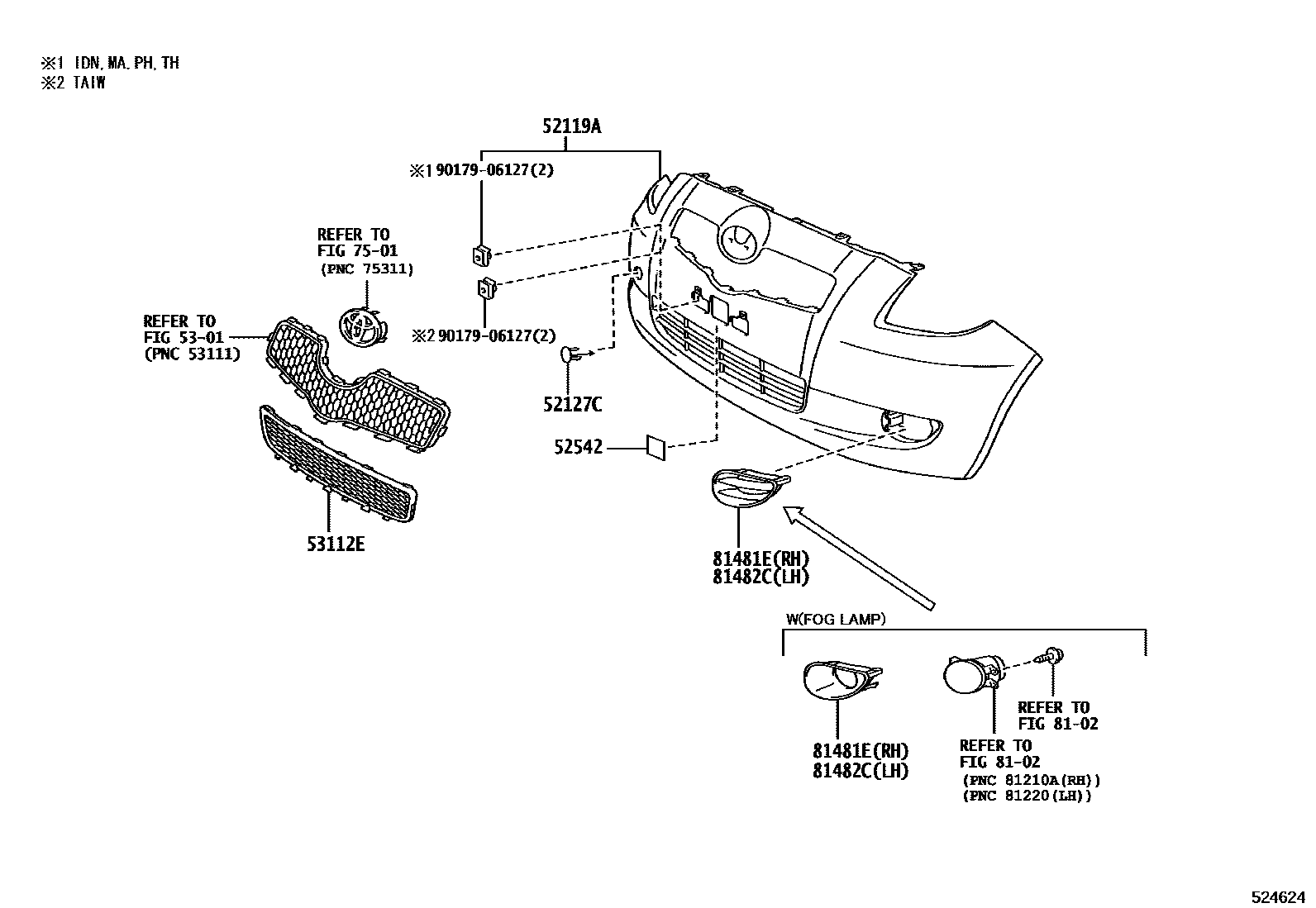

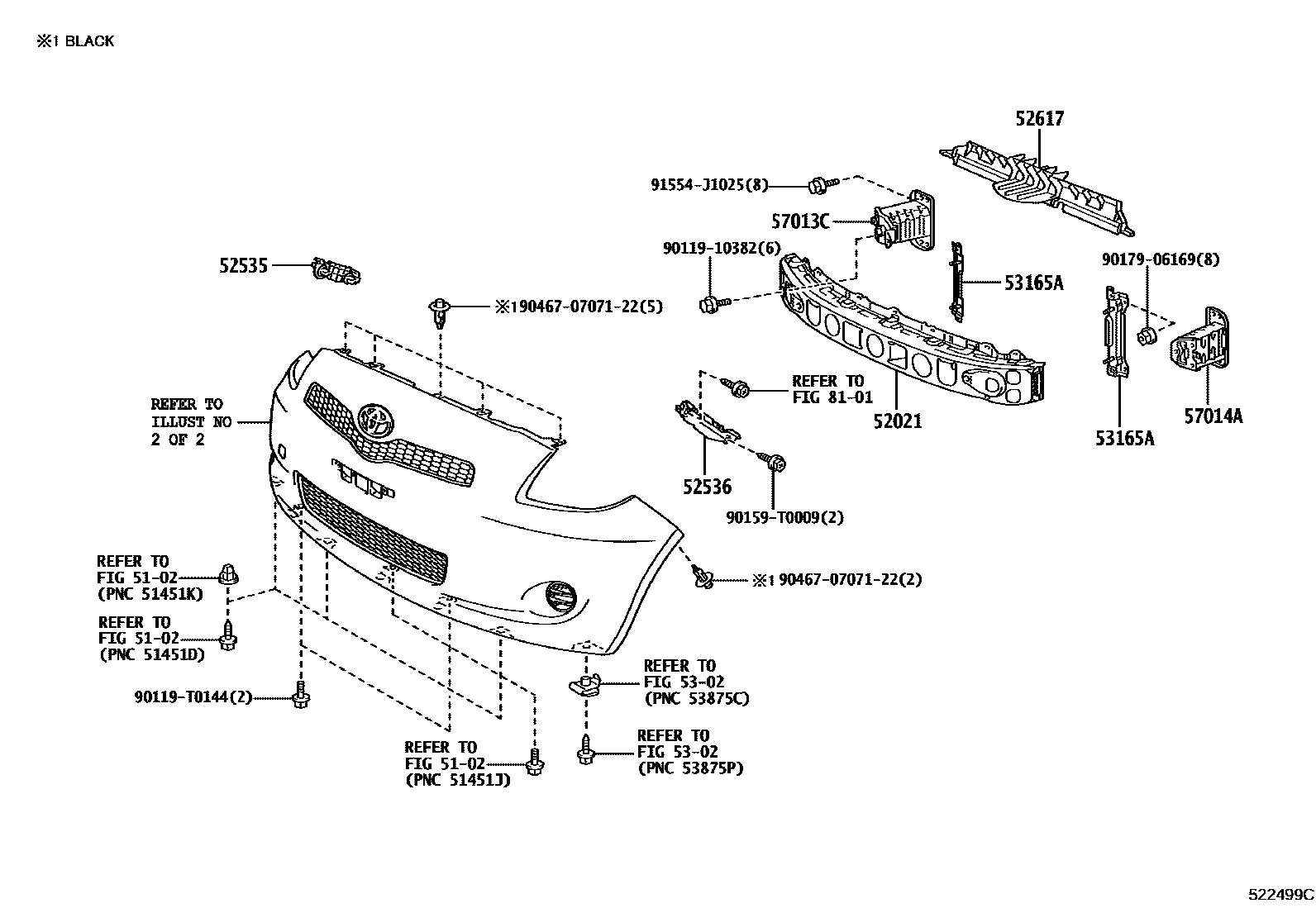

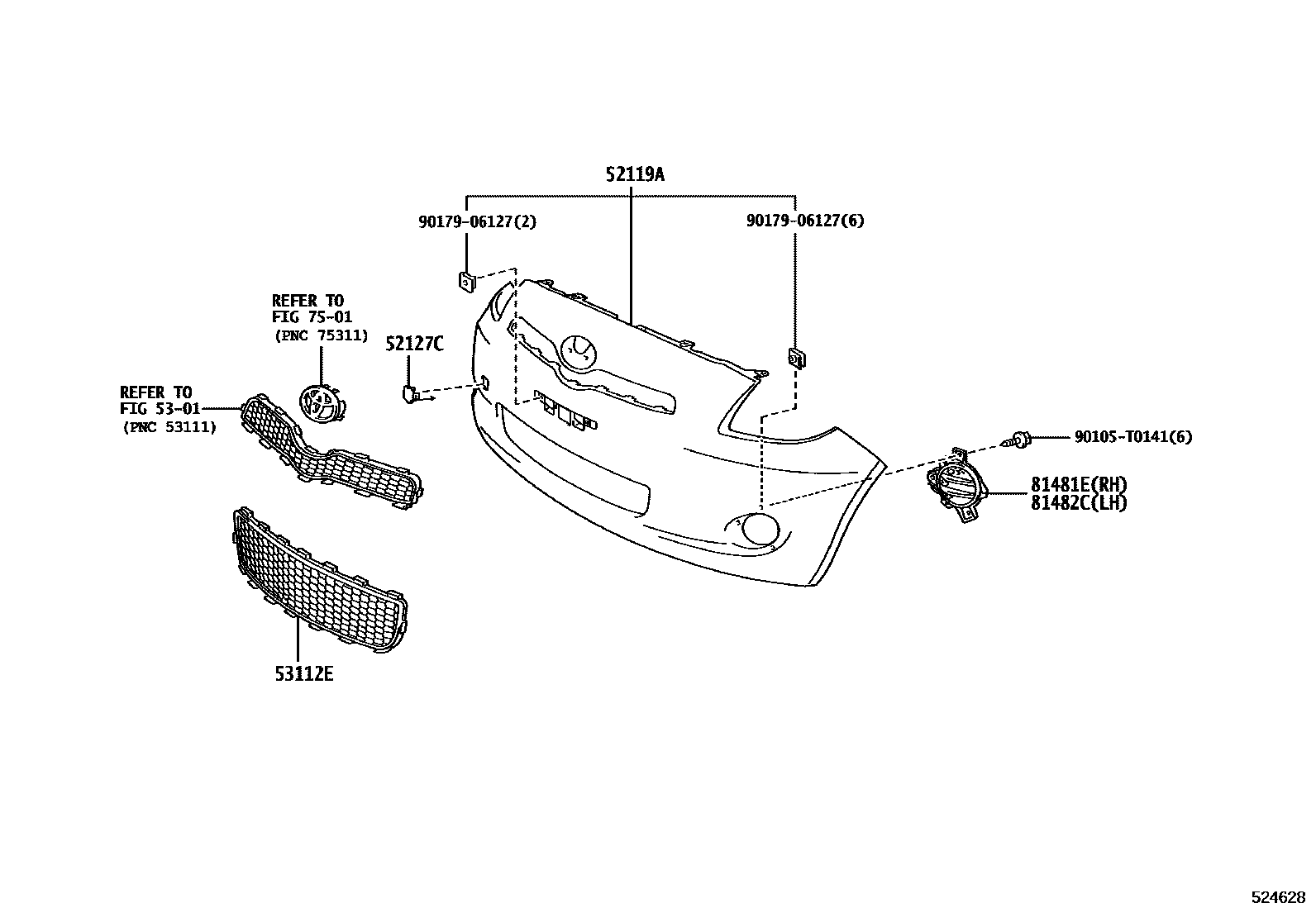

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 10 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D090 |
| 52119A | front bumper cover | 52119-0D909 · 52119-0D910 · 52119-0D920 · 52119-0D969 · 52119-0D987 · 52119-0D988 · 52119-0D989 |
| 52125A | Right fog light mounting bracket | 52125-52050 |
| 52126D | Left fog light mounting bracket | 52126-52050 |
| 52127C | Front bumper hole cover | 52127-0D903 · 52127-0D906 · 52127-0D911 · 52127-0D912 · 52127-52928 |
| 52535 | Front bumper right side fixing bracket | 52535-0D040 |
| 52536 | Front bumper left fixed bracket | 52536-0D040 |
| 52542 | Front bumper center seal | 52542-0D010 |
| 52617 | Radiator upper bracket shock absorber | 52617-0D040 · 52617-52020 |
| 53112E | No. 1 radiator lower grille | 53112-0D110 · 53112-0D170 · 53112-0D190 · 53112-52350 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-0D020 · 53165-0D020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0D020 · 57013-0D021 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0D020 |
| 81481E | Right fog light cover | 81481-0D030 · 81481-0D040 · 81481-0D050 · 81481-0D060 · 81481-0D110 · 81481-0D120 · 81481-0D210 |
| 81482C | Left fog light cover | 81482-0D040 · 81482-0D050 · 81482-0D060 · 81482-0D070 · 81482-0D120 · 81482-0D130 · 81482-0D220 |
