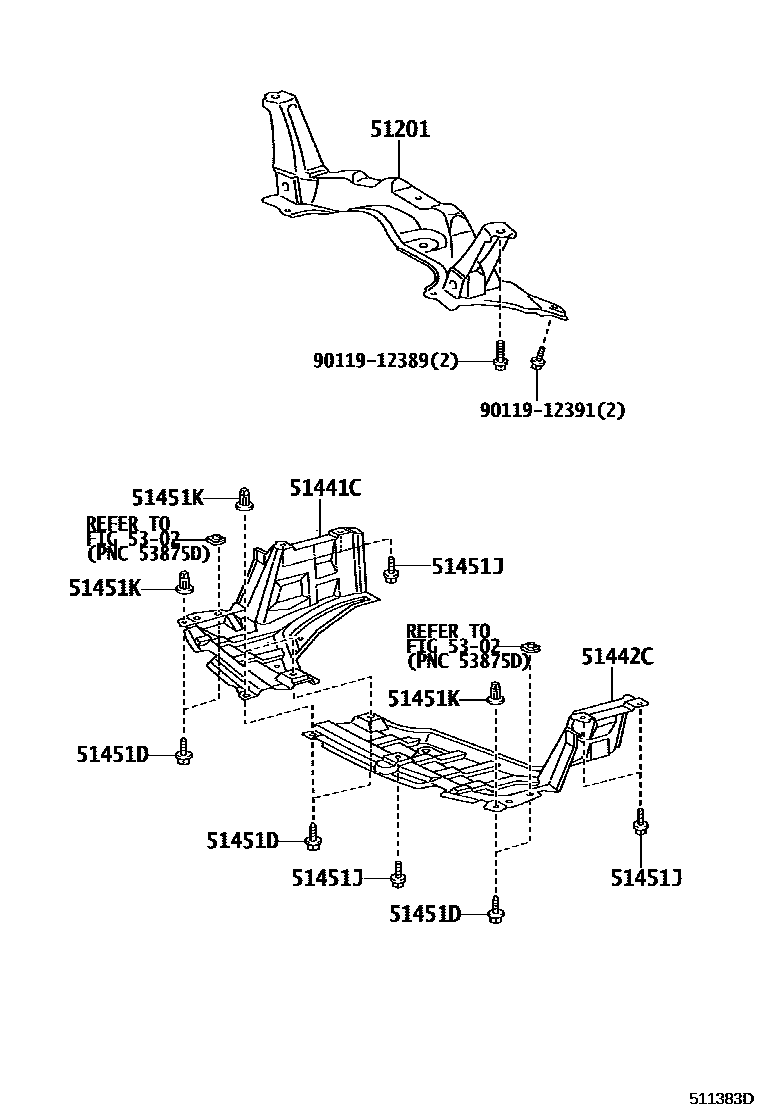

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D110 · 51201-0D111 · 51201-0D170 |
| 51441C | Engine right bottom cover | 51441-0D120 · 51441-0D150 |
| 51442C | Engine left bottom cover | 51442-0D040 · 51442-0D100 |
| 51451D | Screw No. 1 | 90159-60383 · 90159-T0008 |
| 51451J | Bolt No. 1 | 90119-06767 · 90119-T0144 |
| 51451K | No. 1 screw seal | 90189-06076 |
