Toyota YARIS Front Spring & Shock Absorber — Figure 4803

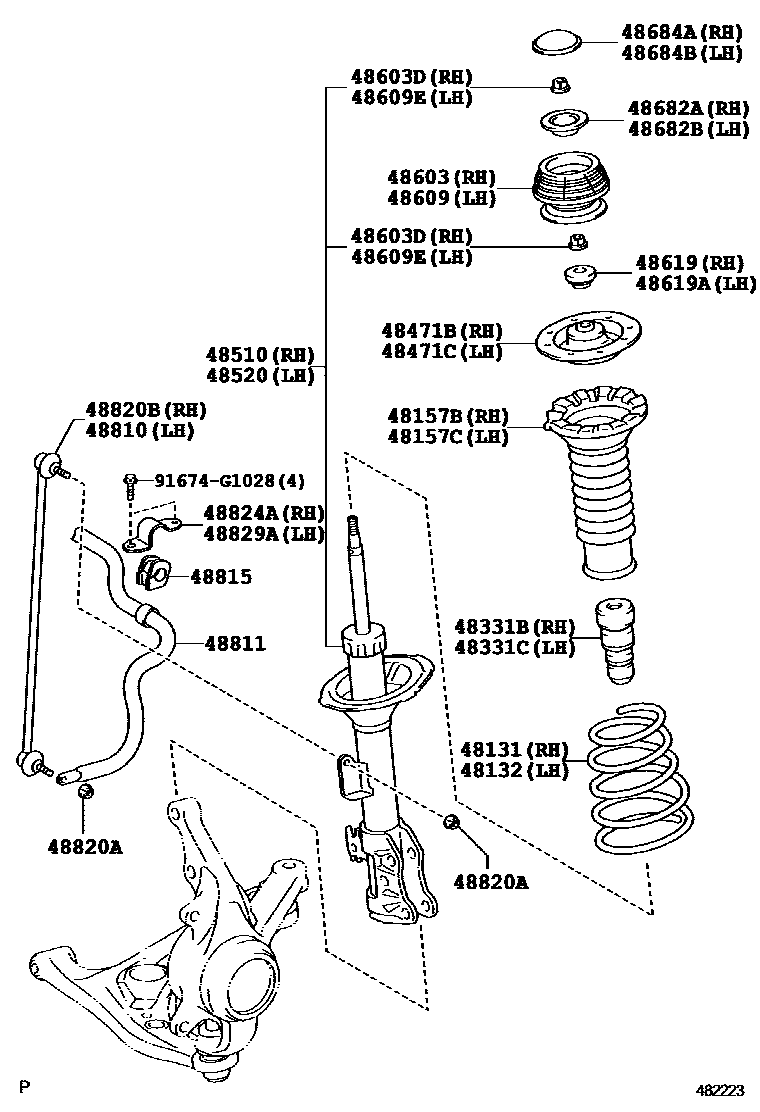

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0D330 · 48131-0D340 · 48131-0D350 · 48131-0D360 · 48131-0D370 |
| 48132 | Left front coil spring | 48131-0D330 · 48131-0D340 · 48131-0D350 · 48131-0D360 · 48131-0D370 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0D060 · 48157-0D070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0D060 · 48157-0D070 |
| 48331B | Right front spring buffer block | 48331-52080 · 48331-52100 |
| 48331C | Left front spring buffer block | 48331-52080 · 48331-52100 |
| 48471B | Front coil spring upper right seat | 48044-0D040 · 48471-52030 |
| 48471C | Front coil spring upper left seat | 48044-0D040 · 48471-52030 |
| 48510 | Right front shock absorber assembly | 48510-09N50 · 48510-09N51 · 48510-09N60 · 48510-09N61 · 48510-09N62 · 48510-09N63 · 48510-09P80 · 48510-09P90 · 48510-09X20 · 48510-09X21 · 48510-09X22 |
| 48520 | Left front shock absorber assembly | 48520-09G00 · 48520-09G01 · 48520-09G10 · 48520-09G11 · 48520-09G12 · 48520-09G13 · 48520-09J30 · 48520-09J40 · 48520-09Q20 · 48520-09Q21 · 48520-09Q22 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0D050 · 48609-52100 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-12145 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0D050 · 48609-52100 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-12145 |
| 48619 | Bearing installed on the right sliding column | 48619-0D010 · 48619-0D011 |
| 48619A | Bearing installed on the left sliding column | 48619-0D010 · 48619-0D011 |
| 48682A | No. 2 right front suspension support | 48682-0D030 · 48682-0D031 · 48682-52040 |
| 48682B | No. 2 left front suspension support | 48682-0D030 · 48682-0D031 · 48682-52040 |
| 48684A | Right front suspension support dust cover | 48684-52020 |
| 48684B | Left front suspension support dust cover | 48684-52020 |
| 48810 | Left front stabilizer bar link assembly | 48820-0D020 · 48820-52030 |
| 48811 | front stabilizer bar | 48811-0D090 · 48811-0D110 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0D110 · 48815-0D111 · 48815-0D120 · 48815-52090 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-0D020 · 48820-52030 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-0D030 · 48824-0D040 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-0D030 · 48824-0D040 |
