Toyota YARIS 前桥控制臂和转向节 — Figure 4802

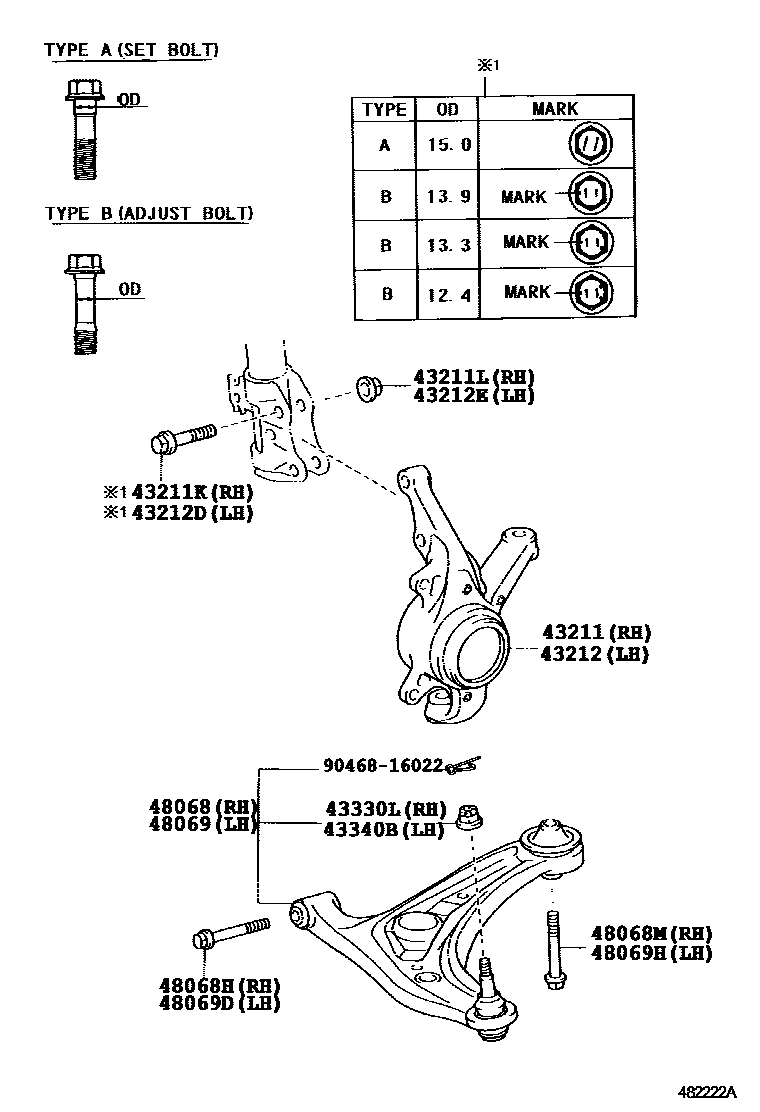

Toyota YARIS EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-0D140 · 43211-0D150 · 43211-0D160 · 43211-0D170 · 43211-0D180 · 43211-52050 |
| 43211K | Bolt (for right steering knuckle) | 90109-15001 · 90109-15002 · 90109-15003 · 90109-15004 · 90901-05001 |
| 43211L | Nut (for right steering knuckle) | 90179-15004 |
| 43212 | left steering knuckle | 43212-0D140 · 43212-0D150 · 43212-0D160 · 43212-0D170 · 43212-0D180 · 43212-52050 |
| 43212D | Bolt (for left steering knuckle) | 90109-15001 · 90109-15002 · 90109-15003 · 90109-15004 · 90901-05001 |
| 43212E | Nut (for left steering knuckle) | 90179-15004 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-12007 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-12007 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-09080 · 48068-09081 · 48068-59095 · 48068-59135 · 48068-59145 |
| 48068H | Bolt (for right front suspension No. 1 lower arm) | 90119-14086 |
| 48068M | Bolt (for right front suspension No. 2 lower arm) | 90119-14126 · 90119-14144 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-09070 · 48069-09071 · 48069-59095 · 48069-59125 · 48069-59135 |
| 48069D | Bolt (for left front suspension No. 1 lower arm) | 90119-14086 |
| 48069H | Bolt (for left front suspension No. 2 lower arm) | 90119-14126 · 90119-14144 |
