Toyota YARIS 制动配管和卡箍 — Figure 4708

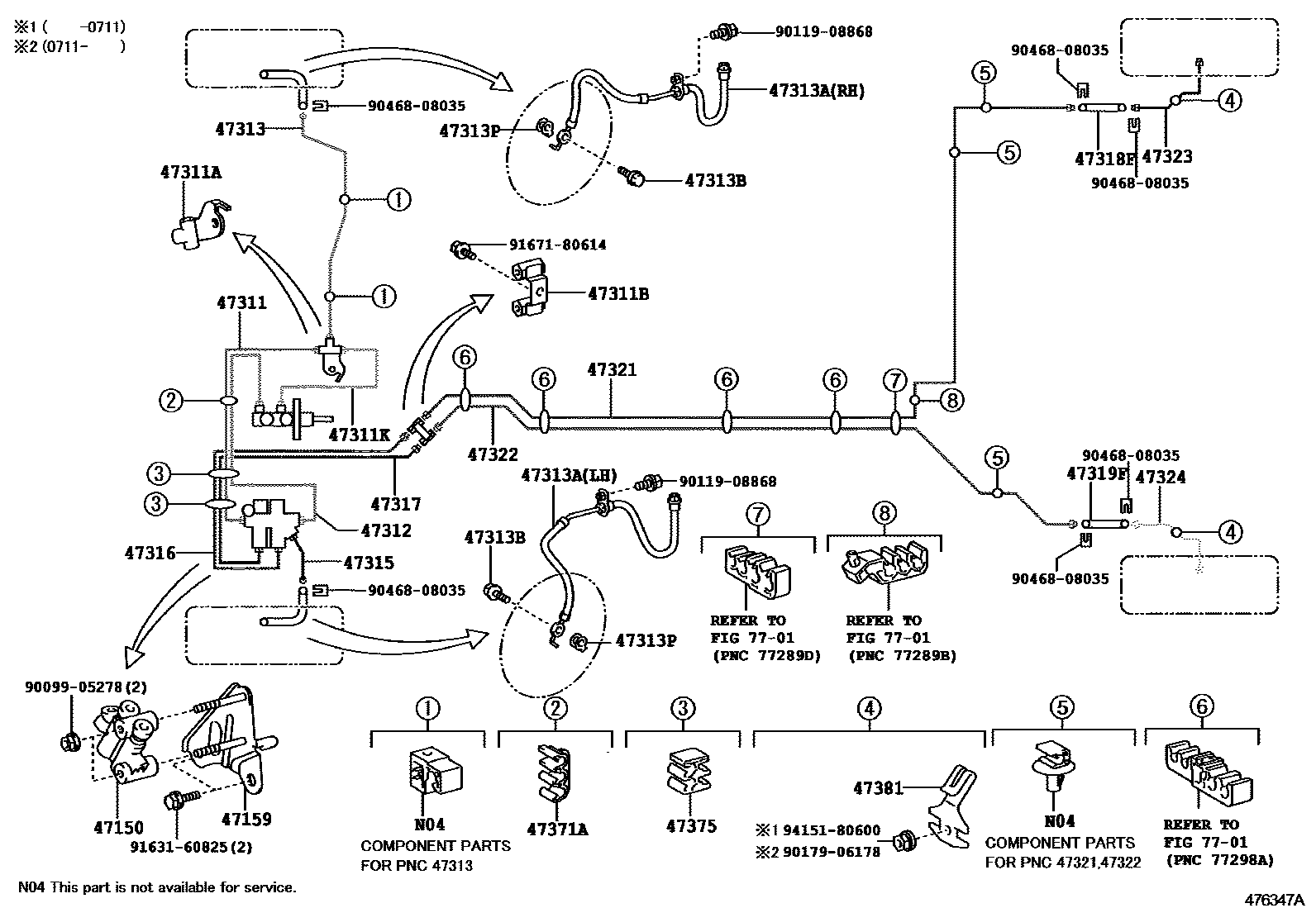

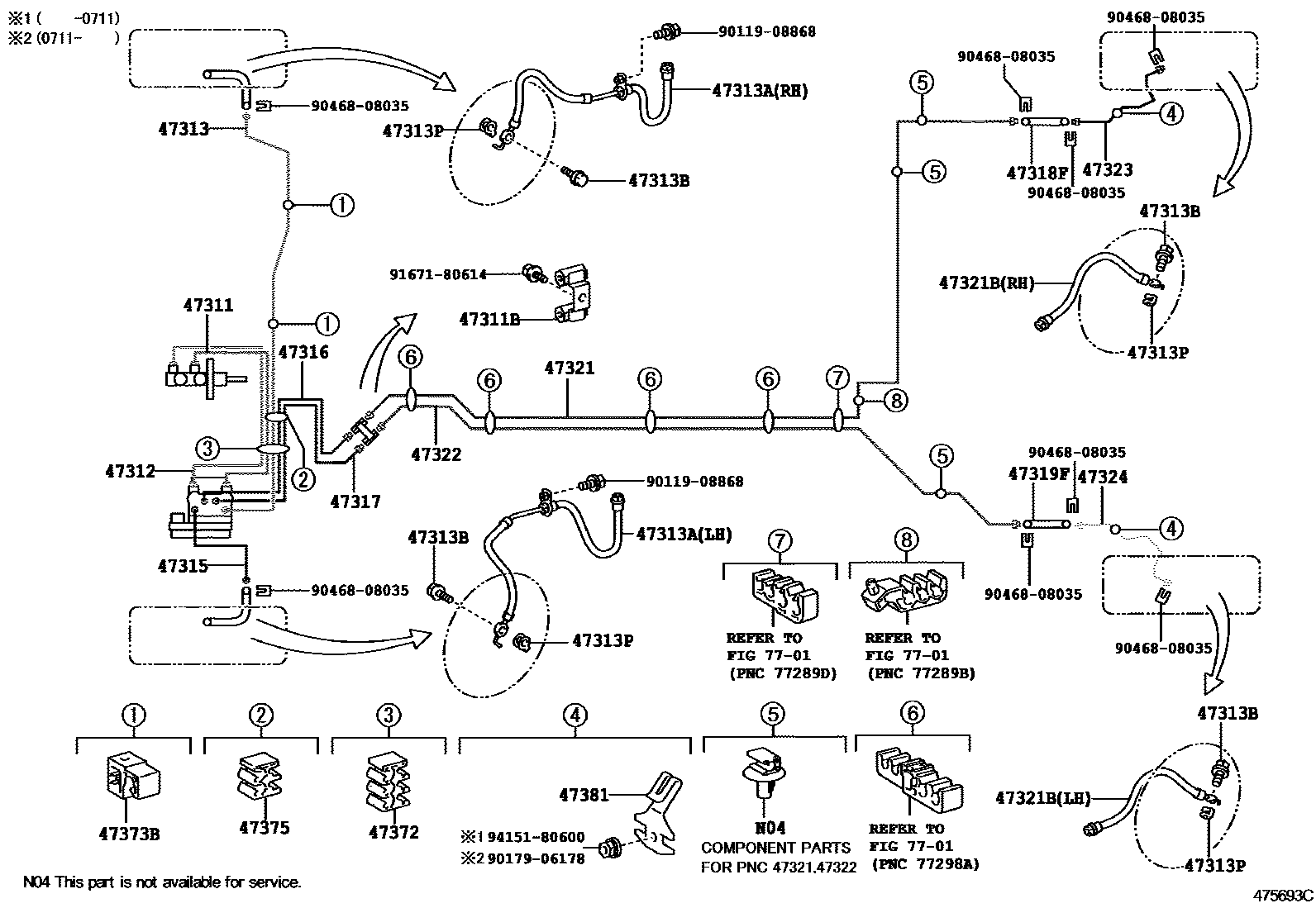

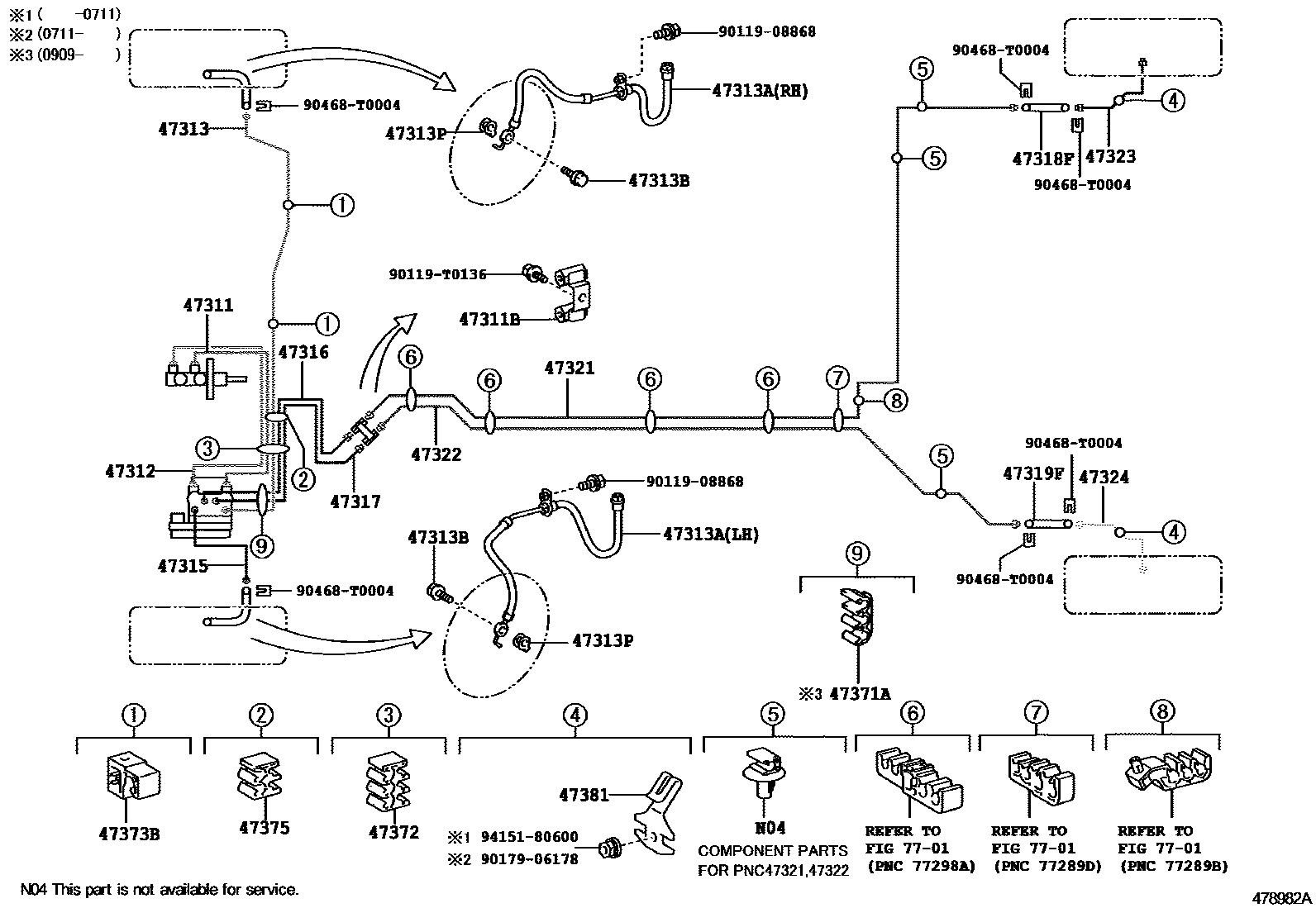

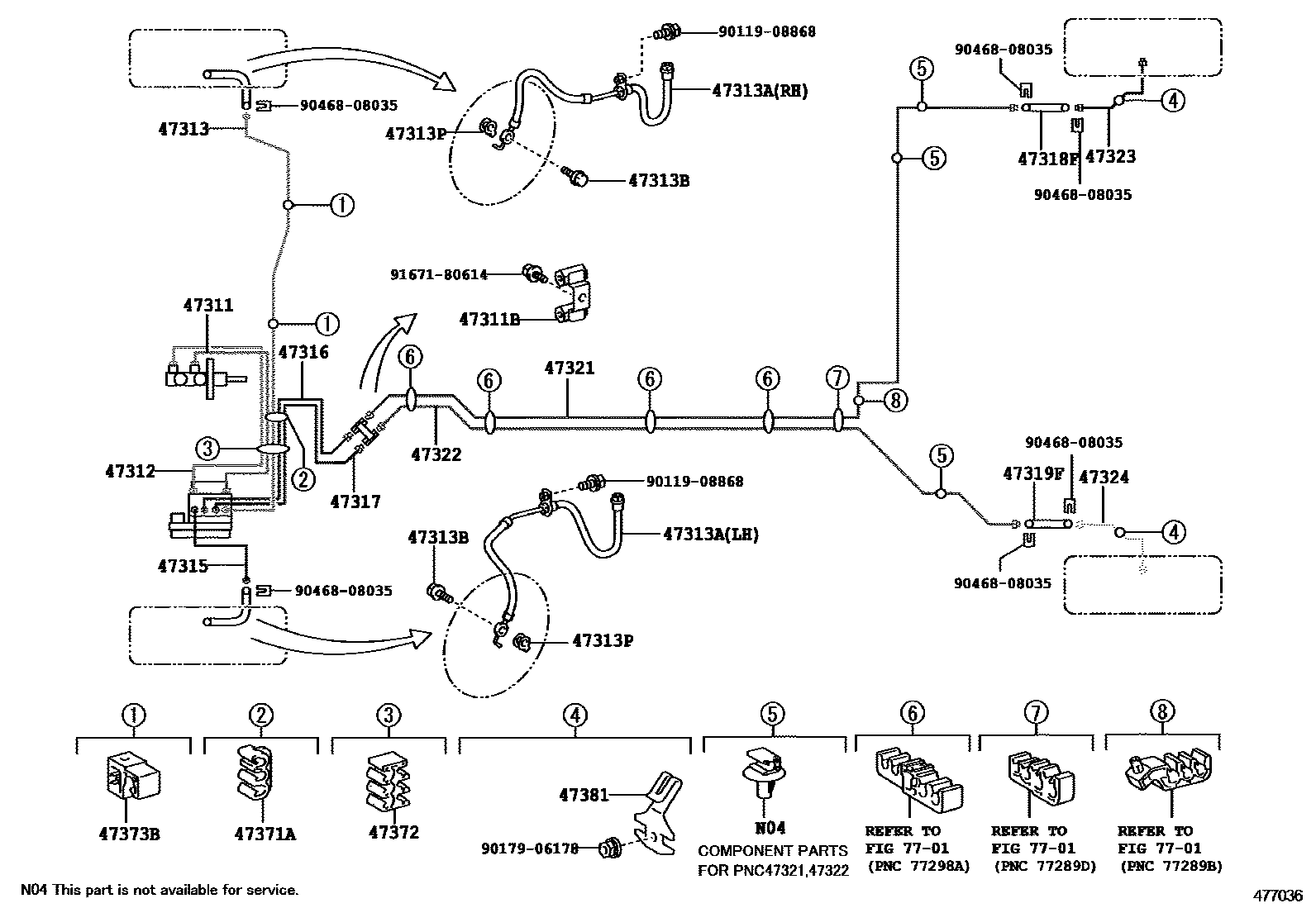

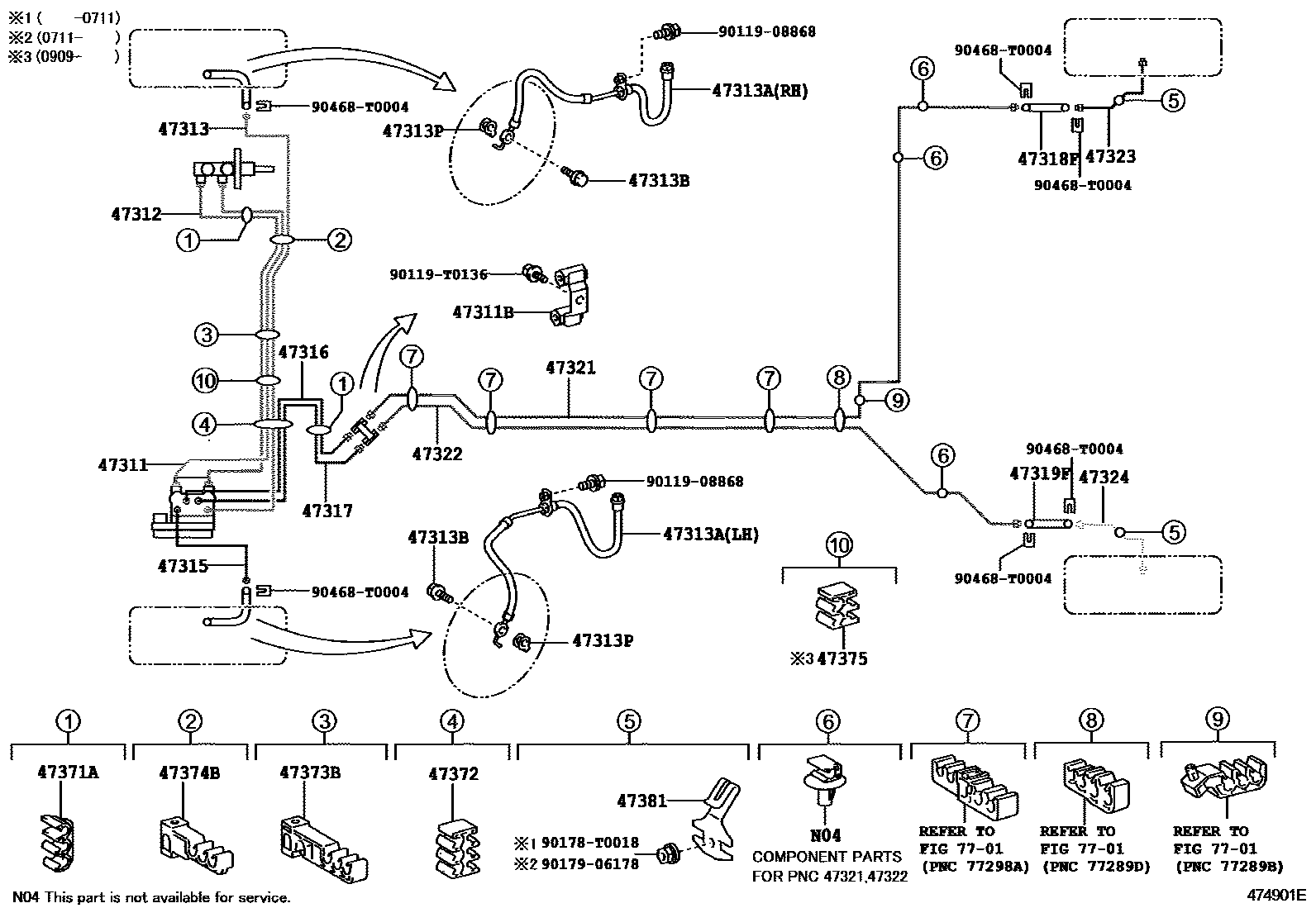

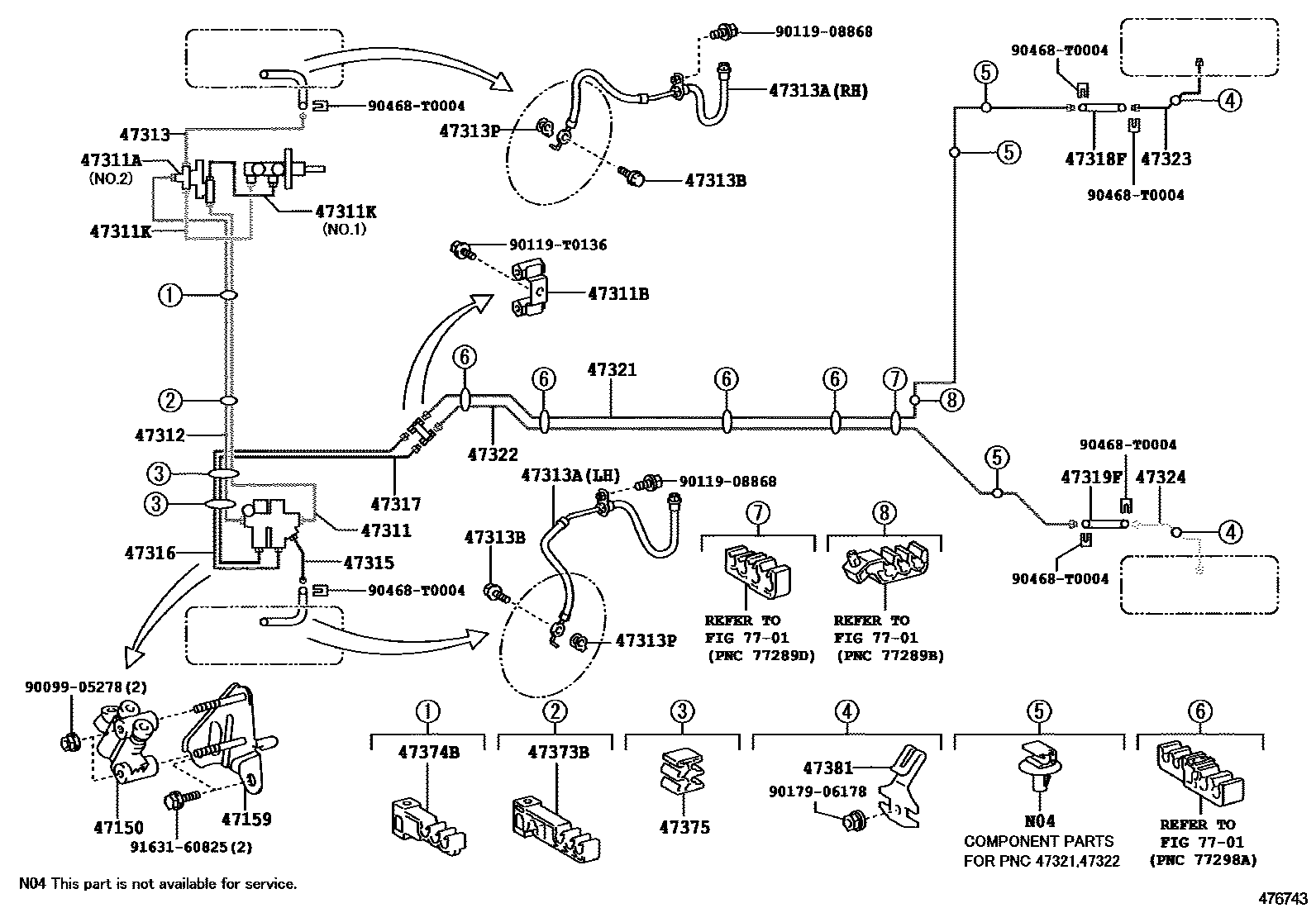

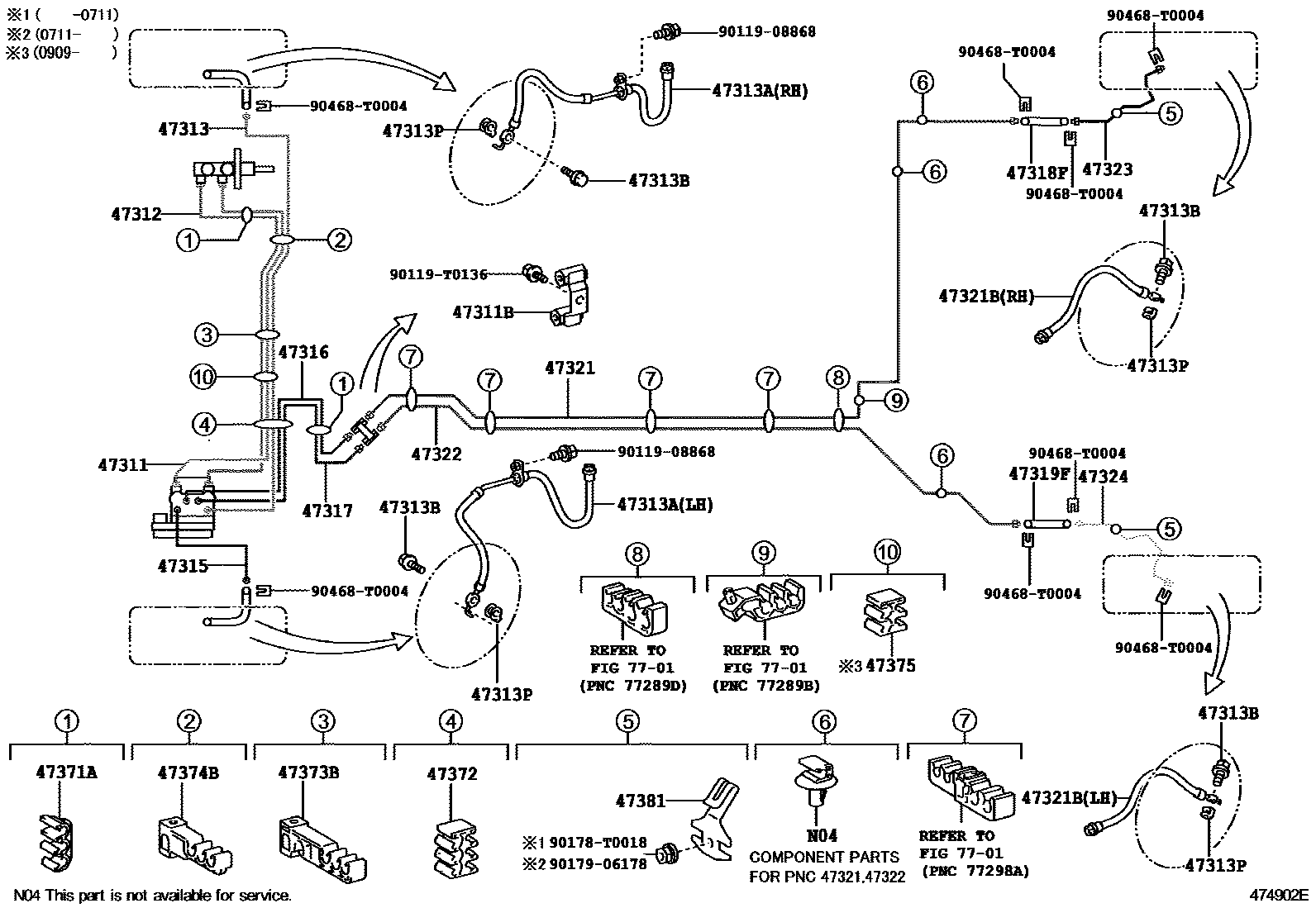

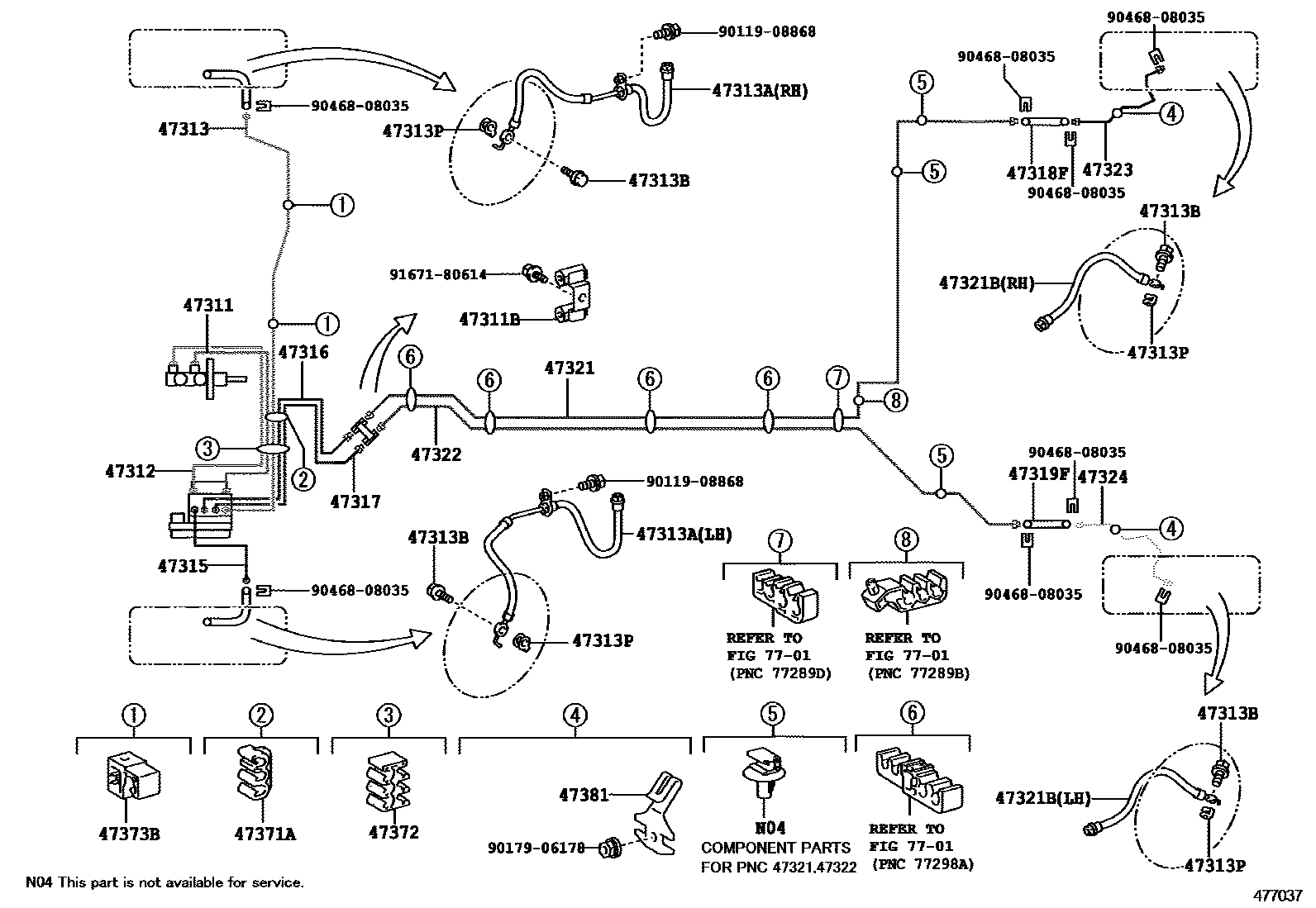

Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 11 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

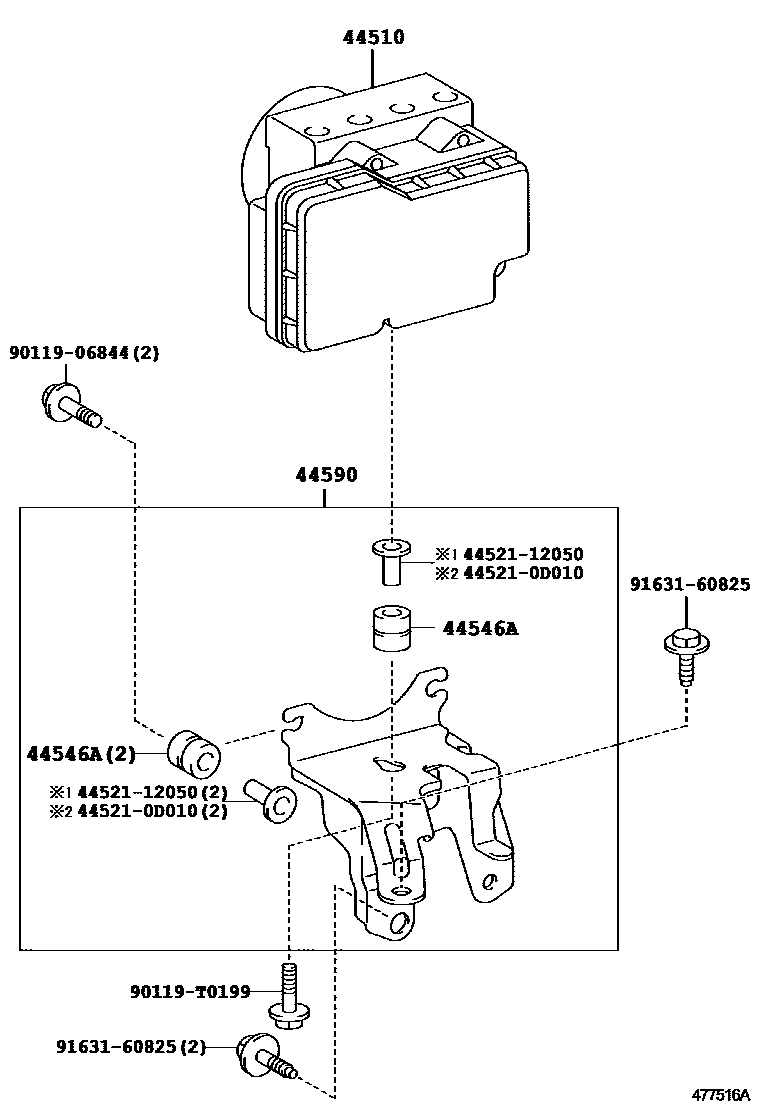

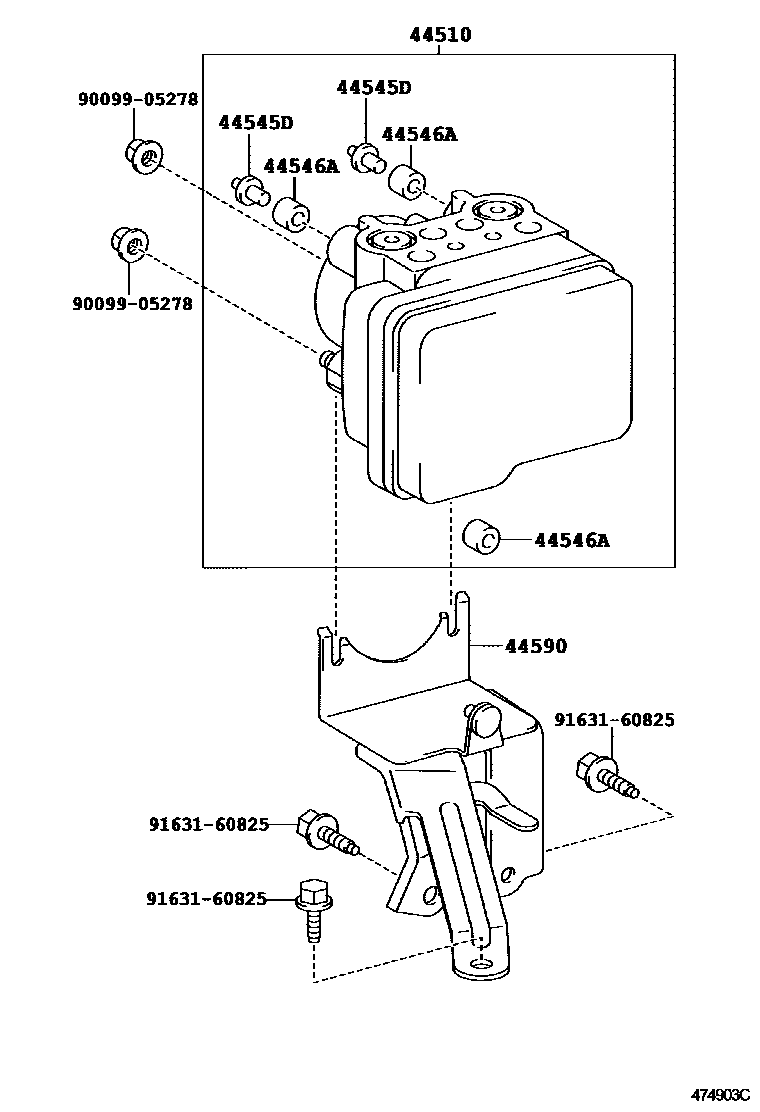

| 44510 | brake actuator assembly | 44050-52420 · 44050-52441 · 44050-52570 · 44050-52B40 · 44050-52C20 |
| 44545D | Brake actuator bolt mount | 44545-63010 |
| 44546A | Brake actuator bolt cushion | 44546-12110 · 44546-63010 · 44547-02050 |
| 44590 | Brake actuator bracket assembly | 44590-0D040 · 44590-0D050 · 44590-0D070 · 44590-0D080 · 44590-52130 · 44590-52170 |
| 47150 | Proportional valve assembly | 47150-0D010 · 47150-10090 |
| 47159 | Proportional valve bracket | 47159-52010 |
| 47311 | No. 1 front brake pipe | 47311-0D210 · 47311-0D220 · 47311-0D230 · 47311-0D240 · 47311-0D250 · 47311-0D360 · 47311-0D370 · 47311-0D380 · 47311-0D410 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10314 · 90413-10318 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-0D340 · 47311-0D350 · 47311-52270 |
| 47312 | No. 2 front brake pipe | 47312-0D180 · 47312-0D190 · 47312-0D200 · 47312-0D210 · 47312-0D220 · 47312-0D300 · 47312-0D310 · 47312-0D320 · 47312-0D350 |
| 47313 | No. 3 front brake pipe | 47313-0D100 · 47313-0D110 · 47313-0D120 · 47313-0D130 · 47313-0D210 · 47313-0D240 · 47313-0D250 · 47313-0D280 |
| 47313A | No. 1 front flexible hose | 90947-02E07 · 90947-02E08 · 90947-T2034 · 90947-T2035 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-0D160 · 47315-0D170 · 47315-0D180 · 47315-0D190 · 47315-0D270 · 47315-0D280 · 47315-0D290 · 47315-0D320 |
| 47316 | No. 6 front brake pipe | 47316-0D110 · 47316-0D120 · 47316-0D130 · 47316-0D140 · 47316-0D200 · 47316-0D210 · 47316-0D220 · 47316-0D240 |
| 47317 | No. 7 front brake pipe | 47317-0D110 · 47317-0D120 · 47317-0D130 · 47317-0D140 · 47317-0D200 · 47317-0D210 · 47317-0D220 · 47317-0D240 |
| 47318F | Right rear flexible hose | 90947-02E09 · 90947-T2031 |
| 47319F | Left rear flexible hose | 90947-02E10 · 90947-T2032 |
| 47321 | No. 1 rear brake pipe | 47321-0D140 · 47321-0D160 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-02E11 · 90947-T2033 |
| 47322 | No. 2 rear brake pipe | 47322-0D140 · 47322-0D160 |
| 47323 | No. 3 rear brake pipe | 47323-0D070 · 47323-0D080 · 47323-0D090 · 47323-0D100 |
| 47324 | No. 4 rear brake pipe | 47324-0D070 · 47324-0D080 · 47324-0D090 · 47324-0D100 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47372 | No. 2 brake pipe clamp | 90949-01969 |
| 47373B | No. 3 brake pipe clamp | 90949-01C82 · 90949-01D27 |
| 47374B | No. 4 brake pipe clamp | 90949-01D02 |
| 47375 | No. 5 brake pipe clamp | 90464-00857 · 90464-00883 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
