Toyota YARIS 后盘式制动器卡钳和防尘罩 — Figure 4707

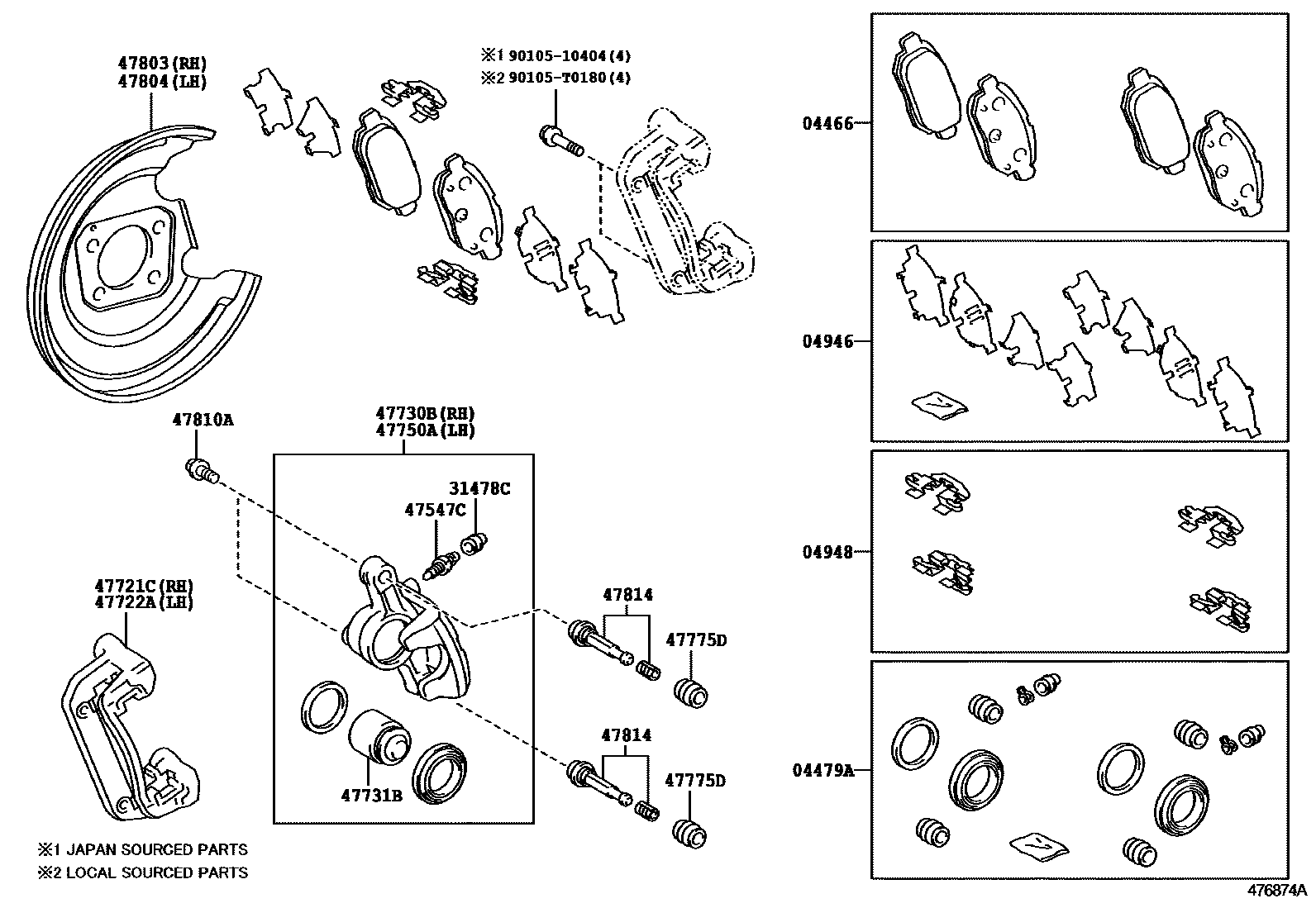

Toyota YARIS EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-52120 · 04466-52130 · 04466-52160 |
| 04479A | Rear disc brake cylinder assembly | 04479-52130 · 04479-52170 · 04479-52190 · 04479-52250 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-52080 · 04946-52081 |
| 04948 | Rear disc brake mounting assembly | 04948-12060 · 04948-52030 · 04948-52040 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-52010 |
| 47547C | Bleed plug (for rear disc brake) | 47847-52050 |
| 47721C | Right rear disc brake cylinder retainer | 47821-12150 · 47821-52051 |
| 47722A | Left rear disc brake cylinder retainer | 47821-12150 · 47821-52051 |
| 47730B | Right rear disc brake cylinder assembly | 47830-52090 · 47830-52161 |
| 47731B | rear disc brake piston | 47831-52090 |
| 47750A | Left rear disc brake cylinder assembly | 47850-52090 · 47850-52161 |
| 47775D | Bushing boot (for rear disc brake) | 47875-12150 · 47875-52050 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-0D020 · 47803-0D030 · 47803-52010 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-0D020 · 47804-0D030 · 47804-52010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90015-AA102 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47835-12150 · 47835-52051 |
