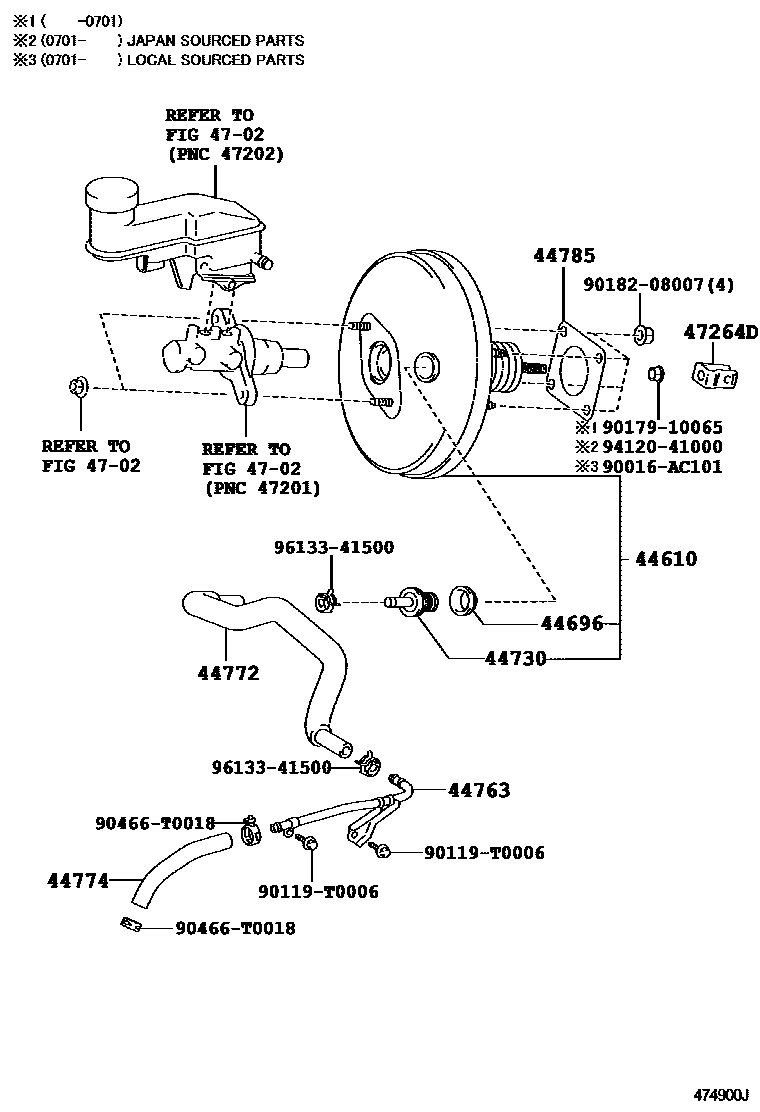

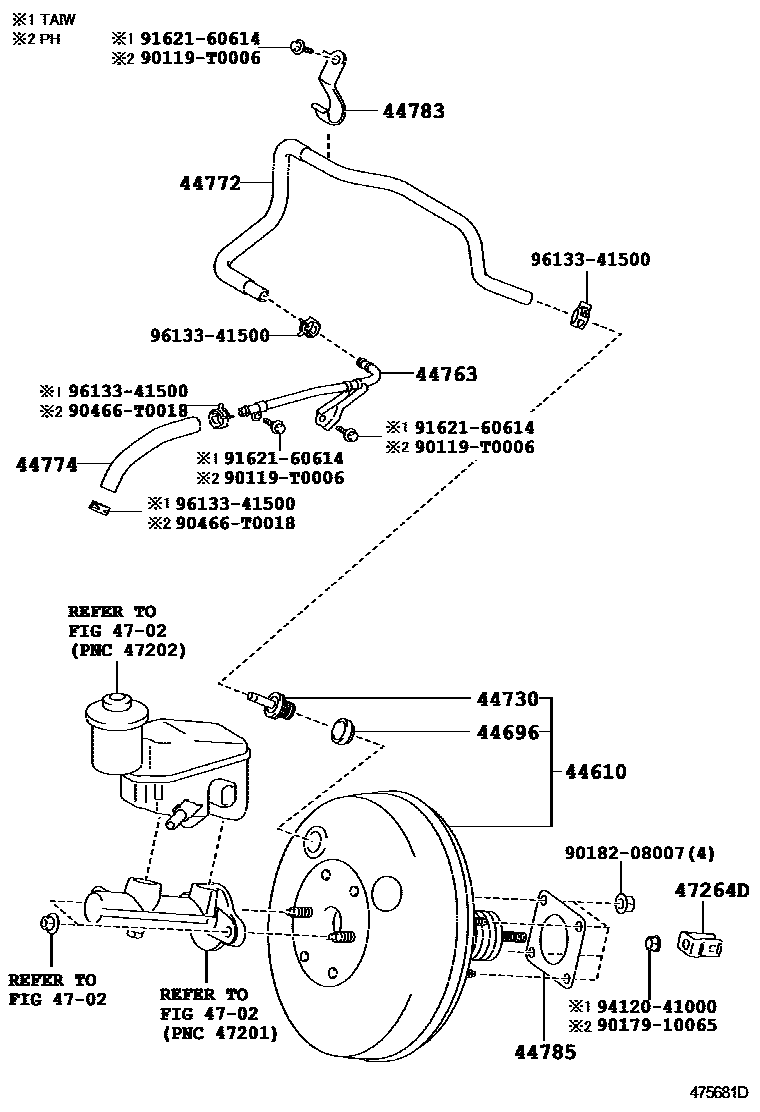

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-0D200 · 44610-0D210 · 44610-0D220 · 44610-52480 · 44610-52550 · 44610-52570 · 44610-52650 · 44610-52660 |
| 44696 | One-way valve seal | 90080-48050 · 90480-24015 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20080 · 44730-22150 · 44730-28030 |
| 44763 | booster vacuum tube | 44763-0D080 · 44763-0D100 · 44763-52080 |
| 44772 | Hoses (check valve to connector tube) | 44772-0D030 · 44772-0D050 · 44772-52090 |
| 44774 | Hoses (joints to connector tubes) | 95446-09130 |
| 44783 | Vacuum hose clamp | 44783-52040 |
| 44785 | brake booster pad | 44785-0D020 · 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0D030 · 47264-0D040 · 47264-12060 · 47264-52050 |
