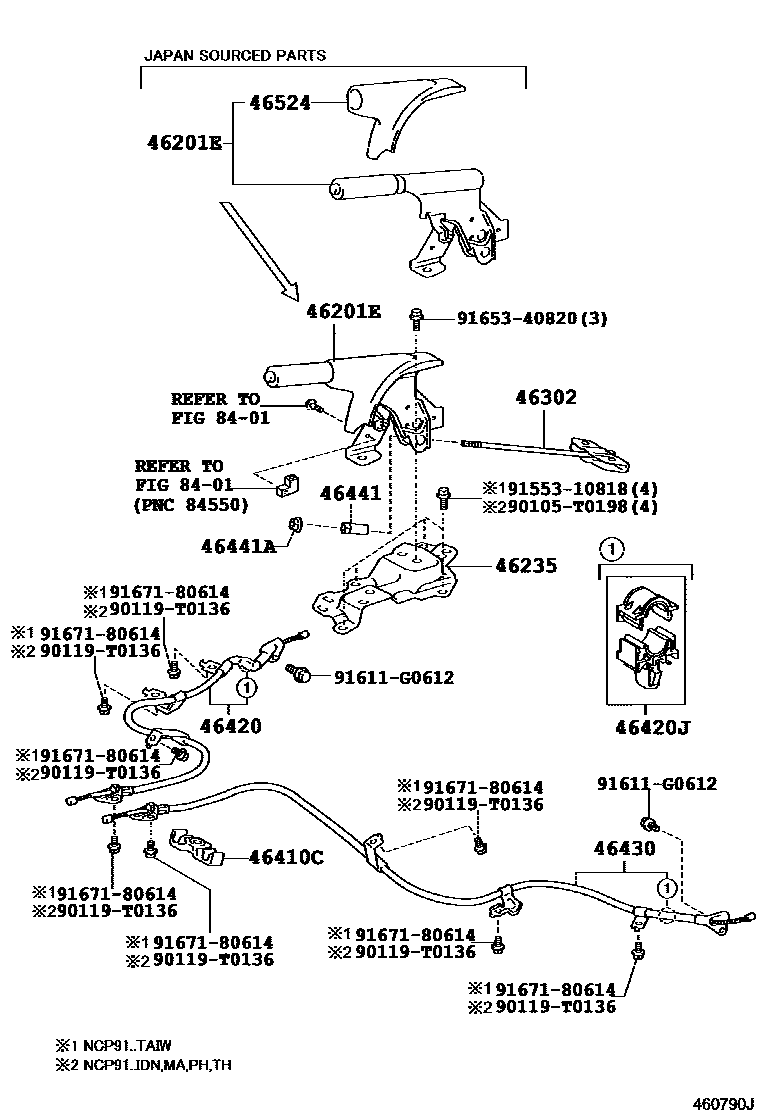

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46201E | Parking brake lever sub-assembly | 46201-52070 · 46201-52090 |
| 46235 | Parking brake lever bracket | 46235-0D020 · 46235-0D030 |
| 46302 | No. 1 parking brake lever sub-assembly | 46302-0D030 · 46302-52030 |
| 46410C | Clip (for front parking brake cable) | 46411-0D020 · 46411-0D030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0D080 · 46420-0D081 · 46420-0D090 · 46420-0D091 · 46420-0D100 · 46420-0D101 · 46420-0D110 · 46420-0D111 · 46420-52151 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46402-52010 · 46402-52030 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0D080 · 46430-0D090 · 46430-0D100 · 46430-0D110 · 46430-52151 |
| 46441 | No. 1 cable adjustment nut | 46441-0D030 · 46441-52010 |
| 46441A | No. 2 cable adjustment nut | 90178-T0004 · 90179-06299 |
| 46524 | Parking brake dust cover | 46524-52020 |
