Toyota YARIS 前转向齿轮和连杆 — Figure 4505

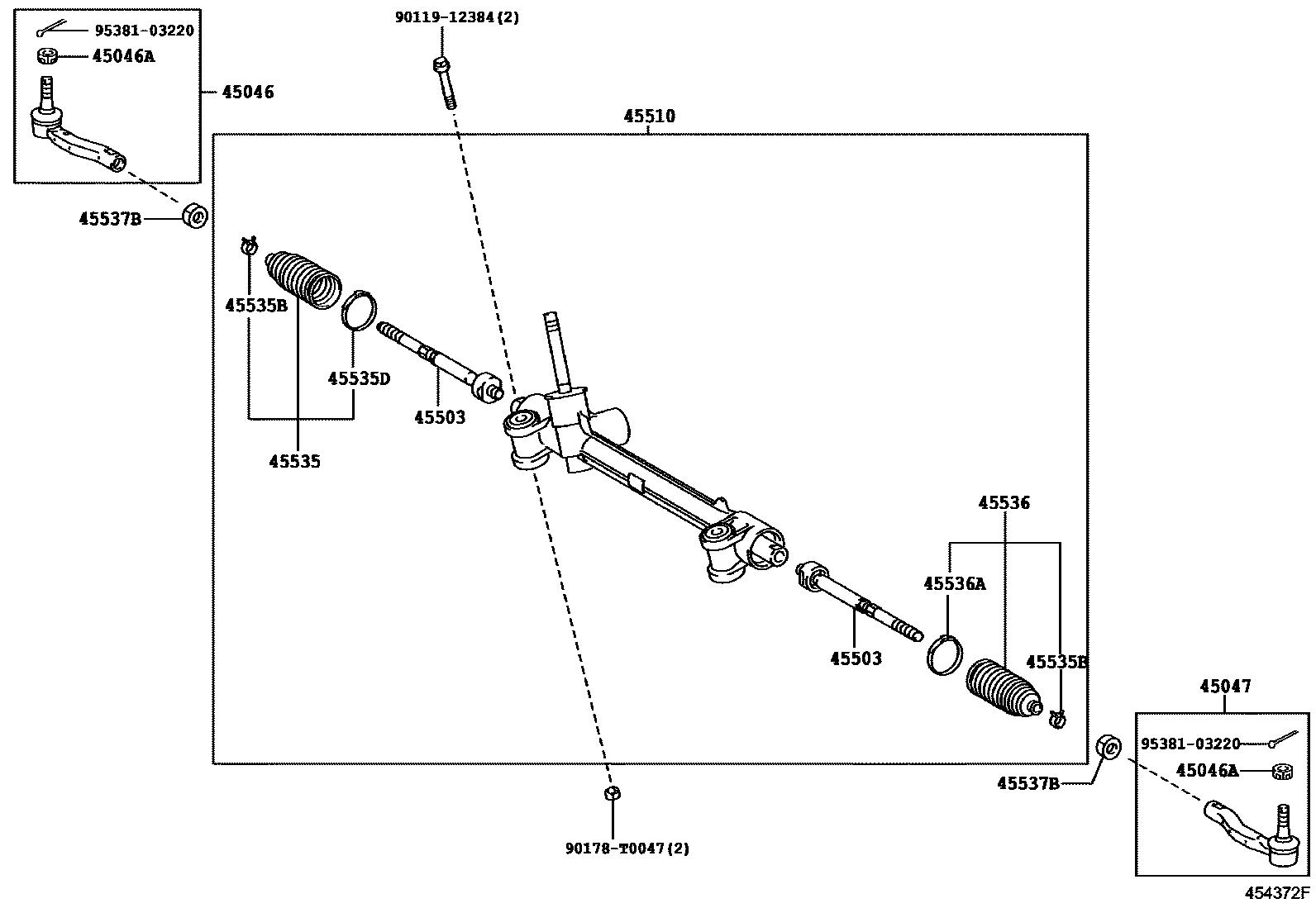

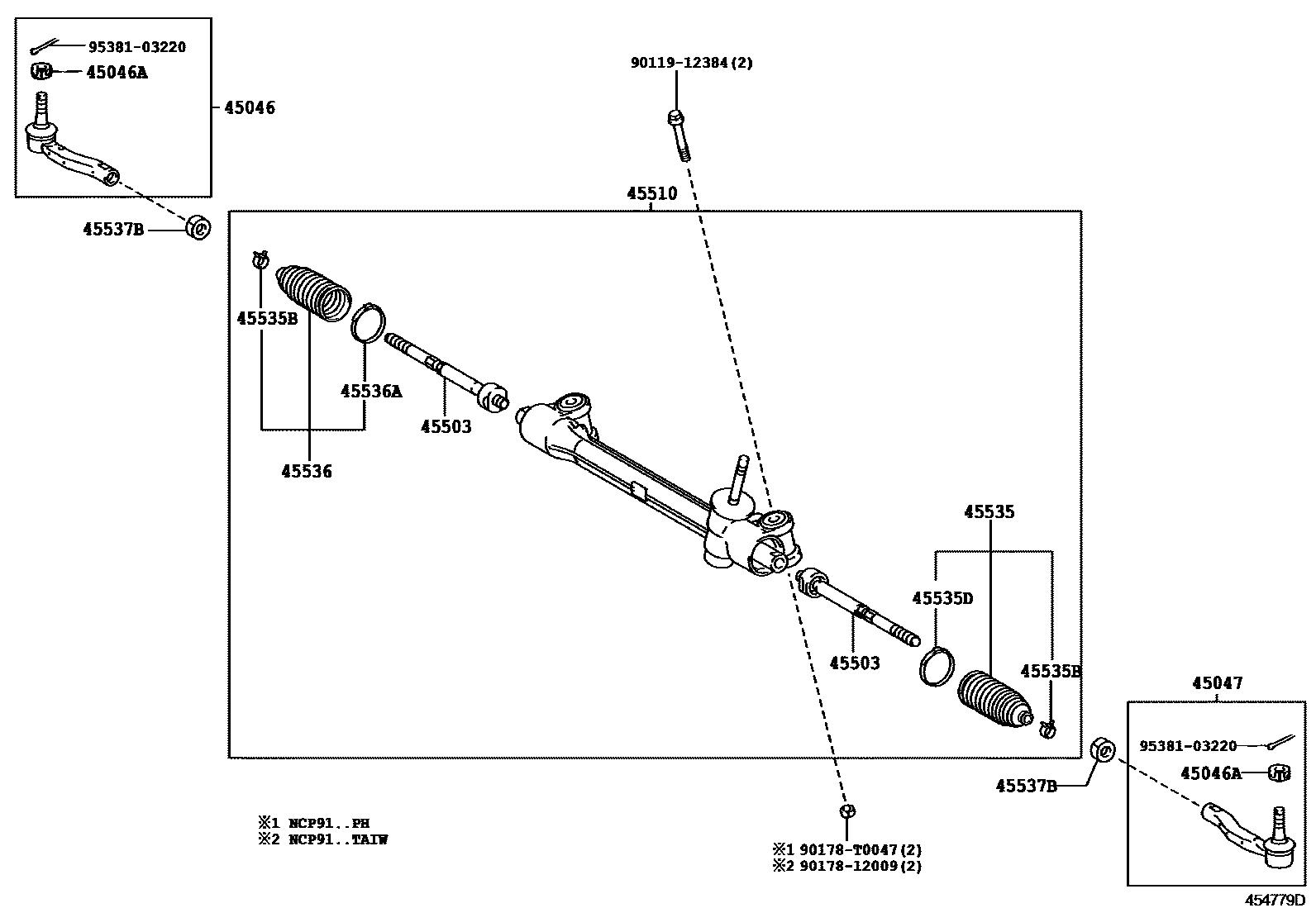

Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09530 · 45046-09540 · 45046-59225 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 · 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45046-09540 · 45047-09250 · 45047-59155 |
| 45503 | Steering rack end sub-assembly | 45503-0D080 · 45503-0D090 · 45503-52060 · 45503-52070 |
| 45510 | Steering gear assembly | 45510-0D130 · 45510-0D140 · 45510-0D150 · 45510-0D151 · 45510-0D160 · 45510-0D161 · 45510-0D180 · 45510-0D181 · 45510-0D190 · 45510-0D191 |
| 45535 | No. 1 steering rack dust cover | 45535-09100 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-02020 |
| 45536 | No. 2 steering rack dust cover | 45535-09100 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-02020 |
| 45537B | Rack end lock nut | 90178-15003 · 90179-14019 |
