Toyota YARIS Steering Wheel — Figure 4504

Toyota YARIS EPC diagram 4504, Steering Wheel, with 3 images and 5 PNC and OE references.

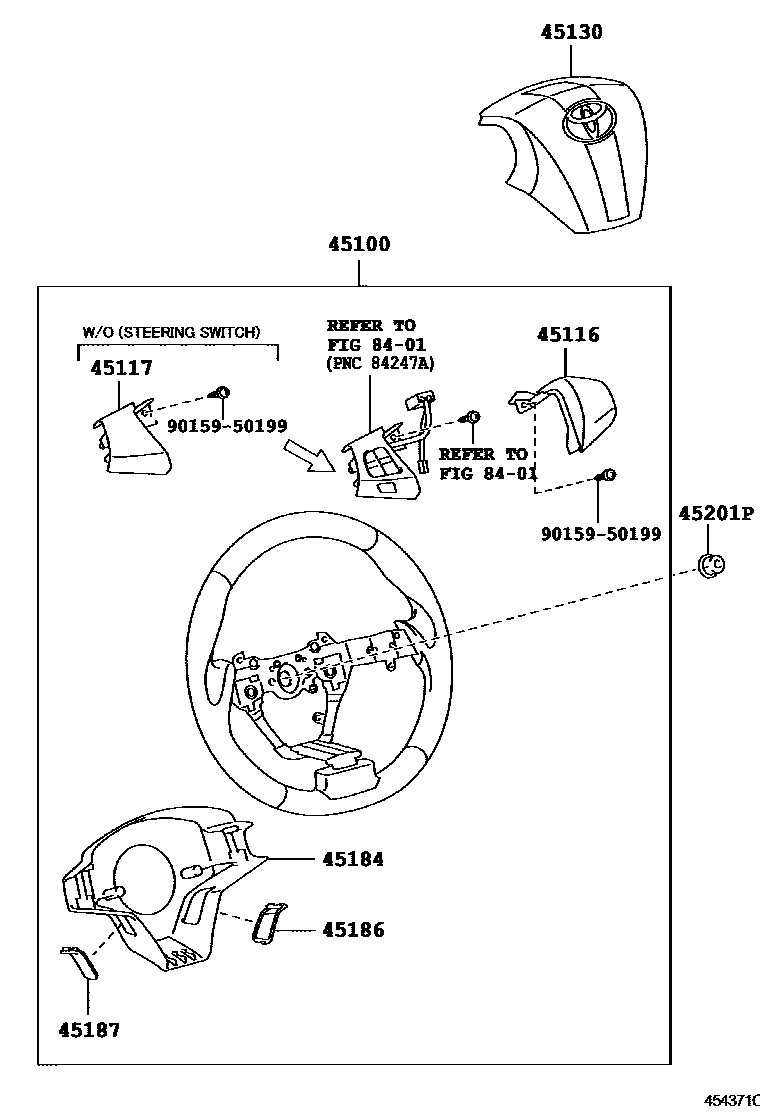

Toyota YARIS Steering Wheel EPC diagram — 454371C
Steering Wheel — 454371C (201202 – 999999)

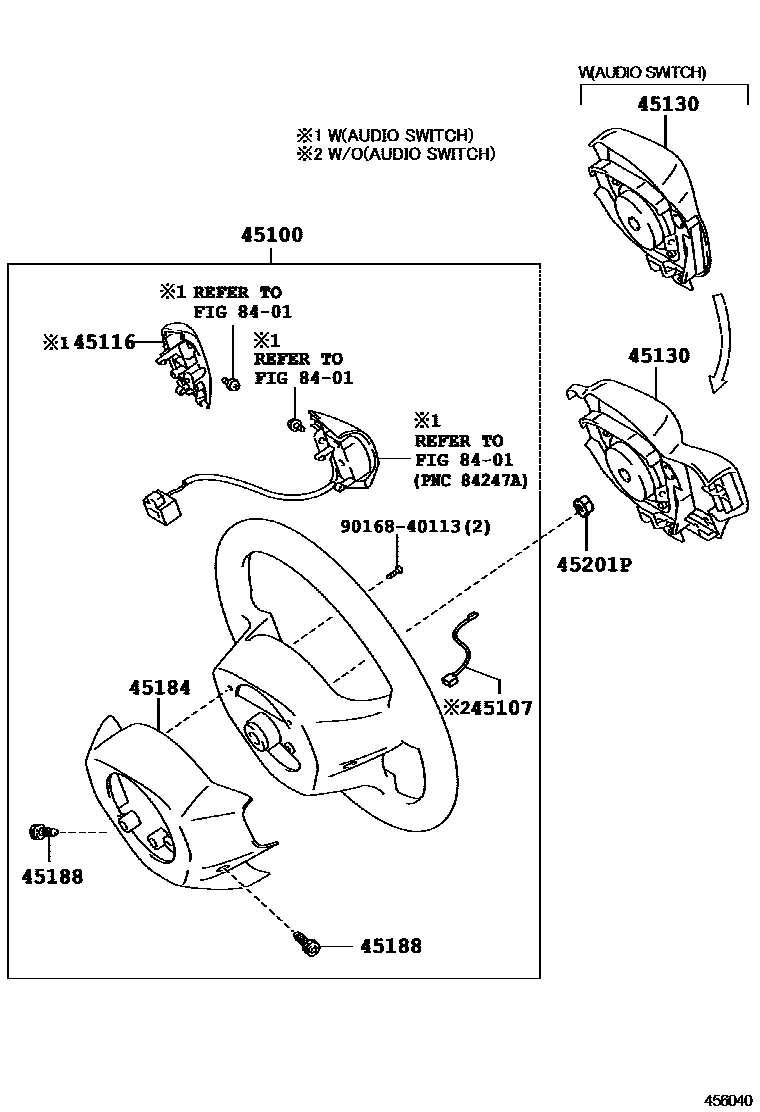

Toyota YARIS Steering Wheel EPC diagram — 456040
Steering Wheel — 456040 (200601 – 999999)

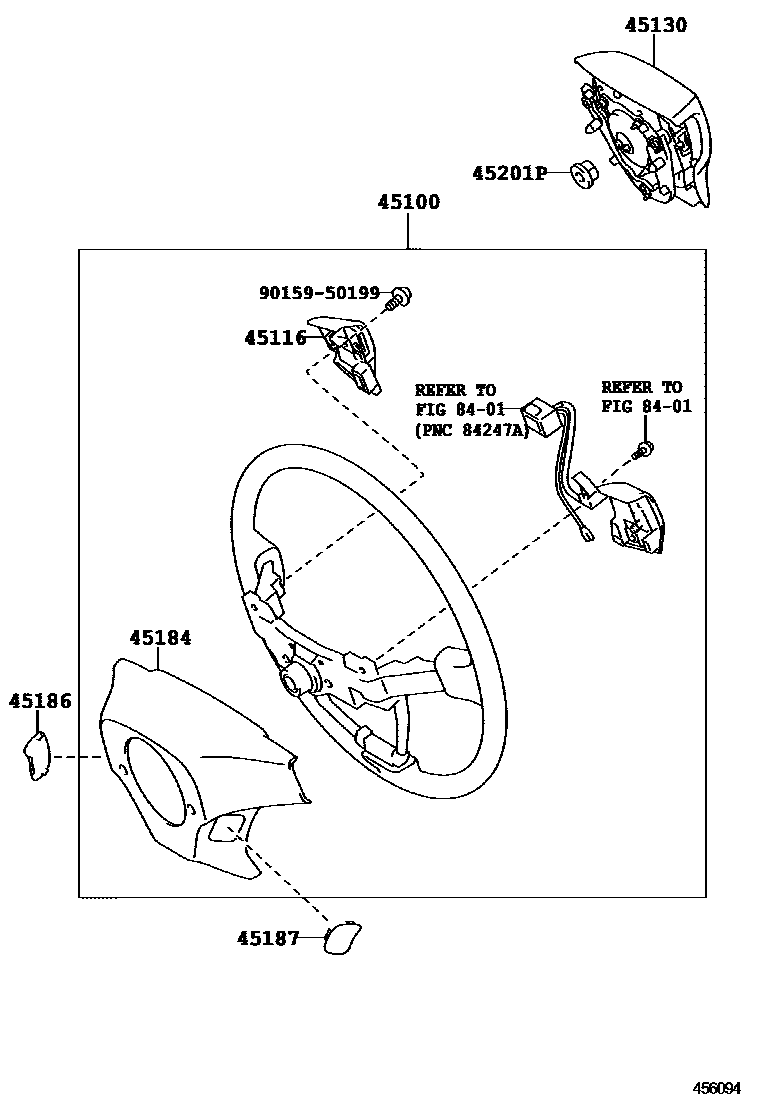

Toyota YARIS Steering Wheel EPC diagram — 456094
Steering Wheel — 456094 (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-48010 · 45107-52010
45116No. 1 steering wheel decorative parts45116-0D050 · 45116-0D080 · 45116-52140
45117No. 2 steering wheel decorative parts45117-0D030
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90179-12071
