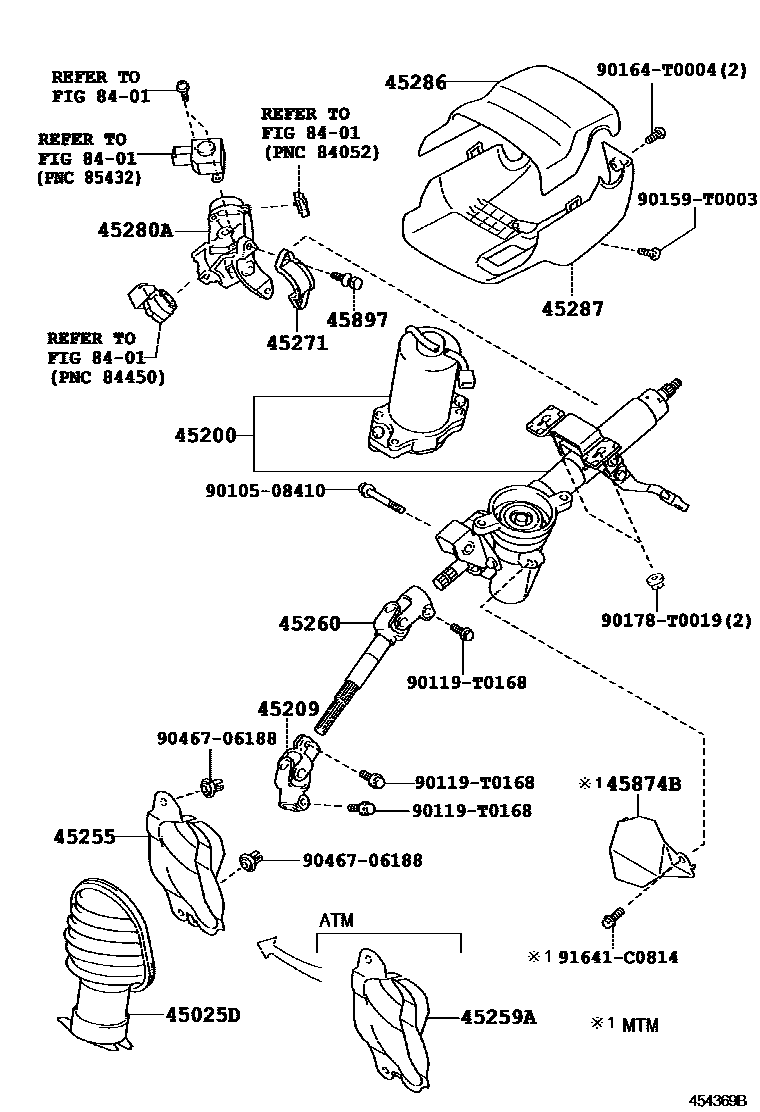

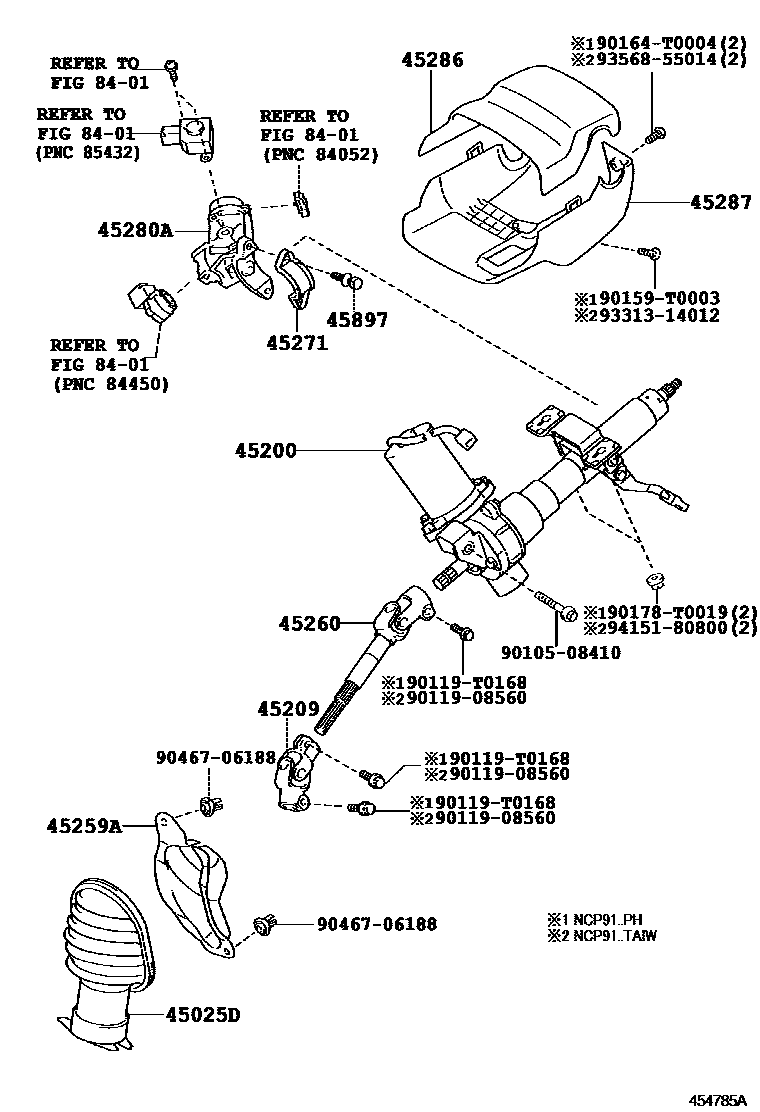

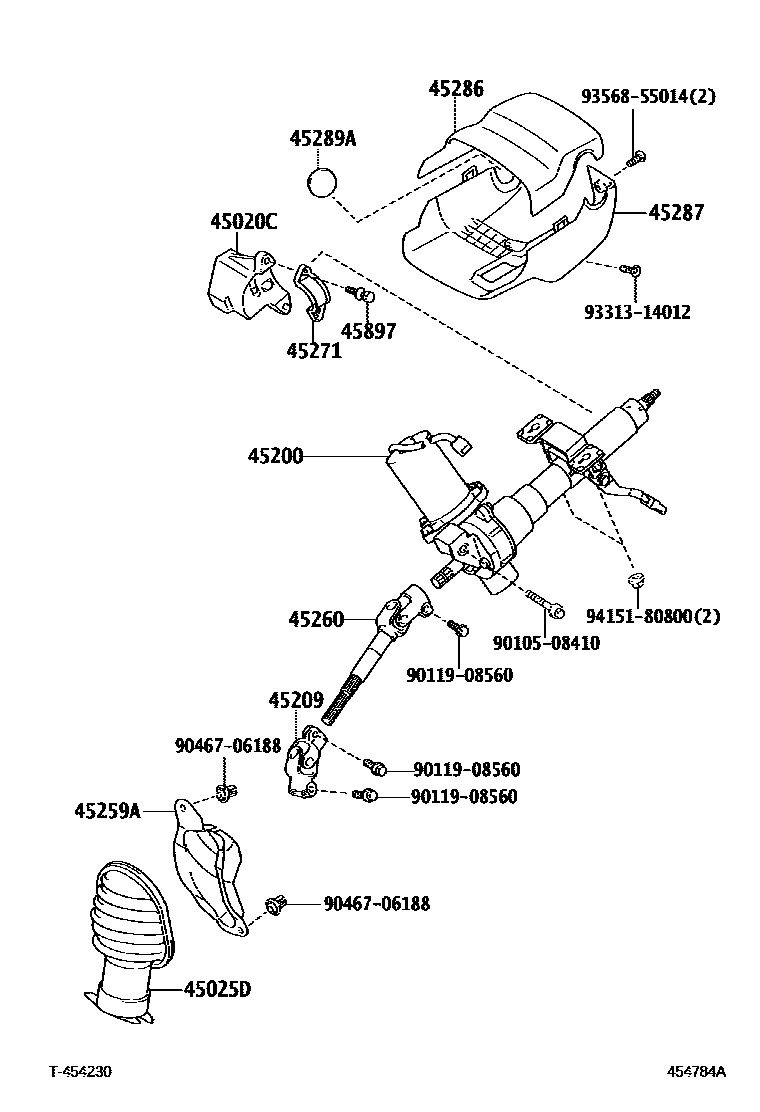

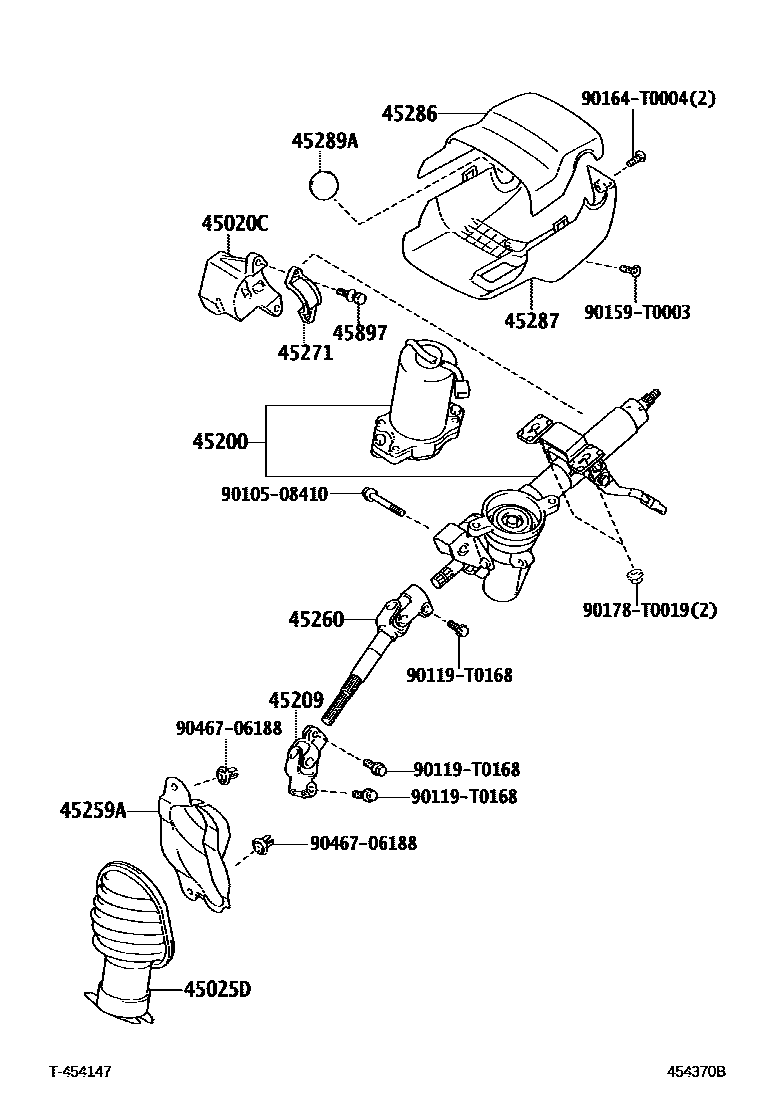

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-52140 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0D110 · 45025-0D130 |
| 45200 | Steering column assembly | 45200-0D250 · 45200-0D251 · 45200-0D252 · 45200-0D260 · 45200-0D261 · 45200-0D262 · 45200-0D270 · 45200-0D271 · 45200-0D272 · 45200-52260 · 45200-52270 · 45200-52310 · 45200-52311 · 45200-52500 · 45200-52501 |
| 45209 | Steering slip fork sub-assembly | 45209-0D030 |
| 45255 | Steering column hole cover | 45255-0D050 |
| 45259A | Steering column hole cover silencer plate | 45259-0D030 · 45259-0D060 · 45259-0D070 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-0D080 · 45260-0D090 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45280A | Steering column upper bracket assembly | 45280-06070 · 45280-06080 · 45280-06100 · 45280-22510 · 45280-52090 |
| 45874B | No. 1 steering column guard | 45874-0D030 · 45874-52020 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
