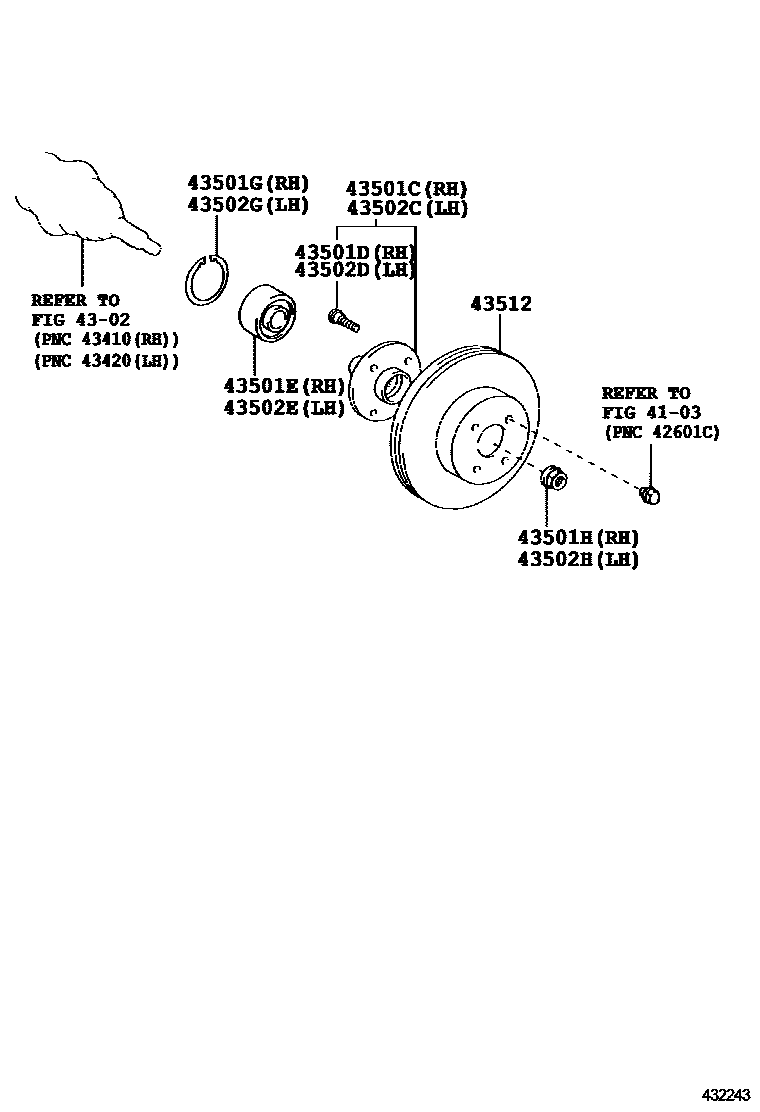

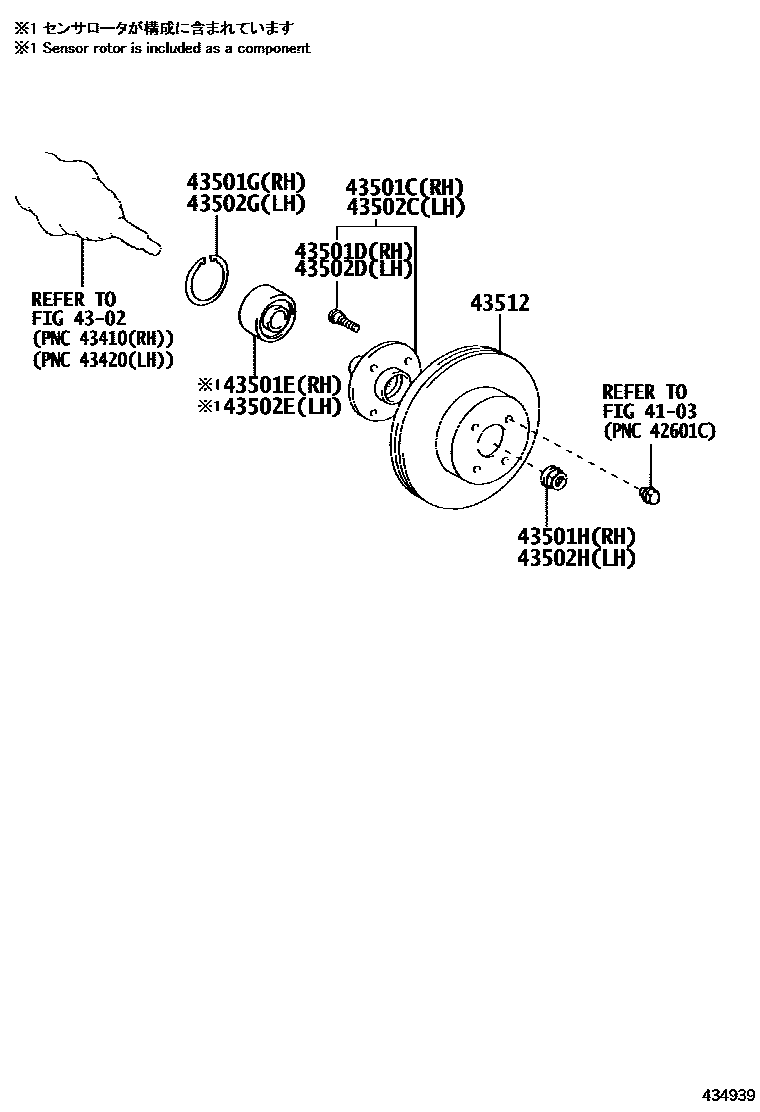

Toyota YARIS Front Axle Hub — Figure 4303
Toyota YARIS EPC diagram 4303, Front Axle Hub, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43501C | Right front axle hub sub-assembly | 43502-0D060 · 43502-0D070 · 43502-52030 |
| 43501D | Hub bolt (for right front axle) | 90942-02049 |
| 43501E | Bearing (for right front axle hub) | 90363-T0023 · 90369-T0005 |
| 43501G | Hole snap ring (for right front axle hub) | 90521-80003 |
| 43501H | Nut (for front axle right half shaft) | 90177-22001 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-0D060 · 43502-0D070 · 43502-52030 |
| 43502D | Hub bolt (for left front axle) | 90942-02049 |
| 43502E | Bearing (for left front axle hub) | 90363-T0023 · 90369-T0005 |
| 43502G | Hole snap ring (for left front axle hub) | 90521-80003 |
| 43502H | Nut (for front axle left half shaft) | 90177-22001 |
| 43512 | front brake disc | 43512-0D070 · 43512-0D080 · 43512-0D090 · 43512-0D100 · 43512-52120 · 43512-52130 |
